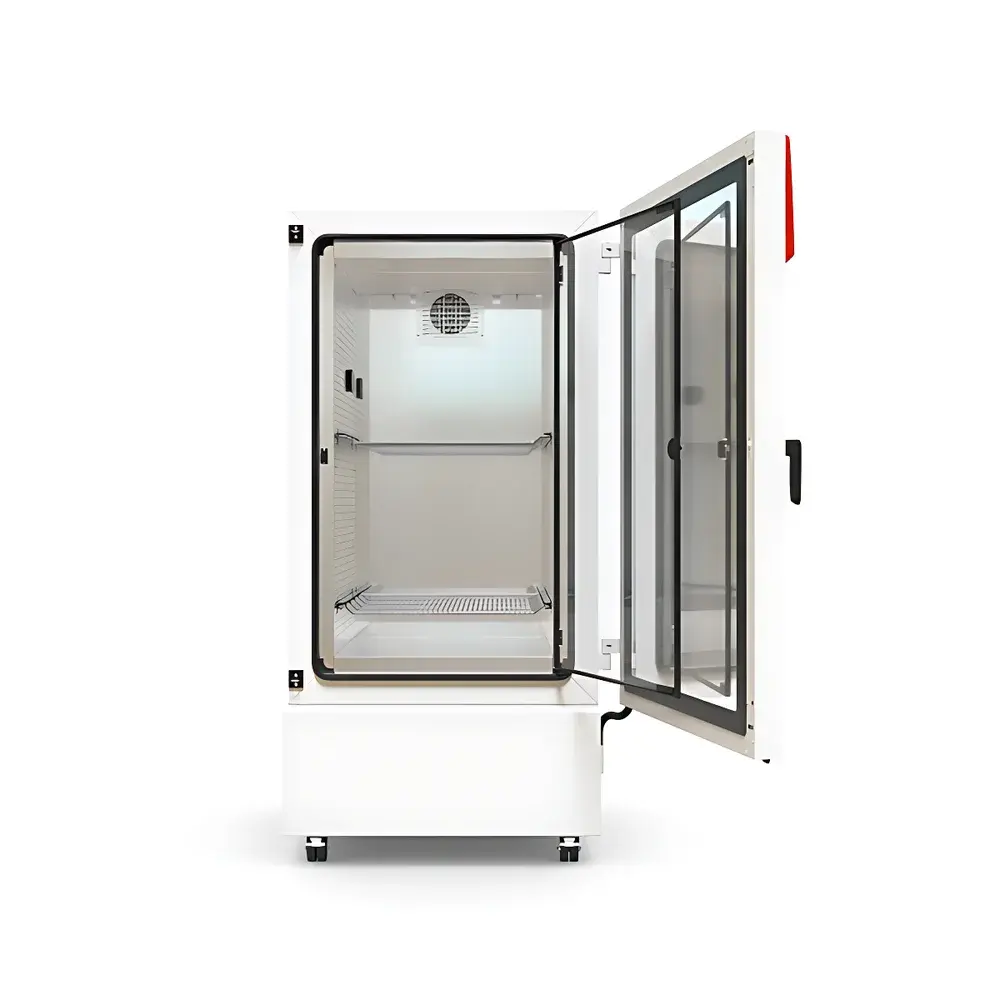

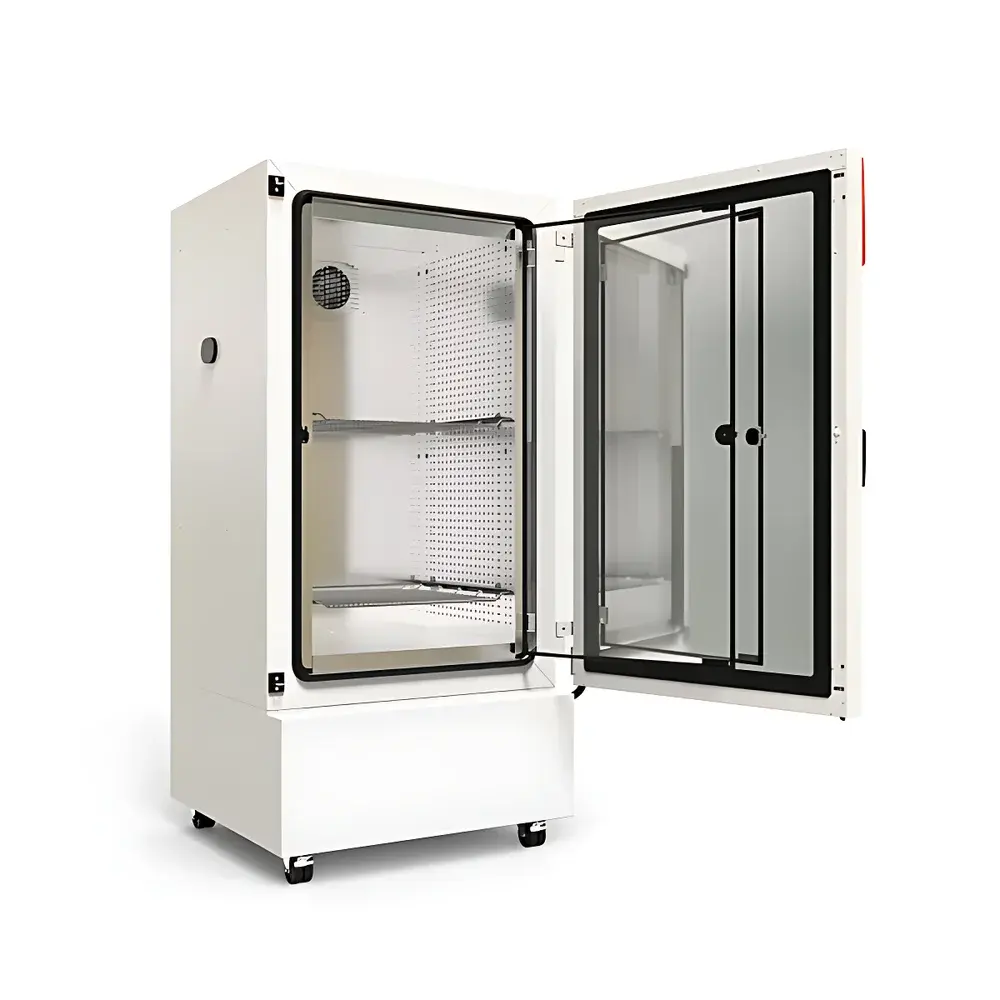

BINDER KBF 470 Temperature and Humidity Controlled Chamber

Overview

The BINDER KBF 470 is a precision-engineered upright temperature and humidity controlled chamber designed for long-term stability testing in compliance with International Council for Harmonisation (ICH) guidelines Q1A–Q1E. It operates on the principle of active climate control via dual-loop regulation—separately modulating refrigeration capacity, steam-based humidification, and heater output—to maintain highly stable and reproducible environmental conditions across its entire working volume. The chamber’s core architecture integrates BINDER’s proprietary APT.line™ preheating technology, which ensures uniform thermal distribution by actively heating the chamber walls prior to and during operation, eliminating cold spots and minimizing transient gradients—even under full load. Its water-cooled condensing system, combined with variable-speed inverter-driven compressors and eco-friendly R-600a refrigerant, delivers enhanced thermal responsiveness and reduced energy consumption—up to 40% lower than predecessor models—without compromising control fidelity or long-term reliability.

Key Features

• Stainless steel interior chamber with electropolished finish, resistant to corrosion and compliant with GMP cleaning requirements.
• HIT (High Insulation Technology) double-wall construction with vacuum-insulated panels for superior thermal retention and minimized external heat transfer.
• Capacitive humidity sensor with fast response time (< 10 s) and integrated steam humidification system enabling precise RH control from 10 % to 80 % RH.
• Door heating function prevents condensation on inner glass, maintaining optical clarity and preventing moisture ingress during low-temperature/high-humidity operation.
• Red triangular status indicator light with intuitive color-coded feedback (green = ready, yellow = warning, red = alarm), conforming to ISO 14122-3 ergonomic safety standards.
• Touchscreen controller (APT.line™) with real-time, multi-segment programmability; adjustable mounting height for operator ergonomics (470+ models).
• Independent Class 3.3 temperature safety device (DIN 12880) featuring optical and acoustic alarms, redundant sensor monitoring, and automatic shutdown.
• Two telescopic stainless steel shelves with smooth linear guides; large-diameter cable/port access opening with silicone plug for external sensor integration.
• Robust mobile base with dual swivel casters (front casters lockable), enabling safe repositioning in regulated laboratory environments.

Sample Compatibility & Compliance

The KBF 470 accommodates diverse sample formats—including open trays, sealed vials, blister packs, and primary packaging—within its 470 L working volume. Its validated climate uniformity (±0.1 °C temperature, ±1.5 % RH humidity across all zones per VDI/VDE 2627 Part 3) supports ICH Q5C biopharmaceutical stability protocols, USP storage condition definitions, and ASTM E145-22 standard practices for gravity-convection and forced-air chambers. The unit complies with EN 61000-6-2/6-4 (EMC), EN 61010-1 (safety), and carries CE marking for use in EU-regulated pharmaceutical QC labs. Data integrity is reinforced through built-in audit trail functionality, electronic signature support (via optional APT-COM™ Professional), and alignment with FDA 21 CFR Part 11 requirements when paired with validated software configurations.

Software & Data Management

The integrated APT-COM™ Basic software enables local data logging (internal memory up to 30 days at 1-min intervals), USB export of CSV-formatted measurement records, and remote status monitoring via Ethernet. For advanced validation workflows, APT-COM™ Professional supports IQ/OQ documentation templates, automated report generation (PDF/Excel), alarm event filtering, and synchronized multi-chamber fleet management. All logged parameters—including chamber setpoints, actual values, alarm timestamps, and system diagnostics—are stored with immutable timestamps and user attribution, satisfying GLP and GMP traceability mandates. Raw data files are stored in open, non-proprietary formats to ensure long-term readability and third-party analysis compatibility.

Applications

The KBF 470 serves as a reference-grade platform for regulatory-compliant stability studies across pharmaceutical, biotech, and medical device sectors. Typical use cases include accelerated stability testing (40 °C / 75 % RH), intermediate condition assessment (30 °C / 65 % RH), long-term storage simulation (25 °C / 60 % RH), and photostability screening when equipped with the optional ICH-compliant light module (UV-A, visible, near-IR spectral output per ICH Q1B). It is also employed in materials science for polymer aging, electronics component stress testing, and seed germination research—particularly when configured with the plant growth LED module offering PAR-tuned spectra and diurnal cycling.

FAQ

What ICH guidelines does the KBF 470 support?

It meets the environmental control, uniformity, and documentation requirements of ICH Q1A(R3), Q1B, Q5C, and Q5D, including specified temperature/humidity tolerances and data retention periods.
Is the KBF 470 suitable for GMP environments?

Yes—its stainless steel interior, validated performance, electronic audit trail, and optional 21 CFR Part 11-compliant software configuration support qualification under Annex 15 and EU GMP Chapter 3.
Can humidity be maintained below 10 % RH?

No—the certified operational range is 10–80 % RH; sub-10 % RH requires desiccant-based or nitrogen-purged systems.
Does the chamber support external probe inputs?

Yes—via the standard 3/4″ diameter port with silicone seal; compatible with calibrated PT100 or thermocouple inputs for internal sample monitoring.
What is the expected service life of the compressor system?

Based on BINDER’s field data, the inverter-driven R-600a system achieves >15 years of continuous operation under routine maintenance per DIN 31051.
