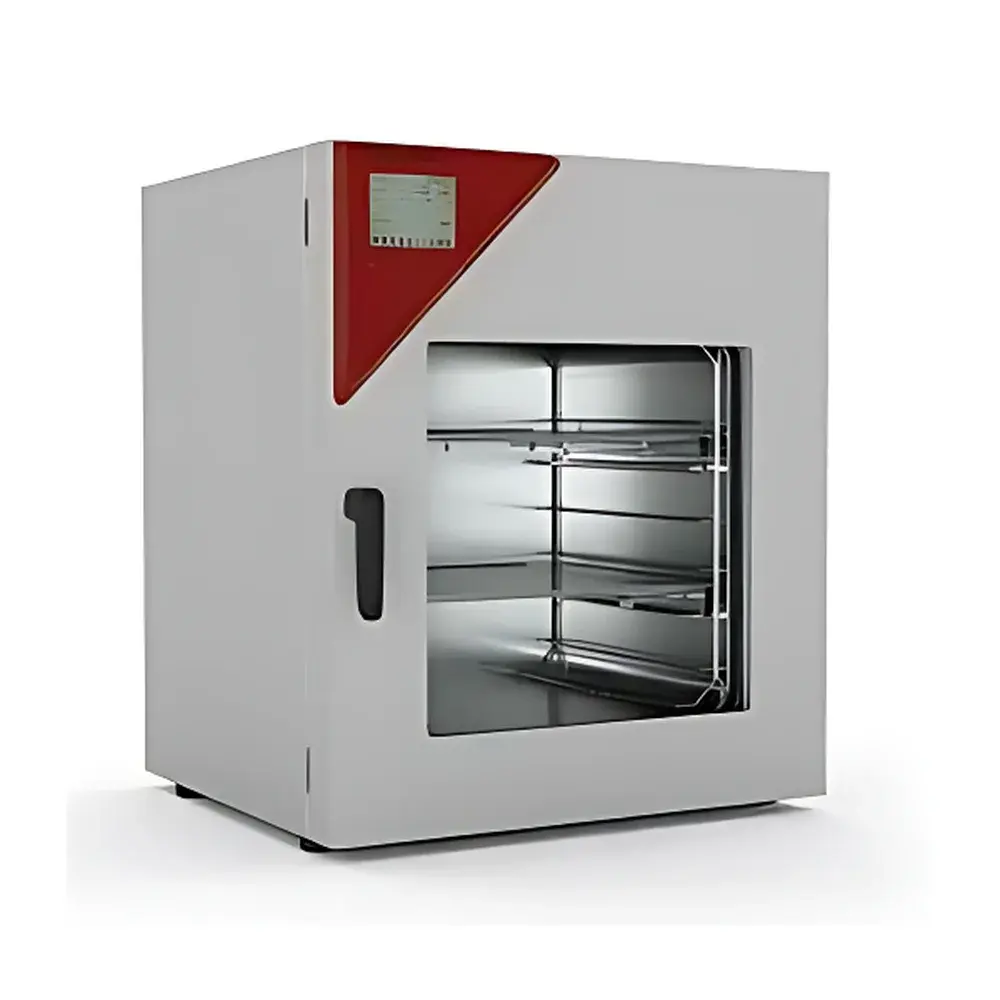

BINDER VD/VDL Series Vacuum Drying Ovens

Overview

The BINDER VD and VDL Series Vacuum Drying Ovens are precision-engineered laboratory systems designed for solvent removal, moisture analysis, thermal stabilization, and low-temperature drying of heat-sensitive or volatile samples. Operating on the principle of reduced-pressure evaporation—where lowering the ambient pressure inside the chamber decreases the boiling point of solvents—the ovens enable gentle, uniform drying without thermal degradation. Unlike conventional convection ovens, these vacuum systems eliminate oxidative damage and prevent explosive vapor accumulation during processing of flammable solvents. The air-jacketed heating architecture ensures exceptional temperature homogeneity (±0.3 °C at 100 °C, per DIN 12880) and rapid thermal response, while the fully isolated electronic compartment minimizes electromagnetic interference and enhances long-term reliability in regulated environments.

Key Features

• ATEX-certified VDL models compliant with Directive 2014/34/EU (Ex II 2G IIB T3 Gb/Gc X), enabling safe operation under vacuum <100 mbar with active pressure-controlled heating activation
• TFT touchscreen controller with real-time graphical overlay of chamber pressure and temperature profiles, supporting ramp-soak programming, weekly scheduling, and time-based alarm triggers
• Automated end-of-drying detection via dual-stage pressure decline monitoring, followed by programmable inert gas or ambient air ventilation
• Modular air-jacket heating system with two adjustable aluminum expansion shelves (stainless steel optional), optimized for conductive heat transfer across variable load geometries
• Dual universal ports: DN16 small-flange interface for sensor/power feedthroughs and DN40 large port for external instrumentation integration
• Analog voltage outputs (0–10 V) for both chamber temperature and absolute pressure, facilitating direct connection to SCADA, PLC, or centralized process control systems
• Impact-resistant safety glass door with spring-mounted retention mechanism, tested per EN 12150-1 for mechanical shock resistance
• Ethernet connectivity and USB data export support traceable recordkeeping; internal logger stores >10,000 timestamped measurement points in open CSV format

Sample Compatibility & Compliance

These ovens accommodate a broad spectrum of sample types—including pharmaceutical actives, polymer precursors, biological tissues, catalysts, and battery electrode coatings—without cross-contamination or residual solvent carryover. The stainless-steel chamber (electropolished finish available) resists corrosion from organic solvents, acids, and halogenated compounds. All VD/VDL units are engineered to meet ISO 17025 calibration traceability requirements and support validation protocols aligned with USP , ASTM E145, and ICH Q5C. For regulated laboratories, APT-COM Professional+GLP software provides electronic signatures, user access levels, and full 21 CFR Part 11-compliant audit trails—including operator ID, parameter changes, and event timestamps.

Software & Data Management

APT-COM software serves as the central hub for remote device management, multi-unit synchronization, and regulatory-grade data handling. The Basic version enables local configuration and CSV export; Professional adds real-time monitoring, alarm escalation, and report generation; GLP mode enforces role-based permissions, electronic signatures, and immutable log archiving. All versions support scheduled firmware updates, automated backup to network drives, and integration with LIMS via OPC UA or RESTful API extensions. Raw pressure/temperature logs include metadata such as vacuum pump runtime, valve actuation cycles, and controller firmware revision—critical for root-cause analysis during quality investigations.

Applications

• Pharmaceutical R&D: Residual solvent quantification in APIs per ICH Q3C guidelines using gravimetric loss-on-drying under controlled vacuum ramps
• Materials Science: Degassing of composite preforms prior to resin infusion; thermal aging studies of encapsulants under inert atmosphere
• Electronics Manufacturing: Moisture removal from PCB assemblies before conformal coating, minimizing popcorning effects during reflow
• Academic Research: Lyophilization pre-drying step for cryo-EM sample preparation; controlled dehydration of hydrogels for mechanical property characterization
• Quality Control Labs: AOAC 952.12-compliant moisture content determination in food matrices and herbal extracts

FAQ

What vacuum level can the VD/VDL series achieve with standard configuration?
Standard units reach ≤0.1 mbar with integrated vacuum valve control; ultimate pressure depends on connected pump type (e.g., diaphragm, chemical-resistant, or speed-controlled variants).
Is inert gas purging supported during vacuum release?
Yes—universal ventilation interface allows selectable introduction of nitrogen, argon, or compressed air via programmable solenoid valves managed through APT-COM or front-panel controller.
Can the oven be validated for GMP production use?
Absolutely—BINDER provides IQ/OQ documentation templates, factory calibration certificates (DAkkS-accredited where applicable), and on-site PQ support through certified service engineers.
Are shelf configurations customizable for non-standard sample holders?
Yes—custom bracket designs, perforated trays, and wire-mesh inserts are available under BINDER INDIVIDUAL program, with full functional testing and CE marking prior to delivery.
How is temperature uniformity verified across chamber volume?
Per DIN 12880, uniformity is measured using nine calibrated PT100 sensors at defined spatial coordinates; test reports document deviation limits (typically ±0.5 °C at 60 °C for 119 L chamber).
