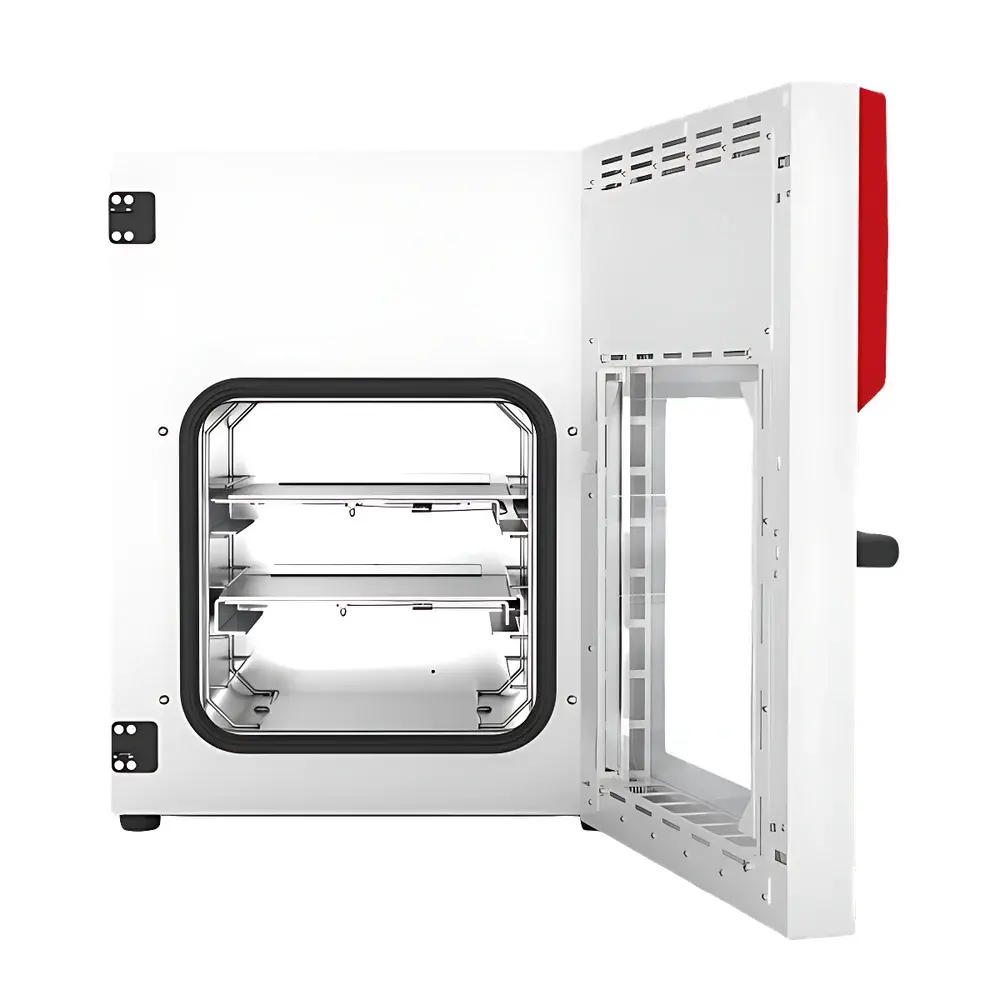

BINDER VDL 56 Vacuum Drying Oven

Overview

The BINDER VDL 56 Vacuum Drying Oven is an engineered solution for gentle, oxidation-sensitive drying, solvent removal, and moisture analysis in regulated laboratory environments. Operating on the principle of reduced-pressure thermal processing, it eliminates atmospheric oxygen and lowers the boiling point of volatile substances—enabling precise dehydration of heat-labile samples without thermal degradation. Designed and manufactured in Tuttlingen, Germany, the VDL 56 conforms to DIN EN 61000-6-3 (EMC) and DIN EN 61000-6-2 (immunity), and integrates a robust stainless-steel chamber (AISI 304), double-walled insulated construction, and PID-controlled heating system. Its temperature stability of ±0.1 °C across the full operating range (RT + 9 °C to 110 °C) meets stringent requirements for gravimetric moisture determination (e.g., ASTM E1868, ISO 5517), residual solvent quantification (ICH Q5C), and pre-conditioning of polymer specimens prior to mechanical testing.

Key Features

• Gentle vacuum-assisted drying with adjustable vacuum level (1–1100 mbar absolute) via integrated digital vacuum controller and integrated vacuum pump interface
• Direct conductive heating system ensuring rapid thermal response and exceptional uniformity—validated per DIN 12880 Annex A using 9-point sensor mapping
• Stainless-steel interior (AISI 304) with seamless welded corners and electropolished finish for corrosion resistance and ease of decontamination
• Double-glazed, argon-filled observation window with internal anti-fog coating for real-time process monitoring without pressure interruption
• Integrated overtemperature safety cut-off (independent Class 2 thermostat per DIN 12880) and door-open safety interlock
• Intuitive 4.3-inch TFT touchscreen interface with multilingual support (EN/DE/FR/ES), configurable alarm thresholds, and event logging

Sample Compatibility & Compliance

The VDL 56 accommodates diverse sample formats—including Petri dishes, weighing boats, glass vials, and custom fixtures—within its 55 L chamber (400 × 400 × 343 mm). Its inert chamber environment supports applications involving pharmaceutical actives, biological tissues, ceramic precursors, lithium-ion battery electrode coatings, and nanomaterial dispersions. The unit complies with key regulatory frameworks: it is CE-marked under the EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU; its control architecture supports 21 CFR Part 11-compliant data integrity when paired with BINDER’s optional LabExchange software suite; and its temperature validation protocol aligns with ISO/IEC 17025 and GxP-aligned laboratory SOPs for equipment qualification (IQ/OQ/PQ).

Software & Data Management

While the VDL 56 operates autonomously via its embedded controller, optional integration with BINDER’s LabExchange software enables remote monitoring, automated report generation (PDF/CSV), and long-term trend analysis. All temperature and vacuum setpoints, actual values, alarms, and user actions are timestamped and stored with audit-trail capability—essential for GLP and GMP environments. Data export supports traceability requirements per ISO 17025 Clause 7.7 and facilitates integration into LIMS or ELN platforms via standard OPC UA or Modbus TCP protocols.

Applications

• Moisture content determination in APIs and excipients (USP & Ph. Eur. general chapter 2.2.32)
• Drying of hygroscopic materials (e.g., metal-organic frameworks, zeolites) without structural collapse
• Pre-treatment of composite substrates prior to adhesion testing (ASTM D4541)
• Removal of residual solvents from thin-film coatings used in photovoltaics and OLED R&D
• Stabilization of calibration standards and reference materials under inert, low-humidity conditions
• Accelerated aging studies requiring controlled thermal-vacuum exposure (MIL-STD-810H Method 506.6)

FAQ

What vacuum level can the VDL 56 achieve with its standard configuration?

The VDL 56 is equipped with a vacuum interface compatible with external pumps; typical ultimate pressure with a two-stage rotary vane pump is ≤0.1 mbar (10 Pa). Optional oil-free diaphragm pumps enable clean vacuum down to 5 mbar for solvent-sensitive applications.
Is the chamber volume validated per ISO 12782?

Yes—the internal volume (55 L) is measured and documented per ISO 12782 Annex B using calibrated displacement methodology; chamber geometry is certified in the factory test report.
Can the VDL 56 be qualified for GMP production support?

Absolutely. It supports full IQ/OQ/PQ documentation packages, including as-delivered calibration certificates (traceable to DKD/DAkkS), temperature mapping reports, and vacuum leak-test protocols compliant with ASTM E493.
How many shelves can be installed simultaneously without compromising airflow or temperature uniformity?

Up to five shelves may be installed; however, for optimal thermal performance and compliance with DIN 12880 uniformity specifications, BINDER recommends no more than four loaded shelves during qualification-critical runs.
