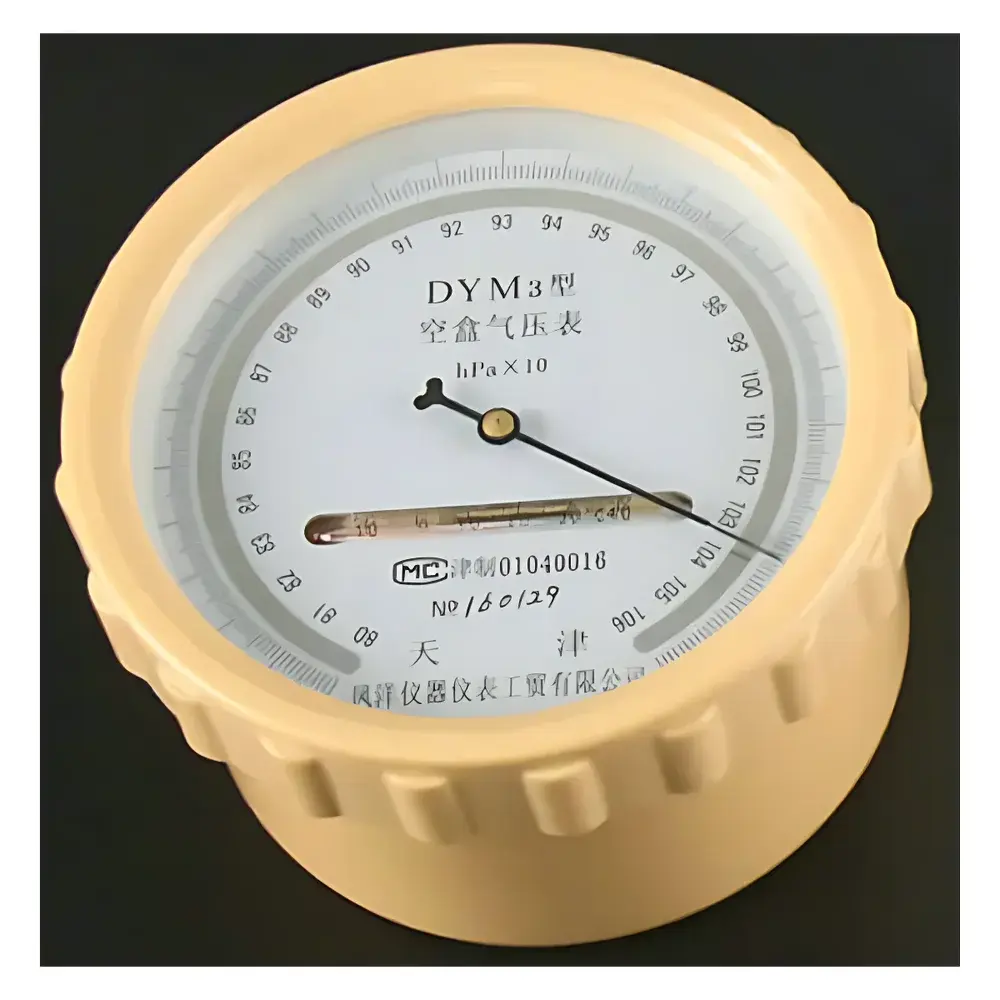

BJBY DYM3 Aneroid Barometer

Overview

The BJBY DYM3 Aneroid Barometer is a precision mechanical instrument engineered for reliable, mercury-free atmospheric pressure measurement in field and laboratory environments. It operates on the fundamental principle of aneroid barometry: atmospheric pressure deforms a sealed, evacuated metallic capsule (an aneroid cell), and this elastic deformation—amplified via a low-friction lever system—is translated into rotational motion of a calibrated pointer across a circular scale. Unlike liquid-column barometers, the DYM3 contains no hazardous substances and requires no leveling or fluid maintenance, making it suitable for mobile deployment where stability, safety, and operational simplicity are critical. Its design adheres to the structural and metrological requirements outlined in GB/T 12159–2015, ensuring traceable performance under defined environmental conditions. The instrument is not intended for absolute calibration reference but serves as a high-reproducibility field indicator for meteorological observation, altitude estimation, environmental monitoring, and industrial process support.

Key Features

• Mechanically robust aneroid capsule assembly fabricated from beryllium-copper alloy for long-term elasticity retention and hysteresis minimization
• Integrated bi-metallic thermometer compensates for thermal expansion effects on the movement mechanism, supporting accurate readings across −10 °C to +40 °C ambient range
• Optically enhanced analog dial with 1 hPa minimum scale division and clear black-on-white contrast for rapid visual interpretation under variable lighting
• Compact, self-contained housing (156 × 156 × 115 mm) constructed from corrosion-resistant aluminum alloy with protective lacquer finish
• Weight ≤ 1.5 kg ensures portability without compromising mechanical damping or pointer stability during transport or handheld use
• No power supply, batteries, or consumables required—fully passive operation compliant with intrinsic safety standards in explosive or remote environments

Sample Compatibility & Compliance

The DYM3 is designed exclusively for ambient atmospheric pressure measurement in open-air or ventilated indoor settings. It is not rated for sealed chamber use, differential pressure applications, or corrosive gas exposure. As a Class II mechanical barometer per national metrological classification, it meets GB/T 12159–2015 for initial verification and periodic inspection protocols. While not certified to ISO/IEC 17025 or NIST-traceable calibration out-of-box, its documented correction methodology—including temperature correction tables and scale error compensation—enables users to apply standardized adjustments consistent with WMO Guide to Meteorological Instruments and Methods of Observation (CIMO Guide, Chapter 12). The device supports GLP-aligned documentation when used in environmental monitoring workflows where pressure normalization of sensor data (e.g., particulate matter samplers, gas flow controllers) is required.

Software & Data Management

The DYM3 is a fully analog, standalone instrument with no embedded electronics, firmware, or digital interface. Consequently, it does not support real-time data logging, USB connectivity, or software integration. All measurements are manually recorded, and users are responsible for applying documented correction procedures (temperature, scale, and supplemental corrections) prior to data entry into LIMS, Excel, or scientific analysis platforms. For regulatory contexts requiring audit trails—such as EPA Method 2 (stack gas velocity) or ISO 5167 (differential pressure-based flow measurement)—the instrument must be paired with a written calibration log, correction worksheet, and signed observer record to satisfy documentation requirements under 21 CFR Part 11-compliant workflows.

Applications

• Meteorological stations: Routine synoptic pressure reporting, trend analysis, and storm system tracking
• Aviation ground support: Pre-flight altimeter setting verification at non-towered airfields and remote airstrips
• Geodetic surveying: Elevation-dependent pressure normalization for GPS-aided leveling and drone-based photogrammetry
• Industrial hygienics: Ambient pressure input for correcting respirable dust sampling flow rates per OSHA Method ID-121
• Academic earth science labs: Atmospheric physics demonstrations, pressure-altitude relationship experiments, and student fieldwork instrumentation
• Maritime navigation: Backup barometric reference aboard small vessels where electronic systems may be subject to EMI or power failure

FAQ

Is the DYM3 suitable for calibration of digital pressure sensors?
No—it is a field-indicating instrument, not a primary or secondary standard. Calibration against a certified deadweight tester or NIST-traceable reference is required before use in metrologically sensitive applications.
Does the instrument require periodic recalibration?
Yes. Per GB/T 12159–2015, verification at accredited laboratories is recommended every 12 months or after mechanical shock, extreme temperature exposure, or observed drift exceeding 2 hPa.
Can the built-in thermometer be used independently for ambient temperature logging?
It is mechanically coupled to the barometric movement and calibrated only for thermal correction of pressure reading; it is not a standalone thermometric instrument and lacks NIST-traceable certification.
What mounting options are available?
The DYM3 features two threaded holes (M4) on the rear panel for wall or tripod mounting. No dedicated bracket is supplied, but standard photographic or surveying mounts with M4 compatibility may be adapted.
Is the scale readable in inches of mercury (inHg) or millibars (mb)?
The dial is calibrated exclusively in hectopascals (hPa), equivalent to millibars (mb); conversion to inHg requires manual calculation using the factor 1 inHg = 33.8639 hPa.
