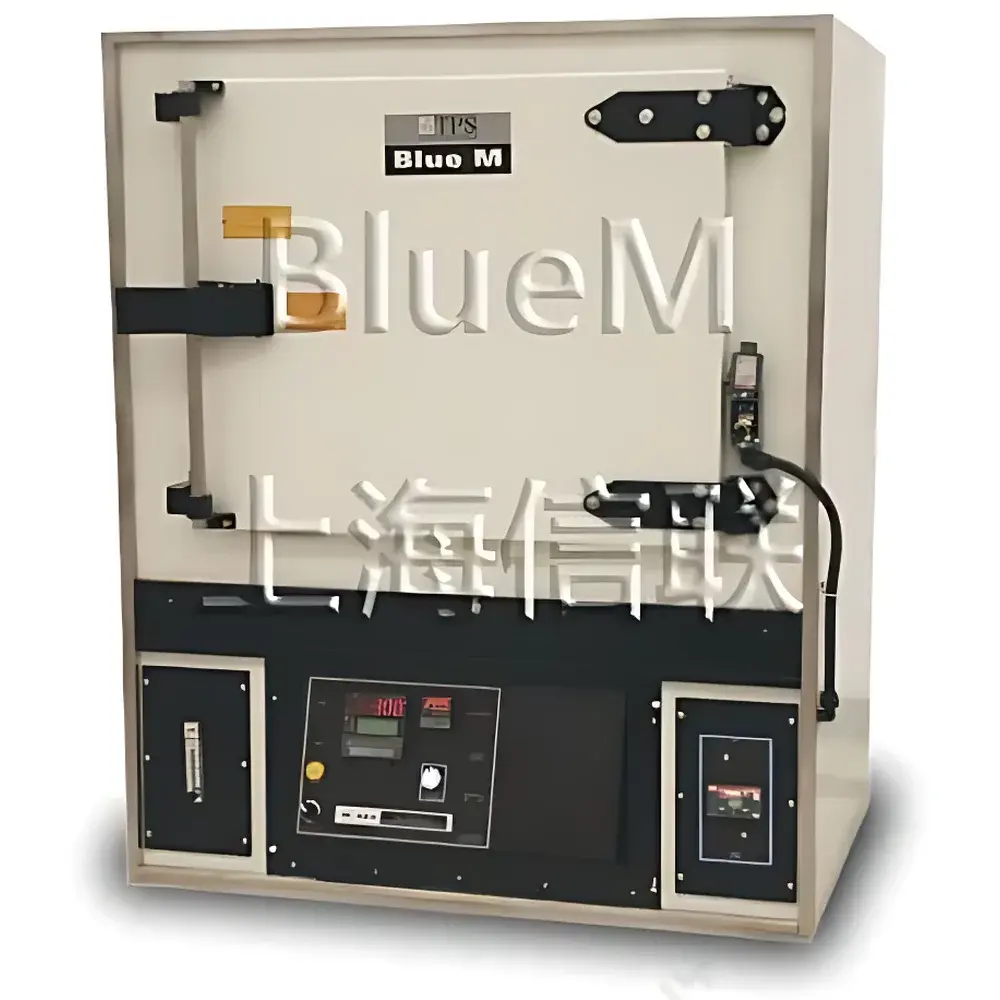

Blue M 146 Cleanroom Oven

Overview

The Blue M 146 Cleanroom Oven is an engineered-for-precision forced-air convection oven specifically designed for thermal processing in controlled environments compliant with ISO Class 6 (1000) and Class 7 (10,000) cleanroom specifications. Unlike standard laboratory ovens, the 146 series integrates ULPA filtration (≥99.999% efficiency at 0.12 µm), laminar airflow management, and structural features that prevent particle generation—making it suitable for applications where particulate contamination must be minimized during heating, drying, or curing. Its operational temperature range spans from ambient +15 °C to 250 °C, with a control accuracy of ±0.5 °C and uniformity maintained within ±1% across the working chamber. The oven employs a robust, fan-driven recirculation system with adjustable air velocity and directional flow optimization to ensure consistent thermal distribution—critical for process validation in pharmaceutical manufacturing, semiconductor packaging, medical device sterilization support, and advanced materials R&D.

Key Features

• ULPA-filtered recirculating airflow system with validated particle retention performance per IEST-RP-CC001 and ISO 14644-1
• Stainless steel construction (interior and exterior) with electropolished surfaces to minimize shedding and support cleaning validation
• Stackable, space-efficient architecture with optional front/rear dual-door configuration and mechanical interlock for sequential access control
• Integrated overtemperature cut-off circuitry (independent of main controller) meeting UL 61010-1 and CSA C22.2 No. 61010-1 requirements
• Dual-door interlock system preventing simultaneous opening to maintain internal pressure differential and particulate integrity
• Modular utility interfaces including feedthrough ports for power, data, and gas lines—compatible with wall-mounted cleanroom pass-through assemblies
• Standard digital timer with programmable 24-hour, 7-day scheduling; supports hold, ramp-soak, and multi-step profiles via optional software

Sample Compatibility & Compliance

The Blue M 146 accommodates a broad range of sample formats—from Petri dishes and wafer carriers to trays of coated substrates and polymer components—within its configurable internal volume (1.2 to 21 ft³). Its stainless steel shelving system supports load capacities up to 15 kg per shelf, with removable trays and adjustable spacing. Designed for GMP-aligned workflows, the oven supports audit-ready documentation through optional Comm-Link software, enabling electronic record generation compliant with FDA 21 CFR Part 11 when paired with validated user authentication and change-control protocols. It meets applicable sections of ASTM E2876 (Standard Guide for Thermal Processing Equipment Qualification) and supports IQ/OQ/PQ execution per ISO/IEC 17025 and Annex 1 (EU GMP) requirements for cleanroom-associated thermal equipment.

Software & Data Management

The standard Comm-Link communication module provides RS-485 output, convertible to RS-232 for integration into centralized lab monitoring systems (e.g., DeltaV, LabWare LIMS, or custom SCADA). Optional firmware enables real-time temperature logging at user-defined intervals (1–60 sec), alarm event timestamping, and CSV export for traceability. All parameter changes are recorded with operator ID, timestamp, and pre/post values—supporting ALCOA+ data integrity principles. When configured with external validation hardware (e.g., calibrated thermocouple arrays), the system supports automated calibration verification reports aligned with ISO/IEC 17025 Clause 6.5.

Applications

• Residual solvent removal from pharmaceutical tablet coatings under ISO Class 6 conditions
• Curing of low-outgassing epoxies used in optical sensor housings
• Moisture conditioning and desiccation of MEMS packaging substrates prior to hermetic sealing
• Thermal stabilization of reference standards for metrology labs requiring particulate-free environments
• Bake-out cycles for vacuum chamber components in semiconductor fabrication tool qualification
• Accelerated aging studies of biocompatible polymers under controlled thermal stress without airborne contamination

FAQ

Does the Blue M 146 meet ISO 14644-1 Class 6 certification out-of-the-box?

No—certification requires on-site testing by an accredited body after installation, including particle count, airflow velocity, and recovery time validation. The oven is engineered to achieve Class 6 performance when installed per Blue M’s cleanroom integration guidelines.
Can the ULPA filter be replaced in-house without tools?

Yes—the filter housing uses a quick-release clamp design; replacement takes <5 minutes and requires no specialized tools. Filter service life is typically 12–18 months under continuous operation, depending on ambient air quality.
Is the oven compatible with nitrogen-purged operation?

Yes—optional inert gas inlet/outlet ports are available; the chamber can be configured for positive-pressure purging with N₂ or Ar, supporting moisture-sensitive processes such as lithium battery electrode drying.
What validation documentation is supplied with the unit?

Factory-installed calibration certificates (NIST-traceable thermocouples), electrical safety test reports (UL/CSA), and material compliance declarations (RoHS, REACH) are included. IQ/OQ protocol templates are provided upon request.
How is airflow uniformity verified during qualification?

Per ASTM E2876 Annex A3, thermocouple mapping is performed at ≥9 spatial points across three planes (top/mid/bottom) while maintaining steady-state temperature; deviation must remain within ±1% of setpoint for Class 6 compliance.
