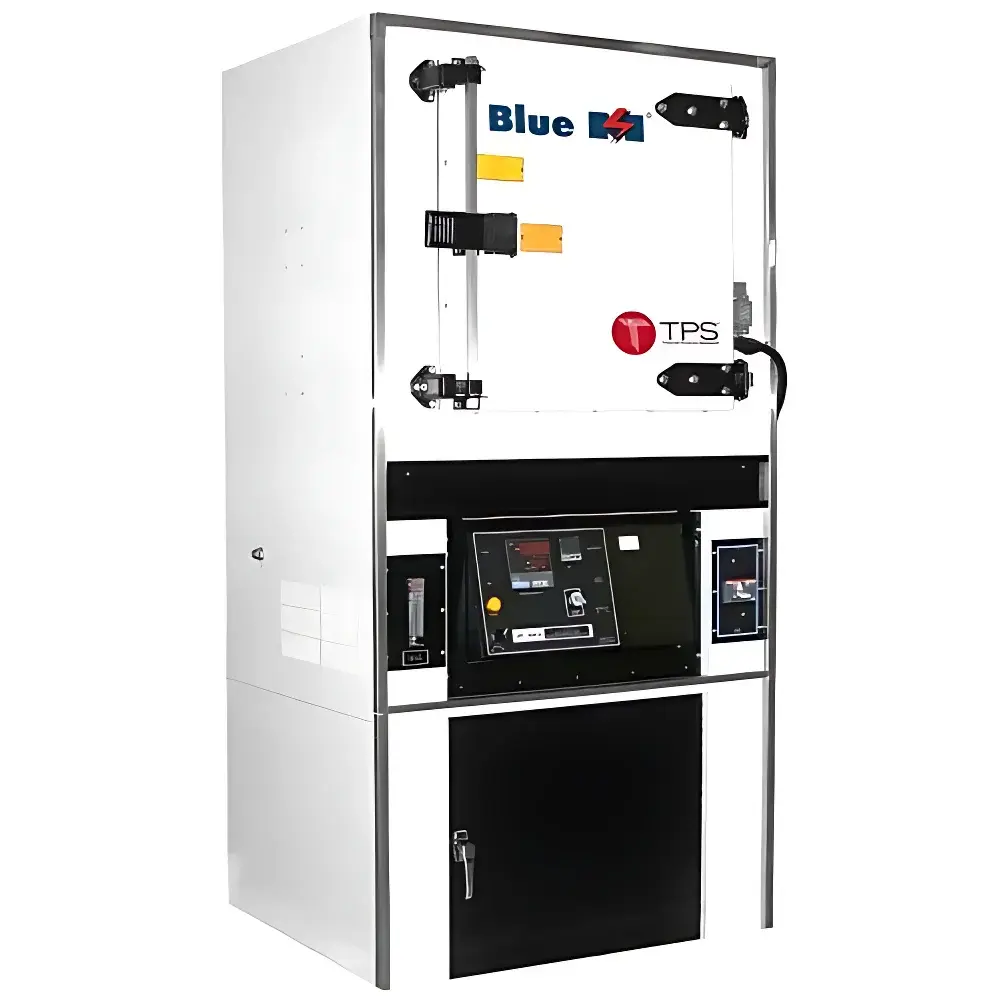

Blue M 146 Series Cleanroom-Compatible Forced-Air Circulating Oven

Overview

The Blue M 146 Series Cleanroom-Compatible Forced-Air Circulating Oven is an engineered thermal processing system designed for controlled environment applications where particle control, thermal stability, and process repeatability are critical. Unlike standard laboratory ovens, the 146 Series integrates a fully sealed, welded 304 stainless steel chamber with horizontal laminar airflow and continuous recirculation through certified HEPA filters (≥99.99% @ 0.3 µm), ensuring ISO Class 5 (Fed Std 209E Class 100) air quality within the working chamber—without reliance on external cleanroom infrastructure. Its operating principle relies on precision-controlled convection: a variable-speed centrifugal blower delivers filtered, temperature-regulated air across a uniquely adjustable semi-perforated baffle wall, enabling fine-tuned airflow distribution to maintain uniform thermal profiles across variable load configurations. This architecture meets the fundamental requirements of pharmaceutical drying (USP ), photomask bake processes (SEMATECH specifications), moisture removal from polyamide coatings (ASTM D2247), and low-oxygen thermal stabilization of sensitive active pharmaceutical ingredients (APIs).

Key Features

• Fully welded, seam-sealed 304 stainless steel interior with electropolished finish—eliminates crevices and minimizes particle shedding in accordance with ISO 14644-1 cleanroom particulate limits.
• Horizontal forced-air recirculation system with integrated HEPA filtration (H14 grade, EN 1822-1); all process air is continuously recirculated and filtered—no ambient air ingress.
• Dual independent over-temperature protection: primary PID controller + redundant mechanical upper-limit cutoff (ULC) with manual reset, both independently wired and tested per UL508A.
• Adjustable inert gas purge system (N₂ or Ar) with dual-stage flow control: high-flow initial purge (up to 15 L/min) followed by low-flow maintenance mode (<1 L/min), monitored via chamber pressure gauge and calibrated rotameter.
• Thermally insulated double-wall door with ceramic fiber gasket; surface temperature remains ≤45°C at 250°C internal operation (per ASTM C1055).
• UL508A-listed control panel featuring grounded fault circuit interrupter (GFCI), emergency stop with illuminated beacon and audible alarm, and main power fuse disconnect.
• Factory-assembled and individually validated: each unit undergoes full thermal mapping (16-point sensor array) at 100°C and 250°C per IQ/OQ protocols prior to shipment.

Sample Compatibility & Compliance

The 146 Series accommodates diverse sample geometries—from wafers and PCBs to pharmaceutical trays and polymer-coated substrates—within its modular internal volume range (3.4–21.6 ft³). Chamber dimensions support standard ISO 7 cleanroom-compatible shelving (stainless steel, perforated or solid). All models comply with IEC 61000-6-3 (EMC emissions), UL 61010-1 (safety), and meet essential requirements of the EU Machinery Directive 2006/42/EC. Optional configurations support FDA 21 CFR Part 11-compliant data integrity (with audit-trail-enabled programmable controller), GLP/GMP traceability (via optional paperless temperature recorder with NIST-traceable calibration certificate), and ASTM E2207-defined temperature uniformity validation. The inert gas purge option enables oxygen reduction to <10 ppm—validated per USP analytical instrument qualification guidelines.

Software & Data Management

Standard configuration includes a microprocessor-based digital controller with intuitive membrane keypad interface, real-time display of setpoint, actual temperature, and elapsed time. Optional Ethernet/USB-enabled programmable controller supports up to 20 ramp-hold segments, event-triggered logging (e.g., door open, purge start), and CSV export of time-stamped temperature data at user-defined intervals (1–60 sec). When paired with Blue M’s optional Paperless Chart Recorder (Model RDR-2000), the system provides 21 CFR Part 11-compliant electronic records—including operator ID, signature, reason-for-change fields, and immutable audit trail—with automatic backup to encrypted SD card. All firmware revisions are version-logged and digitally signed to ensure software traceability during regulatory inspections.

Applications

• Pharmaceutical: Solvent removal from lyophilized formulations, depyrogenation of glass vials (per USP ), and thermal validation of sterilization cycles.
• Semiconductor: Post-lithography soft-bake and hard-bake of photoresists (g-line/i-line), wafer-level stress relief, and die attach curing under nitrogen atmosphere.
• Materials Science: Moisture conditioning of composites (ASTM D5229), outgassing studies of adhesives, and thermal aging of encapsulants per IPC-9701.
• Medical Device: EO residue desorption validation (ISO 10993-7), polymer annealing, and shelf-life stability testing under controlled humidity and inert environments.
• Academic Research: Controlled-oxidation experiments, catalyst pre-treatment, and reproducible thermal degradation kinetics studies requiring particle-free, uniform heating.

FAQ

Does the 146 Series qualify as a “cleanroom oven” per ISO 14644-1?
Yes—the internal HEPA recirculation system maintains ≥99.99% particle capture at 0.3 µm, and the fully welded 304 SS chamber prevents shedding. Validation reports confirm ISO Class 5 compliance under static and dynamic (loaded) conditions.
Can the oven operate continuously at 250°C with inert gas purge enabled?
Yes—thermal insulation and dual over-temperature protection allow uninterrupted 250°C operation. The purge system is rated for continuous duty at flow rates up to 15 L/min with N₂ or Ar.
Is temperature mapping data provided with each unit?
Yes—each oven ships with a factory-generated IQ/OQ report including thermal uniformity maps at two temperatures (100°C and 250°C), performed using 16 calibrated PT100 sensors per ASTM E2207 Annex A2.
What electrical service is required for the largest model (1406)?
The 1406 model requires 480 VAC, 3-phase, 60 Hz at 24.0 kW (31 A circuit); single-phase operation is not supported for this configuration.
Can the HEPA filter be replaced without tools?
Yes—the front-access HEPA module is tool-free removable; replacement filters are supplied with pre-certified efficiency test reports and installation instructions aligned with ISO 14644-3.
