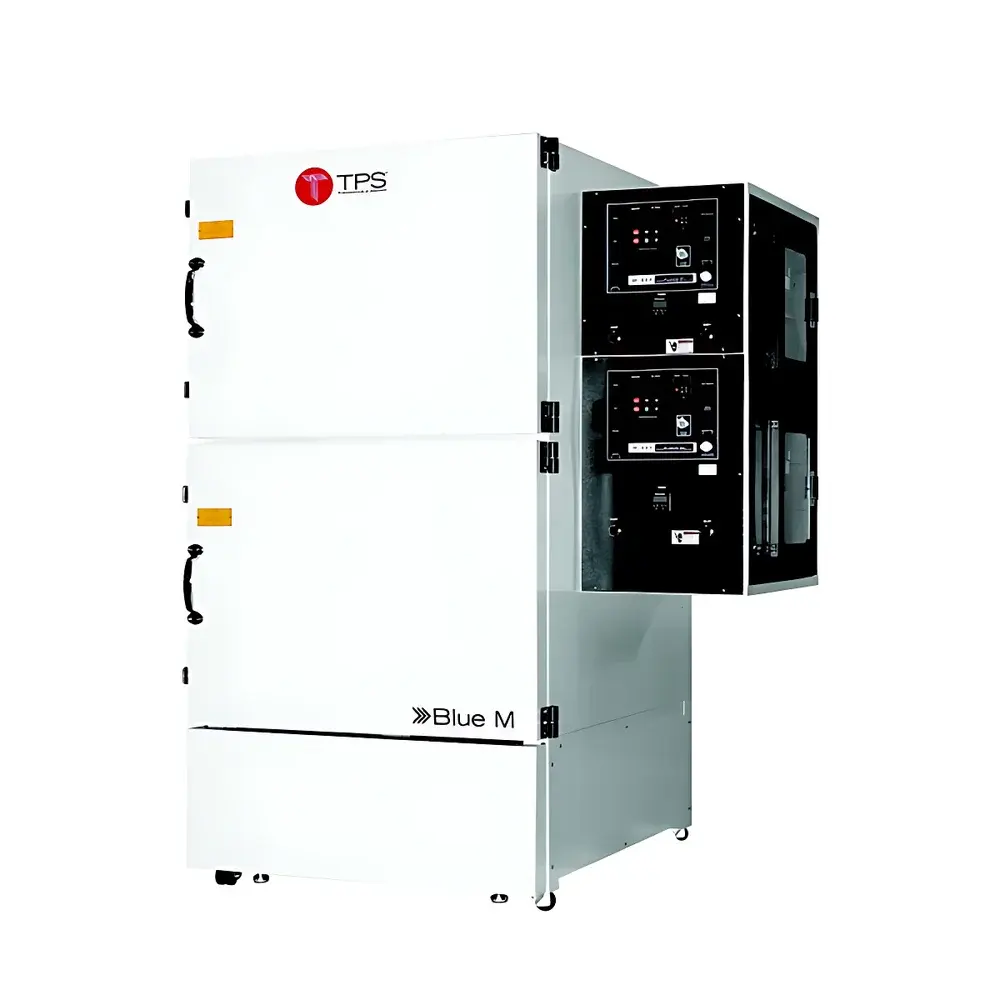

Blue M STL Series Stackable Forced-Air Laboratory Oven

Overview

The Blue M STL Series Stackable Forced-Air Laboratory Oven is an engineered solution for precision thermal processing in research, quality control, and production environments. Utilizing horizontal dual-boosted forced-air convection, this oven ensures rapid heat-up, exceptional temperature stability, and uniform thermal distribution across the entire working chamber—critical for applications requiring repeatable thermal profiles such as binder burnout (debinding), solvent evaporation, polymer curing, PCB baking, and pre-conditioning of electronic components. Designed and manufactured in the USA, the STL-05 model meets the rigorous demands of semiconductor fabrication, aerospace materials testing, and advanced ceramics manufacturing—where thermal consistency, long-term reliability, and regulatory traceability are non-negotiable.

Key Features

• Robust structural architecture: 16-gauge or heavier steel exterior panels with white powder-coated finish and fire-rated interior lining
• High-efficiency thermal insulation: 102 mm (4 in) fiberglass blanket minimizes heat loss and improves energy efficiency
• Dual-boosted horizontal airflow system: Ensures laminar, uniform air movement across all load configurations—even at full capacity—achieving ±1% temperature uniformity per ASTM E2207
• Eterna® alumina-ceramic heating elements: Provide extended service life (>10,000 hours), consistent watt density, and resistance to thermal cycling degradation
• High-integrity sealing: Blue M proprietary high-temperature silicone door gasket maintains chamber integrity and prevents ambient air infiltration during low-humidity or inert-atmosphere operations
• Integrated safety systems: Thermal cutoffs, airflow interlock switch, and optional emergency beacon-style power disconnect switch compliant with UL 508A and CSA C22.2 No. 14

Sample Compatibility & Compliance

The STL-05 accommodates a wide range of sample geometries and material classes—including ceramic green bodies, metal injection molded (MIM) parts, printed circuit boards, composite laminates, and pharmaceutical excipient blends. Its chamber design supports both standard atmospheric operation and optional nitrogen-purged or filtered process-air configurations—enabling controlled debinding without oxidation. The oven is engineered to support ISO/IEC 17025-compliant validation protocols and can be qualified per IQ/OQ/PQ requirements. Optional NIST-traceable calibration documentation and 5-point thermocouple mapping reports satisfy FDA 21 CFR Part 11 data integrity expectations when paired with SpecView™ data acquisition software.

Software & Data Management

Standard analog/digital controller offers single-setpoint operation with programmable ramp-soak profiles. Optional upgrades include RS232/RS485 serial interface for integration into centralized lab management systems (LIMS), real-time data logging via SpecView™ software (Windows-based, audit-trail enabled), and compatibility with third-party SCADA platforms. All digital controllers support password-protected parameter locking, event-driven alarms (e.g., deviation >±0.5°C for >30 sec), and automatic shutdown on airflow failure or overtemperature condition. Firmware complies with IEC 62443-3-3 cybersecurity baseline for industrial control devices.

Applications

• Debinding of MIM and CIM components prior to sintering
• Curing of epoxy, silicone, and polyimide coatings on aerospace substrates
• Moisture removal from hygroscopic powders and granules per USP
• Thermal aging studies per ASTM D573 and ISO 188
• Baking of solder paste-printed PCBs to prevent voiding and delamination
• Pre-drying of lithium-ion battery electrode slurries and separator films
• Stabilization annealing of optical glass blanks and precision metrology fixtures

FAQ

What is the standard temperature uniformity specification for the STL-05 at 350°C?
At maximum operating temperature, uniformity is maintained within ±1% of setpoint across the full working volume, verified per ASTM E2207 using a 9-point thermocouple array.
Can the STL-05 be configured for inert atmosphere processing?
Yes—optional nitrogen inlet ports, pressure-regulated purge controls, and sealed door gaskets enable operation under low-O₂ conditions; custom gas train integration is supported.
Is the controller compliant with FDA 21 CFR Part 11 for electronic records?
When equipped with SpecView™ software and configured with user authentication, audit trail logging, and electronic signature capability, the system meets Part 11 technical requirements for regulated laboratories.
What electrical supply options are supported?
The STL-05 accepts 208/240/480 VAC, single- or three-phase, 60 Hz inputs; full power rating (12.0 kW) requires 240 or 480 VAC three-phase supply.
Does Blue M offer factory validation and installation support?
Yes—IQ/OQ documentation packages, on-site commissioning, and NIST-traceable sensor calibration services are available through authorized Blue M service partners.
