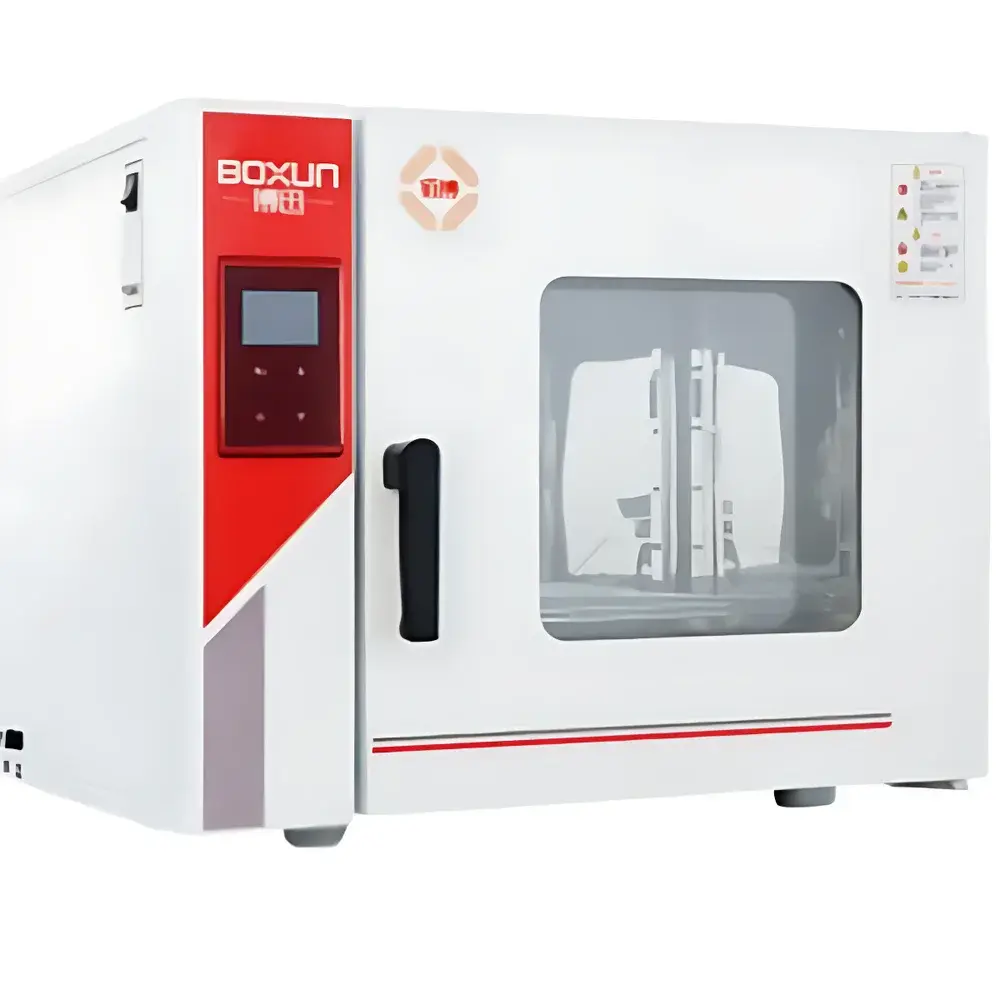

BOXUN BGZ Series Forced-Air Drying Oven (BGZ-70 Model)

Overview

The BOXUN BGZ Series Forced-Air Drying Oven is an engineered solution for precise thermal processing in laboratory and industrial quality control environments. Based on the principle of forced convection heating—where a high-efficiency PMMA II-controlled blower circulates preheated air uniformly throughout the chamber—the BGZ-70 delivers consistent thermal exposure across its 76 L working volume. Designed for applications including moisture loss determination, polymer curing, pharmaceutical stability testing, glassware drying, and low-temperature sterilization (e.g., dry-heat depyrogenation at ≥160°C for 2 hours per USP ), this oven meets the functional requirements of ISO/IEC 17025-accredited laboratories and GMP-compliant manufacturing facilities. Its architecture integrates thermal inertia minimization via pre-heated air inlet ducts and optimized airflow path geometry, enabling a documented升温 rate >4°C/min at 180°C—a critical performance indicator for process validation studies.

Key Features

• PMMA II operating system with color LCD touchscreen interface supporting real-time parameter display, multi-stage programmable control (10 segments × 100 cycles), and user-defined fan speed profiles (6 adjustable levels)
• Mirror-finish 304 stainless steel interior chamber with radius-corner design for seamless cleaning and reduced particulate retention
• Two-tier adjustable shelving system (standard: 2 shelves; max: 5), each rated for 15 kg load capacity and compatible with standard ASTM E145-compliant sample trays
• Dual-stage rotary door lock mechanism ensuring >95% sealing efficiency against thermal leakage, validated per GB/T 30435-2013 Annex B
• High-density mineral wool insulation (≥80 mm thickness) achieving surface temperature rise <35 K above ambient during operation at 250°C
• RS-485 serial interface compliant with Modbus RTU protocol for integration into LabVantage or Thermo Fisher SampleManager LIMS platforms
• Power failure recovery function with non-volatile memory preserving setpoints, active program stage, and elapsed timer data
• Preheat cavity design directing thermally homogenized air directly into the working chamber, reducing thermal gradient formation during ramp phases

Sample Compatibility & Compliance

The BGZ-70 accommodates a broad range of sample formats—including Petri dishes (up to Ø150 mm), weighing boats, aluminum pans, glass desiccators, and stainless steel racks—without airflow-induced displacement, thanks to its micro-circulation fan system. Its ±2% temperature uniformity (measured per IEC 60068-3-5:2018 using 9-point sensor mapping at 105°C and 160°C) supports method validation under ISO 17025 Clause 7.2.2. The unit conforms to GB/T 30435-2013 (Chinese national standard for electric heating ovens), and its construction materials comply with RoHS Directive 2011/65/EU. While not certified to UL 61010-1 or EN 61010-1 out-of-the-box, the oven’s electrical safety architecture—including Class I grounding, overtemperature cut-off (dual independent thermostats), and thermal fuse redundancy—is fully auditable for GLP/GMP Annex 11 and FDA 21 CFR Part 11 compliance when deployed with validated SOPs and electronic logbook integration.

Software & Data Management

The embedded PMMA II controller logs timestamped temperature readings at user-configurable intervals (1–60 s), storing up to 30 days of continuous data internally. Export is supported via USB flash drive (FAT32 format) in CSV format compatible with Microsoft Excel, JMP, or Python pandas workflows. When connected to a host PC via RS-485-to-USB adapter, the oven supports remote monitoring and script-based control using open-source PySerial libraries or proprietary BOXUN DataLink software (Windows 10/11). Audit trail functionality records all parameter modifications, door openings, and alarm events with operator ID tagging—meeting ALCOA+ principles for raw data integrity. Optional firmware update packages (v2.4+) introduce TLS 1.2-secured HTTP API endpoints for cloud-based telemetry in Industry 4.0 lab infrastructures.

Applications

• Moisture content analysis per AOAC 950.46 and ASTM D2231-18 using gravimetric loss-on-drying protocols
• Thermal aging of polymeric packaging materials per ISO 11341:2019 for shelf-life prediction
• Drying of filter papers and crucibles prior to ash content determination (AOAC 923.03)
• Conditioning of reference standards and hygroscopic reagents in analytical chemistry workflows
• Low-temperature sterilization of glassware and metal instruments where steam autoclaving is contraindicated
• Pre-conditioning of samples for subsequent FTIR, XRD, or SEM analysis to eliminate adsorbed water interference

FAQ

What is the maximum validated operating temperature for long-term use?
The BGZ-70 is rated for continuous operation at 250°C, with thermal stability maintained per GB/T 30435-2013 Clause 5.3.1 under full-load conditions.
Does the oven support GLP-compliant electronic record keeping?
Yes—when paired with BOXUN DataLink v3.1+ and configured with digital signature enforcement, it satisfies FDA 21 CFR Part 11 Subpart B requirements for audit trails and data integrity.
Can the fan speed be modulated during a programmed temperature ramp?
Yes—fan speed is independently programmable per segment, allowing dynamic adjustment to minimize convective cooling effects during soak phases.
Is calibration certificate included with shipment?
A factory-issued as-found/as-left calibration report traceable to NIM (National Institute of Metrology, China) is provided; UKAS or NIST-traceable certificates are available as optional add-ons.
What maintenance intervals are recommended for optimal thermal uniformity?
Biannual verification of airflow velocity (using calibrated hot-wire anemometer at 5 cm from rear wall) and annual recalibration of PID controller against reference RTD (Class A, DIN EN 60751) are advised per ISO/IEC 17025 Clause 6.4.6.
