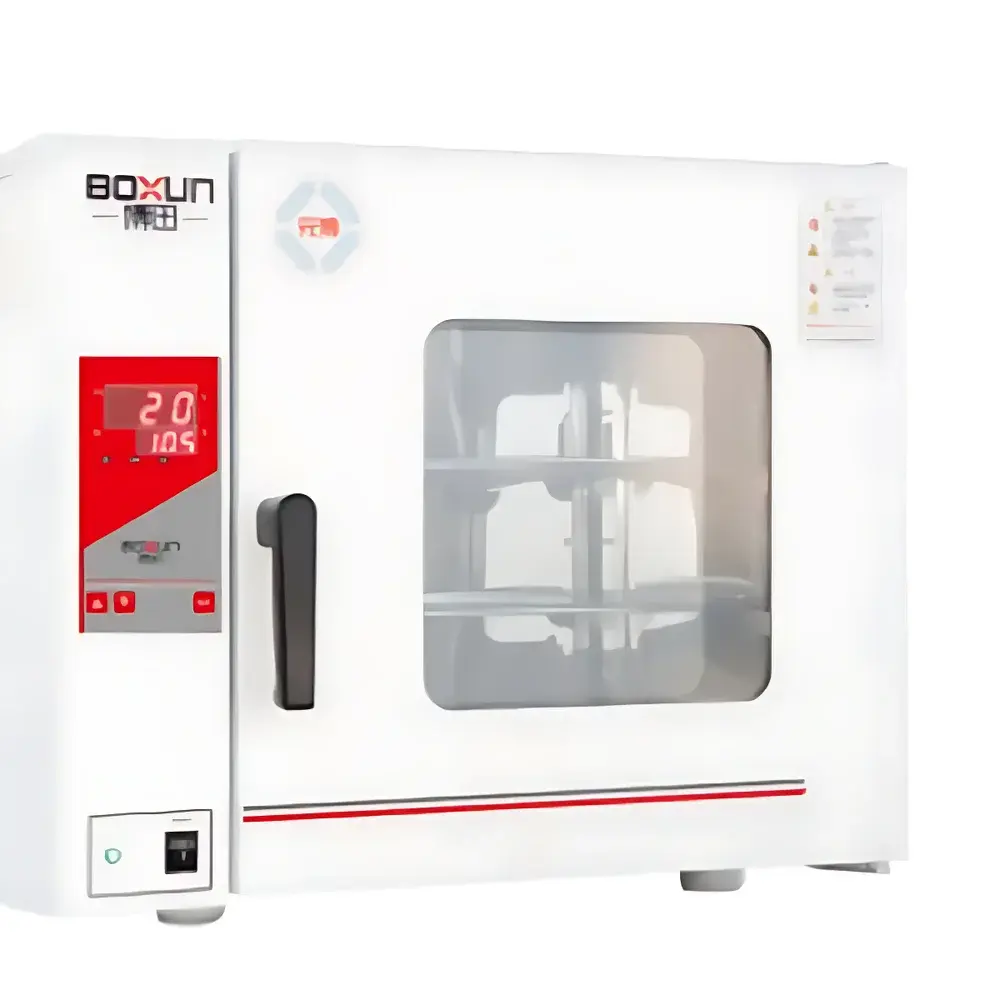

BOXUN GZX-9030MBE Forced-Air Constant-Temperature Drying Oven

Overview

The BOXUN GZX-9030MBE is a microprocessor-controlled forced-air drying oven engineered for precise thermal processing in laboratory, quality control, and industrial R&D environments. It operates on the principle of convective heat transfer: an integrated blower circulates preheated air uniformly across the chamber, minimizing thermal stratification and ensuring rapid, repeatable heating profiles. Designed for applications requiring stable temperature maintenance—such as moisture content determination, polymer curing, pharmaceutical stability testing, sample conditioning prior to gravimetric analysis, and low-temperature sterilization—the GZX-9030MBE delivers consistent thermal performance within its operational range of ambient +5°C to 200°C. Its robust architecture adheres to GB/T 30435–2013, the Chinese national standard for electric heating ovens, and incorporates design features aligned with internationally recognized laboratory equipment expectations—including ISO/IEC 17025 traceability readiness and compatibility with GLP-compliant workflows.

Key Features

• Mirror-finish 304 stainless steel inner chamber with rounded corners and removable, adjustable shelves for simplified cleaning and flexible sample arrangement.
• Microcomputer-based PID temperature controller with digital LED display, offering intuitive touch-key operation via PMMA-I interface and real-time monitoring of setpoint, actual temperature, and elapsed time.
• Pre-heating air chamber design ensures heated air is fully mixed before entering the working zone—enhancing thermal response speed (>4°C/min at 180°C) and reducing overshoot during ramp-up.
• Double-layer insulated door with high-transparency tempered glass window and dual-stage rotary locking mechanism, achieving superior thermal sealing and visual accessibility without compromising safety or energy efficiency.
• High-efficiency centrifugal blower with precision-balanced impeller and low-noise motor, maintaining continuous laminar airflow and uniform temperature distribution (±2.5%) throughout the 40.4 L working volume.
• Comprehensive safety system including over-temperature alarm, automatic cut-off upon sensor failure, and power-loss recovery function to preserve programmed parameters and timer settings after unexpected shutdowns.
• Thermal insulation using high-density mineral fiber material minimizes external surface temperature rise and improves energy efficiency during extended operation.

Sample Compatibility & Compliance

The GZX-9030MBE accommodates a broad spectrum of non-volatile, thermally stable samples—including glassware, metal parts, ceramic substrates, powder-filled crucibles, polymer pellets, and biological tissue specimens prepared for dehydration. Its stainless steel interior resists corrosion from mild acidic or alkaline residues, supporting routine use in chemistry, materials science, and food testing labs. While not certified for Class II biological safety or explosion-proof operation, the unit meets mechanical and electrical safety requirements outlined in GB/T 30435–2013 and conforms to general-purpose laboratory equipment standards under IEC 61010-1. For regulated environments, its programmable timer, temperature logging capability (via optional RS485 interface), and stable thermal profile support audit-ready documentation in accordance with FDA 21 CFR Part 11–compatible data management systems when integrated externally.

Software & Data Management

The GZX-9030MBE operates autonomously via its embedded PMMA-I control system, eliminating dependency on external PCs. All operational parameters—including target temperature, dwell time, ramp rate (fixed), and alarm thresholds—are stored in non-volatile memory. Optional RS485 serial communication enables connection to centralized lab information management systems (LIMS) or SCADA platforms for remote status monitoring and event logging. When paired with compliant third-party software, the oven supports timestamped temperature recording, user-access-level configuration control, and electronic signature functionality—facilitating alignment with GLP/GMP documentation practices. No proprietary drivers or cloud services are required; integration follows Modbus RTU protocol conventions for interoperability with existing infrastructure.

Applications

• Moisture loss-on-drying (LOD) assays per USP and ASTM D2298 for pharmaceutical excipients and raw materials.
• Conditioning of filter membranes and weighing dishes prior to gravimetric particulate matter analysis (e.g., EPA Method 201A).
• Curing of epoxy-coated substrates and thermal aging studies of elastomers under controlled isothermal exposure.
• Drying of soil, sediment, and plant tissue samples prior to elemental analysis by ICP-OES or AAS.
• Low-temperature decontamination of reusable lab tools and glassware where autoclaving is unsuitable.
• Stabilization of reference standards and calibration weights in metrology laboratories.

FAQ

What is the maximum recommended operating temperature for continuous use?
The GZX-9030MBE is rated for continuous operation up to 200°C. Prolonged exposure above this limit may degrade insulation integrity and compromise sensor accuracy.
Does the oven include validation support documentation?
Factory-installed temperature sensors are calibrated against NIST-traceable references. IQ/OQ documentation templates are available upon request to support installation and operational qualification protocols.
Can the unit be used for sterilization of medical devices?
No. This model is not validated for microbial kill efficacy and lacks the temperature uniformity, chamber pressure control, and cycle verification required for sterility assurance per ISO 17665.
Is the shelf configuration customizable beyond the standard two-tier setup?
Yes. Up to four adjustable stainless steel shelves can be installed, each rated for 15 kg distributed load. Shelf spacing is freely configurable to accommodate tall or irregularly shaped samples.
How does the forced-air circulation affect sample integrity during drying?
The low-velocity, laminar airflow minimizes particle displacement and prevents mechanical disturbance of fragile or powdered samples—unlike high-turbulence designs—while still ensuring efficient heat transfer and moisture removal.
