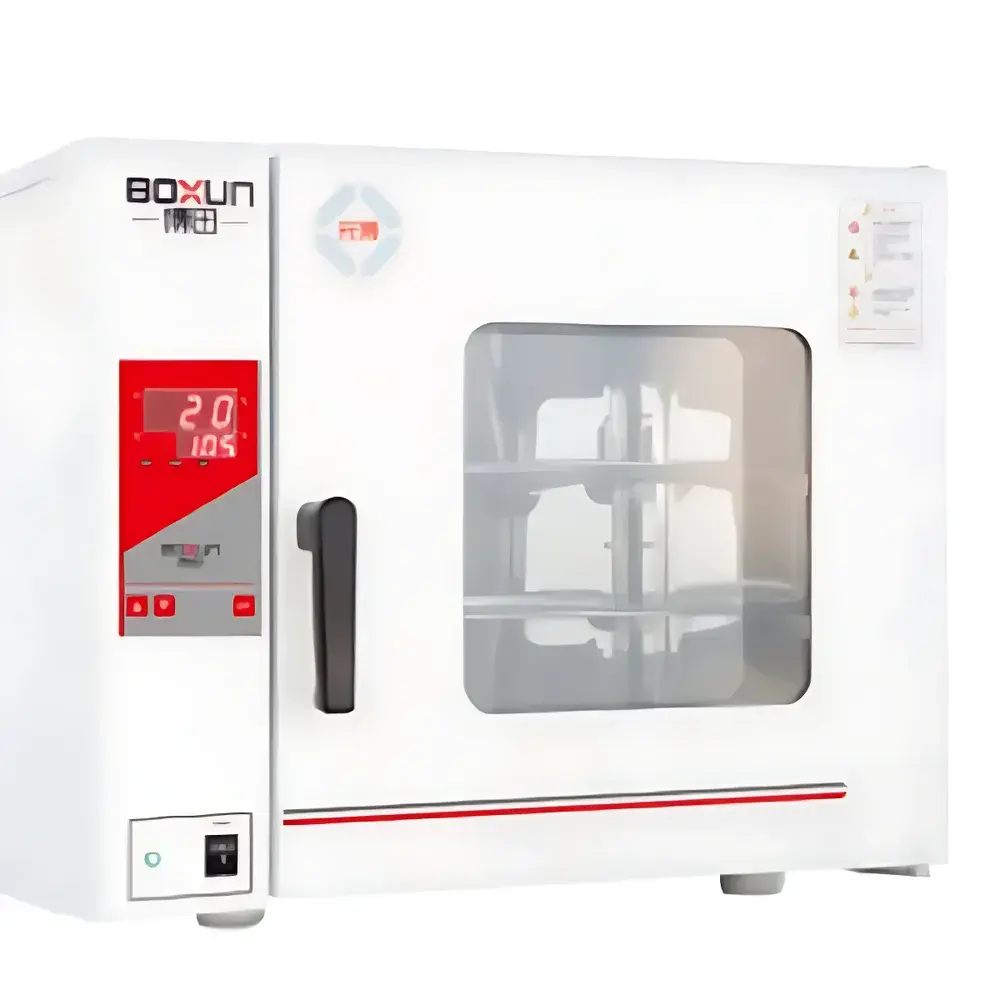

BOXUN GZX-9420MBE Forced-Air Drying Oven

Overview

The BOXUN GZX-9420MBE Forced-Air Drying Oven is a precision-engineered laboratory drying and heat-treatment system designed for consistent thermal processing across industrial quality control, pharmaceutical stability testing, materials science research, and academic laboratories. Operating on the principle of forced convection, the unit circulates heated air uniformly throughout the chamber via a high-efficiency impeller-driven airflow system, minimizing thermal gradients and ensuring reproducible drying, curing, sterilization, and moisture removal outcomes. Its operational temperature range spans from ambient +5°C to 200°C—covering standard desiccation protocols, polymer annealing, powder conditioning, and low-temperature sterilization applications in compliance with ISO 17025 and GLP-aligned workflows.

Key Features

• Microprocessor-based PID temperature controller with dual high-brightness LED display for simultaneous setpoint and real-time chamber temperature readout
• Robust chamber construction featuring mirror-finish 304 stainless steel interior with radius-rounded corners for enhanced cleanability and corrosion resistance
• Optimized air circulation architecture incorporating an imported low-noise motor and aerodynamically profiled impeller, enabling rapid thermal equilibration and stable airflow distribution
• Nano-composite door gasket and high-density mineral wool insulation ensure minimal thermal leakage and superior energy efficiency
• Intelligent safety functions including over-temperature cut-off, audible/visual alarm activation, and non-volatile memory that preserves user settings during power interruption
• Three standard adjustable stainless steel shelves (expandable up to six), each rated for 15 kg load capacity; shelf height freely configurable to accommodate irregular or stacked samples
• Large-view double-glazed observation window with anti-fog coating supports continuous visual monitoring without compromising thermal integrity

Sample Compatibility & Compliance

The GZX-9420MBE accommodates diverse sample formats—including Petri dishes, weighing boats, glassware, metal parts, granular powders, and coated substrates—within its spacious 456 L working volume. Its uniform temperature distribution (±2.5%) meets ASTM E145–22 Class II oven performance criteria for general-purpose drying and heat treatment. While not certified for medical device sterilization per ISO 17665, it supports validation-ready operation when integrated into IQ/OQ/PQ protocols under GMP or ISO 9001 environments. The unit complies with IEC 61010-1:2010 for electrical safety and electromagnetic compatibility (EMC), and its control firmware supports audit-trail-capable data logging when paired with optional RS485/Modbus-enabled external recorders.

Software & Data Management

The embedded microcontroller supports time-based program execution (0–999 h timer), ramp-hold thermal profiles, and event-triggered alarms. Though standalone operation requires no PC interface, optional analog voltage output (0–5 V) and Modbus RTU communication enable integration into centralized lab automation platforms (e.g., LabWare LIMS, Siemens Desigo CC). All parameter changes are timestamped and stored in non-volatile memory; system logs retain last-set values and alarm history across power cycles. For regulated environments, third-party software solutions compliant with FDA 21 CFR Part 11 can be deployed to enforce electronic signature, role-based access control, and immutable audit trails.

Applications

• Moisture content determination per AOAC 950.46 and USP <731> loss-on-drying methods
• Pre- and post-weighing sample conditioning in analytical chemistry and environmental testing labs
• Curing of adhesives, coatings, and composite resins in materials R&D
• Drying of filter papers, soil samples, and botanical specimens prior to gravimetric analysis
• Low-temperature decontamination of reusable labware and tools where steam autoclaving is unsuitable
• Thermal aging studies of polymers, elastomers, and packaging materials per ISO 188 and ASTM D573

FAQ

What is the maximum recommended operating temperature for continuous use?
The GZX-9420MBE is rated for sustained operation up to 200°C; however, prolonged exposure above 180°C may accelerate degradation of door seals and insulation—consult the maintenance schedule for thermal cycling limits.
Does this oven support programmable ramp-and-soak temperature profiles?
No—the standard controller supports only fixed-setpoint operation with timer-based shut-off; multi-step profiling requires external programmable logic controllers or OEM-integrated upgrades.
Is the chamber volume verified per ISO 14644 or similar volumetric calibration standards?
Chamber volume is calculated geometrically from internal dimensions; volumetric verification per ISO 14644-3 is not performed at factory but can be conducted onsite using traceable calipers and NIST-traceable temperature mapping probes.
Can the unit be validated for GLP-compliant operations?
Yes—its stable thermal performance, data retention capability, and mechanical robustness support IQ/OQ documentation; PQ must be executed per user-defined acceptance criteria and process requirements.
What maintenance intervals are recommended for optimal airflow performance?
Inspect and clean the rear air intake filter every 3 months; verify impeller balance and motor bearing condition annually; replace door gasket if compression force drops below 1.2 N/mm as measured by digital force gauge.
