Brookfield RA-4300FG+ Cold Vapor Atomic Fluorescence Spectrometer (CVAFS) Mercury Analyzer

Overview

The Brookfield RA-4300FG+ is a fully automated benchtop cold vapor atomic fluorescence spectrometer (CVAFS) designed for ultra-trace mercury quantification in environmental, regulatory, and industrial laboratories. It implements the well-established chemical vapor generation–gold amalgamation–CVAFS detection sequence, offering high specificity, exceptional sensitivity, and robust interference rejection for total mercury analysis in aqueous matrices. The instrument operates on the principle of quantitative reduction of oxidized mercury (Hg²⁺) to elemental mercury vapor (Hg⁰), followed by selective preconcentration on a gold-coated trap, thermal desorption, and fluorescence detection at 253.7 nm. This methodology ensures minimal spectral overlap and superior signal-to-noise performance—critical for compliance with stringent regulatory thresholds in wastewater, drinking water, seawater, and biological digests.

Key Features

• Fully automated sample processing: integrated digestion, oxidation, quenching, reduction, amalgamation, and detection—eliminating manual intervention and operator variability.
• Discrete Direct Purge (DDP) technology: replaces continuous-flow injection with precisely timed, isolated reagent delivery and purge cycles, significantly reducing carryover and memory effects between samples.
• Ultra-low detection limit: validated at 0.05 ppt (ng/L) for direct aqueous analysis; 0.5 ppt after EPA-compliant acid digestion protocols.
• 80-position autosampler with programmable sample tray management, enabling unattended overnight operation and high-throughput batch analysis.

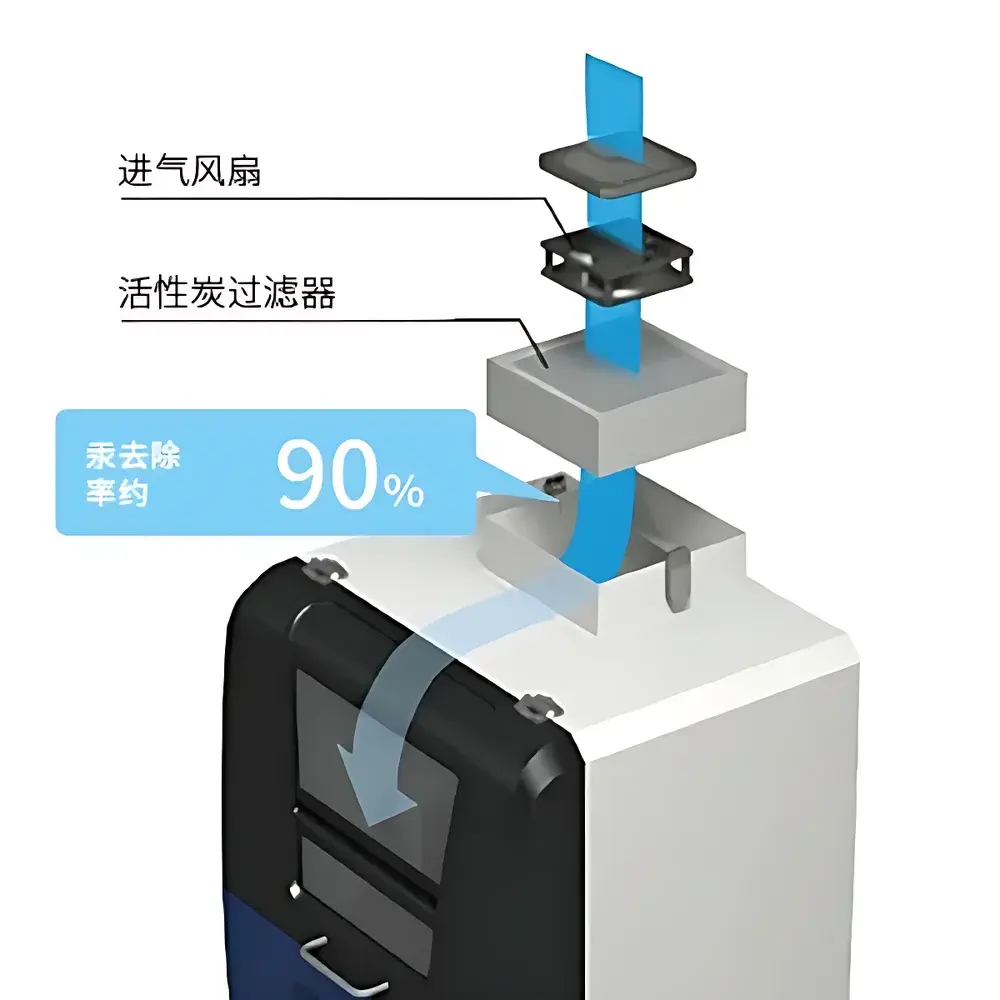

• Integrated mercury-scavenging air filtration system: multi-stage carbon-layer mesh filters remove ambient mercury and particulates from all internal purge and carrier gas streams, maintaining a mercury-free analytical environment.
• Expanded dynamic range: linear response up to 1000 ng/mL (200 ppb), supporting both ultra-trace environmental monitoring and higher-concentration industrial effluent testing without dilution.
• Reagent optimization: DDP architecture reduces consumption of high-purity BrCl, SnCl₂, and NH₂OH·HCl by up to 40% compared to conventional flow-injection CVAFS systems—lowering operational cost and contamination risk.

Sample Compatibility & Compliance

The RA-4300FG+ is validated for use with filtered or digested aqueous samples per EPA Methods 1631e (mercury in water) and 245.7 (mercury in solids and sediments), as well as ISO 17852 (water quality—determination of mercury) and EN 1483 (determination of mercury in sludge, treated biowaste, and soil). It accepts standard 16-mm borosilicate vials and accommodates both direct analysis of low-ionic-strength waters and post-digestion analysis of complex matrices including wastewater, seawater, leachates, and tissue homogenates. All fluidic pathways are constructed from PFA, quartz, and mercury-inert stainless steel to prevent adsorption or catalytic loss. The system supports GLP-compliant audit trails when paired with optional LIMS integration.

Software & Data Management

Instrument control, method development, calibration, and reporting are managed via Brookfield MercurySuite™ v4.2—a Windows-based application compliant with FDA 21 CFR Part 11 requirements. Features include electronic signature support, user role-based access control, full audit trail logging (including method changes, calibration events, and raw data modifications), and automated report generation in PDF/CSV formats. Calibration curves support multi-point linear and quadratic regression with residual diagnostics. Data integrity safeguards include automatic backup, checksum validation, and tamper-evident file encryption. Raw fluorescence intensity time profiles are stored for retrospective peak integration and interference assessment.

Applications

• Regulatory compliance testing for municipal and industrial wastewater discharge (NPDES, WQARF, EU WFD).
• Drinking water surveillance per WHO and U.S. EPA Maximum Contaminant Level (MCL) guidelines (2 ng/L).
• Marine and freshwater ecosystem monitoring—including speciation-ready sample preparation workflows.
• Analysis of digested soil, sediment, and biosolids under EPA SW-846 Methods 7471B and 7474.
• Pharmaceutical excipient and packaging material screening per USP and ICH Q3D elemental impurities guidance.
• Reference laboratory participation in interlaboratory comparison studies (e.g., NIST SRM validation, QUASIMEME proficiency testing).

FAQ

What sample preparation is required prior to analysis?
For direct aqueous analysis, samples must be filtered through a 0.45-µm membrane and preserved with BrCl if storage exceeds 24 hours. For solid or biological matrices, EPA 7471B-compliant microwave-assisted acid digestion using HNO₃/H₂SO₄/KMnO₄ or HNO₃/HCl is required.
Does the RA-4300FG+ require external argon gas supply?
Yes—high-purity argon (≥99.999%) is required as both carrier gas and purge gas. Optional integrated gas management module enables pressure regulation and leak detection.
How is memory effect mitigated during high-concentration sample runs?
The Discrete Direct Purge (DDP) protocol isolates each sample’s reagent addition and purge cycle, while the gold trap undergoes programmable high-temperature regeneration between injections—verified by blank recovery tests per EPA 1631e Section 9.3.
Can the system be validated for GMP environments?
Yes—when deployed with MercurySuite™ v4.2 and configured with 21 CFR Part 11-compliant security settings, the RA-4300FG+ meets GMP documentation and traceability requirements for pharmaceutical and contract laboratory applications.
Is method transfer supported from legacy CVAFS platforms?
Predefined method templates replicate conditions from PerkinElmer FIA-1200, Tekran 2600, and Brooks Rand MERX systems—enabling seamless cross-platform validation and data comparability.
