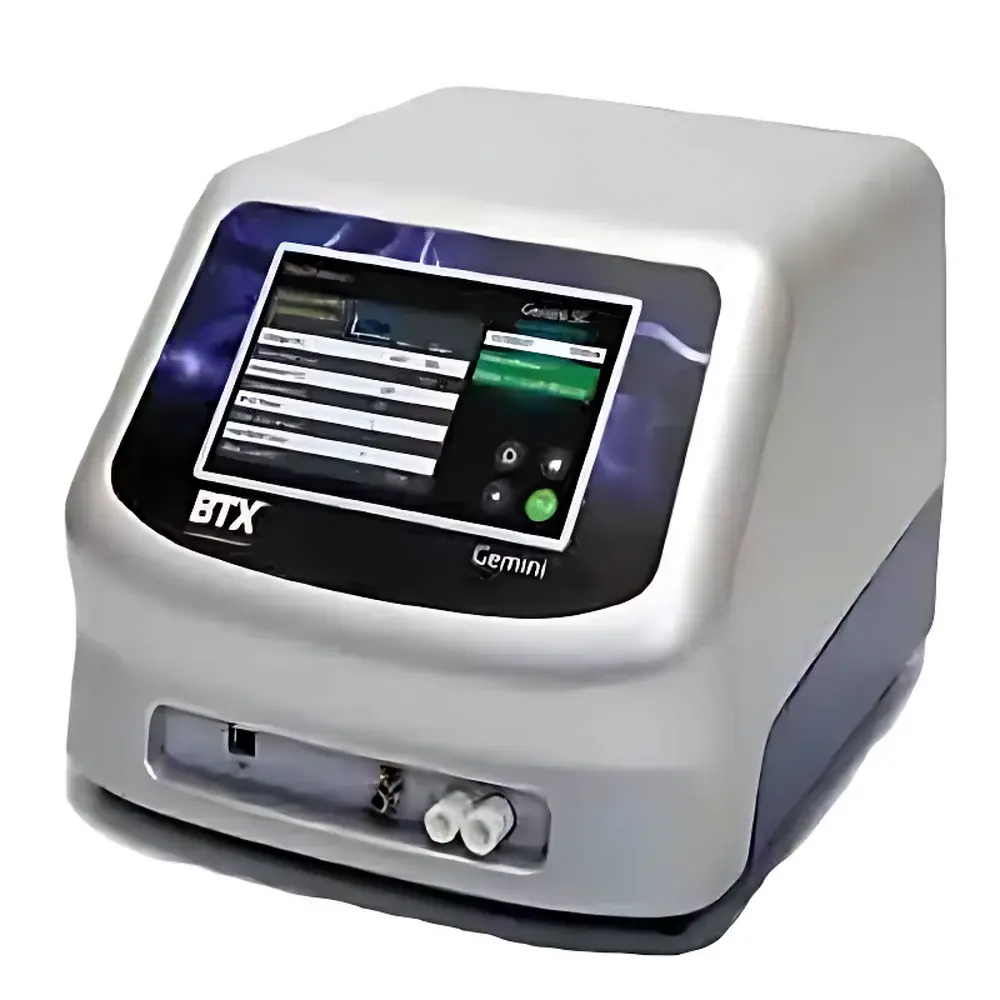

BTX Gemini SC Dual-Wave Electroporator
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Gemini SC |
| Price Range | USD 68,000 – 109,000 |
Overview
The BTX Gemini SC Dual-Wave Electroporator is an engineered platform for high-efficiency, cell-type-optimized nucleic acid and macromolecule delivery via electroporation. Unlike single-wave electroporators, the Gemini SC integrates two distinct pulse generation architectures—square-wave (SW) and exponential decay waveform (EDW)—within a single, field-calibrated hardware chassis. This dual-mode capability enables precise selection of electroporation physics appropriate to membrane capacitance, cytoplasmic conductivity, and target cell integrity requirements. Square-wave pulses deliver controlled, time-defined electric fields with minimal thermal load, ideal for CRISPR-Cas ribonucleoprotein (RNP) delivery and sensitive primary mammalian cells. Exponential decay waveforms provide rapid, high-voltage initiation followed by natural current decay—optimal for robust transformation of bacterial and yeast systems. The system operates on the principle of transient, voltage-dependent pore formation in lipid bilayers, enabling passive diffusion of exogenous molecules across the plasma membrane without permanent membrane disruption.
Key Features
- 7-inch capacitive color touchscreen interface with intuitive graphical workflow navigation and real-time parameter visualization
- Pre-loaded library of >120 validated protocols spanning E. coli, S. cerevisiae, CHO, HEK293, iPSCs, plant protoplasts, and suspension-adapted cell lines
- User-customizable protocol storage capacity exceeding 500 entries, supporting multi-step pulse sequences (e.g., pre-pulse conditioning + main transfection + recovery delay)
- Proprietary pre-pulse impedance measurement technology: performs real-time resistance profiling (Rcell) prior to pulse delivery to prevent arcing, ensure reproducible field strength (V/cm), and auto-adjust voltage output based on sample conductivity and cuvette geometry
- Dual independent pulse modules: simultaneous or sequential SW/EDW execution with adjustable pulse width (1 µs–100 ms), amplitude (10–3000 V), number of pulses (1–99), and inter-pulse interval (10 ms–10 s)
- Integrated safety interlock system compliant with IEC 61010-1:2012 for laboratory-grade electrical hazard mitigation
Sample Compatibility & Compliance
The Gemini SC accommodates standard electroporation cuvettes (0.1 cm, 0.2 cm, and 0.4 cm gap widths) and supports both low-conductivity buffers (e.g., sucrose-based for protoplasts) and physiological salt concentrations (e.g., PBS for adherent cell-derived suspensions). It is routinely deployed in GLP-compliant transfection workflows and meets key regulatory expectations for traceability: full audit trail logging (user ID, timestamp, protocol ID, actual delivered parameters), electronic signature support per FDA 21 CFR Part 11 Annex 11, and exportable CSV/Excel-compatible data files. All firmware and software revisions are version-controlled and documented per ISO 13485:2016 guidelines for life science instrumentation.
Software & Data Management
BTX ControlSuite v4.2 firmware provides local device management, protocol synchronization across networked instruments, and secure cloud backup (optional). Each electroporation event logs raw voltage/current waveforms, measured impedance, temperature drift (via integrated thermal sensor), and user annotations. Data exports include metadata-rich .csv files compatible with LIMS integration and statistical analysis platforms (e.g., GraphPad Prism, Python pandas). Remote diagnostics and firmware updates are performed over encrypted TLS 1.2 connections; no external internet access is required for core operation.
Applications
- CRISPR-Cas9 and base editor RNP delivery into hard-to-transfect primary T cells and hematopoietic stem cells
- High-yield plasmid transformation of Bacillus subtilis and Pseudomonas aeruginosa strains for synthetic biology pipelines
- Transient siRNA/miRNA transfection in suspension-grown insect Sf9 cells for baculovirus expression system optimization
- Plant protoplast transfection for genome editing validation and promoter activity assays
- Electrofusion of hybridoma cells for monoclonal antibody development
- Delivery of charged small-molecule therapeutics (e.g., antisense oligonucleotides, peptide inhibitors) into 3D tumor spheroids
FAQ
Does the Gemini SC support both square-wave and exponential decay waveforms in a single run?
Yes—users may define hybrid protocols containing alternating SW and EDW pulses with programmable timing and polarity reversal.
Is calibration traceable to NIST standards?
Voltage and current output are factory-calibrated against NIST-traceable reference meters; calibration certificates are provided with each unit and annually renewable.
Can the system interface with third-party liquid handlers or robotic arms?
Yes—RS-232, USB CDC, and Ethernet TCP/IP interfaces support bidirectional command scripting (SCPI-compliant) for integration into automated cell culture and transfection workcells.
What safety certifications does the instrument hold?
IEC 61010-1:2012 (Measurement, Control and Laboratory Equipment), UL 61010-1, CE marked for EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU.
Is offline operation supported without cloud connectivity?
All core functions—including protocol execution, data logging, and touchscreen UI—operate fully offline; cloud features are optional and disabled by default.
