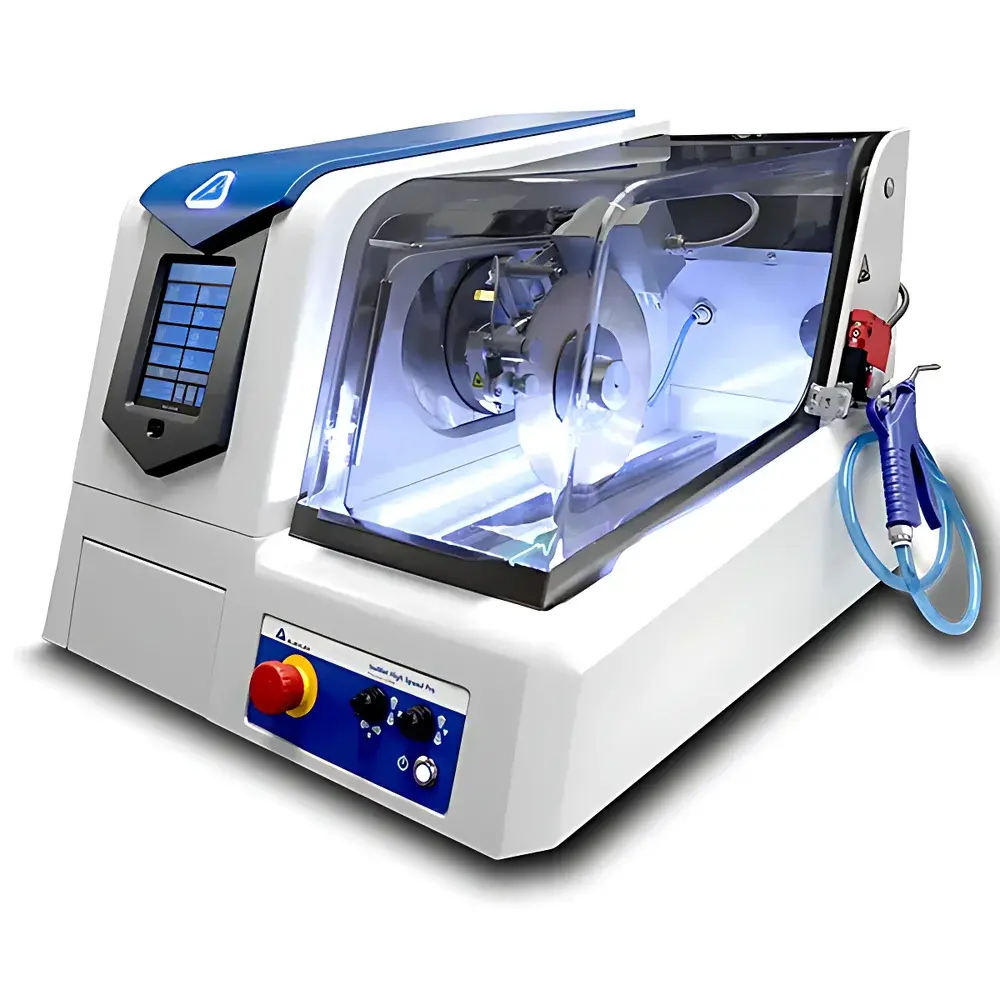

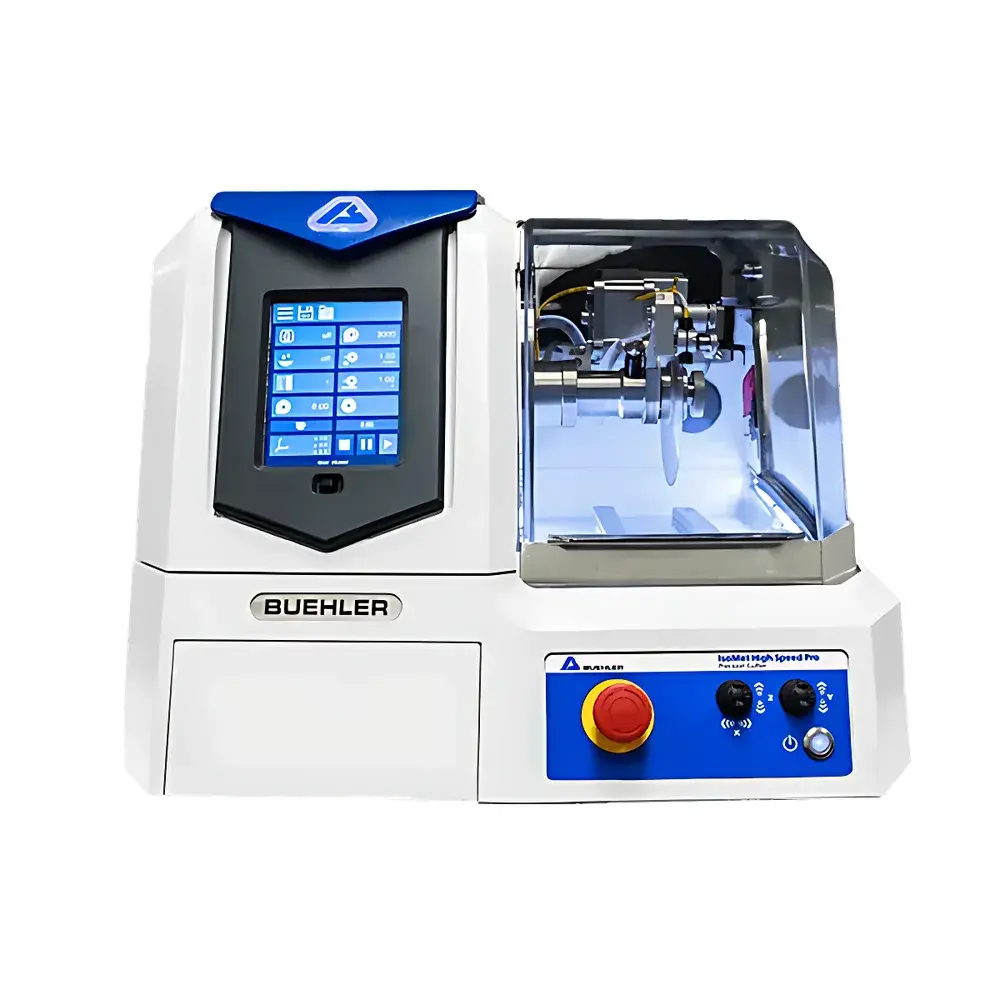

Buehler IsoMet High Speed Pro Precision Cutting Machine
| Brand | Buehler |
|---|---|
| Origin | USA |
| Model | IsoMet High Speed Pro |
| Instrument Type | Precision Cutting Machine |
| Blade Speed | 200–5000 rpm |
| Feed Rate Range | 1.2–25.4 mm/min |
| Feed Increment | 0.2–0.3 mm |
| X/Y/Z Travel | 0–50 mm each axis |
| Motor Power | 2 kW (2.68 HP) |
| Input Voltage | 100–240 VAC, 50–60 Hz, Single Phase |
| Calibration Accuracy | ±2 µm |
| Control Modes | Automatic, Manual, SmartCut™ |
Overview
The Buehler IsoMet High Speed Pro Precision Cutting Machine is an advanced, programmable benchtop cutting system engineered for high-reproducibility sample sectioning in metallurgical, geological, electronic, and advanced materials laboratories. It operates on a precision-controlled linear feed mechanism combined with digitally regulated blade rotation (200–5000 rpm), enabling deterministic material removal under tightly constrained kinematic conditions. Unlike conventional abrasive cutters relying on fixed-speed or analog feed control, the IsoMet High Speed Pro implements closed-loop positional feedback across all three axes (X, Y, Z), ensuring sub-micron repeatability in blade positioning and consistent kerf geometry across serial samples. Its design adheres to fundamental principles of controlled-force sectioning—minimizing thermal distortion, mechanical chatter, and subsurface damage—particularly critical when preparing brittle ceramics, thin-film devices, sintered composites, or heat-sensitive polymer laminates for subsequent microscopy (SEM, TEM, EBSD) or mechanical testing.
Key Features
- Three-axis (X/Y/Z) linear motion system with ±2 µm calibration accuracy, enabling precise alignment of blade trajectory relative to sample geometry
- SmartCut™ adaptive feed-rate modulation: dynamically adjusts linear feed velocity based on real-time load sensing to minimize blade deflection and preserve edge integrity in fragile specimens
- Tool-free, laser-guided blade alignment system with intuitive touchscreen interface; eliminates manual vernier adjustment and reduces setup time by >60% versus legacy systems
- Dual-mode operation: fully automated sequence programming (including multi-pass, nested cuts, and pause/resume logic) and high-resolution manual override via jog-wheel and digital encoder
- Integrated coolant management architecture compatible with external closed-loop water recirculation units—supports ISO 14001-compliant fluid handling and meets ASTM E3-22 requirements for metallographic specimen preparation
- 2 kW brushless AC servo motor with constant-torque output across full speed range (200–5000 rpm), delivering stable rotational inertia essential for diamond-impregnated wheel performance
Sample Compatibility & Compliance
The IsoMet High Speed Pro accommodates specimens up to 50 mm in height and width, with clamping force adjustable from 5 to 500 N—optimized for both macro-scale ingots and micro-scale wafers (e.g., SiC, GaN, or lithium-ion battery electrode stacks). Its low-vibration frame and damping-isolated base meet ISO 2372 vibration severity Class A specifications. The system complies with IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions), and its safety interlock architecture conforms to EN/IEC 60204-1 for industrial machinery. For regulated environments, audit trails, user access levels, and electronic signatures can be enabled to support FDA 21 CFR Part 11 compliance when integrated with Buehler’s OmniMet™ LIMS-ready software suite.
Software & Data Management
Control is executed via a 10.1-inch capacitive touchscreen running embedded Linux with real-time kernel scheduling. All cutting protocols—including feed rate profiles, RPM ramps, dwell times, and coolant activation thresholds—are stored as encrypted XML-based method files. Version-controlled method libraries support GLP/GMP traceability, with automatic timestamping, operator ID logging, and checksum-verified export to CSV or PDF. Optional integration with laboratory information management systems (LIMS) enables bidirectional data exchange using HL7 or RESTful API endpoints. Firmware updates are delivered over secure HTTPS with SHA-256 signature verification.
Applications
- Preparation of cross-sectional samples for failure analysis of PCBs, solder joints, and flip-chip interconnects
- Sectioning of additively manufactured Ti-6Al-4V or Inconel 718 components for porosity and grain structure evaluation per ASTM E112 and E1382
- Cutting of geological thin sections (e.g., shale, basalt) without delamination or mineral phase pull-out
- Isolation of functional layers from multilayer ceramic capacitors (MLCCs) or solid-state battery cells for FIB-SEM lamella extraction
- Routine metallographic sectioning per ISO 14040 and ASTM E3-22, including hard-facing alloys, cast irons, and duplex stainless steels
FAQ
What types of abrasive wheels are compatible with the IsoMet High Speed Pro?
Standard 10″ (254 mm) diamond-impregnated or silicon carbide wheels with ISO 4064 arbor mounting; maximum wheel thickness: 1.5 mm. Custom wheel adapters available for specialized geometries.
Does the system support unattended overnight operation?
Yes—fully programmable multi-step sequences with built-in thermal monitoring, emergency coolant flow detection, and auto-shutdown on fault condition.
Can cutting parameters be exported for regulatory documentation?
All method files include metadata (operator, timestamp, instrument ID, firmware version) and are exportable in tamper-evident PDF/A-2 format compliant with ISO 19005-2.
Is remote diagnostics supported?
Via optional Buehler Connect module: encrypted SSH tunneling, real-time telemetry streaming, and secure firmware patch deployment.
What maintenance intervals are recommended for optimal blade life and dimensional stability?
Daily coolant filter inspection; monthly spindle bearing lubrication check; annual calibration verification using NIST-traceable gauge blocks and laser interferometry—documented in included maintenance logbook template.
