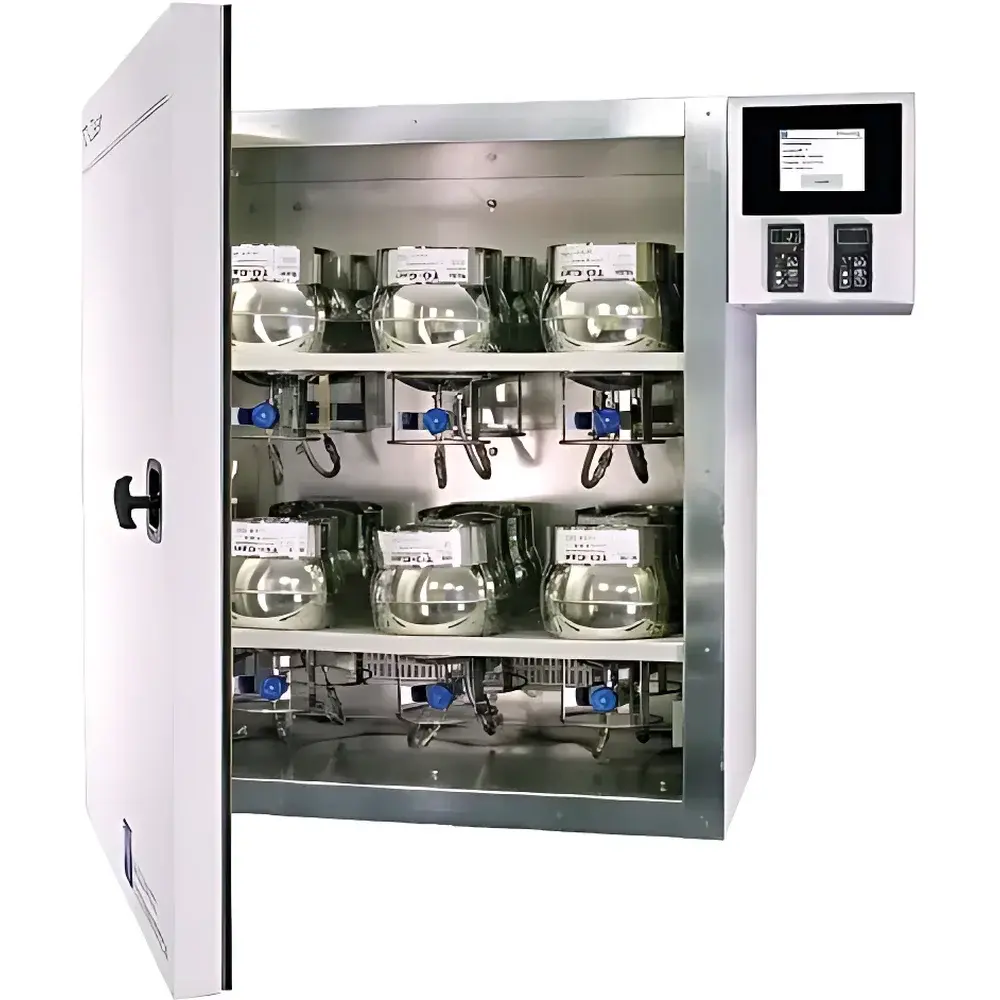

TO-Can Cleaning System by Restek (Wasson-ECE Design)

Overview

The TO-Can Cleaning System (Model MNK123521), engineered by Wasson-ECE and distributed globally by Restek, is a fully automated, high-throughput thermal-vacuum cleaning platform designed exclusively for electropolished stainless-steel SUMMA®-type and SilcoNert®-coated air sampling canisters used in ambient and source emission monitoring. It operates on the principle of thermal desorption under high vacuum—elevating canister temperature while actively evacuating adsorbed volatile organic compounds (VOCs), moisture, and trace contaminants to achieve ultra-low blank levels required for compliance with U.S. Environmental Protection Agency (EPA) Methods TO-14A and TO-15. Unlike manual or semi-automated ovens, this system integrates precise temperature ramping, multi-stage vacuum evacuation, and cryogenic trapping into a single, validated workflow—eliminating operator intervention during cycle execution and ensuring reproducible, auditable cleaning performance across batches.

Key Features

• High-Capacity Dual-Format Chamber: Accommodates either twelve 6 L canisters or twenty-four 1 L canisters simultaneously—doubling throughput versus conventional single-rack systems without compromising thermal uniformity or vacuum integrity.
• Integrated Edwards RV-8 Rotary Vane Vacuum Pump: Delivers stable, oil-sealed vacuum down to ≤50 mTorr within 30 minutes for a full 6 L canister load—enabling rapid outgassing while maintaining long-term pump reliability and reduced maintenance intervals.
• Stainless Steel Vacuum/Pressure-Rated Cold Trap (MNK123522): Positioned between the chamber and pump, it condenses water vapor, VOCs, and pump oil backstreaming—preventing contamination of both the canisters and the vacuum system, and extending pump service life.
• Programmable Touchscreen Controller: Embedded microprocessor with intuitive GUI supports up to ten user-defined cleaning protocols—including customizable ramp rates, hold times, final temperature setpoints (up to 110 °C), and vacuum dwell sequences—fully traceable via internal event logging.
• Pre-Assembled & Factory-Validated: Shipped fully integrated and functionally tested; requires only standard 220–230 V, 50/60 Hz power and compressed dry air (if optional humidification module MNK124886 is installed). No field calibration or mechanical alignment needed.

Sample Compatibility & Compliance

This system is validated for use with all standard EPA-compliant canisters—including 1 L, 3 L, and 6 L electropolished stainless-steel canisters with fused silica or SilcoNert® deactivation coatings. Custom trays (available upon request) ensure secure, vibration-free positioning regardless of canister geometry or valve configuration. The entire cleaning process meets the stringent blank criteria defined in EPA Method TO-15 Appendix B: total VOC blank must remain below 0.5 ppbv across ≥95% of target analytes after cleaning and subsequent analysis via GC-MS. All operational parameters—including temperature profiles, vacuum decay curves, and cycle timestamps—are automatically recorded and exportable in CSV format to support GLP/GMP documentation and FDA 21 CFR Part 11-compliant audit trails when paired with Restek’s LIMS-integrated data management software.

Software & Data Management

The embedded controller stores complete cycle logs—including start/stop timestamps, actual vs. setpoint temperature curves, real-time pressure readings, and fault alerts—for every run. Logs are retrievable via USB export or optional Ethernet interface. When integrated with Restek’s CanisterQC Manager software (sold separately), users gain automated pass/fail evaluation against TO-15 blank thresholds, trend analysis across multiple cleaning batches, and electronic signature capability for regulatory submissions. All data files are timestamped, immutable, and include checksum verification to satisfy ISO/IEC 17025 accreditation requirements for environmental testing laboratories.

Applications

• Ambient air monitoring networks requiring daily batch cleaning of SUMMA® canisters prior to field deployment
• Source testing laboratories performing EPA Method 25A, TO-14A, and TO-15 compliance analyses
• Reference laboratory calibration programs where ultra-low background integrity is critical for primary standard preparation
• Research studies involving reactive or polar VOCs (e.g., formaldehyde, acetaldehyde, methanol) that require aggressive thermal-vacuum conditioning
• Contract labs undergoing TNI (The NELAC Institute) or state environmental agency audits demanding full traceability of canister preparation history

FAQ

Does the system support both 1 L and 6 L canisters without hardware modification?
Yes—the standard chamber includes interchangeable tray inserts; the 24-position 1 L tray (MNK123521 accessory) and 12-position 6 L tray are both supported out-of-the-box.
Is the Edwards RV-8 pump included in the base configuration?
Yes—the RV-8 vacuum pump, stainless steel cold trap, and all vacuum-rated fittings are factory-installed and fully integrated.
Can the cleaning protocol be validated per ISO/IEC 17025 requirements?
Absolutely—the system generates raw time-series data for temperature, pressure, and cycle status, enabling full uncertainty budgeting and method validation per ISO/IEC 17025 Clause 7.2.2.
What maintenance is required for routine operation?
Monthly inspection of O-rings and cold trap cleanliness; quarterly oil change for the Edwards pump; annual verification of temperature sensor accuracy using NIST-traceable reference thermometers.
Is remote monitoring or integration with laboratory information management systems (LIMS) possible?
Yes—via optional Ethernet module and Restek’s CanisterQC Manager API, supporting HL7 and ASTM E1384-compliant data exchange protocols.
