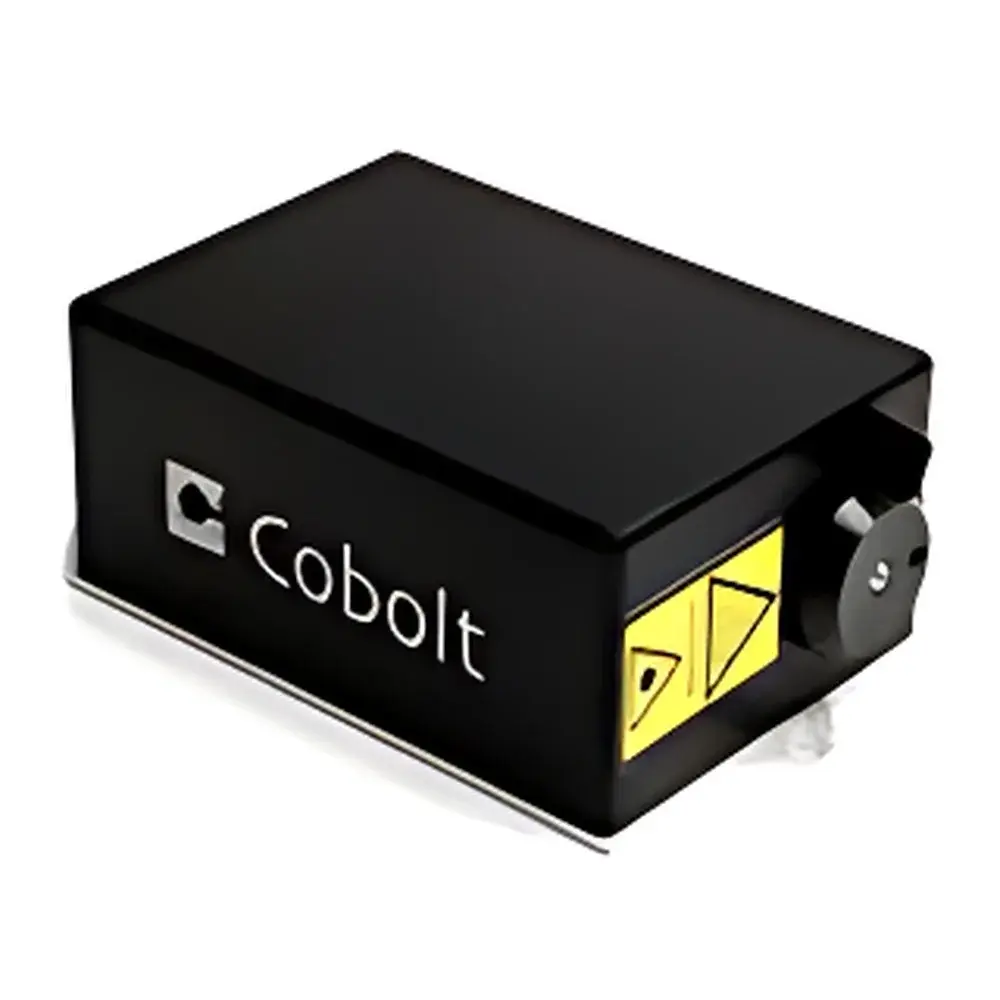

Cobolt 04-01 & 05-01 Series Single Longitudinal Mode (SLM) / Single-Frequency DPSS Lasers

Overview

The Cobolt 04-01 and 05-01 Series are high-stability, diode-pumped solid-state (DPSS) lasers engineered for applications demanding true single longitudinal mode (SLM) or single-frequency operation. These lasers utilize intra-cavity etalons and optimized resonator designs to suppress side modes and ensure narrow spectral emission—critical for interferometric, coherent detection, and high-resolution spectroscopic techniques. Unlike multimode or quasi-monochromatic sources, the 04-01 (SLM) and 05-01 (single-frequency) platforms deliver sub-MHz linewidths (< 1 MHz, equivalent to < 0.01 pm at 532 nm), enabling coherence lengths exceeding 100 meters. This performance is achieved without external cavity stabilization, offering inherent robustness against mechanical drift and thermal perturbation—key advantages in benchtop laboratories and OEM-integrated instrumentation where long-term alignment stability is non-negotiable.

Key Features

• Wavelength versatility across UV–NIR spectrum: 354.8 nm (Zouk), 457–660 nm (Twist, Blues, Calypso, Fandango, Samba, Jive, Mambo, Flamenco), and 1064 nm (Rumba), with tight wavelength tolerances (±0.3–0.6 nm).
• TEM₀₀ spatial profile with M² < 1.1 and beam divergence as low as 0.8 mrad (full angle), ensuring diffraction-limited focusability and efficient coupling into single-mode fibers or microscope optics.
• Exceptional amplitude stability: < 2% peak-to-peak power fluctuation over 8 hours at ±3 °C ambient variation; RMS intensity noise < 0.1% (05-01) to < 0.25% (04-01) across 20 Hz–20 MHz bandwidth.
• Sub-microradian beam pointing stability (< 10 µrad/°C, typical 5 µrad/°C) maintained across full operating range (10–40 °C), minimizing drift-induced signal loss in scanning or interferometric setups.
• Compact, modular architecture: laser head and controller are physically decoupled, facilitating integration into space-constrained systems. Both series support RS-232 and USB communication for remote control, status monitoring, and firmware updates.
• Compliance-ready design: integrated CDRH-compliant key-switch (04-01) and auto-start OEM mode (05-01) simplify regulatory alignment in medical and industrial instrumentation.

Sample Compatibility & Compliance

The Cobolt 04-01 and 05-01 lasers are designed for use with standard optical components rated for continuous-wave (CW) operation at specified wavelengths and power levels. All models operate within Class 3B or Class 4 laser safety classifications per IEC 60825-1:2014 and FDA 21 CFR Part 1040.10, requiring appropriate engineering controls (e.g., interlocked enclosures, beam shutters) and administrative procedures in user environments. The lasers meet RoHS Directive 2011/65/EU and REACH Regulation (EC) No. 1907/2006. For GxP-regulated workflows—including clinical diagnostics, pharmaceutical QC, and GLP-compliant R&D—the optional audit-trail-capable controller firmware (available upon request) supports 21 CFR Part 11 compliance when deployed with validated software interfaces.

Software & Data Management

Cobolt provides native drivers for Windows, Linux, and macOS via RS-232 or USB virtual COM port protocols. The command set conforms to SCPI-like syntax (e.g., POWER? , SET POWER 100), enabling seamless integration with LabVIEW, Python (PySerial), MATLAB, and custom C/C++ applications. Real-time telemetry—including output power, internal temperature, diode current, and fault status—is accessible through polling or asynchronous event reporting. While Cobolt does not ship proprietary GUI software, third-party instrument control frameworks such as EPICS and Qudi have documented compatibility. For traceable calibration and maintenance records, users are advised to log timestamped parameter sets and operational logs externally, consistent with ISO/IEC 17025 requirements for metrological traceability.

Applications

• Confocal and super-resolution fluorescence microscopy: Narrow linewidth and high spatial coherence enable precise excitation of spectrally narrow fluorophores (e.g., Alexa Fluor 488, ATTO 565) while minimizing bleed-through and improving signal-to-background ratio.
• Flow cytometry and cell sorting: Stable single-frequency output ensures reproducible scattering and fluorescence signatures across millions of events, supporting quantitative phenotyping and rare-cell detection.
• Raman spectroscopy: Sub-MHz spectral purity eliminates laser-induced background broadening, enhancing resolution of closely spaced vibrational peaks (e.g., in pharmaceutical polymorph identification per USP ).
• Holographic particle velocimetry (HPV) and dynamic light scattering (DLS): Long coherence length (>100 m) enables unambiguous fringe formation over extended path lengths, critical for micron-scale velocity field reconstruction and hydrodynamic radius determination.
• DNA sequencing by synthesis (SBS): Used in commercial platforms for base-specific fluorescent excitation, where wavelength accuracy and power stability directly impact phasing/pre-phasing error rates and read-length fidelity.
• OEM integration in analytical instruments: Modular form factor, low heat dissipation (<35 W typical), and dual communication options support embedding in compact, fanless enclosures compliant with IEC 61000-6-4 EMC standards.

FAQ

What distinguishes the 04-01 (SLM) from the 05-01 (single-frequency) series?
The 04-01 series achieves SLM operation via intra-cavity frequency selection and is optimized for moderate power (up to 300 mW) with broader wavelength coverage. The 05-01 series employs enhanced thermal and mechanical stabilization for stricter single-frequency performance—particularly critical at higher powers (up to 2 W at 1064 nm)—and tighter long-term wavelength drift specifications.

Can these lasers be fiber-coupled?
Yes. Optional permanent single-mode (SM) or polarization-maintaining (PM) fiber pigtailing is available at time of order. External fiber coupling mounts are also offered for user-defined alignment and splicing workflows.

Is active cooling required?
No active cooling (e.g., TEC or water) is needed. Both series operate passively with recommended heatsink thermal resistance ≤ 0.2 K/W (05-01) or ≤ 0.5 K/W (04-01), compatible with standard aluminum extrusion or machined copper cold plates.

What is the expected lifetime under continuous operation?
Cobolt specifies > 10,000 hours MTBF for the pump diodes under nominal operating conditions (25 °C ambient, proper heatsinking). Lifetime is strongly dependent on thermal management—exceeding maximum baseplate temperature (50 °C) accelerates degradation.

Are calibration certificates provided?
Factory calibration reports—including measured wavelength, output power, beam profile, and noise spectra—are supplied with each unit. NIST-traceable power meter calibration is available as a value-added service upon request.
