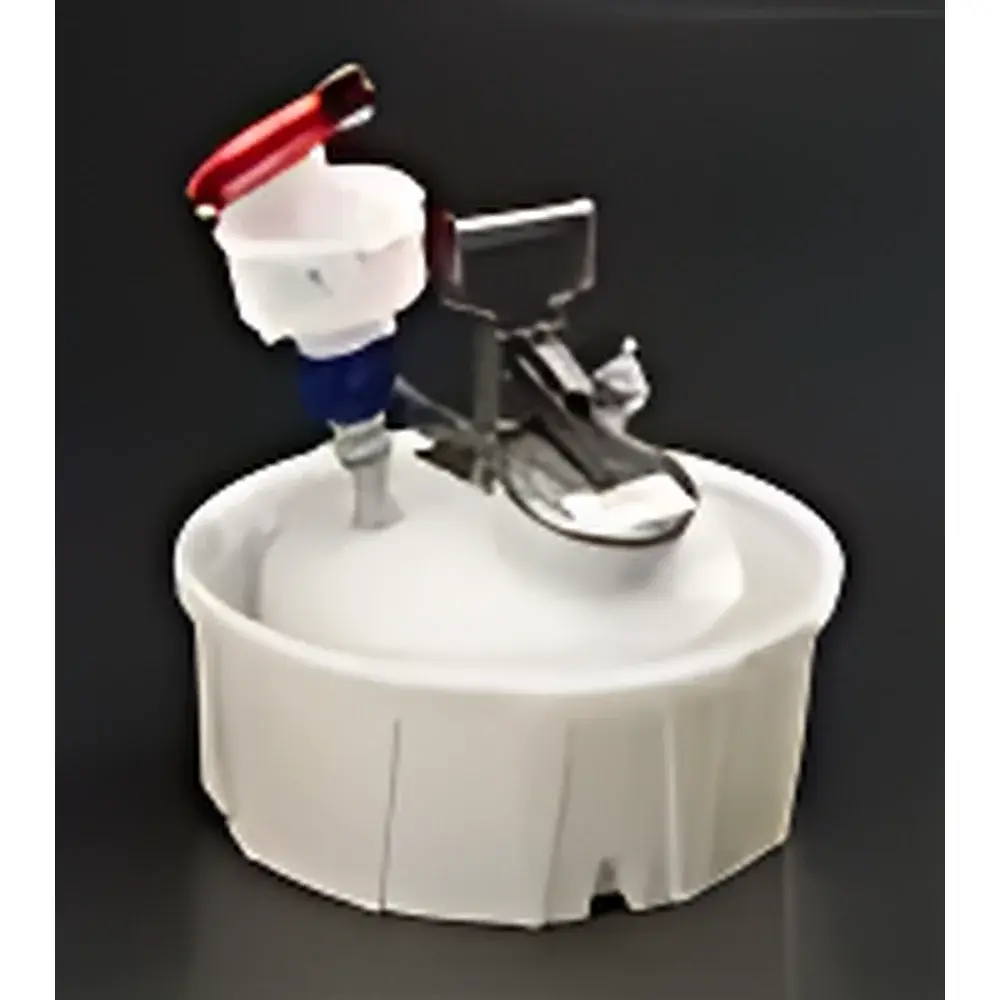

CP Lab Safety EF-4-38-62-SYS 4″ ECO Waste Collection System

Overview

The CP Lab Safety EF-4-38-62-SYS 4″ ECO Waste Collection System is an engineered solution for safe, compliant, and vapor-reducing disposal of hazardous organic solvents in analytical and synthetic laboratories. Designed around the principle of vapor containment via extended-neck geometry and secure threaded sealing, this system minimizes headspace exposure and suppresses volatile organic compound (VOC) emissions by up to 99% compared to open-beaker or uncapped bottle waste collection—validated under controlled fume hood airflow conditions per ANSI Z9.5-2022. Its compact footprint (5″ × 7″ base) allows integration into tight spaces—including under HPLC autosamplers, within biosafety cabinets, or directly atop standard 2 L and 4 L HDPE/PP solvent bottles—without compromising ergonomic access or workflow continuity. The system is not a standalone container but a modular interface: the funnel serves as a sealed, filter-integrated inlet that converts compatible reagent bottles into certified temporary waste accumulation units, aligning with EPA 40 CFR Part 262 satellite accumulation requirements when used with labeled, compatible containers.

Key Features

• Extended 11-inch neck design reduces vapor diffusion path length and increases residence time for condensable vapors, significantly lowering airborne solvent concentration at the operator breathing zone.
• Chemically resistant high-density polyethylene (HDPE) construction provides broad compatibility with common laboratory solvents including acetonitrile, methanol, chloroform, ethyl acetate, hexane, and DMSO—validated per ASTM D543-20 for immersion resistance.
• Integrated particulate filter (standard 100 µm mesh) prevents solid residue ingress into downstream containers, protecting pumps, valves, and level sensors in automated waste management systems.
• Standard 38-430 threaded neck ensures mechanical interchangeability with widely available LDPE and PP solvent bottles (e.g., EC-2002A, EC-2004, NG-2203-0010), eliminating custom adapters.
• Modular configuration supports up to six simultaneous HPLC waste lines via optional multi-port manifolds—enabling consolidated disposal from multiple instruments without cross-contamination risk.
• Color-coded cap options (e.g., yellow for flammable solvents, red for corrosives) support visual hazard segregation per NFPA 704 and internal lab safety protocols.

Sample Compatibility & Compliance

The EF-4-38-62-SYS is validated for use with low- to medium-volatility organic solvents commonly generated during chromatographic separations (HPLC, GC), peptide synthesis, oligonucleotide deprotection, and small-molecule purification. It is not rated for strong oxidizers (e.g., concentrated nitric acid), molten alkalis, or halogenated hydrocarbons above 60 °C. The system complies with OSHA 29 CFR 1910.1200 (Hazard Communication), ANSI Z9.5-2022 (Laboratory Ventilation), and EPA 40 CFR Part 262 Subpart C (satellite accumulation provisions). When paired with UN-certified HDPE bottles and properly labeled, it satisfies documentation requirements for GLP and ISO/IEC 17025-accredited labs conducting method validation or stability testing.

Software & Data Management

While the EF-4-38-62-SYS is a passive hardware component, its design enables seamless integration into digital lab infrastructure. When deployed with smart waste bottles equipped with RFID tags or ultrasonic level sensors (e.g., Thermo Fisher SmartBottle™ or VWR IntelliWaste™), the funnel’s standardized interface permits automatic waste volume logging, solvent-type tagging via barcode scan, and real-time alerting upon 80% fill threshold—supporting audit-ready records required under FDA 21 CFR Part 11 for electronic signatures and data integrity. CP Lab Safety provides optional CSV-compatible labeling templates aligned with GHS pictograms and IUPAC nomenclature for consistent inventory tracking in LIMS environments.

Applications

• HPLC and UHPLC fraction collection where mobile phase recovery or waste stream segregation is required.
• DNA/RNA synthesizer effluent capture during phosphoramidite coupling and deblocking cycles.
• Protein sequencers and solid-phase peptide synthesizers generating DMF, piperidine, and TFA waste streams.
• Medium-pressure flash chromatography systems using gradient elution with volatile solvents.
• QC/QA labs performing residual solvent testing (ICH Q3C) requiring trace-level containment integrity.
• Educational labs implementing tiered chemical hygiene plans for undergraduate organic chemistry instruction.

FAQ

Can this funnel be autoclaved?
No. HDPE softens above 120 °C and is incompatible with steam sterilization. For decontamination, wipe with 70% ethanol or isopropanol; avoid chlorine-based disinfectants.
Is the filter replaceable?
Yes. The 100 µm polypropylene filter insert is user-serviceable and available as spare part #EF-FIL-100.
Does this system meet NFPA 30 requirements for flammable liquid storage?
It is not a storage container but a collection interface. When mounted on UL-listed safety cans or FM-approved HDPE bottles, the full assembly may qualify under NFPA 30 Chapter 9 for incidental accumulation—subject to local fire authority approval.
What is the maximum operating temperature?
Continuous use is rated to 60 °C ambient; short-term exposure up to 70 °C is permissible for ≤15 minutes per cycle.
Can I use it with aqueous waste containing salts?
Yes, provided precipitated solids remain below 5% w/v. Higher concentrations require pre-filtration to prevent filter clogging and pressure buildup.
