CUBIC INSTRUMENTS GasTDL-3100-CH4 Tunable Diode Laser Absorption Spectroscopy (TDLAS) Methane Analyzer

Overview

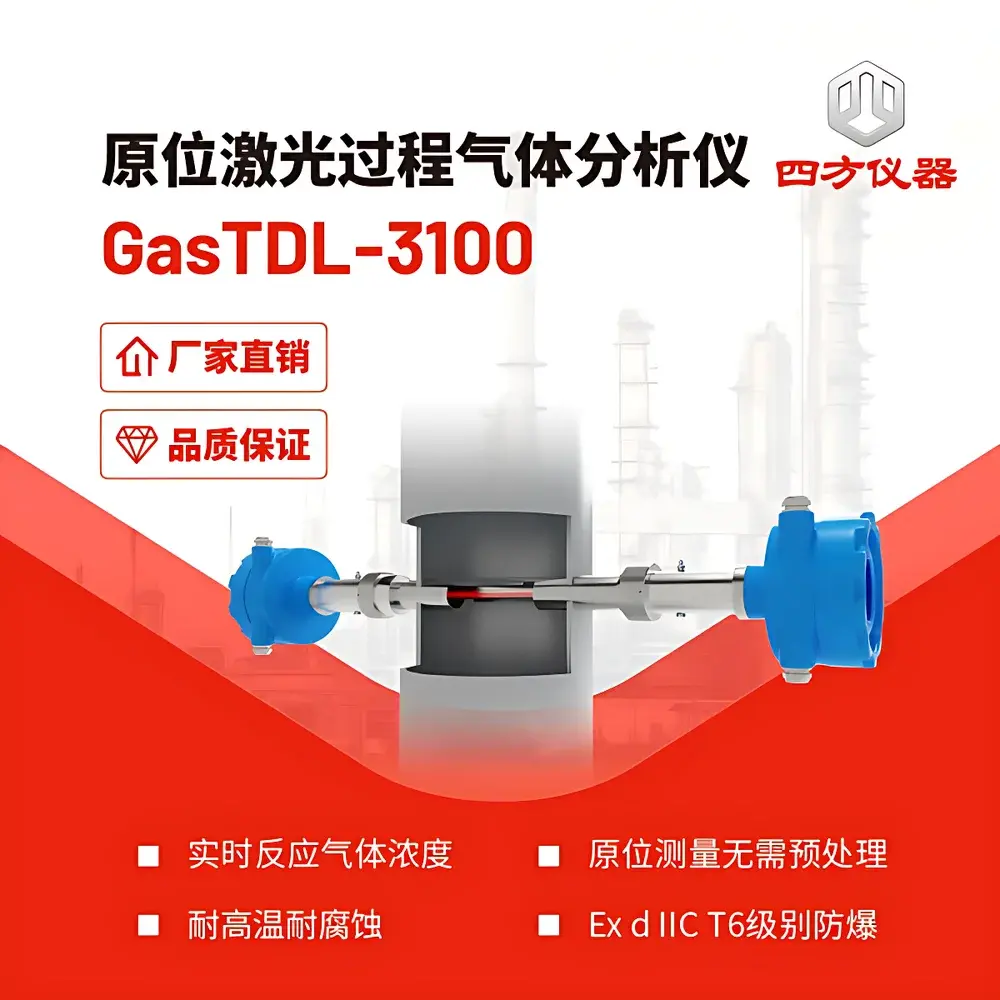

The CUBIC INSTRUMENTS GasTDL-3100-CH4 is an in-situ, real-time methane (CH₄) analyzer engineered for continuous, high-integrity concentration monitoring in demanding industrial and environmental applications. It employs Tunable Diode Laser Absorption Spectroscopy (TDLAS), a physics-based optical measurement principle that exploits the unique near-infrared absorption fingerprint of methane at precisely targeted wavelengths (e.g., ~1653 nm). Unlike extractive sampling systems, the GasTDL-3100-CH4 utilizes a robust through-beam (transmission) configuration—emitter and detector are mounted directly across the process duct or stack—enabling true in-situ measurement without sample extraction, conditioning, or transport delay. This architecture eliminates errors introduced by condensation, adsorption, catalytic conversion, or residence time lag, ensuring traceable, representative gas-phase data under dynamic operating conditions. The system is calibrated against NIST-traceable standards and conforms to fundamental spectroscopic measurement principles defined in ISO 14057 and ASTM D6522 for optical gas analysis.

Key Features

• In-situ TDLAS architecture with dual-optic path design: eliminates need for sample probes, filters, chillers, or permeation dryers
• High selectivity: laser wavelength is tuned exclusively to CH₄’s ro-vibrational absorption line, minimizing cross-sensitivity to H₂O, CO₂, CO, and other hydrocarbons
• Fast response dynamics: T90 ≤ 4 seconds enables detection of transient methane releases during fugitive emission monitoring or combustion control loops
• Robust mechanical construction: all-welded stainless-steel optical housings, sapphire windows, and passive thermal stabilization for operation in ambient temperatures from −20 °C to +60 °C
• Explosion-proof certification: Exd II CT6 marking compliant with IEC 60079-1 and GB 3836.1–2010, suitable for Zone 1 hazardous areas in oil & gas, biogas, and landfill sites
• Maintenance-free optical path: no moving parts, no consumables, no alignment drift—designed for >5 years of unattended operation

Sample Compatibility & Compliance

The GasTDL-3100-CH4 is validated for direct installation in flue gas streams, biogas pipelines, natural gas distribution headers, and landfill gas collection ducts. It maintains measurement integrity in environments with particulate loadings up to 10 g/m³, relative humidity up to 100 %RH (non-condensing), and gas velocities exceeding 30 m/s. Its optical path is resistant to corrosion from H₂S (≤5000 ppm), SO₂, and halogenated compounds when operated with continuous nitrogen purge (0.3–0.8 MPa). The analyzer meets electromagnetic compatibility requirements per EN 61326-1 and functional safety guidelines aligned with IEC 61508 SIL 2 for safety-related monitoring. Data logging and alarm outputs support compliance with EPA Method 21, EU Directive 2010/75/EU (IED), and China’s HJ 1012–2018 standard for fixed-source VOC and methane monitoring.

Software & Data Management

Embedded firmware supports dual-mode operation: standalone local display (OLED) with intuitive menu navigation and full remote supervision via Modbus RTU over RS485. All analog outputs (2 × 4–20 mA) are independently scalable and linearized per gas component, with configurable damping and fault reporting (e.g., beam loss, temperature out-of-range). Digital communication enables integration into DCS, SCADA, or cloud-based environmental management platforms (EMIS). Audit-trail-capable event logging records calibration timestamps, zero/span verification results, and hardware status changes—supporting GLP-aligned record retention and FDA 21 CFR Part 11 readiness when deployed with validated third-party data acquisition software.

Applications

• Fugitive methane monitoring at wellheads, compressor stations, and LNG terminals per OGMP 2.0 and EPA GHGRP protocols
• Real-time biogas quality control in anaerobic digesters and upgrading facilities (EN 16723-1 compliance)
• Landfill gas LEL (Lower Explosive Limit) safety interlock in flare and energy recovery systems
• Process optimization in syngas production, hydrogen reforming, and chemical synthesis reactors
• Continuous emissions monitoring (CEMS) for CH₄ under national carbon accounting frameworks requiring Tier 3 methodology

FAQ

Can the GasTDL-3100-CH4 measure multiple gases simultaneously?

No. Each unit is configured for single-component measurement (CH₄ in this model). Multi-gas capability requires separate analyzers or custom multi-laser modules—not supported in standard GasTDL-3100 series.
Is factory calibration sufficient for regulatory reporting?

Factory calibration uses certified reference gases traceable to NIST. For compliance-grade reporting (e.g., EPA Subpart W), on-site validation with span gas and zero air is required at commissioning and semiannually thereafter.
What maintenance intervals are recommended?

Optical window inspection every 6 months in high-dust environments; nitrogen purge filter replacement annually; no optical recalibration needed under normal operation due to inherent wavelength stability of DFB lasers.
Does the analyzer support automatic zero/span correction?

Yes—via external solenoid valves and certified zero/span gases; however, this requires optional auto-calibration module (GasTDL-ACM) and is not included in base configuration.
Can it operate in vacuum or pressurized lines?

Designed for atmospheric to 1.5 bar(g) duct pressure. For vacuum or >2 bar(g) applications, custom flange mounting and pressure-compensated optical alignment are required.
