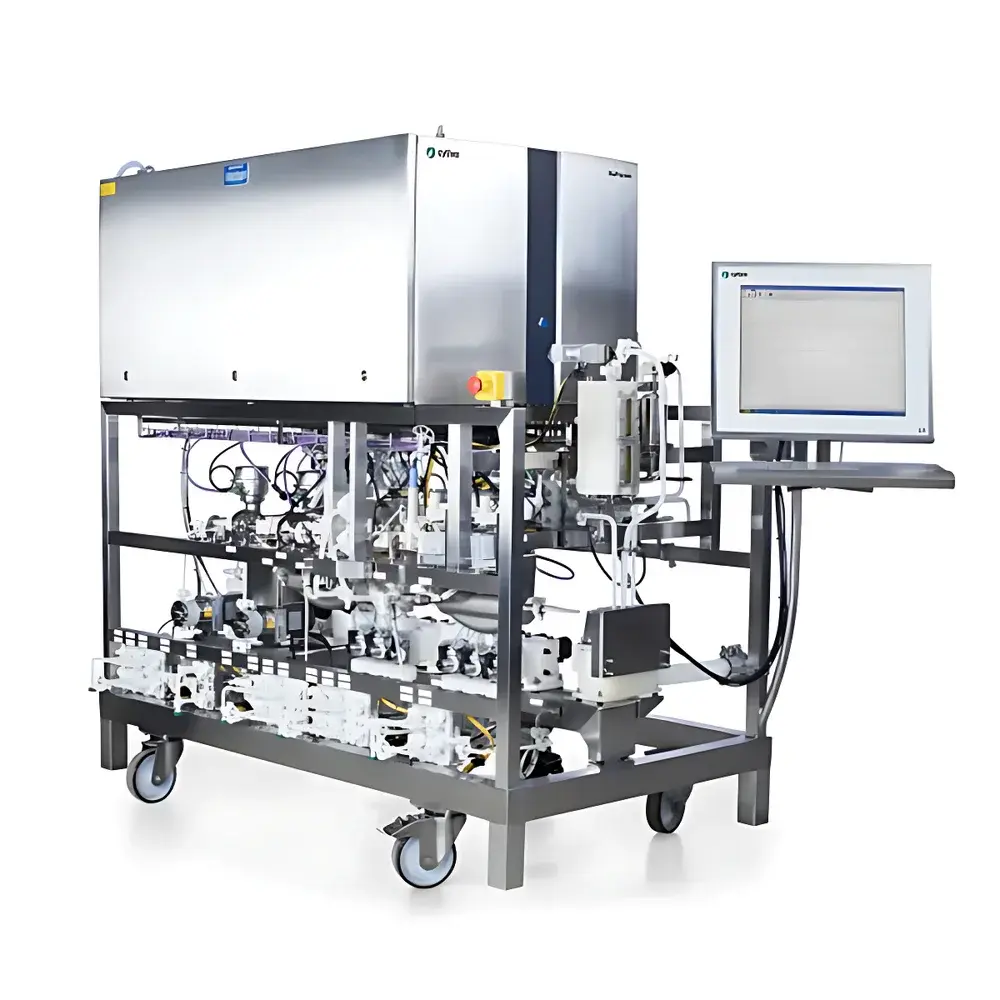

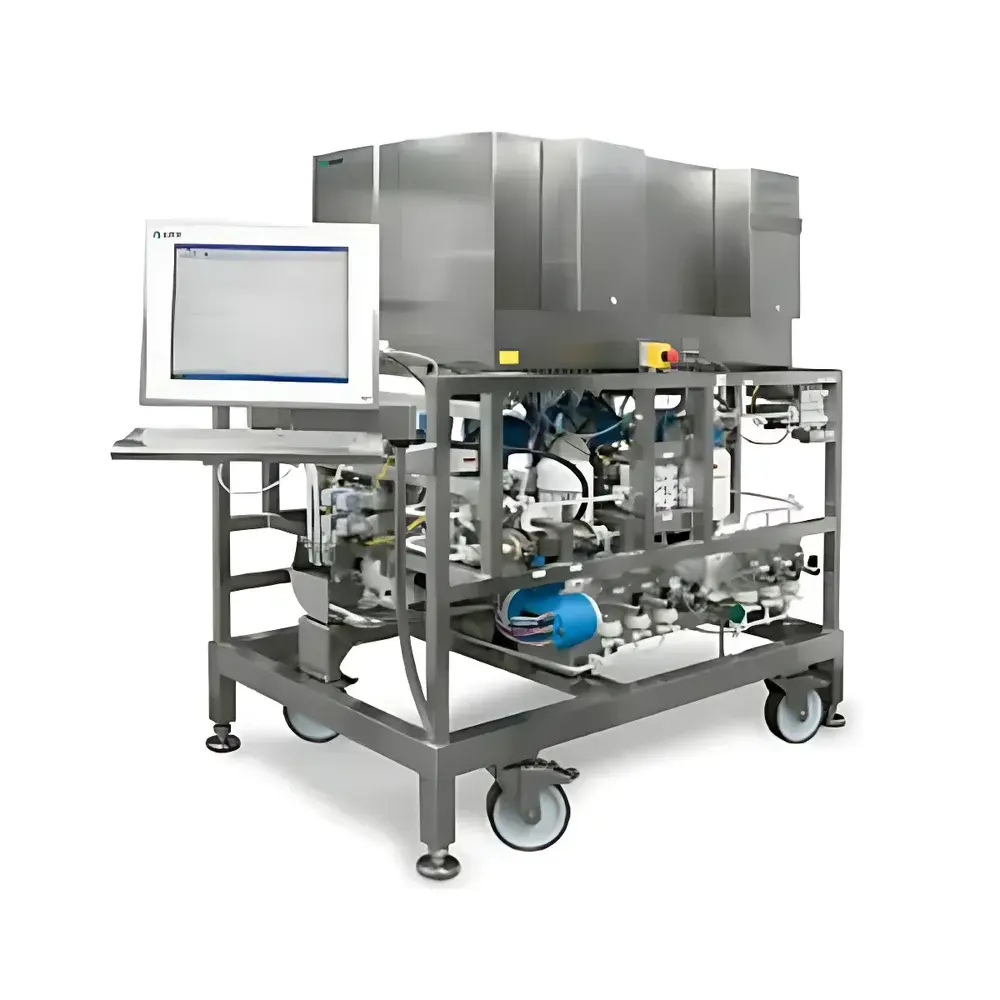

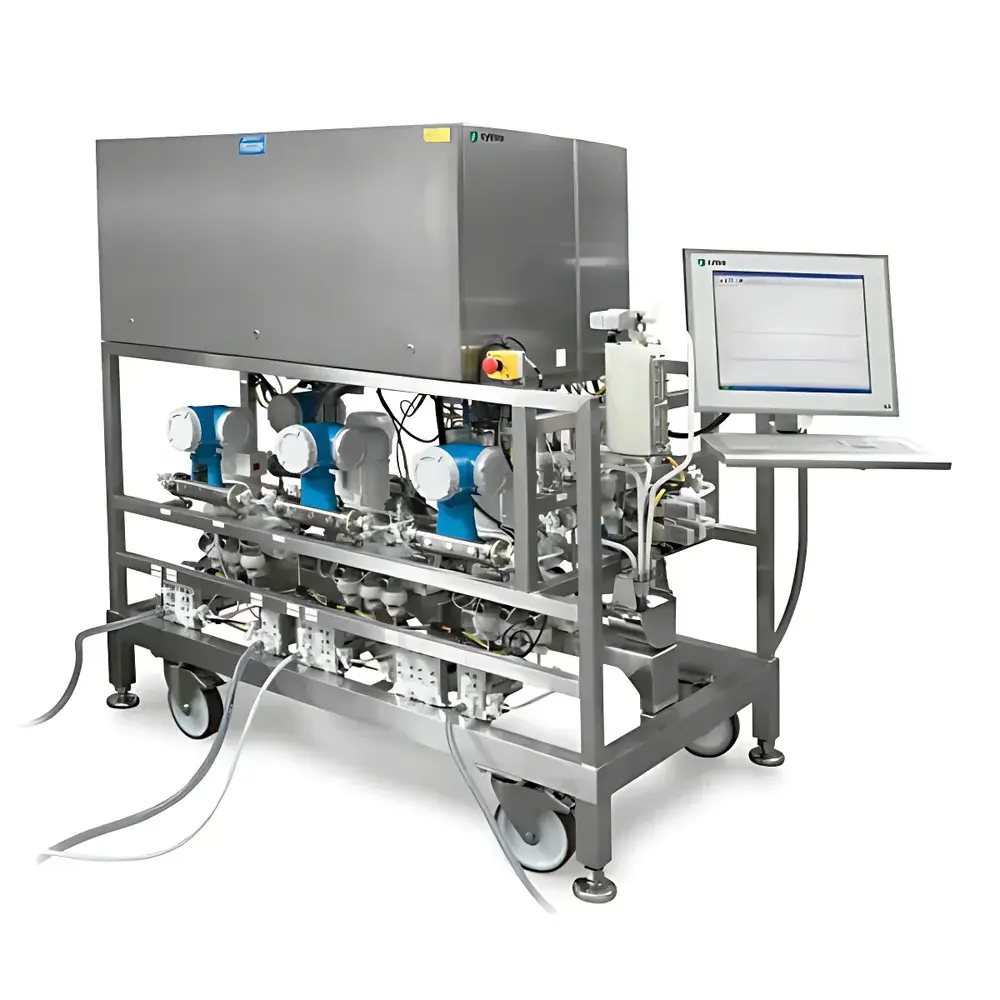

Cytiva BioProcess IC 1.5-inch Online Buffer Blending System
| Brand | Cytiva |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | BioProcess IC 1.5-inch |
| Pricing | Available Upon Request |
Overview
The Cytiva BioProcess IC 1.5-inch Online Buffer Blending System is an engineered solution for high-precision, on-demand buffer preparation in biopharmaceutical downstream processing. It implements Intelligent Blending (IC) — an advanced extension of online dilution — based on real-time, closed-loop control of single-component, high-concentration stock solutions (e.g., salts, acids, bases). Unlike conventional multi-component concentrate blending, IC eliminates co-ion interference and mitigates pH and conductivity drift during dilution by metering individual ionic species independently. The system operates on the principle of dynamic volumetric blending: precise peristaltic or diaphragm pumps deliver calibrated volumes of stock solutions into a mixing chamber, where final composition is continuously verified via inline pH and conductivity sensors. This architecture ensures traceable, reproducible buffer output aligned with process analytical technology (PAT) principles and compliant with ICH Q8(R3) and FDA Process Validation Guidance. Designed for integration into GMP-compliant purification workflows, the system supports both continuous and batch-mode buffer generation without manual intervention.
Key Features
- Single-component stock solution architecture minimizes ionic strength limitations and avoids pH/EC shifts inherent to multi-salt concentrates
- Triple-input dedicated pump lines for acids, bases, and salts—enabling simultaneous preparation of multiple buffer series within one production run
- Multi-mode feedback control: configurable logic using flow rate + pH, flow rate + conductivity, or pH + conductivity as primary control variables
- Automatic buffer switching with real-time quality gatekeeping: out-of-specification fluid is diverted to waste before reaching the chromatography column
- Modular 1.5-inch sanitary tubing interface compatible with standard bioprocessing skids and stainless-steel piping systems
- Integrated leak detection, pressure monitoring, and pump priming diagnostics for operational integrity and audit readiness
Sample Compatibility & Compliance
The BioProcess IC system handles aqueous-based buffers across pH 2.0–12.0 and conductivity ranges up to 200 mS/cm, accommodating common bioprocess formulations including sodium acetate, sodium phosphate, Tris-HCl, and citrate buffers. All wetted materials comply with USP Class VI and FDA 21 CFR Part 11 requirements for contact surfaces (e.g., EPDM, PTFE, 316L SS). The system meets ISO 13485:2016 design controls and supports full GxP documentation, including electronic signatures, audit trails, and change management logs. Optional ACT Environmental Impact Label provides third-party-verified lifecycle assessment data for sustainability reporting under ISO 14040/14044.
Software & Data Management
Control is executed via Cytiva’s UNICORN software (v7.0+), offering recipe-driven operation, SOP-based workflow execution, and full traceability of all blending parameters—including stock concentration values, target pH/conductivity setpoints, actual sensor readings, and pump actuation timestamps. For enterprise-scale integration, native OPC UA and DeltaV DCS compatibility enable seamless data exchange with distributed control systems. All critical process data are stored with immutable audit trails meeting ALCOA+ criteria (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Software validation packages (IQ/OQ/PQ) and 21 CFR Part 11 compliance kits are available upon request.
Applications
- On-demand equilibration, wash, and elution buffer preparation for preparative chromatography (e.g., Protein A, ion exchange, hydrophobic interaction)
- Buffer conditioning in continuous manufacturing platforms, including integrated perfusion and multi-column chromatography systems
- Scalable buffer supply for clinical- and commercial-scale purification suites, reducing storage footprint and inventory aging risk
- Support for Quality-by-Design (QbD) initiatives through real-time buffer attribute monitoring and statistical process control (SPC) charting
- Replacement of traditional buffer tanks in modular, single-use, or hybrid bioprocessing facilities
FAQ
Can the BioProcess IC system be validated for GMP use?
Yes—the system is designed to support IQ/OQ/PQ protocols and includes documented hardware/software traceability, calibration records, and electronic audit trail functionality compliant with Annex 11 and 21 CFR Part 11.
Does it support custom stock solution concentrations?
Yes—users define nominal stock concentrations in UNICORN; the system dynamically recalculates pump delivery volumes based on real-time sensor feedback and updated formulation targets.
How is buffer quality verified during switching?
Inline pH and conductivity sensors continuously monitor effluent; deviation beyond user-defined acceptance limits triggers automatic diversion to waste until specifications are re-established.
Is remote monitoring supported?
Yes—via UNICORN Connect or DeltaV integration, enabling secure web-based access to live sensor data, alarm status, and historical blending logs from authorized devices.
What service options are available post-installation?
Cytiva OptiRun Service Solutions offer tiered support—including Preventive Maintenance, Extended Warranty, Remote Diagnostics, and Lifecycle Asset Management—customizable to facility uptime requirements and regulatory maturity level.
