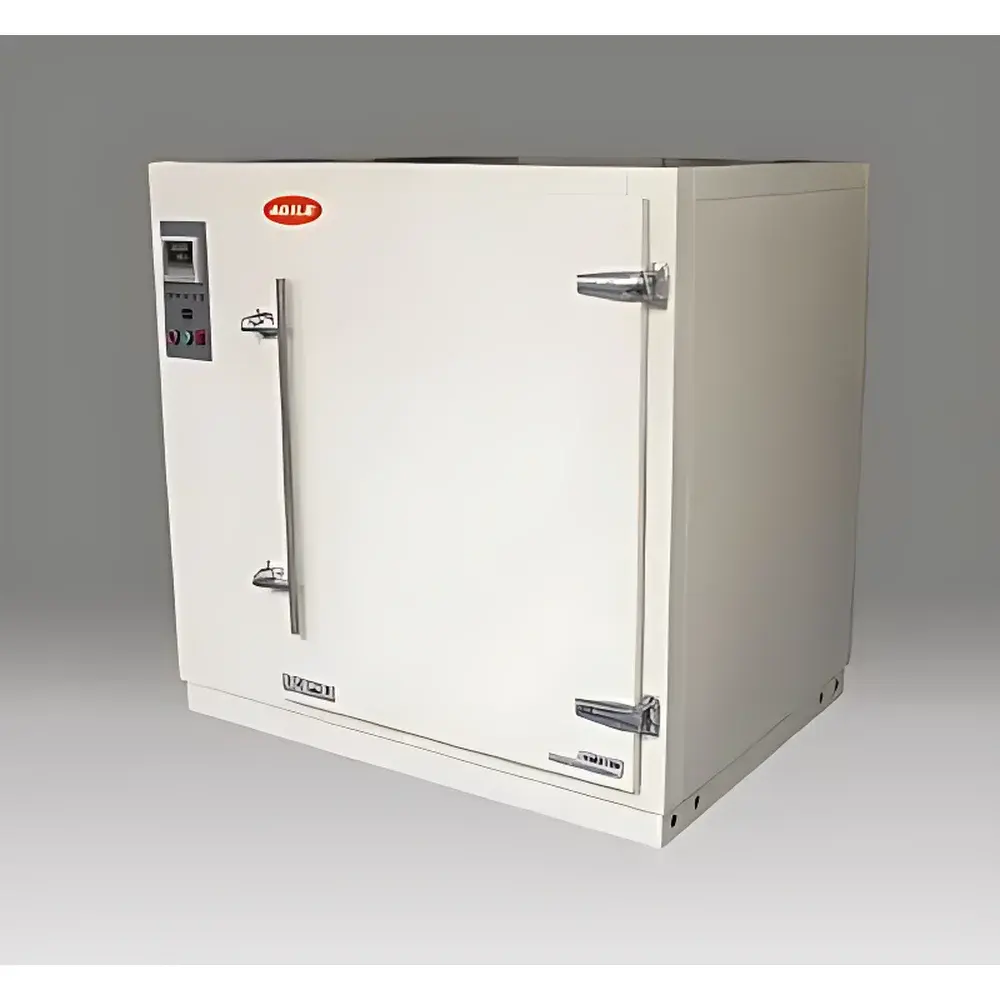

DGF3006B Forced-Convection Electric Hot-Air Drying Oven

Overview

The DGF3006B Forced-Convection Electric Hot-Air Drying Oven is an industrial-grade, bench- or floor-standing thermal processing instrument engineered for precision drying, baking, heat treatment, sterilization, and temperature stability testing in regulated laboratory and production environments. It operates on the principle of forced convection—where a high-efficiency axial fan circulates heated air uniformly across the stainless steel chamber—ensuring rapid thermal response and minimal spatial temperature gradients. Designed to meet the structural and performance requirements outlined in JB/T 5520–1991, this oven supports reproducible thermal protocols critical for QC/QA workflows in electronics component aging, polymer curing validation, pharmaceutical excipient drying, and materials pre-conditioning prior to mechanical or spectroscopic analysis.

Key Features

• Stainless steel interior chamber (304 grade) resistant to oxidation, corrosion, and repeated thermal cycling—ideal for long-term use with solvents, acidic vapors, or moisture-sensitive samples.
• Forced-air circulation system with rear-mounted adjustable-speed blower ensures consistent airflow velocity and directional uniformity, minimizing hot/cold spots and improving process repeatability.
• PID digital temperature controller with 0.1 °C resolution and real-time LED display enables precise setpoint management, auto-tuning capability, and stable operation within ±0.5 °C fluctuation.
• Dual independent safety circuits: one dedicated over-temperature cut-off (mechanical backup) and one electronic short-circuit protection module—fully compliant with IEC 61010-1 Class II electrical safety standards.
• Modular panel assembly with powder-coated steel exterior (anthracite gray finish) facilitates field serviceability and reduces downtime during maintenance or calibration.

Sample Compatibility & Compliance

The DGF3006B accommodates large-format samples—including PCB assemblies, metal test coupons (up to 75 × 75 × 95 cm), bulk powder batches, and multi-rack glassware loads—without compromising thermal homogeneity. Its 640 L working volume supports ASTM E145–22 Class II oven qualification requirements for thermal mapping studies. The unit is routinely deployed in GLP-compliant labs performing USP dry-heat sterilization validation and ISO 17025-accredited thermal stability assessments. While not certified to UL or CE out-of-the-box, it can be configured for EU conformity (CE marking) or North American listing (ETL/UL 61010–1) upon request with optional documentation packages and third-party witnessed testing.

Software & Data Management

The DGF3006B includes RS-485 serial interface (Modbus RTU protocol) for integration into centralized lab monitoring systems (e.g., LabVantage, Siemens Desigo, or custom SCADA). Optional data logging modules support time-stamped temperature records with audit trail functionality aligned with FDA 21 CFR Part 11 requirements—enabling electronic signature capture, user access control, and immutable record retention. Calibration certificates traceable to NIM (National Institute of Metrology, China) are provided with each unit; annual recalibration intervals are recommended per ISO/IEC 17025 Clause 6.5.2.

Applications

• Pre-drying of ceramic green bodies and sintering substrates prior to firing cycles.
• Moisture removal from hygroscopic polymers (e.g., PA6, PETG) before injection molding or extrusion.
• Accelerated aging of lithium-ion battery separators under controlled thermal stress (85 °C / 85% RH preconditioning).
• Residual solvent evaporation from coated optical filters and MEMS device wafers.
• Thermal disinfection of reusable stainless steel tools in cleanroom maintenance protocols (validated at 180 °C for 30 min).

FAQ

What is the maximum allowable load weight inside the chamber?
The chamber shelf system supports up to 45 kg distributed evenly across three adjustable stainless steel trays (standard configuration). Load distribution must avoid obstructing rear air inlets.
Can the DGF3006B be used for sterilization applications?
Yes—when operated at ≥160 °C for ≥2 hours, it meets dry-heat sterilization criteria per USP . Validation requires thermocouple-based mapping and biological indicator challenge testing.
Is remote monitoring supported without additional hardware?
Basic status monitoring (setpoint, actual temp, alarm state) is available via Modbus RTU; full data logging and alarm notification require optional Ethernet gateway and software license.
Does the unit include a calibration certificate?
Each DGF3006B ships with a factory-issued calibration report (NIM-traceable), covering temperature accuracy at three points (100 °C, 200 °C, and 300 °C) per JB/T 5520–1991 Annex B.
What maintenance intervals are recommended?
Fan motor lubrication every 12 months; door gasket inspection quarterly; chamber interior cleaning after each high-residue process; full system verification annually or after any major repair.
