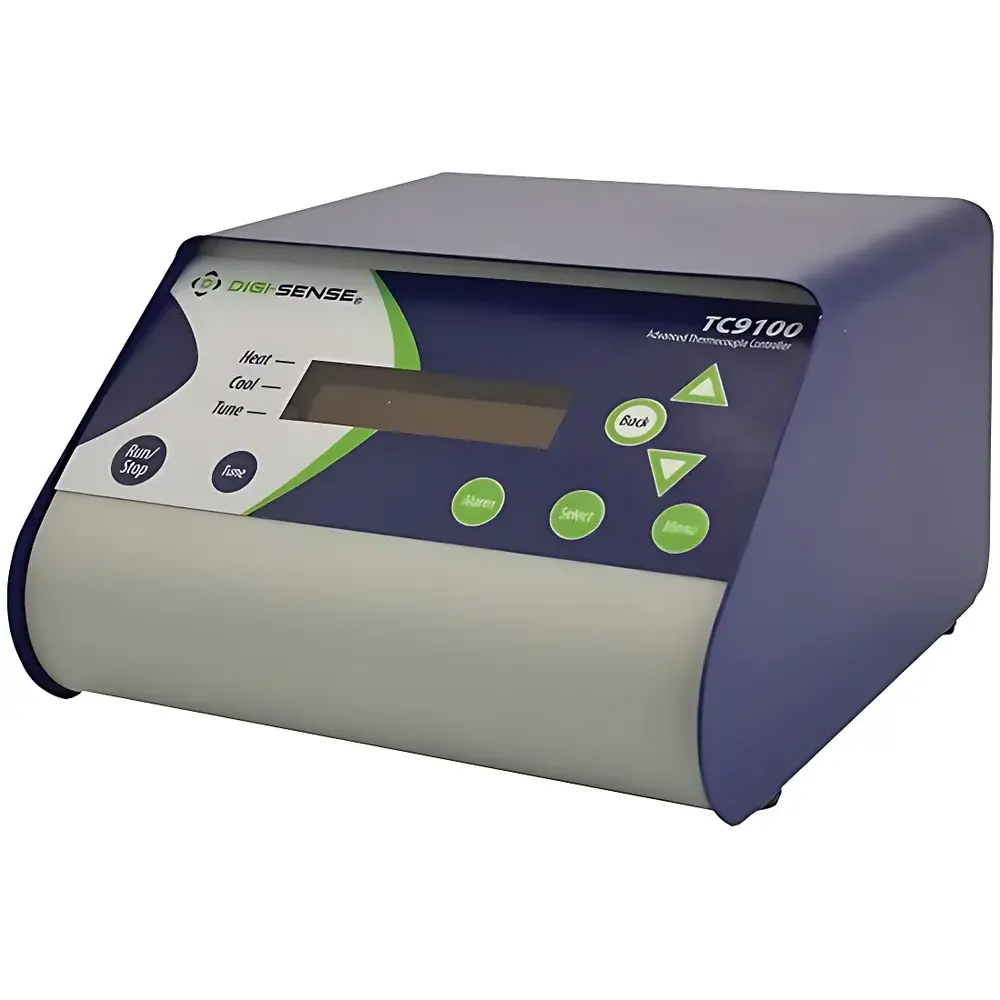

Digi-Sense TC9100 Benchtop Temperature Controller (Model 89800-12)

Overview

The Digi-Sense TC9100 Benchtop Temperature Controller (Model 89800-12) is a microprocessor-based single-loop temperature regulation system engineered for precision, repeatability, and operational flexibility in laboratory and industrial thermal process environments. Designed specifically for thermocouple-based sensing, the controller implements closed-loop feedback control using industry-standard PID algorithms—configured either manually or via its built-in auto-tuning function. Its architecture supports direct integration with resistive heaters, Peltier coolers, or other 230 VAC-compatible thermal actuators through a front-panel accessible, fused 10 A power receptacle. The device operates across an exceptionally wide measurement range—from −200 °C to +1800 °C (−328 °F to 2502 °F)—making it suitable for applications spanning cryogenic sample conditioning, high-temperature furnace stabilization, and intermediate-range material testing. All temperature units (°C, °F, K, °R) are user-selectable, and the dual-line OLED display simultaneously presents both the measured process value (PV) and user-defined setpoint (SP), along with real-time status indicators for output activation and alarm conditions.

Key Features

• Auto-tuning PID control algorithm minimizes manual configuration effort while optimizing response time and stability across diverse thermal loads
• Dual-line OLED display with high-contrast readability under variable ambient lighting, showing PV/SP concurrently plus output and alarm status icons
• Universal thermocouple input compatibility covering all eight standard types (J, K, N, R, S, T, B, E) with type-specific cold-junction compensation
• Non-volatile memory retains all user parameters—including setpoints, PID coefficients, alarm thresholds, and unit preferences—through power cycles
• Integrated safety architecture featuring loop-break detection, over-temperature cutoff, programmable timed shutdown, and independent fusing for both main electronics and output socket
• Ventilated chassis design with optional grid-support bracket enables secure mounting inside fume hoods or enclosed test enclosures without thermal derating
• Front-accessible control interface with intuitive push-button navigation and tactile feedback for glove-compatible operation

Sample Compatibility & Compliance

The TC9100 is not a sample-contacting instrument but functions as a regulatory interface between thermocouple sensors and thermal actuators. It accepts standard miniature, grounded, ungrounded, and exposed-junction thermocouples per ASTM E230/E230M specifications. Its electrical design complies with UL 61010-1 and IEC 61010-1 for laboratory equipment safety, including reinforced insulation and creepage/clearance distances appropriate for 230 VAC operation. While the controller itself does not generate analytical data, its deterministic control behavior and traceable calibration support adherence to GLP and GMP documentation requirements when deployed in regulated workflows. Alarm events—including open-circuit detection and thermal excursion—are latched and indicated visually and audibly, supporting root-cause analysis during process deviation investigations.

Software & Data Management

The TC9100 operates as a standalone hardware controller without embedded networking or external software dependencies. Configuration and monitoring occur exclusively via the front-panel interface. No proprietary PC software, drivers, or cloud connectivity are required or supported. All user-defined parameters—including setpoints, alarm limits, PID gains, and unit selections—are stored in non-volatile EEPROM and persist without battery backup. Though the unit lacks onboard data logging capability, its analog-compatible output status signals (via front-panel LEDs) and deterministic alarm behavior enable integration with third-party SCADA systems or PLCs via discrete I/O modules. For audit-trail compliance in regulated environments, users may document configuration changes manually or via external video/photo capture of the OLED display during setup and periodic verification.

Applications

• Stabilization of heating mantles, fluid baths, and environmental chambers in QC/QA laboratories
• Thermal profiling of polymer curing, metal annealing, and ceramic sintering processes in pilot-scale manufacturing
• Temperature regulation in ASTM D6372-compliant flash point testers and ASTM D92 Cleveland Open Cup apparatus
• Calibration reference loops for thermocouple wire validation per ISO/IEC 17025-accredited procedures
• Control node in multi-stage thermal test rigs where deterministic, low-latency actuation is prioritized over data streaming
• Research-grade thermal conditioning of catalyst beds, reaction vessels, and sensor test fixtures requiring stable setpoint hold within ±0.5 °C

FAQ

Does the TC9100 support RS-232, USB, or Ethernet communication?
No. The TC9100 is a dedicated hardware controller with no serial or network interfaces. Configuration and monitoring are performed locally via the front-panel controls and OLED display.
Can I connect a Pt100 RTD sensor to this controller?
No. The TC9100 accepts only thermocouple inputs (J, K, N, R, S, T, B, E). It does not support RTD, thermistor, or voltage/current analog inputs.
Is the output receptacle rated for continuous 10 A load at 230 VAC?
Yes—the rear-panel output socket is rated for continuous operation at 230 VAC, 10 A, provided ambient temperature remains ≤40 °C and ventilation meets manufacturer-specified airflow requirements.
How is calibration traceability maintained?
The TC9100 does not include internal calibration adjustment. Users perform external verification using NIST-traceable reference thermocouples and calibrated dry-block or liquid-bath sources per documented SOPs.
What happens during a power failure?
All user settings and setpoints are retained in non-volatile memory. Upon power restoration, the controller resumes operation at the last stored setpoint and control mode without manual reinitialization.
