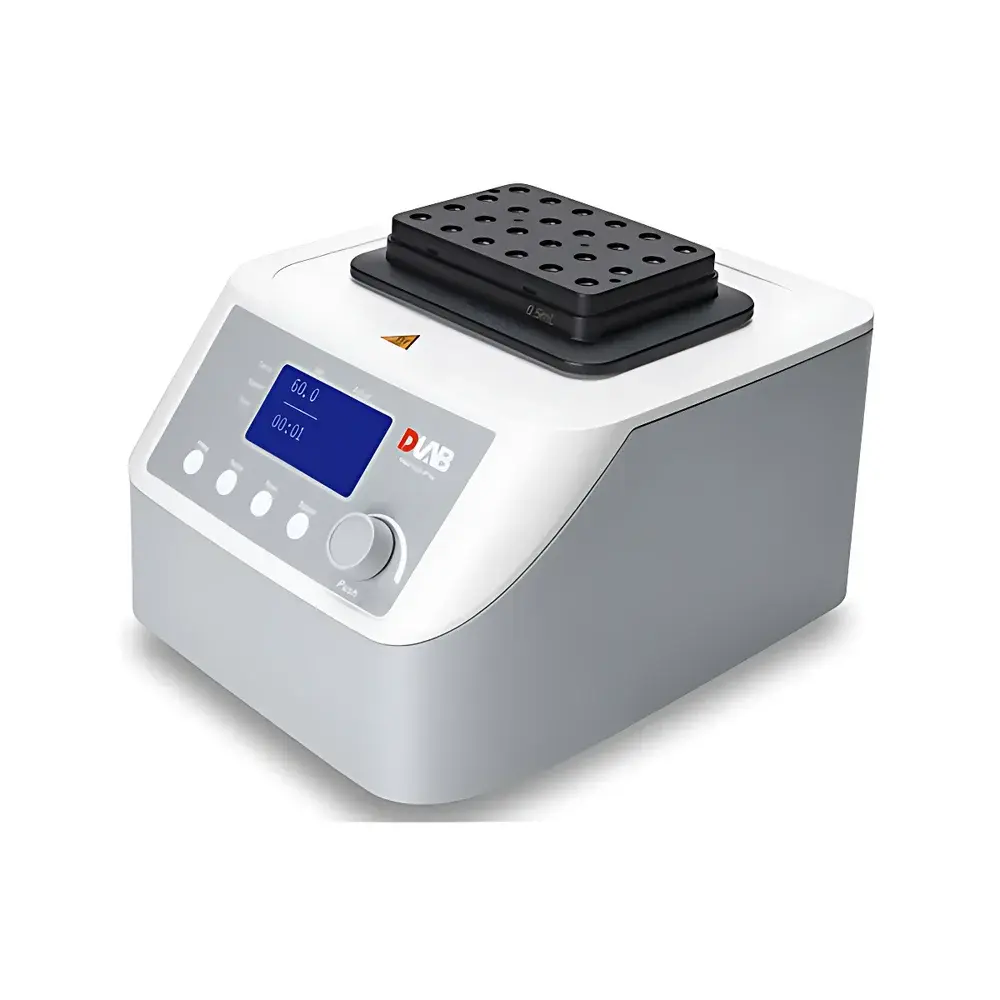

DLAB HM100-Pro Advanced Oscillating Metal Block Heater

Overview

The DLAB HM100-Pro Advanced Oscillating Metal Block Heater is an integrated thermal and mechanical platform engineered for precise temperature control and consistent orbital mixing in molecular biology, biochemistry, and microbiology workflows. Unlike conventional water baths or dry-block heaters, the HM100-Pro employs solid aluminum heating blocks with embedded PTC thermistors and PID-controlled feedback loops to deliver rapid thermal response and high spatial uniformity across the block surface. Its oscillation mechanism operates on a fixed 3 mm orbit diameter, generating reproducible horizontal motion ideal for suspension-based reactions—such as enzymatic digestions, plasmid transformations, and cell lysis protocols—where convective heat transfer and particle resuspension must be tightly synchronized. Designed for routine use in ISO 17025-accredited labs and GLP-compliant environments, the HM100-Pro meets fundamental requirements for traceable temperature calibration and operational repeatability under ASTM E2251-22 (Standard Practice for Calibration of Thermal Analyzers).

Key Features

• High-fidelity temperature regulation: ±0.5 °C accuracy and uniformity (20–45 °C), validated per IEC 61000-4-30 harmonized test procedures
• Dual-function operation: Independent or simultaneous control of heating and oscillation, with programmable ramp rates up to 5.5 °C/min
• Modular compatibility system: Interchangeable aluminum blocks (e.g., 0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL, 15 mL, 50 mL formats) secured via magnetic coupling—no tools required for installation or recognition
• Intuitive TFT display interface with nine user-defined program storage slots, supporting multi-step protocols with timed transitions between temperature setpoints and agitation speeds
• Energy-efficient architecture: 200 W rated power with intelligent thermal load compensation; active insulation hood minimizes ambient heat loss during extended incubations
• Universal power input: Auto-sensing 100–240 V AC, 50/60 Hz, compliant with IEC 61010-1 safety standards for laboratory electrical equipment

Sample Compatibility & Compliance

The HM100-Pro accommodates standard microcentrifuge tubes, PCR strips, deep-well plates, and custom-insert modules without requiring recalibration. All interchangeable blocks are manufactured from aerospace-grade anodized aluminum (6061-T6), ensuring chemical resistance to common reagents including ethanol, isopropanol, and diluted acids/bases. The device conforms to EN 61326-1:2013 for electromagnetic compatibility and carries CE marking for the European Economic Area. For regulated environments, its time-stamped parameter logging (via optional USB export) supports audit readiness under FDA 21 CFR Part 11 when paired with validated data management software. Temperature validation reports can be generated using external Class A platinum RTDs traceable to NIST standards.

Software & Data Management

While the HM100-Pro operates autonomously via front-panel controls, it supports optional USB data export for protocol archiving and post-run analysis. Logged parameters—including actual block temperature, setpoint, oscillation speed, elapsed time, and error codes—are timestamped at 1-second intervals and saved in CSV format. This enables integration into LIMS platforms or QC documentation systems where electronic records must satisfy ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate). No proprietary drivers or cloud dependencies are required; exported files are compatible with Microsoft Excel, GraphPad Prism, and Python-based analytical pipelines.

Applications

• Thermal denaturation and renaturation of nucleic acids during cloning and sequencing library prep
• Optimized enzyme kinetics assays requiring strict thermal stability (e.g., restriction digests, ligations, phosphorylations)
• Bacterial culture pre-incubation with concurrent shaking for OD normalization prior to transformation
• Protein solubilization and refolding studies involving gradient-based thermal ramps
• Antibiotic susceptibility testing via broth microdilution under controlled agitation
• Sample equilibration for downstream HPLC, mass spectrometry, or ELISA workflows where temperature-induced aggregation must be minimized

FAQ

Is the HM100-Pro suitable for use with volatile organic solvents?
Yes—provided appropriate block inserts are used and ventilation meets local safety guidelines. The aluminum housing and sealed electronics prevent solvent ingress; however, direct immersion of open containers is not recommended.
Does the device support external temperature probes for sample-core monitoring?
No—the HM100-Pro regulates block surface temperature only. For sample-specific thermal profiling, users should integrate calibrated external probes (e.g., thermocouples or fiber-optic sensors) alongside independent data loggers.
Can multiple programs be queued sequentially without manual intervention?
The HM100-Pro stores nine independent methods but does not support automated chaining. Each program terminates upon completion and requires operator confirmation to initiate the next.
What maintenance is required to ensure long-term calibration integrity?
Annual verification using a traceable reference thermometer is recommended. Clean blocks regularly with isopropanol and lint-free wipes; avoid abrasive cleaners or ultrasonic baths.
Is firmware upgrade capability available?
Firmware updates are performed exclusively by authorized DLAB service centers using diagnostic hardware interfaces; no field-upgrade path exists for end users.
