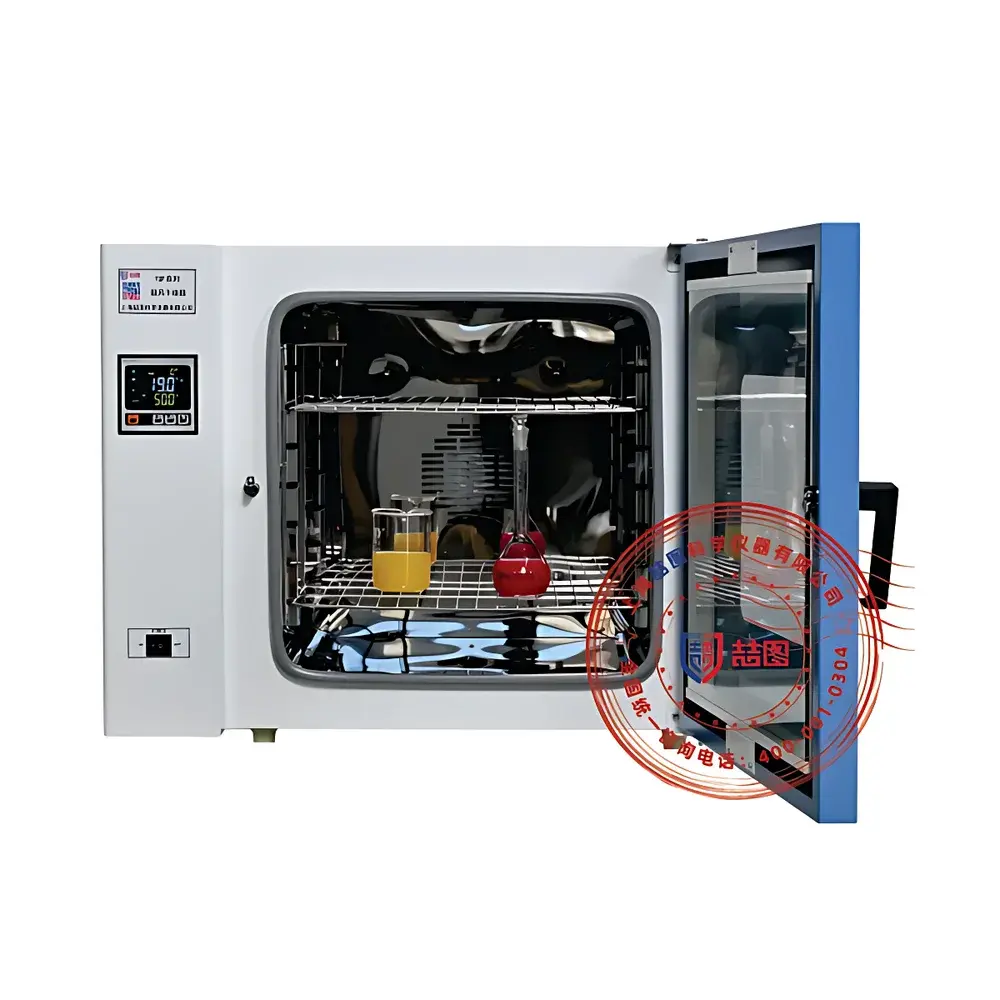

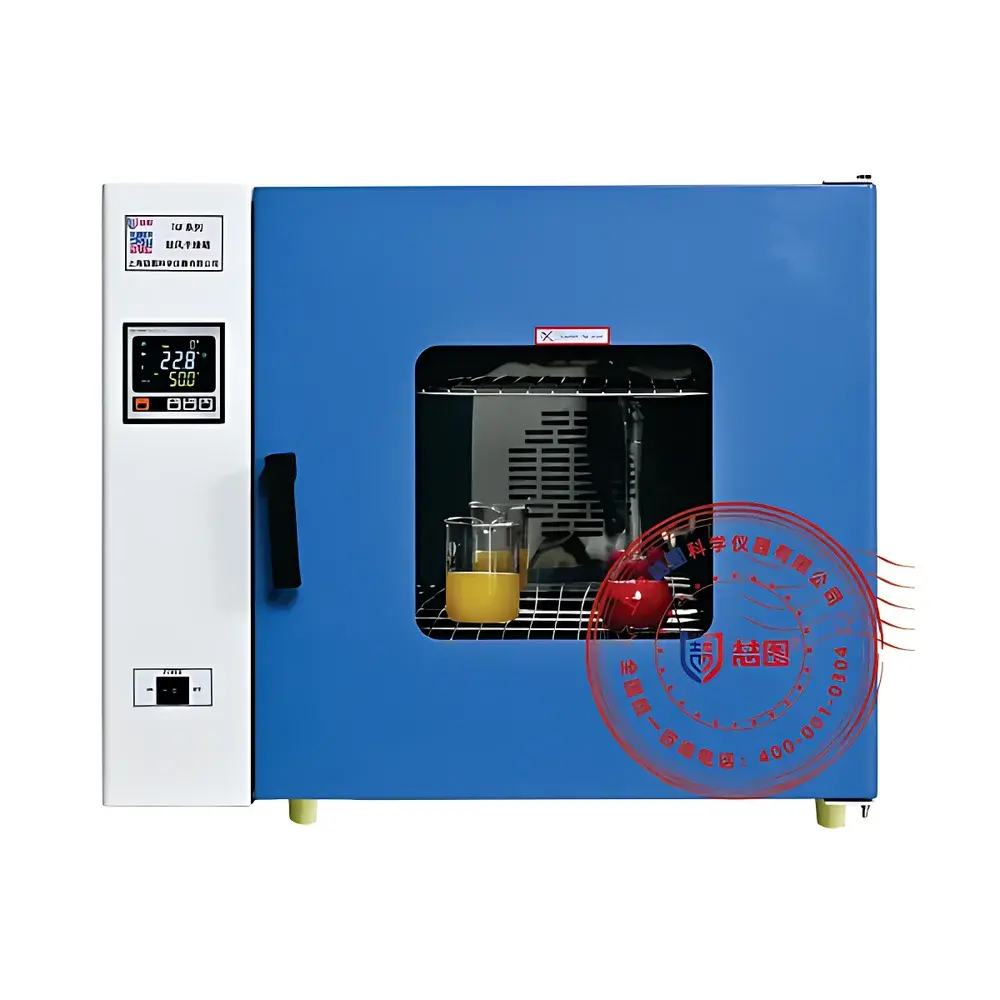

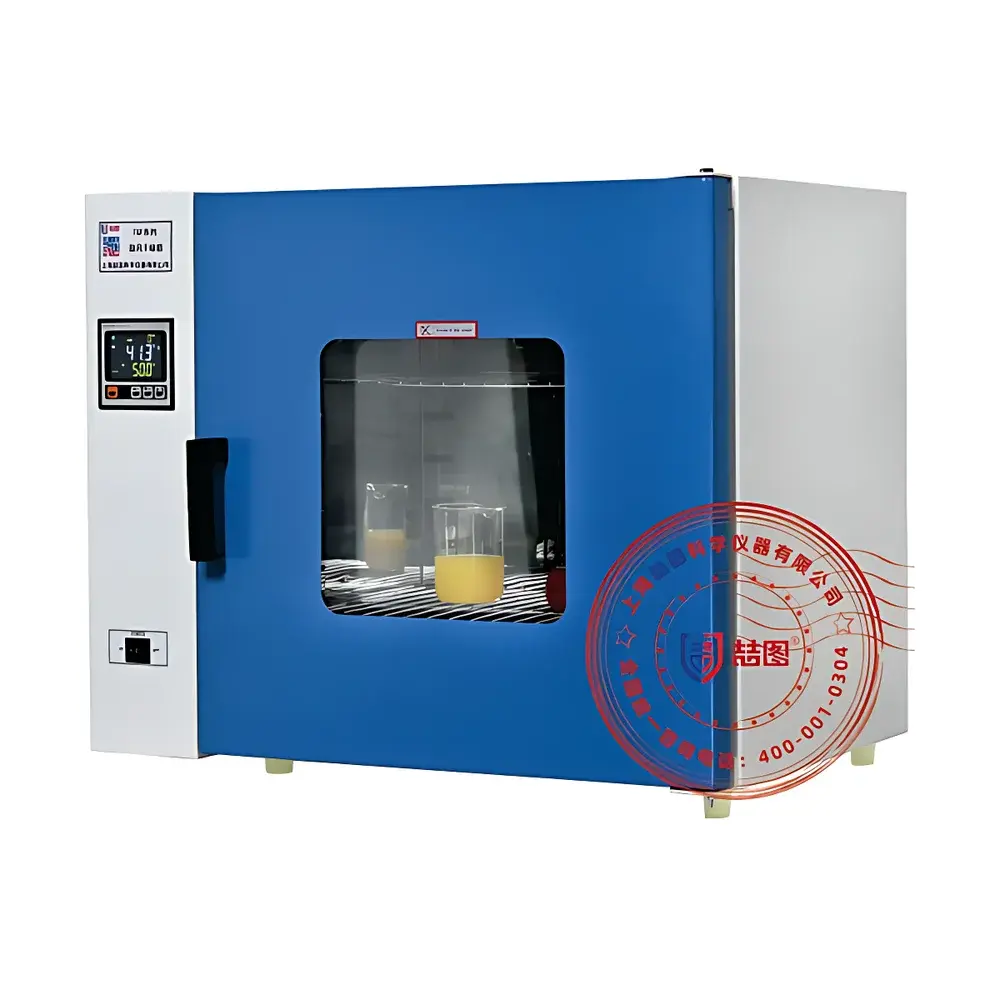

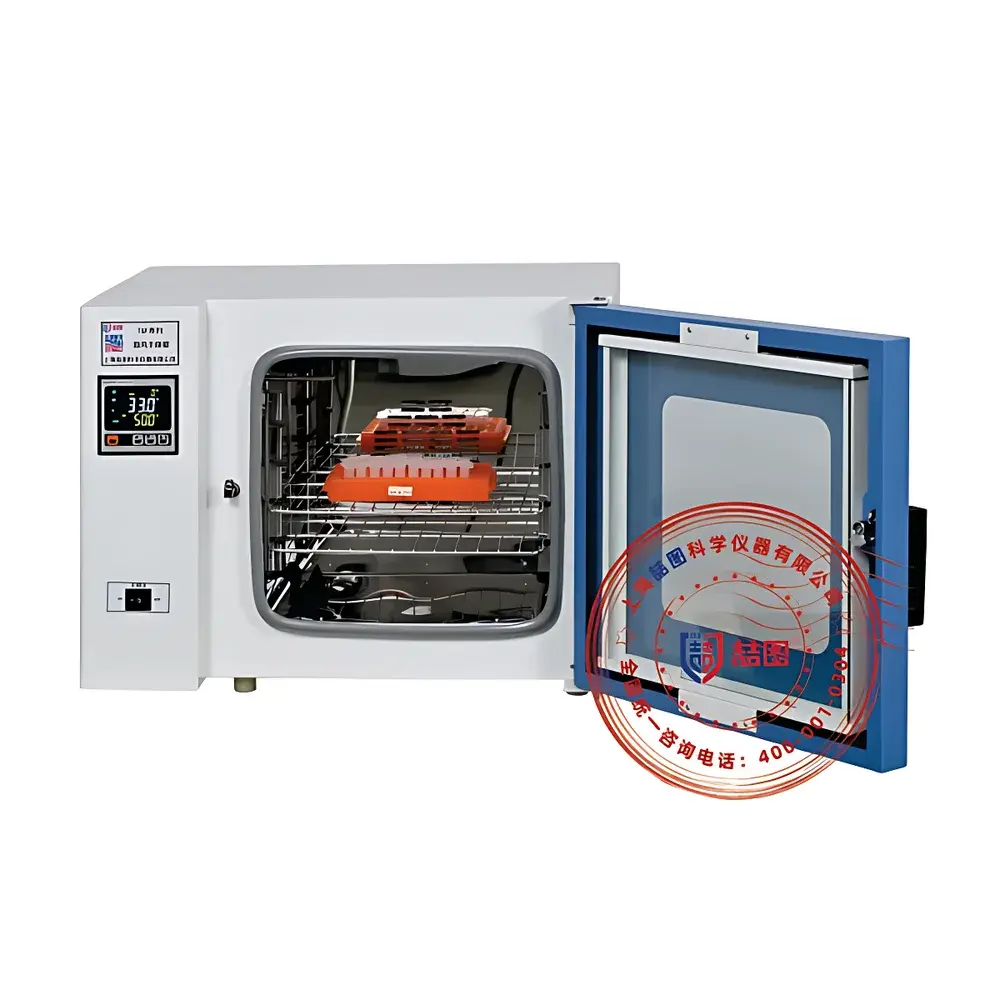

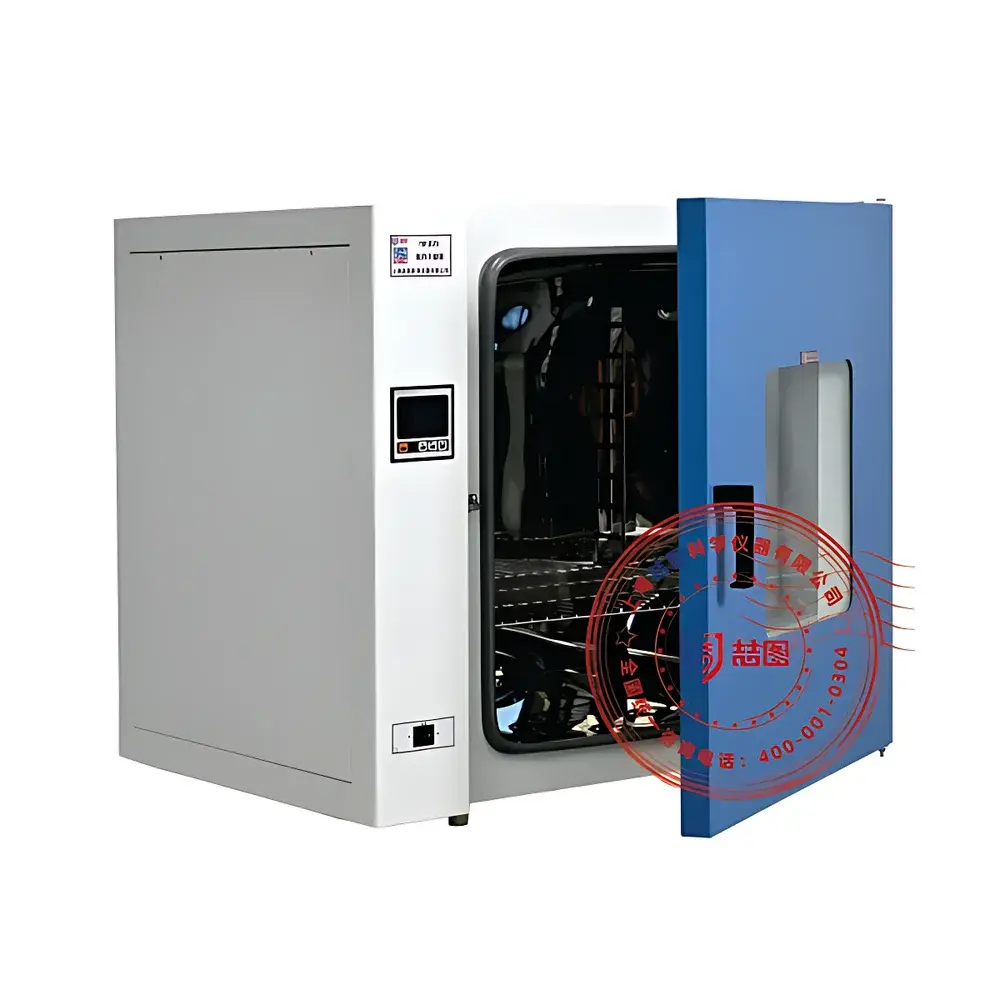

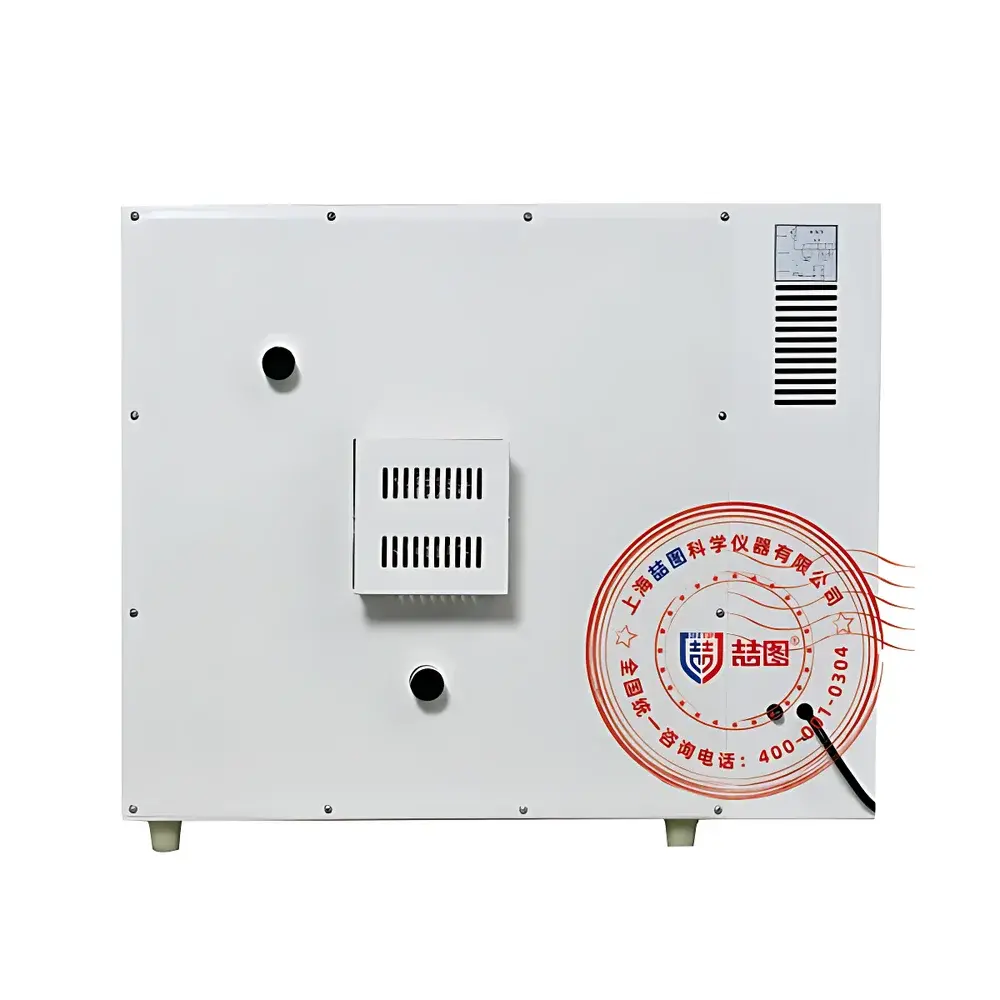

DRETOP TGF-9240A 240L Forced-Air Drying Oven

Overview

The DRETOP TGF-9240A is a 240-liter forced-air drying oven engineered for precision thermal processing in regulated laboratory and industrial environments. It operates on the principle of forced convection—using a high-temperature-rated centrifugal fan and a thermally optimized air duct system to ensure uniform heat distribution across the entire working chamber. Unlike natural convection ovens, this design actively circulates heated air at controlled velocity and direction, minimizing thermal stratification and significantly improving temperature homogeneity—critical for applications requiring reproducible drying, sterilization, or thermal conditioning. The unit complies with fundamental thermal stability requirements outlined in ISO 17025 for calibration laboratories and supports GLP/GMP-aligned workflows through configurable alarm thresholds, audit-ready parameter logging (when equipped with optional data interfaces), and independent over-temperature protection architecture.

Key Features

• Microprocessor-based P.I.D. temperature controller with 0.1°C resolution and real-time deviation compensation, ensuring stable setpoint maintenance across the full operating range (RT+10°C to 300°C)
• Dual-layer tempered glass observation window with high-efficiency thermal insulation, enabling continuous visual monitoring without compromising chamber integrity or energy efficiency
• Adjustable, removable stainless steel (SUS304) shelving system with tool-free height reconfiguration—optimized for flexible sample loading and rapid cleaning between cycles
• Robust dual-stage door locking mechanism with zinc-alloy handle and compression-sealed high-temp silicone gasket, delivering consistent thermal retention and long-term dimensional stability
• Self-diagnostic firmware that displays standardized fault codes on the backlit LCD interface, facilitating rapid troubleshooting and minimizing instrument downtime
• Power-loss recovery function: automatically restores pre-interruption setpoints, timer status, and control parameters upon re-energization—essential for unattended overnight operations
• Configurable high-limit temperature alarm with audible/visual alert and automatic heating cutoff, meeting IEC 61010-1 safety requirements for laboratory equipment

Sample Compatibility & Compliance

The TGF-9240A accommodates non-volatile, non-explosive materials including glassware, metal components, polymer substrates, pharmaceutical excipients, food matrices, and inert chemical standards. Its stainless steel interior (mirror or brushed finish) resists corrosion from residual solvents, saline solutions, and repeated dry-heat sterilization cycles. The oven is suitable for dry-heat sterilization per ISO 15883-1 Annex C and USP , provided validated cycle parameters (e.g., ≥160°C for ≥2 hours) are applied using third-party calibrated probes. While not intrinsically rated for hazardous location use, it conforms to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD) and meets RoHS 2.0 material restrictions. Optional 3Q documentation (IQ/OQ/PQ protocols) and NIST-traceable calibration certificates are available to support FDA 21 CFR Part 11-compliant validation in pharmaceutical QC labs.

Software & Data Management

The base configuration includes an integrated LCD interface with intuitive menu navigation and real-time display of setpoint, actual temperature, elapsed time, and active alarms. For enhanced traceability, optional modules extend functionality: a USB port enables direct export of time-stamped temperature logs to FAT32-formatted USB drives; an RS-485 serial interface supports integration into centralized LabVantage or Siemens Desigo CC monitoring systems; and a programmable controller (optional) allows up to 30 segmented ramp-soak profiles with slope control and event-triggered outputs. All data-acquisition variants maintain immutable timestamps and support CSV export—enabling retrospective analysis in Excel or MATLAB. When paired with compliant software, the system satisfies ALCOA+ data integrity principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Drying of moisture-sensitive samples prior to gravimetric analysis (e.g., ASTM D2240 for rubber hardness, ISO 1183 for polymer density)
• Conditioning of reference standards and calibration weights per ISO/IEC 17025 Clause 6.4.10
• Thermal aging of electronic components per IPC-TM-650 2.6.7.2
• Residue removal from glassware and stainless steel tools in analytical chemistry labs
• Dry-heat sterilization of surgical instruments and labware where steam sterilization is contraindicated
• Moisture content determination in coal, soil, and agricultural products (ASTM D3173, ISO 11465)
• Curing of coatings, adhesives, and composite pre-pregs under controlled thermal ramping

FAQ

What is the maximum operating temperature and its certified accuracy?
The TGF-9240A is rated for continuous operation up to 300°C. Temperature accuracy is ±1°C (fluctuation) and uniformity is ±2.5°C at 100°C (empty chamber), verified per internal factory test protocol using calibrated PT100 sensors.
Can this oven be used for sterilization of medical devices?
Yes—when operated at validated parameters (e.g., 170°C for 60 minutes), it meets dry-heat sterilization requirements for heat-stable, non-porous items. Full validation requires IQ/OQ/PQ with third-party thermocouples and biological indicators.
Is the interior compatible with aggressive cleaning agents?
The SUS304 stainless steel chamber resists common laboratory disinfectants (e.g., 70% ethanol, diluted sodium hypochlorite), but prolonged exposure to strong acids or halogenated solvents is not recommended.
Does the oven support remote monitoring or network connectivity?
Standard configuration does not include Ethernet or Wi-Fi. However, the optional RS-485 interface enables Modbus RTU communication for integration into SCADA or building management systems.
What validation documentation is available for regulated industries?
DRETOP provides optional 3Q validation packages, NIST-traceable calibration reports, and raw temperature mapping data files—fully compliant with FDA, EMA, and WHO GMP Annex 15 expectations.
