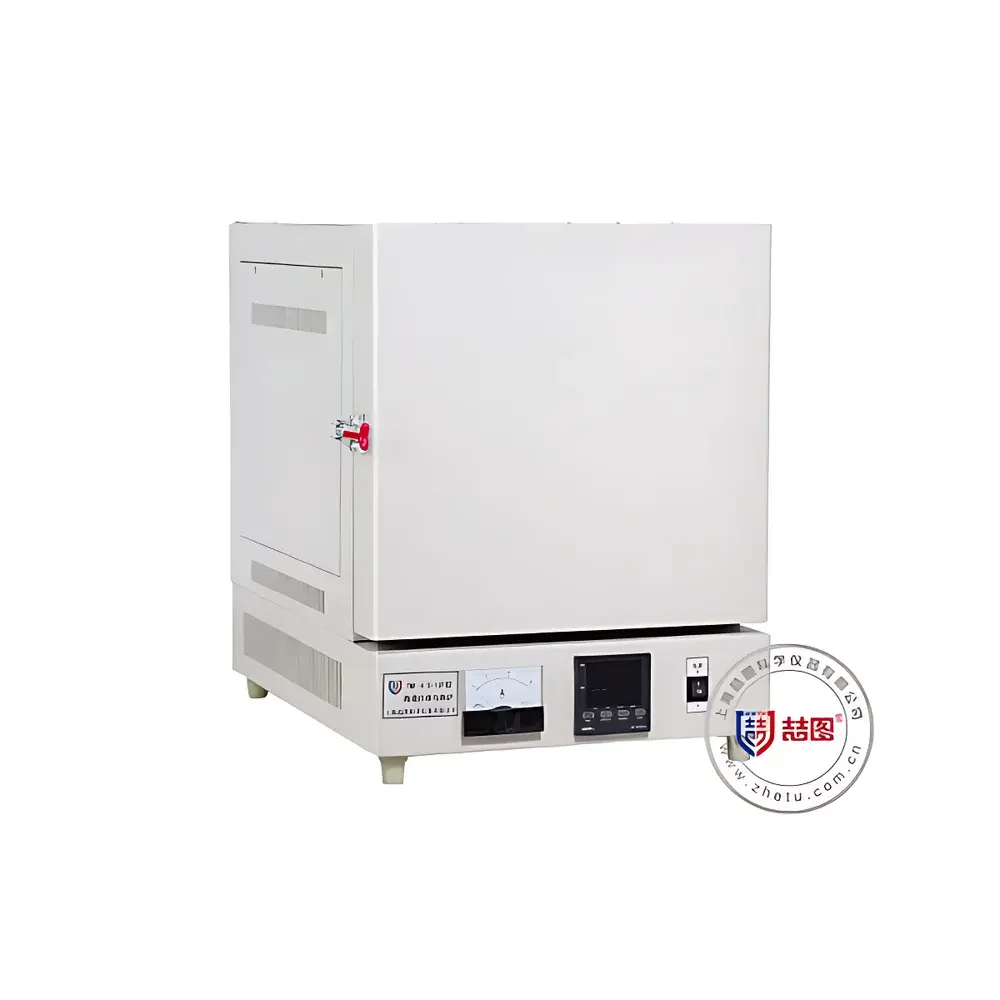

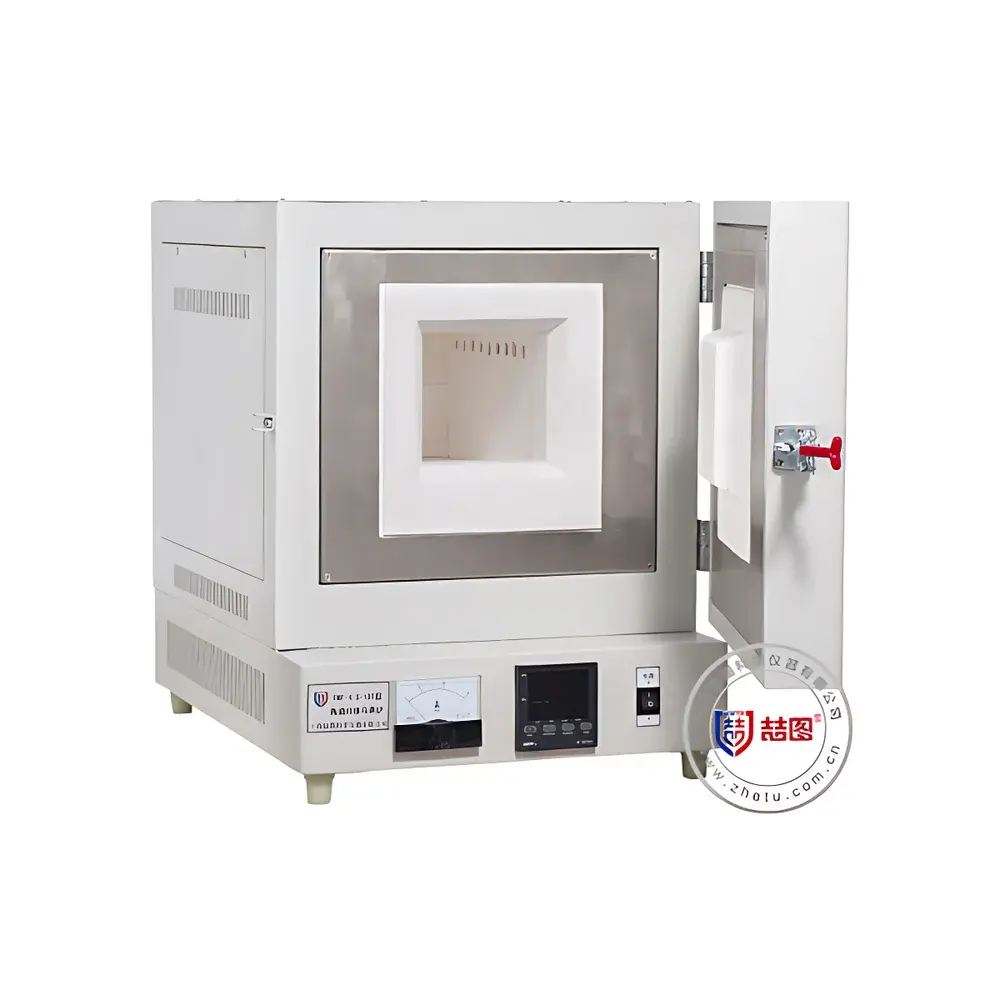

DRETOP TMF-30-12T Ceramic Fiber Muffle Furnace

Overview

The DRETOP TMF-30-12T Ceramic Fiber Muffle Furnace is a high-performance, laboratory-grade box-type furnace engineered for precise thermal processing across materials science, metallurgy, ceramics, and analytical chemistry applications. Utilizing advanced ceramic fiber insulation and triple-wall radiant heating architecture, it achieves rapid, uniform temperature distribution within its 30 L chamber—critical for reproducible sintering, ashing, calcination, annealing, and heat-treatment protocols. Unlike traditional brick-lined furnaces, the TMF-30-12T employs vacuum-microporous ceramic fiber board with low thermal mass and exceptional thermal retention, enabling energy-efficient operation and minimizing thermal lag during ramp-hold-cool cycles. Its operational range spans from ambient +50 °C to 1200 °C, conforming to ASTM E1142 (Standard Specification for Laboratory Muffle Furnaces) and supporting GLP-compliant workflows where traceable, repeatable thermal profiles are mandatory.

Key Features

• Triple-sided radiant heating configuration with ultra-high-temperature alloy heating elements coiled along all vertical chamber walls—ensuring symmetrical heat flux and ≤±1 °C axial/radial uniformity across the full 300 × 500 × 200 mm workspace.
• Microcomputer-based P.I.D temperature controller with 30-segment programmable ramp/soak capability, supporting custom thermal profiles with user-defined heating rates (0.1–30 °C/min), hold durations (1–9999 min), and automatic shutdown.
• Dual-stage overtemperature protection: primary electronic cutoff at setpoint +15 °C and secondary mechanical fuse integrated into the heating circuit—both compliant with IEC 61000-4-5 surge immunity and EN 60519-2 safety standards for industrial heating equipment.
• Integrated door interlock system: power disengagement upon door opening, immediate resumption upon closure—eliminating thermal shock to samples and preserving furnace integrity during mid-cycle sample access.
• Front-access control panel with backlit LCD interface (T-series), located beneath the chamber to minimize exposure to ambient heat drift; optional TC-series color touchscreen adds real-time curve visualization, multi-level password-protected engineering access, and USB/RS485 data export.
• Structural design includes phosphate-conversion coated carbon steel housing with high-temp epoxy-polyester finish, reinforced stainless-steel inner flange (2 mm thickness) at the chamber aperture for oxidation resistance and easy cleaning of volatilized residues.

Sample Compatibility & Compliance

The TMF-30-12T accommodates standard crucibles (alumina, quartz, silicon carbide), graphite boats, and custom fixtures up to 280 × 480 × 180 mm in footprint. Its inert, sealed muffle chamber—free of direct flame or combustion byproducts—is suitable for air, nitrogen, argon, or forming gas atmospheres when equipped with optional inert gas inlet valves (ISO-KF16 compatible). The furnace meets ISO/IEC 17025 calibration traceability requirements when paired with NIST-traceable thermocouples (Type S or K, supplied with compensation wire). It supports USP heavy metal testing, ASTM C114 cement analysis, and ISO 1171 ash content determination. All electrical components comply with CE marking directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive), and thermal insulation materials are non-asbestos, RoHS-compliant.

Software & Data Management

The base T-series controller logs temperature vs. time data internally (10,000-point capacity) with timestamped event markers (door open/close, alarm triggers, program start/end). Optional TP-series firmware enables CSV export via USB flash drive; TC-series units support Modbus RTU over RS485 for integration into LabVantage, DeltaV, or custom SCADA systems. Audit trail functionality—including operator ID, parameter changes, and calibration events—meets FDA 21 CFR Part 11 requirements when deployed with electronic signature modules and networked time servers. Data encryption (AES-128) and write-protected memory prevent unauthorized modification of critical thermal protocols.

Applications

• Ceramic and glaze development: controlled crystallization, vitrification, and thermal expansion coefficient measurement per ISO 7884.
• Metallurgical heat treatment: solution annealing of stainless steels, stress-relief of tool steels, and controlled oxidation studies per ASTM A967.
• Geochemical and environmental analysis: loss-on-ignition (LOI) quantification in soils/sediments (EPA Method 9040C), ash fusion testing (ASTM D5373), and sulfur content determination via gravimetric sulfate precipitation.
• Nanomaterial synthesis: calcination of metal-organic frameworks (MOFs), oxide nanoparticle sintering, and controlled pyrolysis of polymer precursors.
• Quality control in pharmaceutical manufacturing: residual solvent removal from active pharmaceutical ingredients (APIs) under GMP Annex 15 thermal validation guidelines.

FAQ

What is the recommended maintenance interval for the ceramic fiber insulation?
Annual visual inspection is advised; replacement is only necessary if physical compression, cracking, or >10% dimensional shrinkage is observed after prolonged operation above 1100 °C.
Can this furnace be used under vacuum or reduced pressure?
No—the TMF-30-12T is designed exclusively for atmospheric or inert-gas-purged operation. Vacuum compatibility requires structural reinforcement and specialized sealing not present in this model.
Is the temperature uniformity validated per industry standards?
Yes—uniformity mapping per ASTM E2203 confirms ≤±3 °C deviation across the working zone at 1200 °C, with certificate available upon request.
Does the unit include calibration documentation?
A factory calibration report (traceable to CNAS-accredited labs) is provided with each shipment, including as-found/as-left readings at 600 °C, 900 °C, and 1200 °C using dual-reference thermocouples.
What safety certifications does the furnace carry?
CE, RoHS, and ISO 9001:2015 certified; conforms to EN 60519-2 for industrial electroheating equipment and UL 61010-1 (3rd Ed.) for laboratory electrical safety.
