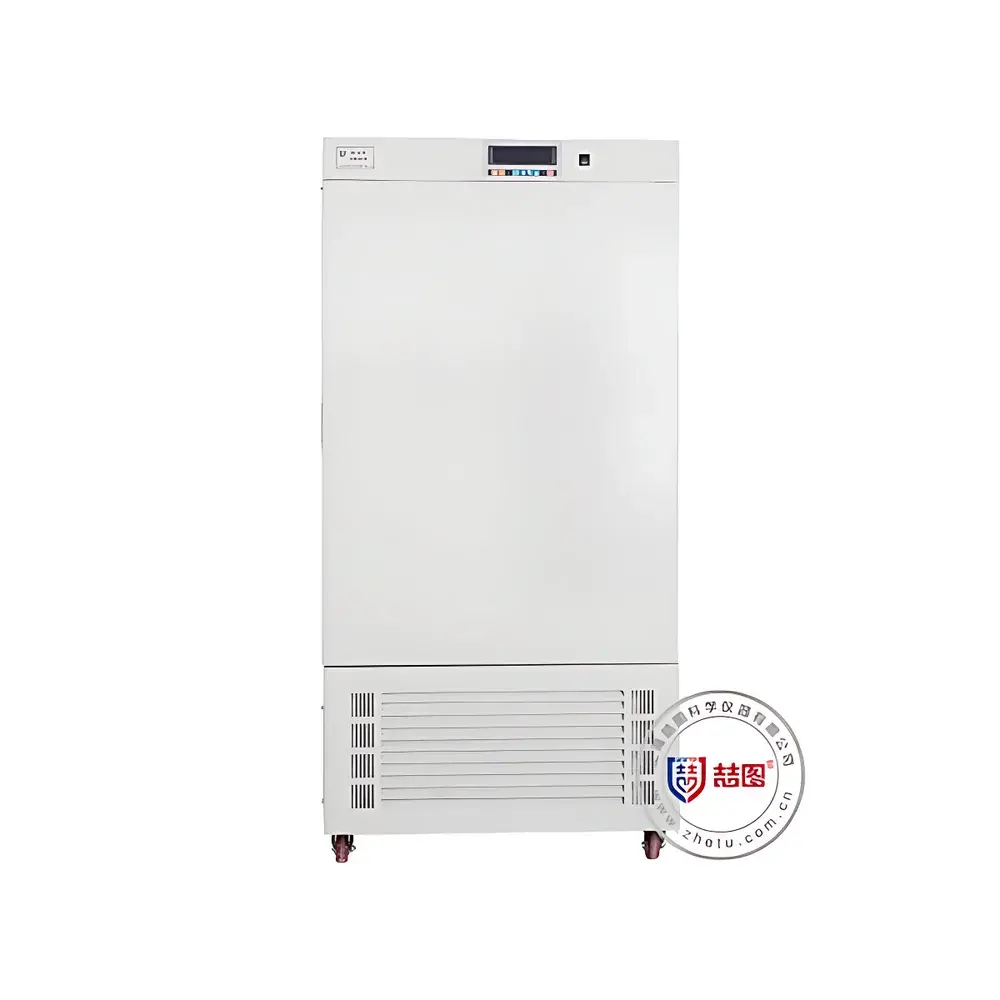

DRETOP ZGC-300-I Plant Growth Chamber

Overview

The DRETOP ZGC-300-I Plant Growth Chamber is a precision-engineered environmental control system designed for reproducible, long-term plant physiology studies, photobiological assays, and microbial culture under controlled light–temperature regimes. It operates on the principle of active thermoelectric and compressor-based temperature regulation combined with spatially integrated visible-spectrum fluorescent illumination. Unlike generic incubators, the ZGC-300-I implements dual-mode thermal management—distinct setpoints and dynamic response profiles for illuminated versus dark phases—enabling simulation of diurnal cycles critical for circadian rhythm research, seed germination kinetics, and phenotypic screening. Its architecture conforms to core requirements for GLP-compliant botanical and microbiological laboratories, supporting standardized protocols in accordance with ISO 17025–accredited testing environments.

Key Features

• Microprocessor-controlled dual-parameter regulation: independent programming of temperature and illuminance across up to 30 time-segmented steps per 24-hour cycle.
• Shelf-integrated fluorescent lighting system delivering uniform 0–15,000 lx irradiance (measured at working plane), adjustable in four discrete intensity levels.
• Stainless steel interior chamber (304 grade) with removable, height-adjustable stainless steel shelves; optimized for autoclave-compatible cleaning and bio-contamination control.
• Dual-door observation window: outer magnetic seal door with low-emissivity insulation; inner tempered glass door minimizing thermal bridging and condensation.
• Advanced air circulation design featuring axial-flow centrifugal fans and laminar baffle ducting—ensuring ±1.5°C temperature uniformity throughout the 300 L working volume.
• Nichrome heating elements and R134a-free refrigerant (environmentally compliant HFC-134a or equivalent) with intelligent compressor cycling logic, including start-delay protection and thermal overload safeguards.
• Power resilience functions: parameter retention during power interruption; automatic recovery to pre-failure operational state upon re-energization.
• Configurable alarm system with user-defined upper/lower temperature thresholds and audible/visual alerts for out-of-spec conditions.

Sample Compatibility & Compliance

The ZGC-300-I accommodates standard plant growth vessels—including Petri dishes, Magenta boxes, growth pouches, and multi-well plates—as well as microbiological culture flasks and slants. Its internal geometry supports upright placement of up to three adjustable shelves (standard configuration), allowing flexible vertical stratification for comparative light-gradient experiments. The chamber meets mechanical safety standards per IEC 61010-1 and electromagnetic compatibility requirements per EN 61326-1. While humidity control is not integrated into this base model (requiring external humidification or desiccation systems), its sealed construction enables stable vapor-pressure environments when paired with auxiliary modules. For regulated applications, optional RS485 interface supports integration into facility-wide monitoring networks compliant with FDA 21 CFR Part 11 data integrity guidelines when used with validated software platforms.

Software & Data Management

The embedded controller features a high-contrast monochrome LCD display with intuitive menu navigation and real-time parameter readouts. All operational parameters—including current temperature, setpoint, illuminance level, elapsed cycle time, and compressor duty cycle—are logged internally with timestamped records retained for ≥30 days. Optional upgrade to the T-series color touchscreen adds graphical trend visualization (temperature and illuminance over preceding 60 minutes), lamp life tracking with configurable replacement reminders, and multilevel access control: three-tier password protection allows administrator, technician, and operator roles with time-limited session validity. Language switching (English/Chinese) and audit trail logging are enabled by firmware v2.3+. Export functionality via USB port supports CSV-formatted data dumps compatible with MATLAB, GraphPad Prism, and LIMS platforms.

Applications

• Photomorphogenesis studies in Arabidopsis thaliana, rice, and Brassica species under programmable day/night cycles.
• BOD₅ incubation for wastewater analysis per APHA Standard Methods 5210B.
• Fungal and bacterial culture maintenance under defined photoperiods (e.g., Aspergillus spp., Saccharomyces cerevisiae).
• Pre-germination stress assays involving light-quality–dependent responses (when equipped with optional red/blue LED retrofit kits).
• Controlled-environment acclimation trials for tissue-cultured plantlets prior to greenhouse transfer.
• Long-term stability testing of photosynthetic inhibitors and phytohormone formulations.

FAQ

Does the ZGC-300-I support humidity control?
No—humidity regulation is not included in the base configuration. Users requiring precise RH management must integrate external humidifiers or desiccant systems with feedback coupling via optional analog I/O expansion.
Can the lighting spectrum be customized beyond standard white fluorescent output?
Yes—DRETOP offers factory-installed red (660 nm) and blue (450 nm) LED arrays as optional upgrades. These enable spectral tuning for photobiological optimization, though full-spectrum LED retrofitting requires separate quotation.
Is the unit suitable for GMP-regulated botanical manufacturing environments?
It satisfies core infrastructure requirements for environmental chambers in ISO 9001-certified facilities. However, formal GMP qualification (IQ/OQ/PQ) requires site-specific protocol development and third-party validation support, which DRETOP provides upon request.
What is the expected service life of the fluorescent lamps under continuous operation?
Rated average lifespan is 6,000 hours at nominal voltage and ambient temperature. Intensity degradation follows IES LM-80 standards; users are advised to replace lamps after 5,000 hours or when measured illuminance falls below 90% of initial value.
Are calibration certificates traceable to NIST or other national metrology institutes available?
Yes—factory calibration reports with uncertainty budgets (k=2) are provided for temperature sensors. Traceability to PTB (Germany) or NIM (China) is available upon order specification; NIST-traceable verification requires third-party lab engagement.
