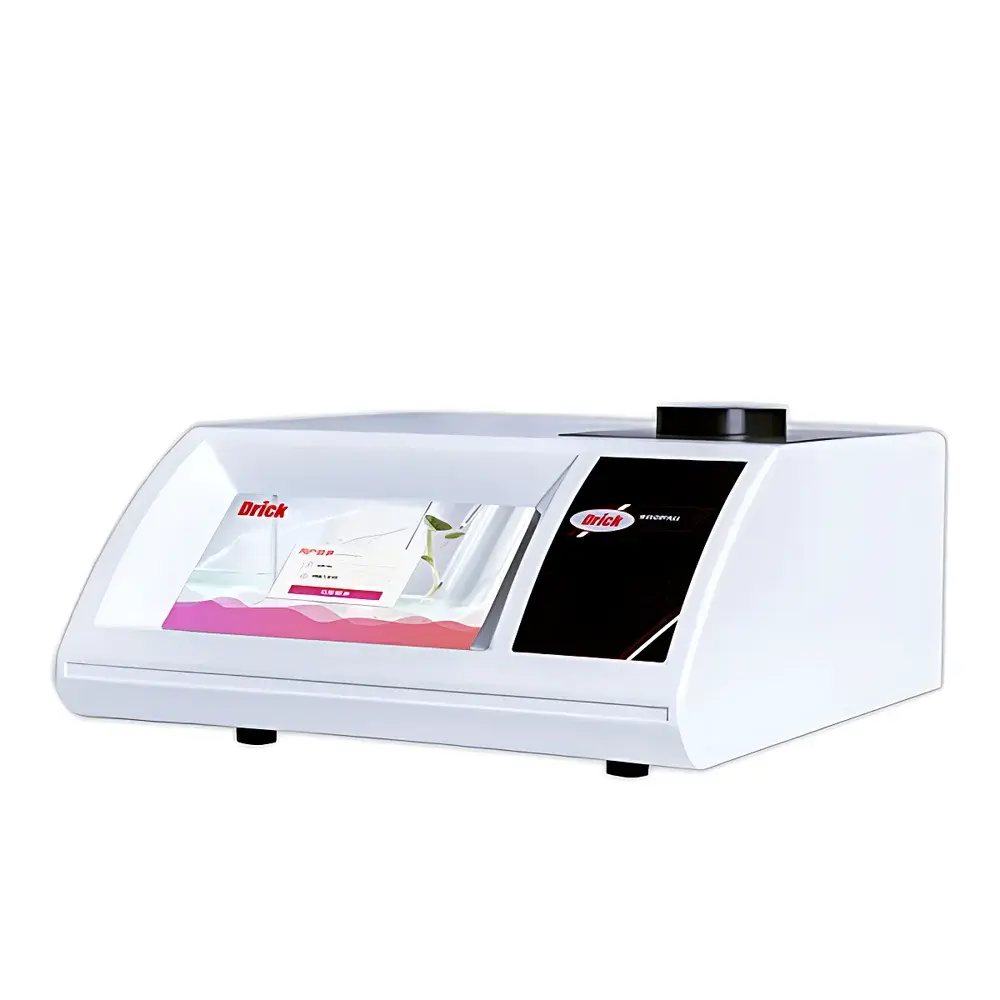

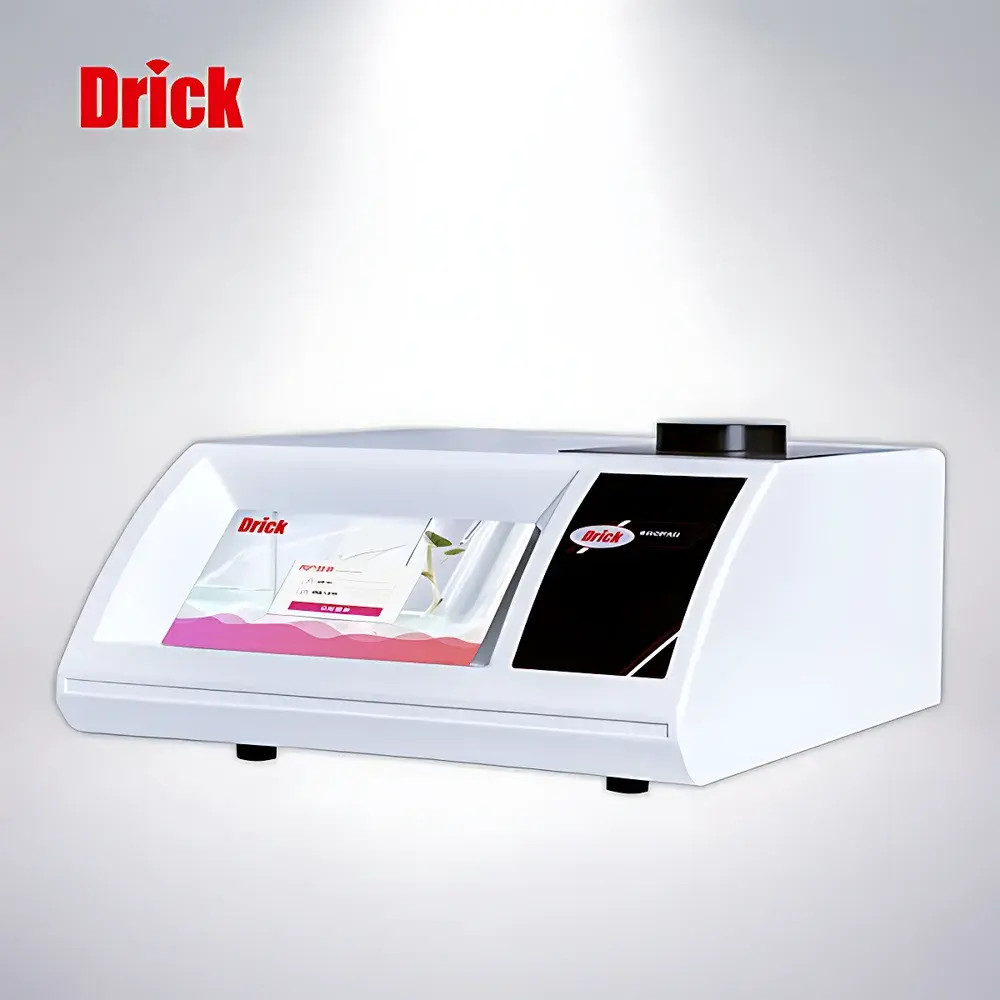

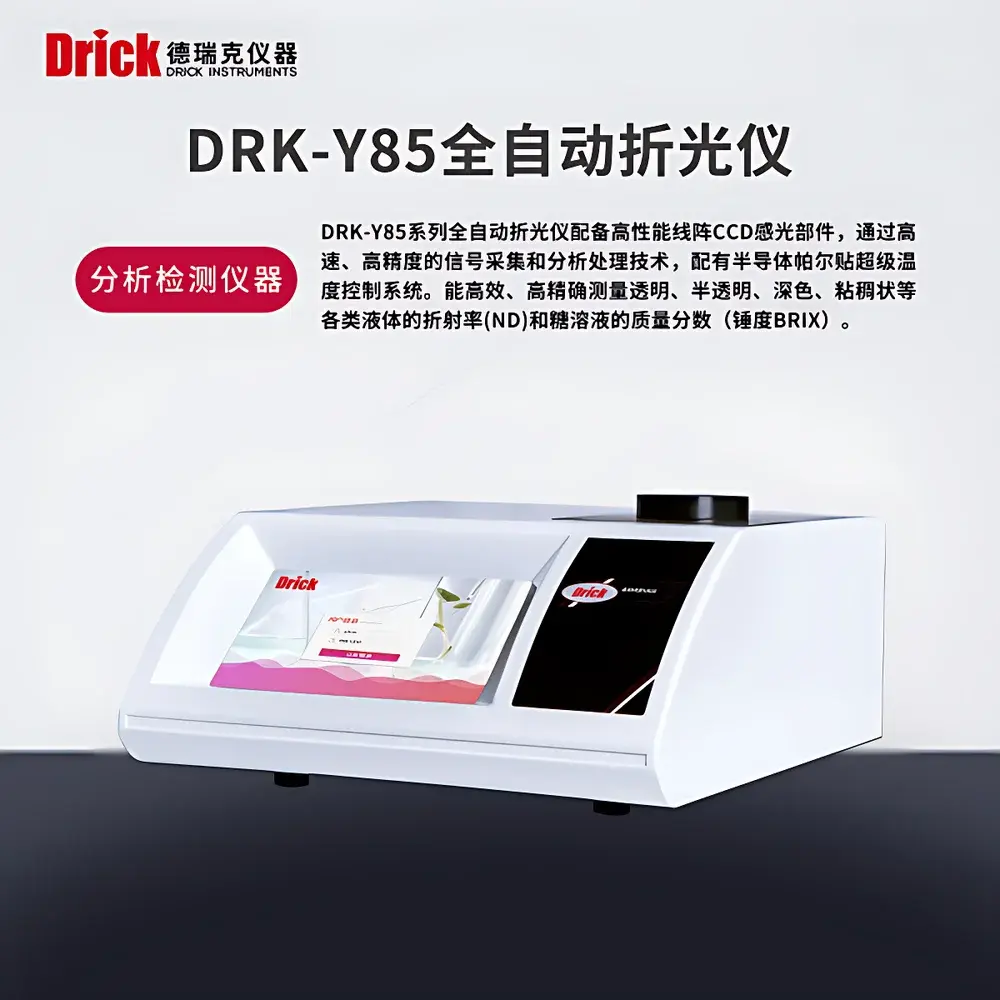

Drick DRK-Y85 Automated Digital Refractometer

Overview

The Drick DRK-Y85 Automated Digital Refractometer is a precision benchtop instrument engineered for high-reproducibility refractive index (nD) measurements across liquid and semi-liquid samples. It operates on the principle of total internal reflection at the prism-sample interface, utilizing a high-stability LED light source and a calibrated sapphire prism to determine nD values with traceable metrological integrity. Designed for routine quality control and R&D laboratories, the DRK-Y85 delivers rapid, operator-independent results—eliminating human parallax error inherent in traditional Abbe-type analog refractometers. Its integrated Peltier-based temperature control system ensures sample thermal equilibration within ±0.1 °C of setpoint, directly supporting ASTM D1218, ISO 287, USP , and ISO 1042 compliance requirements for temperature-sensitive refractive index determinations.

Key Features

• Automated measurement cycle with single-button operation and auto-zero calibration
• High-resolution 5-digit digital display (nD to 0.00001 resolution) with real-time temperature readout (°C)
• Peltier-controlled thermostatic prism block (range: 10–50 °C, stability ±0.1 °C)
• Sapphire measuring prism (Vickers hardness >2000 HV) for chemical resistance and long-term optical stability
• RS-232 and USB-B interfaces for bidirectional communication with LIMS or QC data management systems
• Compliance-ready audit trail logging (user ID, timestamp, measurement value, temperature, calibration status)
• Compact benchtop footprint (280 × 220 × 180 mm) with low power consumption (<15 W standby)

Sample Compatibility & Compliance

The DRK-Y85 accommodates aqueous solutions, organic solvents, oils, syrups, polymer melts (pre-melted), pharmaceutical formulations, and food-grade liquids—including viscous or mildly volatile samples up to 500 mPa·s viscosity. Sample volume requirement is ≤0.5 mL per measurement. The instrument meets essential regulatory expectations for analytical instrumentation used in GLP- and GMP-regulated environments: full traceability per ISO/IEC 17025, built-in calibration verification using certified NIST-traceable sucrose standards (e.g., 10%, 30%, 60% w/w), and configurable user access levels (operator, supervisor, administrator). Data export supports CSV and PDF report generation with embedded metadata (instrument ID, firmware version, calibration due date).

Software & Data Management

The DRK-Y85 includes PC-based control software compatible with Windows 10/11 (64-bit), enabling method storage, batch reporting, statistical process control (SPC) charting (X-bar/R), and automated pass/fail evaluation against user-defined specification limits. All raw measurement data—including temperature-compensated nD values, deviation from reference, and environmental logs—are stored with immutable timestamps. Software architecture conforms to FDA 21 CFR Part 11 requirements: electronic signatures, role-based permissions, and audit trail review/export functionality are fully implemented without third-party add-ons. Optional integration with LabWare LIMS and Thermo Fisher SampleManager is supported via ASTM E1384-compliant HL7 messaging.

Applications

This refractometer serves critical analytical roles across regulated and industrial sectors: concentration determination of sugar (Brix), glycols, ethanol, and saline solutions; quality assurance of pharmaceutical excipients and injectables; purity verification of solvents in fine chemical synthesis; monitoring of polymerization degree in resin manufacturing; Brix and dry matter analysis in fruit juice, dairy, and beverage production; and incoming raw material inspection in textile auxiliaries and coating formulations. In academic research, it supports studies in colloidal stability, phase behavior of microemulsions, and thermodynamic characterization of binary/ternary liquid systems.

FAQ

What refractive index standard materials are recommended for daily verification?
NIST-traceable sucrose solutions (10%, 30%, and 60% w/w) or certified mineral oil standards (e.g., Cargille nD = 1.47200 at 20 °C) are recommended for routine performance checks.
Does the DRK-Y85 support automatic temperature compensation (ATC) for non-water-based solvents?
Yes—the instrument applies solvent-specific nD vs. temperature coefficients (programmable per method) based on literature data from CRC Handbook and IUPAC compilations.
Can measurement data be exported directly to Excel without proprietary software?
Yes—CSV export is native and includes all metadata fields; no license or runtime environment is required.
Is the sapphire prism replaceable by the end user?
Prism replacement requires factory recalibration and is performed only by authorized Drick service centers to maintain metrological validity.
What is the warm-up time required before first measurement?
Less than 15 minutes from cold start to thermal stabilization at 20 °C; subsequent measurements stabilize within 30 seconds after sample loading.
