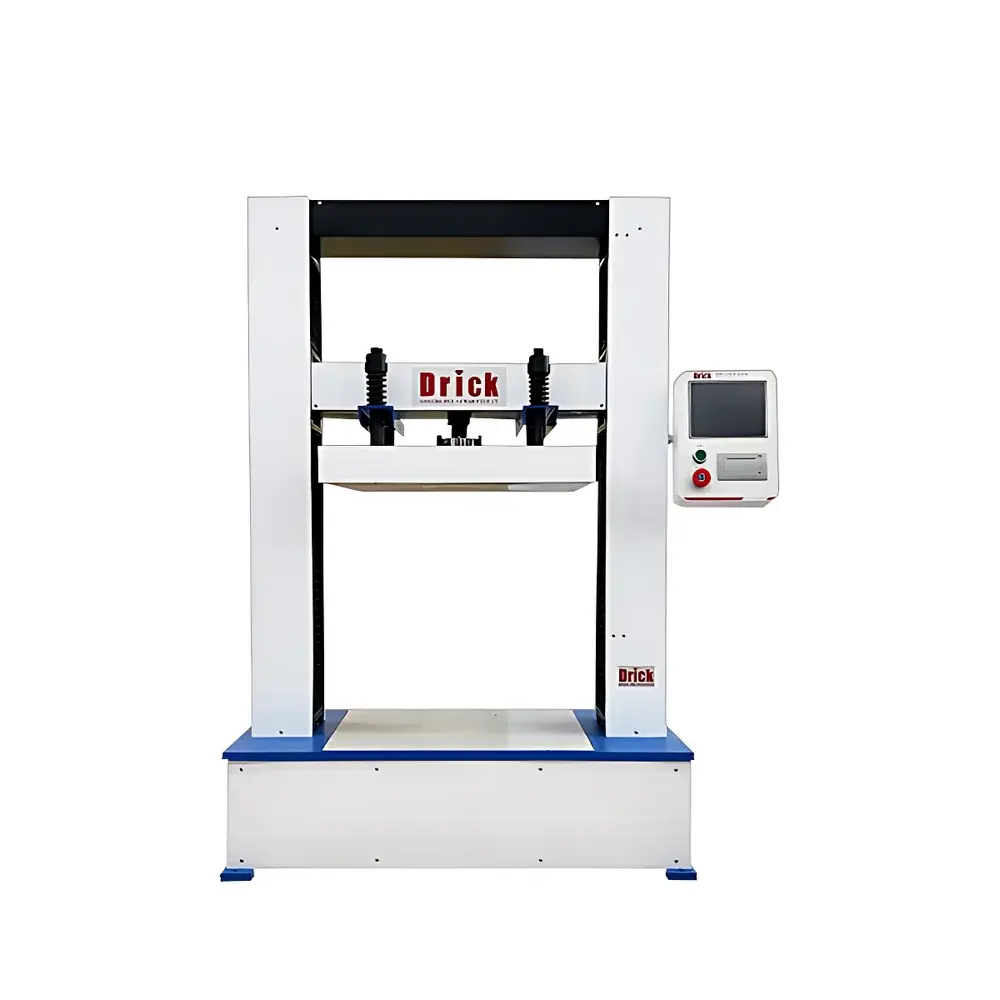

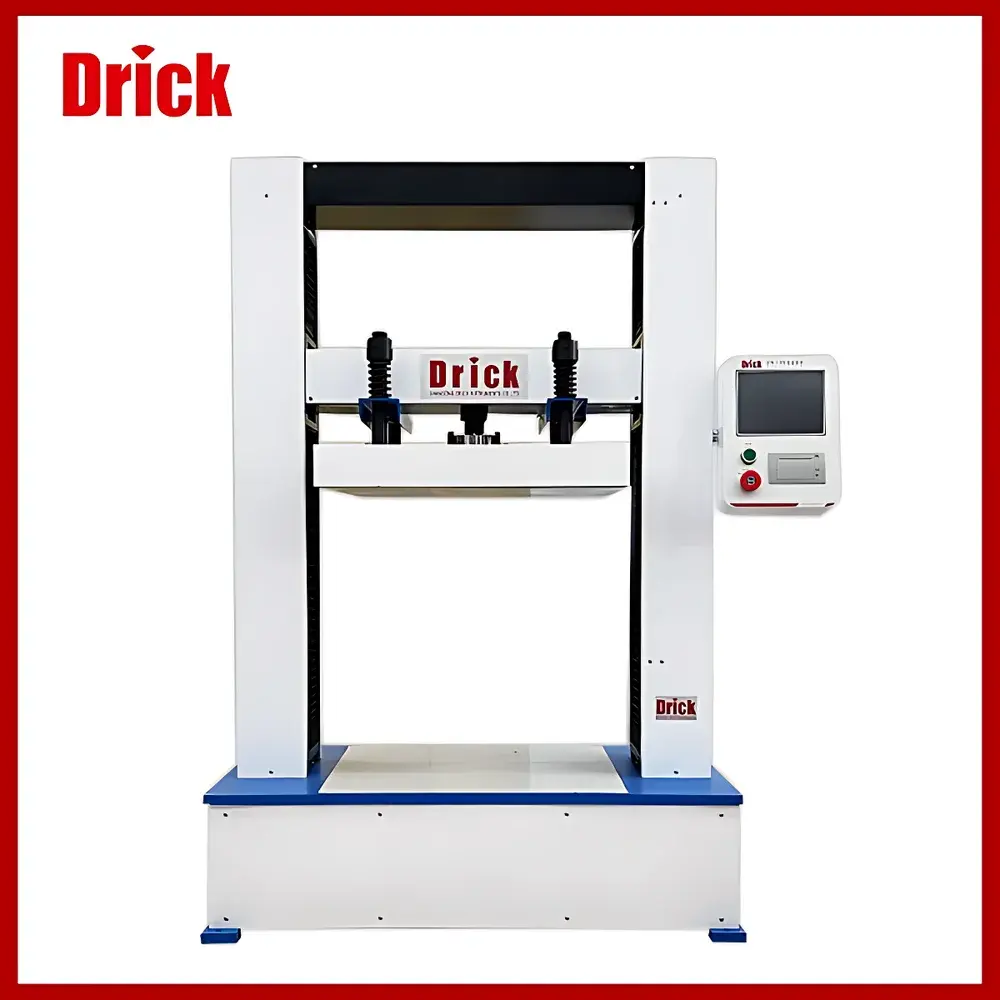

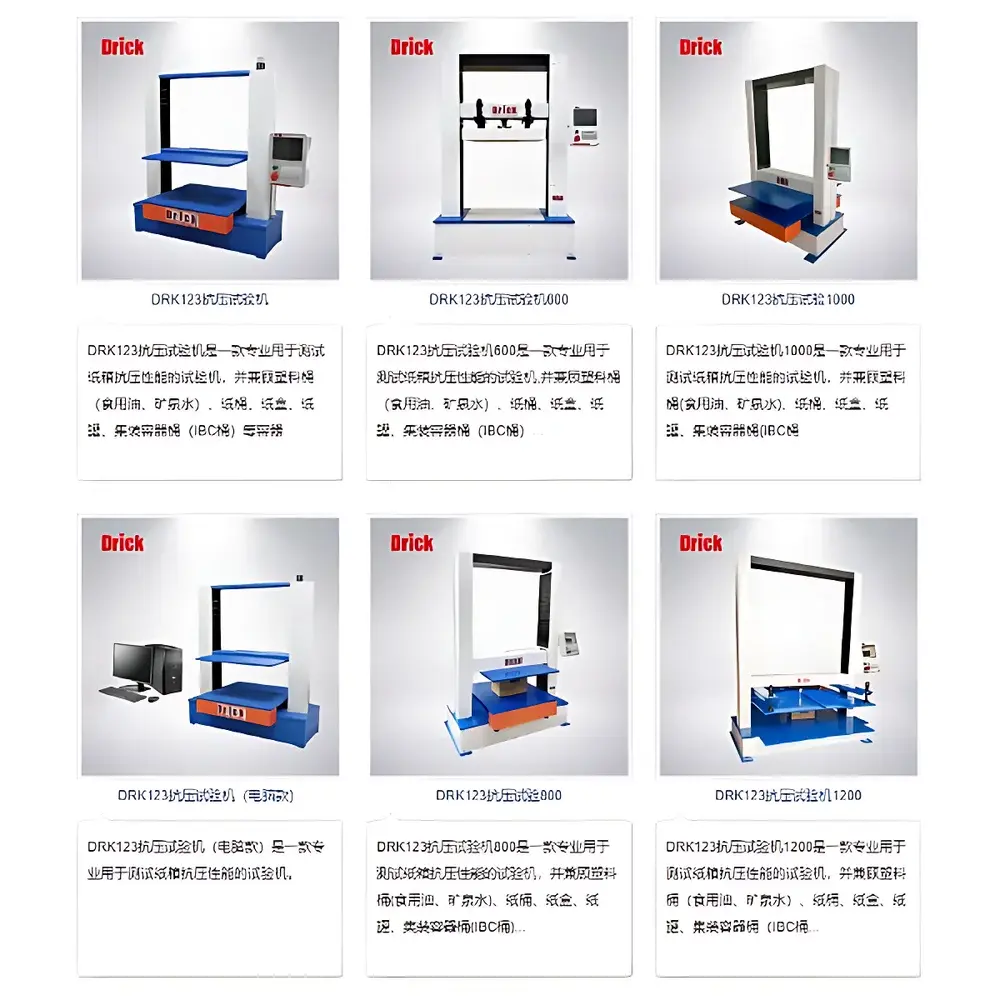

Drick DRK123A Compression Tester for Corrugated Boxes

Overview

The Drick DRK123A Compression Tester is an electromechanical universal testing system engineered specifically for evaluating the compressive strength and stacking performance of corrugated fiberboard containers, single- and double-wall boxes, and related packaging structures. It operates on the principle of controlled axial loading under displacement-controlled or load-controlled modes, applying a steadily increasing compressive force until specimen failure or preset limit is reached. The instrument conforms to internationally recognized static compression test methodologies defined in ISO 12048 (Packaging — Complete, filled transport packages — Compression and stacking tests), ASTM D642 (Standard Test Method for Determining Compressive Resistance of Shipping Containers), and Chinese national standard GB/T 6543 (Transport Packages for Export — Corrugated Fiberboard Boxes). Designed for routine quality control laboratories, packaging R&D centers, and third-party certification bodies, the DRK123A delivers high reproducibility in measuring peak compressive load, deformation at yield, and energy absorption characteristics—critical parameters for predicting field performance under warehouse stacking and logistics handling conditions.

Key Features

• Robust dual-column steel frame architecture with preloaded ball-screw drive mechanism ensures minimal deflection and long-term mechanical stability during high-load cycling.
• Integrated high-precision load cell (±0.5% full-scale accuracy) and linear encoder-based displacement sensor (0.01 mm resolution) enable traceable force-displacement data acquisition.
• Programmable test profiles support multi-step protocols including pre-load conditioning, constant-rate compression, dwell-hold sequences, and automatic return-to-start positioning.
• Real-time digital display with intuitive membrane keypad interface allows standalone operation without PC dependency; all critical test parameters and results are viewable on-site.
• Modular platens (standard 100 × 100 mm, optional up to 300 × 300 mm) accommodate variable specimen dimensions while maintaining uniform load distribution across contact surfaces.
• Compliance-ready firmware architecture supports audit trails, user-level access control (admin/operator modes), and timestamped result export in CSV format for GLP/GMP-aligned documentation.

Sample Compatibility & Compliance

The DRK123A accommodates a wide range of rigid and semi-rigid packaging specimens, including but not limited to: regular slotted containers (RSC), half-slotted containers (HSC), die-cut displays, palletized unit loads (with optional base fixture), and edge-compression test (ECT) samples per TAPPI T811. Specimen height range spans 50–600 mm, with maximum width/depth constrained only by platen size selection. All mechanical and software components are validated against ISO/IEC 17025 calibration traceability requirements. The system meets essential safety provisions per IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions), and its structural design complies with EN 61000-1-1 for industrial environment deployment.

Software & Data Management

While fully functional as a stand-alone tester, the DRK123A optionally integrates with Drick’s proprietary PC-based software suite—DRK-TestSuite v4.2—for advanced data visualization, statistical analysis (mean, SD, CV%, confidence intervals), and automated report generation compliant with FDA 21 CFR Part 11 requirements. Software features include customizable test templates, multi-user electronic signatures, version-controlled method storage, and encrypted local database archiving. Raw force-displacement curves are exportable in ASCII or Excel-compatible formats, facilitating integration into LIMS environments or enterprise QA systems. Audit logs record all operator actions, parameter modifications, and calibration events with immutable timestamps.

Applications

• Validation of box compression strength (BCT) prior to shipment and distribution.
• Correlation studies between edge crush test (ECT), burst strength, and predicted BCT using McKee equation or similar empirical models.
• Comparative evaluation of board grade substitutions, adhesive formulations, and flute geometry impacts on structural integrity.
• Accelerated aging assessments via humidity-conditioned compression testing per ASTM D4332 protocols.
• Supplier qualification audits requiring documented repeatability (n ≥ 10) and reproducibility (inter-laboratory) data per ISO 5725.
• Support for ISTA 3A, 3E, and 3H series simulation protocols where static compression is a defined test element.

FAQ

What standards does the DRK123A comply with?
ISO 12048, ASTM D642, GB/T 6543, TAPPI T811, and EN 15551 (for transport packaging performance assessment).
Can the system be calibrated externally?
Yes—load cell and displacement sensor are independently calibratable using NIST-traceable reference standards; calibration certificates are issued per ISO/IEC 17025.
Is remote technical support available?
Drick provides global remote diagnostics and firmware updates via secure VPN; on-site service is supported through regional subsidiaries in the U.S., EU, and APAC.
Does the tester support dynamic or cyclic compression testing?
No—the DRK123A is optimized for quasi-static compression per regulatory test methods; dynamic fatigue testing requires specialized servo-hydraulic systems.
What maintenance is required for long-term reliability?
Biannual lubrication of ball screws, annual verification of load cell linearity, and routine cleaning of platen surfaces and guide rails—documented in the included Maintenance Logbook.
