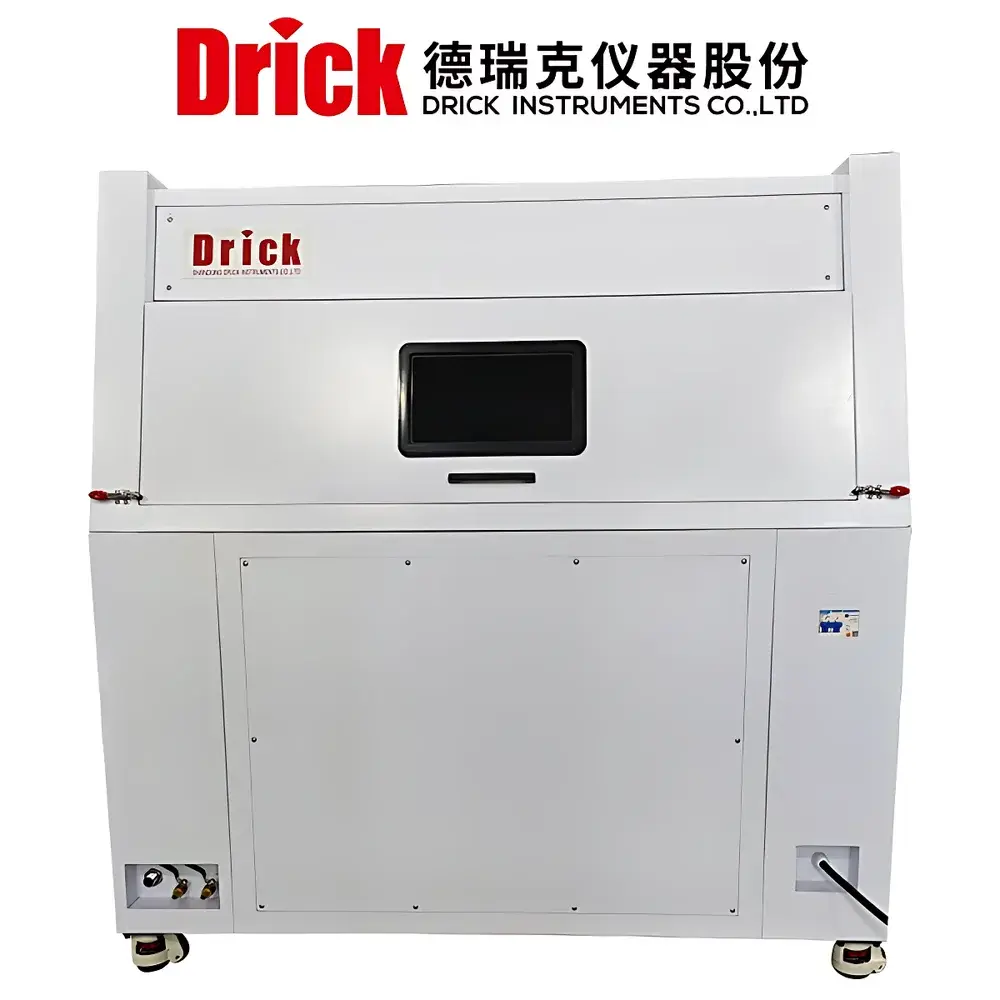

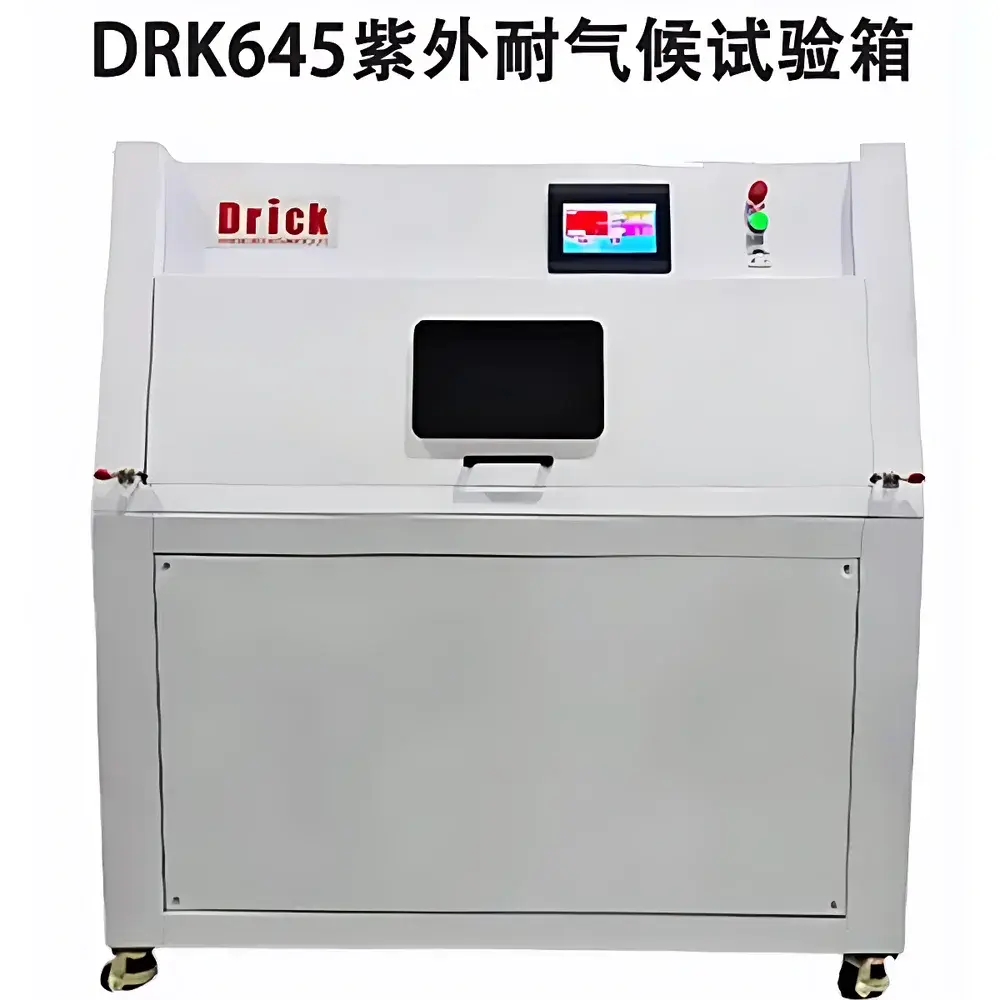

Drick DRK645 UV Weathering Test Chamber
| Brand | Drick |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | DRK645 |
| Humidity Range | ≥95% RH |
Overview
The Drick DRK645 UV Weathering Test Chamber is an engineered environmental test system designed to simulate accelerated ultraviolet (UV) radiation exposure combined with controlled condensation and humidity cycling—mimicking critical outdoor degradation factors such as sunlight, rain, and dew. It operates on the principle of fluorescent UV lamp irradiation (typically UVA-340 or UVB-313 lamps per ISO 4892-3 and ASTM G154), enabling reproducible evaluation of material photostability, color fading, gloss loss, chalking, cracking, and embrittlement. Unlike xenon arc or carbon arc testers, this chamber prioritizes cost-effective, high-intensity UV spectral output in the 290–400 nm range, making it particularly suitable for quality control laboratories conducting routine UV resistance validation in accordance with international standards including ISO 11507, ASTM D4329, and GB/T 14522. Its compact footprint and modular construction support integration into QC labs, R&D facilities, and third-party testing centers requiring GLP-compliant, repeatable aging protocols.
Key Features
- Fluorescent UV lamp array with selectable UVA-340 (sunlight simulation) or UVB-313 (accelerated degradation) configurations
- Precise black-panel temperature control (typically 40–70 °C) via PID-regulated heating and forced-air circulation
- Condensation cycle capability: water-cooled specimen surface exposure simulating overnight dew formation
- Humidity maintenance ≥95% RH during condensation phase, compliant with ASTM D4329 Section 7.3 and ISO 4892-3 Annex A
- Stainless steel 304 interior chamber with corrosion-resistant hardware and UV-stable gasketing
- Digital touchscreen controller with programmable multi-step test profiles, real-time monitoring, and password-protected parameter locking
- Integrated UV irradiance sensor with automatic lamp output compensation (optional calibration traceable to NIST standards)
- Compliance-ready design supporting audit trails, user access levels, and electronic record retention for GLP/GMP environments
Sample Compatibility & Compliance
The DRK645 accommodates flat-panel specimens up to 150 mm × 75 mm × 20 mm (W×H×D) per rack position, with standard capacity for 48 samples across three adjustable sample trays. Compatible substrates include polymer films, coated metals, automotive paints, textile laminates, pharmaceutical packaging foils, and medical device polymers. All operational parameters—including UV intensity, temperature ramp rates, condensation duration, and humidity setpoints—are configurable to align with test method requirements from ISO 11507 (paints and varnishes), ASTM D4329 (plastics), IEC 61215 (PV module qualification), and Chinese national standard GB/T 14522. The system supports full documentation generation for internal QA audits and external accreditation (e.g., CNAS, ILAC-MRA signatory labs).
Software & Data Management
The embedded controller firmware enables storage of ≥100 test programs with time-stamped execution logs. Optional PC-based software (DRK-UVLink v3.2) provides extended functionality: automated report generation (PDF/CSV), irradiance dose accumulation tracking, trend analysis across multiple test runs, and export of raw sensor data for statistical process control (SPC). Data integrity safeguards include electronic signatures, audit trail logging per FDA 21 CFR Part 11 requirements (when configured with user authentication and event history), and encrypted backup to USB or network drive. All calibration events, lamp replacement records, and maintenance logs are retained within the system’s lifecycle management module.
Applications
- Quality assurance of ink adhesion and fade resistance in flexible packaging and label materials
- Evaluation of UV stabilizer efficacy in polyolefin films and automotive interior trim components
- Photostability screening of primary and secondary pharmaceutical packaging per ICH Q1B guidance
- Accelerated weathering validation of textile dyes and flame-retardant coatings
- Comparative aging studies for biodegradable plastics under controlled UV/humidity stress
- Material qualification for outdoor signage, solar reflectors, and architectural cladding systems
- Research-grade correlation studies between laboratory UV exposure and real-world field performance
FAQ
What UV lamp types are supported, and how often must they be replaced?
The DRK645 accepts standard 40 W UVA-340 or UVB-313 fluorescent tubes. Lamp lifetime is typically 1,600–2,000 hours; replacement intervals are tracked automatically and logged in the system maintenance record.
Does the chamber meet ASTM G154 Class I or Class II specifications?
Yes—it complies with ASTM G154 Cycle 1 (UV only) and Cycle 3 (UV + condensation), fulfilling Class I (general purpose) and Class II (condensation-focused) operational criteria.
Is third-party calibration and IQ/OQ/PQ validation support available?
Drick provides factory-issued calibration certificates (traceable to national metrology institutes) and optional on-site IQ/OQ protocol execution by certified engineers.
Can humidity be maintained below 95% RH during UV exposure phases?
No—the DRK645 maintains ambient humidity only during condensation cycles; UV-only phases operate at uncontrolled (typically 30–60% RH) conditions, consistent with ASTM D4329 default settings.
What safety certifications does the unit carry?
It conforms to IEC 61010-1 (electrical safety), IEC 60529 IP20 (enclosure protection), and CE marking for EMC and low-voltage directives. UL/cUL listing is available upon request for North American deployments.
