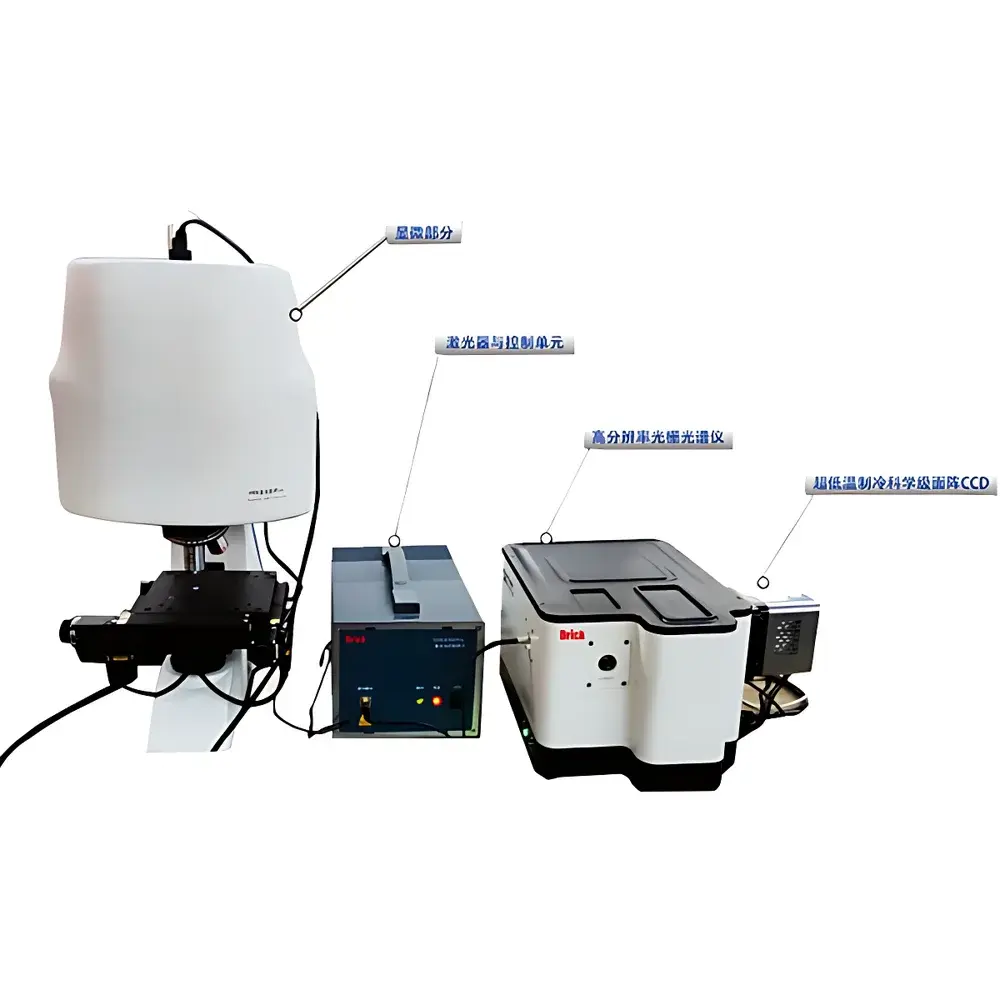

Drick DRK8300Pro Confocal Micro-Raman Spectroscopy Imaging System
| Brand | Drick |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Confocal Micro-Raman Spectrometer |
| Model | DRK8300Pro |
| Spectral Resolution (Optimal) | 0.35 cm⁻¹ |
| Excitation Wavelengths | 405, 473, 532, 633, 785, 830, 1064 nm (up to 2 simultaneous) |
| Laser Spot Size | <1 µm |
| Spatial Resolution | Sub-micron |
| SNR | >6000:1 |
| Detector Options | Deep-cooled back-illuminated CCD (200–1100 nm), InGaAs array (900–1700 nm), or sCMOS |
| Spectrometer Focal Length Options | 210 mm / 350 mm / 510 mm / 810 mm |
| XY Motorized Stage | 50 × 50 mm travel, 0.1 µm resolution, 1 µm repeatability |
| Z-Axis Auto-Focus | ≤ ±0.2 µm accuracy, ≤10 s per focus |
| Camera | 5 MP industrial CMOS |
| Interface | USB 2.0 |
Overview
The Drick DRK8300Pro Confocal Micro-Raman Spectroscopy Imaging System is an integrated platform engineered for high-fidelity, spatially resolved molecular characterization at the micro- and sub-micron scale. It combines a research-grade inverted or upright microscope with a modular confocal Raman spectrometer via fiber-optic coupling—enabling true “see-and-measure” capability. The system operates on the principle of inelastic light scattering (Raman effect), where monochromatic laser excitation induces vibrational mode shifts in molecular bonds, yielding fingerprint-like spectral signatures. Its confocal optical architecture provides axial (Z-direction) optical sectioning, rejecting out-of-focus signal and enhancing depth discrimination—critical for layered materials, thin films, biological cells, and heterogeneous composites. Unlike conventional non-confocal Raman systems, the DRK8300Pro employs conjugate focusing and diffraction-limited laser spot formation (<1 µm diameter) through optimized apochromatic objectives, ensuring precise spatial registration between visual morphology and spectroscopic acquisition.
Key Features
- Fully automated operation: motorized XYZ stage, software-controlled auto-focus, and programmable mapping routines enable unattended batch experiments and uniformity scans.
- Modular spectrometer design with interchangeable focal lengths (210 mm to 810 mm) and multi-grating turret—supporting customizable trade-offs between spectral resolution (down to 0.35 cm⁻¹), wave number range (50–10,000 cm⁻¹, extendable to low-frequency THz-Raman), and throughput.
- Dual-excitation capability: up to two independently switchable lasers (e.g., 532 nm + 785 nm or 633 nm + 1064 nm) allow comparative resonance/non-resonance studies and fluorescence suppression strategies.
- High-sensitivity detection: deep-cooled back-illuminated linear CCD (200–1100 nm) or thermoelectrically cooled InGaAs array (900–1700 nm) ensures SNR >6000:1 and dynamic range ≥13,000:1; optional sCMOS detector enhances frame-rate mapping performance.
- Real-time visual correlation: integrated 5 MP industrial camera delivers live, diffraction-limited optical imaging synchronized with Raman acquisition—enabling pixel-accurate overlay of spectral maps onto morphological features.
- Optical path switching under software control: seamless toggling between brightfield, darkfield, fluorescence, and Raman channels without manual realignment.
- Robust mechanical architecture: precision-ground 50 × 50 mm XY stage with 0.1 µm step resolution and <1 µm positional repeatability; Z-axis auto-focus achieves ≤ ±0.2 µm axial accuracy in ≤10 seconds.
Sample Compatibility & Compliance
The DRK8300Pro accommodates diverse solid, liquid, and semi-solid samples—including nanoparticles, 2D materials (graphene, TMDCs), polymer blends, pharmaceutical tablets, tissue sections, mineral grains, forensic trace evidence, and food contaminants—without destructive preparation. Its open-stage design supports custom sample holders, environmental chambers (temperature/controlled atmosphere), and electrochemical cells. The system complies with core analytical instrument standards for data integrity and traceability: spectral calibration adheres to NIST-traceable reference materials (e.g., silicon, cyclohexane); software architecture supports audit trails, user access control, and electronic signatures—aligning with GLP and GMP documentation requirements. While not FDA-cleared as a medical device, its configuration meets ISO/IEC 17025 criteria for accredited testing laboratories performing material identification, polymorph screening, and contamination analysis.
Software & Data Management
The DRK8300Pro is operated via Drick’s proprietary RamanStudio Suite—a Windows-based application supporting full instrument control, real-time spectral preview, hyperspectral mapping, multivariate analysis (PCA, cluster analysis), and spectral library matching (user-expandable). Raw data are saved in vendor-neutral HDF5 format with embedded metadata (laser power, integration time, grating position, objective ID, stage coordinates). The software implements 21 CFR Part 11-compliant features including role-based permissions, electronic signatures, and immutable audit logs for all acquisition and processing events. Batch processing workflows support automated baseline correction, cosmic ray removal, peak fitting (Voigt/Gaussian models), and false-color Raman image generation. Export options include CSV, ASCII, and image formats (TIFF, PNG) compatible with third-party tools such as MATLAB, Python (SciPy, scikit-learn), and Thermo Fisher OMNIC.
Applications
- Nanomaterials science: strain mapping in graphene, defect quantification in carbon nanotubes, phase distribution in perovskite thin films.
- Pharmaceutical development: polymorphic form identification, API-excipient interaction analysis, tablet coating uniformity assessment.
- Life sciences: label-free cellular imaging (lipid droplets, protein aggregates), tissue histopathology, bacterial strain differentiation.
- Geosciences & gemology: mineral phase identification, fluid inclusion analysis, synthetic vs. natural diamond verification.
- Forensics: ink and pigment discrimination, explosive residue detection, hair/fiber trace evidence profiling.
- Environmental monitoring: microplastic identification in water filters, heavy metal speciation in soil extracts, atmospheric particulate composition.
- Agriculture & food safety: adulterant detection (e.g., melamine in milk powder), pesticide residue screening, authenticity verification of olive oil or honey.
FAQ
What excitation wavelengths are supported, and can multiple lasers operate simultaneously?
The DRK8300Pro supports seven discrete laser lines (405, 473, 532, 633, 785, 830, 1064 nm) via modular laser combiner optics. Up to two wavelengths may be installed and switched under software control—but only one is active during acquisition to avoid spectral interference.
How is spectral calibration maintained over long-term operation?
The system includes automated daily calibration using an internal silicon reference standard. Spectral stability is validated at <0.8% relative standard deviation (σ/μ) over 8-hour continuous operation (COT), meeting ISO 17025 metrological requirements.
Is the DRK8300Pro compatible with external environmental stages or cryogenic setups?
Yes—the open optical layout and standardized mounting interfaces (M6/M4 threaded holes, SM1-compatible lens tubes) permit integration with commercial temperature-controlled stages, humidity chambers, or vacuum-compatible sample holders.
Can Raman mapping data be exported for machine learning analysis?
Absolutely. Hyperspectral cubes are stored in HDF5 with full metadata and can be loaded directly into Python (h5py), MATLAB, or R environments for unsupervised clustering, deep learning segmentation, or chemometric modeling.
Does the system meet regulatory requirements for QC/QA labs?
The hardware and software architecture supports 21 CFR Part 11 compliance when configured with network authentication, audit logging, and electronic signature modules—making it suitable for regulated environments under ISO 9001, ISO/IEC 17025, or pharmaceutical GMP frameworks.
