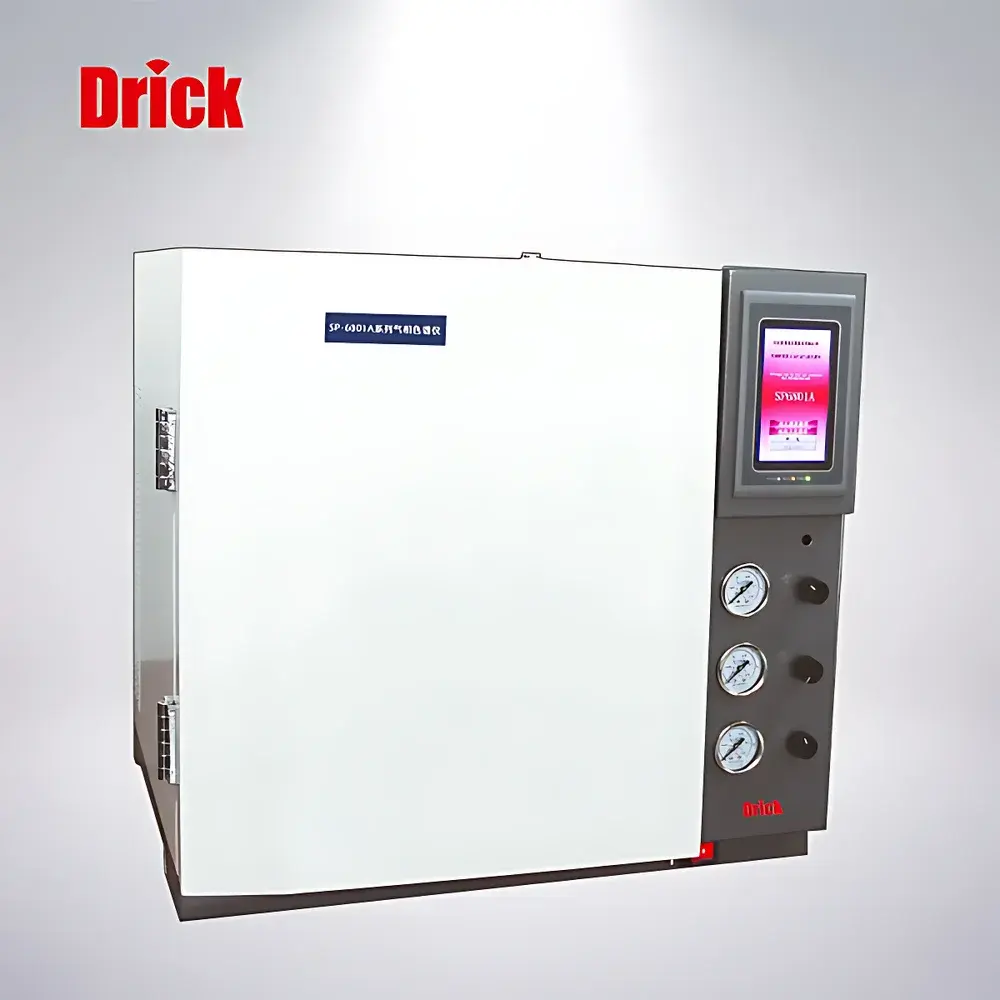

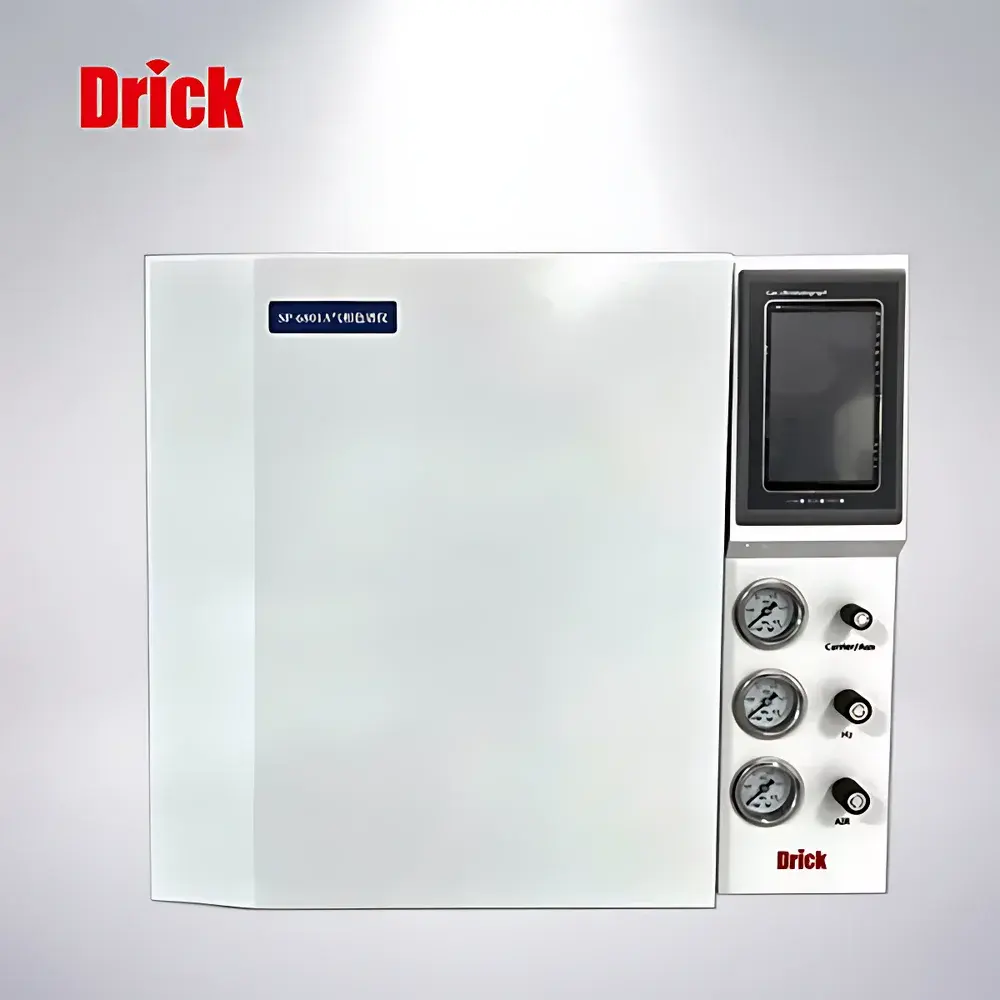

Drick SP-6801A Series Benchtop Gas Chromatograph with Single-Detector Configuration

Overview

The Drick SP-6801A Series is a benchtop gas chromatograph engineered for routine qualitative and quantitative analysis in regulated and non-regulated laboratory environments. It operates on the fundamental principle of gas–solid or gas–liquid partition chromatography: sample components are volatilized in a heated inlet, carried through a capillary or packed column by an inert carrier gas (e.g., helium, hydrogen, or nitrogen), and separated based on differential partitioning coefficients and retention times. Detection is performed via a single, user-configurable detector—typically a Flame Ionization Detector (FID) or Thermal Conductivity Detector (TCD)—enabling reproducible measurement of organic compounds across concentration ranges from low ppm to percent levels. Designed for stability under continuous operation, the SP-6801A features a microprocessor-controlled oven with ±0.1 °C temperature uniformity over a range of 30–300 °C, programmable ramp rates up to 40 °C/min, and precise pressure/flow control of carrier and auxiliary gases via electronic pneumatic control (EPC) modules.

Key Features

• Modular detector architecture supporting FID, TCD, or ECD configurations (single-detector standard; optional dual-detector upgrade available)
• Temperature-programmable column oven with dual-zone capability (oven + inlet) and real-time thermal calibration traceability
• Integrated digital flow metering with automatic leak detection and pressure compensation algorithms
• Robust stainless-steel gas pathways compliant with ASTM D3612 and ISO 10101-1 for hydrocarbon analysis workflows
• Front-panel touchscreen interface with embedded method storage (up to 99 methods), password-protected user levels, and audit trail logging
• CE-marked power supply and IEC 61010-1 safety certification for Class II laboratory use

Sample Compatibility & Compliance

The SP-6801A accommodates liquid, gaseous, and headspace-derived samples via split/splitless injection, cold-on-column (COC), or purge-and-trap interfaces (with optional accessories). It supports standard 0.1–0.53 mm ID fused-silica capillary columns (up to 60 m length) and packed stainless-steel columns. Method development aligns with widely adopted regulatory frameworks including USP , EP 2.2.27, and ASTM D3612 (petroleum hydrocarbons), D5504 (sulfur compounds), and D1319 (hydrocarbon types). Data integrity conforms to ALCOA+ principles; system suitability tests (SST), peak symmetry evaluation (tailing factor ≤2.0), and resolution thresholds (Rs ≥1.5) are configurable per method. The instrument meets GLP documentation requirements when paired with validated software packages.

Software & Data Management

The SP-6801A operates with Drick ChromaLink v3.2 analytical software (Windows 10/11 compatible), supporting 21 CFR Part 11-compliant user authentication, electronic signatures, and immutable audit trails for all acquisition, processing, and reporting events. Raw data (.D files) are stored in vendor-neutral formats (e.g., JCAMP-DX export), enabling third-party integration with LIMS platforms such as Thermo Fisher SampleManager or LabVantage. Batch processing includes automated calibration curve generation (linear, quadratic, or weighted least-squares), limit-of-detection (LOD) estimation, and customizable report templates aligned with ISO/IEC 17025 clause 7.8 reporting requirements.

Applications

This system serves diverse sectors requiring reliable separation and quantification of volatile and semi-volatile organics: residual solvent analysis in pharmaceutical excipients (ICH Q3C), fatty acid methyl ester (FAME) profiling in biodiesel (ASTM D6751), monomer purity assessment in polymer synthesis, pesticide residue screening in food matrices (AOAC 2007.01), and VOC emissions testing in packaging materials (ISO 11843-3). Its modular design allows field-upgradable detector options and column switching valves, extending utility into environmental monitoring (EPA Method 8021B) and forensic toxicology screening protocols.

FAQ

Is the SP-6801A compliant with 21 CFR Part 11 for regulated laboratories?

Yes—when used with ChromaLink v3.2 and configured with role-based access controls, electronic signatures, and audit-trail archiving enabled.
What column types are supported out-of-the-box?

Standard support includes 0.25–0.53 mm ID fused-silica capillaries (e.g., DB-5ms, HP-INNOWAX) and 1/8″ OD stainless-steel packed columns (e.g., Porapak Q, Chromosorb 101).
Can the instrument be integrated into an existing LIMS environment?

Yes—via ODBC-compliant database export, HL7 messaging, or direct API calls using the ChromaLink SDK (software development kit) provided under NDA.
What maintenance intervals are recommended for the FID?

FID jet cleaning every 200 injections; ceramic igniter replacement every 12 months or 5,000 runtime hours; baseline drift verification weekly per SOP.
Does Drick provide IQ/OQ documentation packages?

Yes—fully customizable installation and operational qualification protocols (per ISO/IEC 17025 and GMP Annex 15) are available upon request, including test scripts, acceptance criteria, and execution logs.
