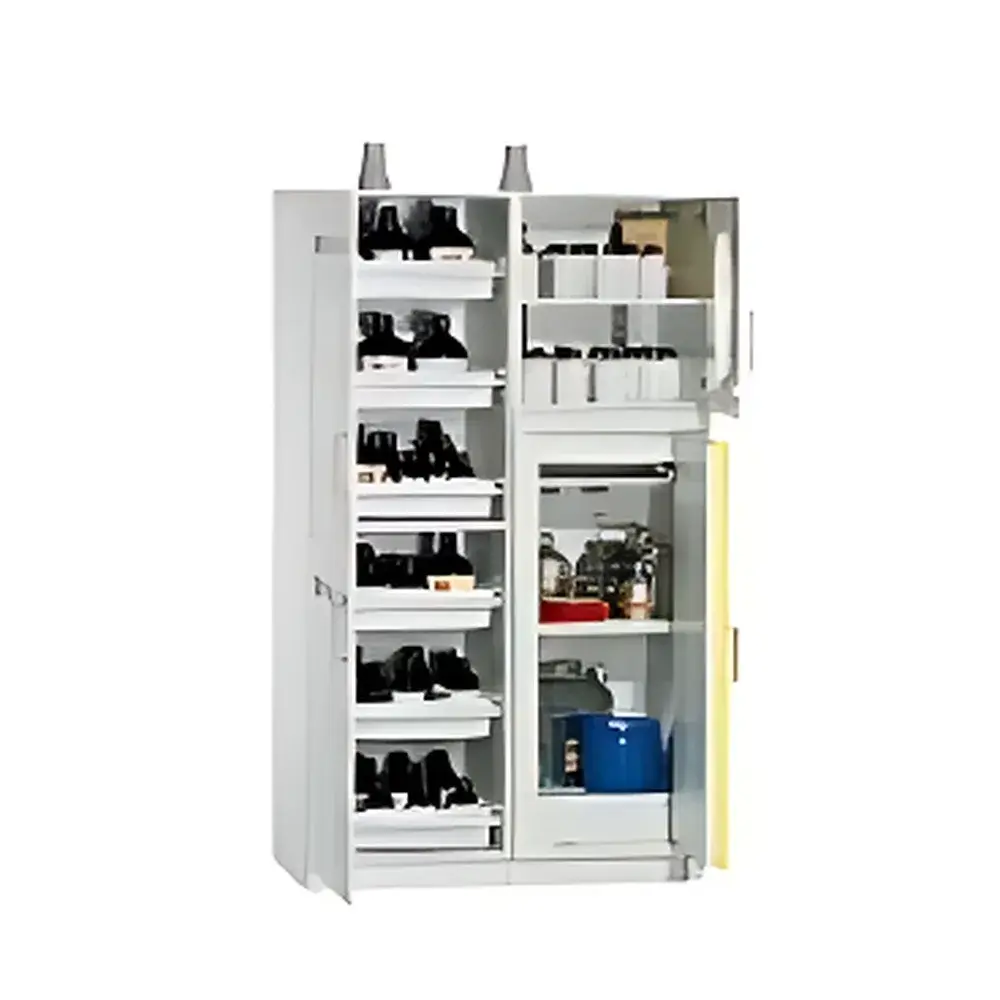

Dueperthal EnviroSafe Environmental Sample Storage Cabinet

Overview

The Dueperthal EnviroSafe Environmental Sample Storage Cabinet is a purpose-engineered laboratory storage solution designed for the secure, compliant, and environmentally controlled retention of environmental monitoring samples. Engineered in Germany to meet stringent European safety and regulatory requirements, this cabinet operates on a passive containment principle—leveraging robust thermal insulation, fire-rated construction, and chemically inert internal surfaces to maintain sample integrity during intermediate-term holding prior to analysis. Unlike general-purpose storage furniture, the EnviroSafe series integrates structural fire resistance with material-specific compatibility, enabling simultaneous storage of heterogeneous environmental matrices—including aqueous extracts, sediment cores, air filters, preserved biological specimens, and volatile organic compound (VOC) standards—without cross-contamination or degradation risk. Its architecture supports GLP-aligned workflows by minimizing ambient exposure, mitigating thermal drift, and providing traceable access control when integrated with facility management systems.

Key Features

• 90-minute fire resistance rating certified to DIN 4102-1 and EN 1363-1, ensuring structural integrity and containment during emergency exposure
• Triple-sealed door gasket system with automatic positive-latching mechanism to prevent unintended opening and maintain internal atmospheric stability
• Interior lining options: electrogalvanized steel (for general environmental samples), acid-resistant stainless steel 1.4301 (EN 10088-1) for acidic or halogenated matrices, and epoxy-coated composite panels for alkaline or oxidizing agents
• Modular interior configuration including height-adjustable perforated shelves (load capacity: 50 kg per shelf), full-extension anodized aluminum pull-out trays, and lockable drawer modules with independent ventilation channels
• Integrated grounding terminal (IEC 61000-4-5 compliant) and static-dissipative flooring interface for electrostatic hazard mitigation during handling of solvent-based or particulate-laden samples
• Optional factory-installed temperature monitoring module with NIST-traceable digital sensor (±0.5 °C accuracy), data logging capability (2 years at 15-min intervals), and configurable alarm thresholds

Sample Compatibility & Compliance

The EnviroSafe cabinet is validated for storage of EPA Method-compliant environmental sample types, including but not limited to: aqueous samples preserved with HNO₃ (EPA 200.8), TCLP leachates (EPA 1311), VOCs in methanol-stabilized vials (EPA 502.2), semi-volatile organics in amber glass (EPA 8270), and microbiological media plates (ISO 7218). It conforms to DIN 12925-1 for laboratory cabinet design, EN 14470-1 for flammables storage, and EN 16121 for corrosives—making it suitable for co-location of mixed-hazard environmental inventory under a single certified enclosure. All models undergo third-party verification for leakage integrity (EN 14470-1 Annex B) and mechanical durability (DIN EN 1672-1). Documentation includes full EU Declaration of Conformity, test reports from TÜV Rheinland, and material safety data sheets for all interior finishes.

Software & Data Management

While the base cabinet operates as a standalone mechanical system, optional digital integration enables compliance with 21 CFR Part 11 and ISO/IEC 17025 requirements. The EnviroSafe Connect Module provides encrypted local storage of environmental logs (temperature, door open/close events, user ID via RFID badge scan), exportable in CSV or PDF format with digital signature support. Audit trails retain immutable timestamps and operator attribution, supporting inspection readiness for EMA, US EPA, or national accreditation bodies. Firmware updates are delivered via secure HTTPS channel with SHA-256 signature verification. No cloud dependency is required; all data remains on-device unless explicitly exported via authenticated USB interface.

Applications

• Regulatory environmental laboratories performing analysis under ISO/IEC 17025 accreditation
• Field sample holding rooms in municipal water quality testing facilities (e.g., drinking water, wastewater, stormwater)
• Hazardous waste characterization labs managing RCRA-listed and non-listed environmental matrices
• Research institutions conducting long-term ecological monitoring requiring chain-of-custody preservation
• Pharmaceutical environmental monitoring programs (EMPs) storing viable and non-viable particle sampling media
• Forensic environmental units securing evidentiary samples subject to legal chain-of-custody protocols

FAQ

Does the EnviroSafe cabinet require external power for basic operation?

No—mechanical fire-rated storage functionality is fully passive. Optional monitoring modules require 24 V DC power input.
Can the cabinet be installed in a cleanroom environment (ISO Class 5)?

Yes—stainless steel variants with electropolished surfaces and zero-outgassing interior coatings are available upon request, certified per ISO 14644-1.
Is retrofitting of existing cabinets with digital monitoring possible?

Yes—Dueperthal offers field-upgrade kits with pre-calibrated sensors and plug-and-play controller modules compatible with cabinets manufactured after 2018.
What documentation is provided for regulatory audits?

Each unit ships with a Certificate of Conformity, TÜV test report, material declarations, and installation validation checklist aligned with ISO/IEC 17025 clause 6.4.1.
Are replacement parts available beyond the standard warranty period?

Yes—Dueperthal maintains a 15-year spare parts inventory guarantee for all EnviroSafe series components, including gaskets, latches, shelving hardware, and sensor assemblies.
