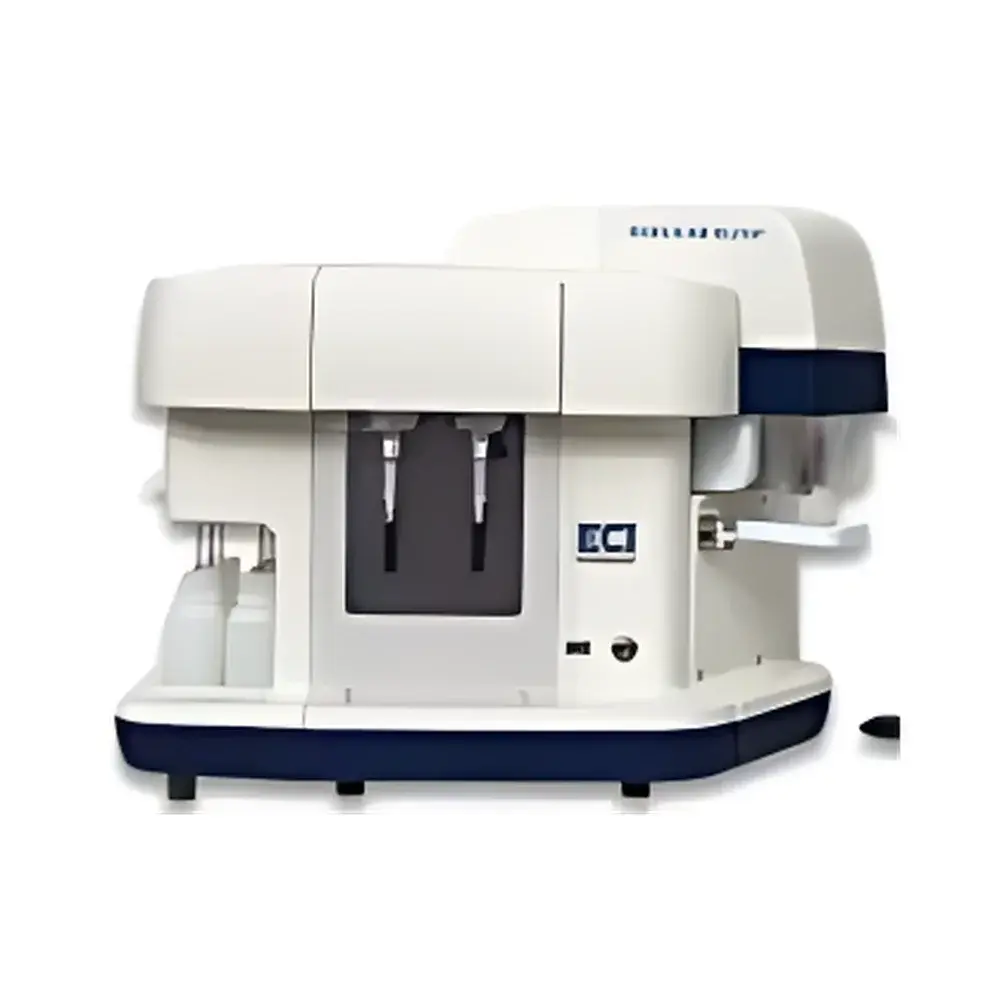

ECI Technology QualiLab Elite® V10/V20/V30 CVS Electrochemical Analyzer for Plating Bath Monitoring

Overview

The ECI Technology QualiLab Elite® V10/V20/V30 series represents the industry’s most mature platform for electrochemical monitoring of plating bath chemistry in high-precision electronics manufacturing. Engineered specifically for printed circuit board (PCB), semiconductor interconnect, and advanced metallization processes, these analyzers implement Cyclic Voltammetric Stripping (CVS) — a potentiodynamic technique that quantifies trace organic additives (e.g., accelerators, suppressors, levelers) and inorganic species (e.g., Cu²⁺, Ni²⁺, Sn²⁺, Co²⁺, Pd²⁺) through controlled redox cycling at a rotating disk electrode. The system operates on a fundamental principle: additive concentration modulates the nucleation overpotential and stripping charge integral under defined scan parameters; this relationship is calibrated using proprietary Chempack® application modules validated against decades of empirical bath performance data. Unlike generic potentiostats, QualiLab Elite instruments integrate hardware-level temperature stabilization (±0.1 °C), low-noise current measurement (<100 fA resolution), and waveform-synchronized fluid handling — all essential for reproducible CVS analysis in production-critical environments.

Key Features

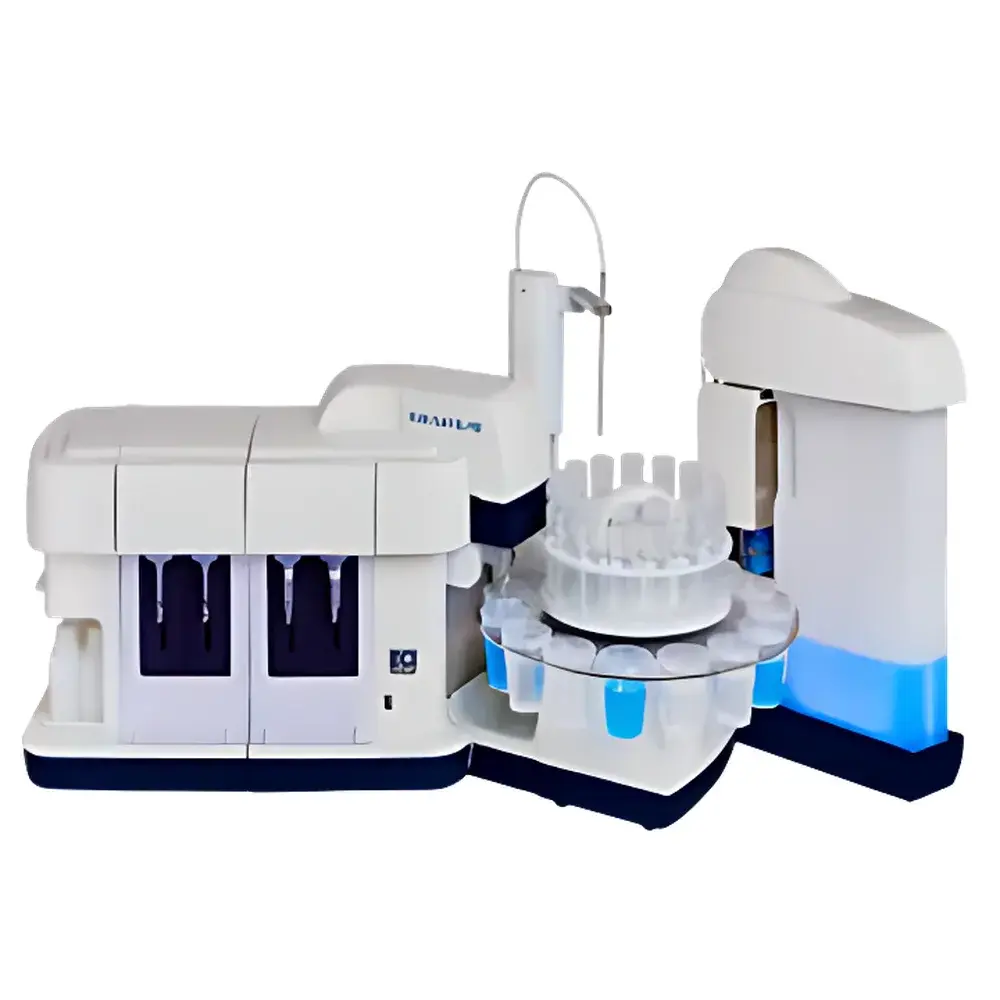

• Modular architecture supporting three tiers: V10 (manual, single-sample), V20 (semi-automated, up to 12 samples), and V30 (fully automated, 42-sample carousel with integrated waste management)
• Dedicated electrochemical control unit featuring built-in bipotentiostat, galvanostat, and precision reference electrode interface (Ag/AgCl or Hg/Hg₂SO₄)
• Temperature-regulated electrochemical cell holder with Peltier cooling/heating and real-time thermal feedback
• VMS (Vacuum Metering System) for precise reagent dispensing and rinse cycles — optional on V10/V20, standard on V30
• Automated calibration and standard addition routines compliant with ASTM B764 and IPC-4552A protocols
• Multi-method capability: CVS, MLAT (Modified Linear Anodic Stripping), DT/RDT, chronoamperometry, chronopotentiometry, and optional potentiometric titration
• Configurable electrode configurations: 2-needle (V10), 4-needle (V20/V30), enabling simultaneous working/reference/counter/auxiliary electrode connections

Sample Compatibility & Compliance

QualiLab Elite systems analyze aqueous plating baths containing copper sulfate, nickel sulfamate, tin methanesulfonate, palladium chloride, zinc sulfate, cobalt sulfate, and their associated organic additives (e.g., polyethylene glycol, bis-(3-sulfopropyl)-disulfide, Janus Green B). Sample volumes range from 2 mL to 10 mL, compatible with both filtered and unfiltered bath supernatants. All models meet ISO/IEC 17025 requirements for testing laboratories when operated under documented SOPs. Data acquisition and reporting comply with FDA 21 CFR Part 11 for electronic records and signatures, including full audit trail, user access controls, and immutable result archiving. Instrument qualification packages (IQ/OQ/PQ) are available for GMP environments, and method validation support aligns with ICH Q2(R2) guidelines.

Software & Data Management

• QualiLab™ software v6.x supports English, Chinese, Japanese, Korean, and German UI localization
• “Get Me Expert” remote diagnostics enables secure technician-assisted troubleshooting via encrypted TLS tunnel
• Embedded problem-solving assistant provides context-aware guidance during method setup, calibration failure, or electrode conditioning
• Statistical Process Control (SPC) module generates real-time X-bar/R charts, trend analysis, and out-of-spec alerts tied to IPC-4556 or internal QC limits
• LIMS integration via ASTM E1384-compliant HL7 messaging or direct SQL database push (ODBC/JDBC)
• Electronic signature workflows with role-based permissions and multi-factor authentication
• Historical data retention supports ≥10 years of raw voltammograms, metadata, and audit logs — exportable as PDF/A-2 or CSV with ISO 8601 timestamps

Applications

QualiLab Elite analyzers serve as the analytical backbone for process control in PCB fabrication lines, advanced packaging (e.g., TSV, RDL), and high-reliability plating operations. Typical use cases include: monitoring accelerator depletion in acid copper baths to prevent void formation; quantifying suppressor concentration in microvia filling chemistries; tracking leveler breakdown products in nickel strike solutions; verifying reducing agent stability in electroless copper baths; and validating bath composition after replenishment events. The platform also supports R&D applications such as additive interaction studies, bath lifetime modeling, and formulation optimization under accelerated aging conditions. Its ability to resolve sub-ppm additive concentrations with <±2% RSD (n=6) makes it indispensable for yield-critical processes where nanoscale film uniformity directly impacts electrical performance and thermal reliability.

FAQ

What distinguishes CVS from conventional titration or ICP-MS for plating bath analysis?

CVS measures electroactive organic species that cannot be resolved by elemental techniques like ICP-MS, and offers superior sensitivity and selectivity versus titration for complex additive mixtures.
Can QualiLab Elite validate new proprietary chemistries not covered by existing Chempacks®?

Yes — ECI Technology provides custom Chempack development services, including method transfer, robustness testing, and regulatory documentation aligned with ISO 17025.
Is the system suitable for Class 100 cleanroom environments?

All V20/V30 models are certified IP54-rated and can be installed in controlled environments with appropriate HVAC and grounding provisions.
How often does the reference electrode require maintenance?

The sealed Ag/AgCl reference electrode requires no refilling and demonstrates stable potential drift <±0.5 mV/month under routine use.
Does the software support automated report generation for internal QA audits?

Yes — customizable templates generate PDF reports with embedded spectra, statistical summaries, and electronic signatures meeting ISO 9001 and AS9100 requirements.
