Eijkelkamp 04.16 Stainless Steel Soil Sampler for Volatile Organic Compounds (VOCs)

Overview

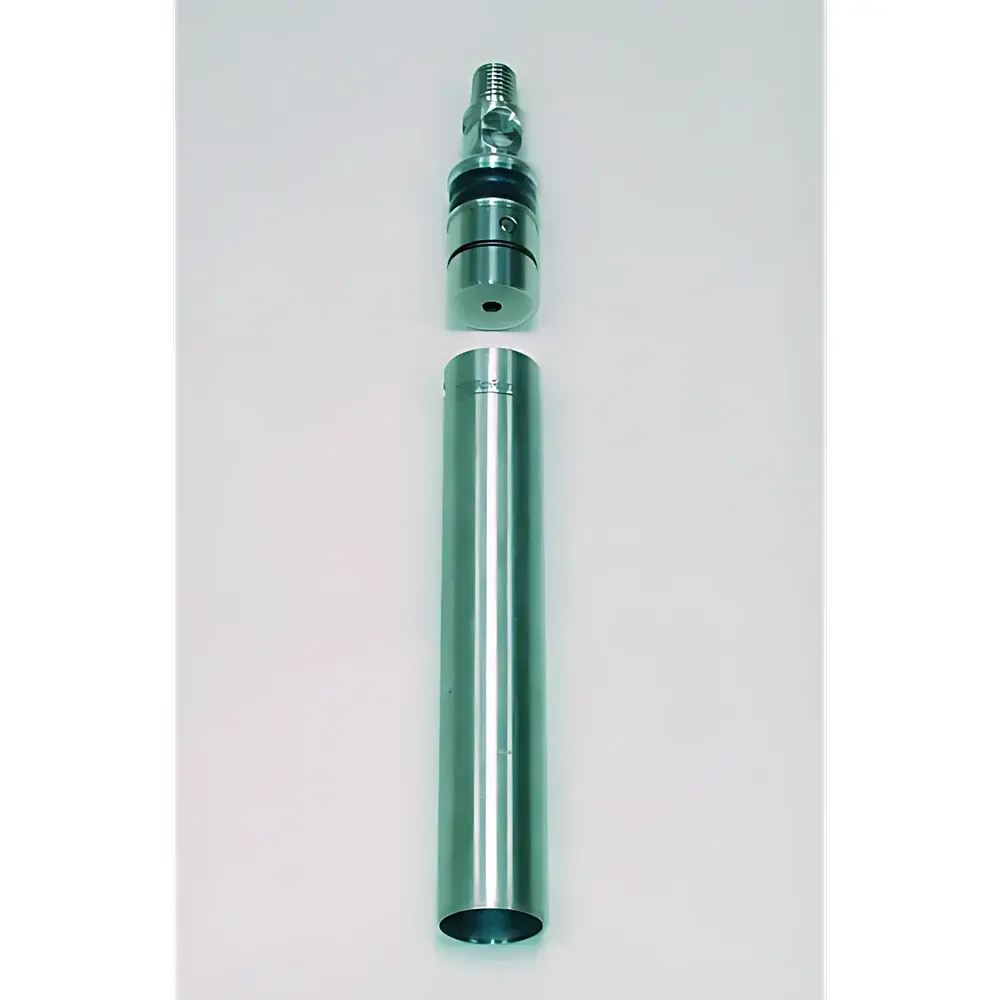

The Eijkelkamp 04.16 Stainless Steel Soil Sampler is a field-deployable, vacuum-assisted core sampling system engineered specifically for the quantitative collection of intact soil samples intended for volatile organic compound (VOC) analysis—including benzene, toluene, ethylbenzene, xylenes (BTEX), chlorinated hydrocarbons (e.g., PCE, TCE), and other low-boiling-point analytes. Its design adheres strictly to the Dutch standard NEN 5743, which defines requirements for VOC-preserving soil sampling methodology, including minimization of headspace, prevention of atmospheric exposure, and maintenance of in situ structural integrity during extraction and transport. Unlike polymer-based samplers, the 04.16 employs full 316 stainless steel construction for all soil-contact components—tube wall, valve mechanism, base cap, and extruder—to eliminate sorptive losses, leaching, or catalytic degradation associated with plastics or coated metals. The sampler operates on a dual-phase principle: first, an Edelman-type auger establishes a pilot borehole with minimal soil disturbance; second, the valve-equipped coring tube is driven into the target horizon under controlled impact, where an integrated check valve creates transient sub-atmospheric pressure upon withdrawal—effectively retaining the 200 mm × 38 mm cylindrical core (226 mL volume) within the thin-walled (0.5 mm wall thickness) stainless sleeve without slumping or air ingress.

Key Features

• Vacuum-assisted retention mechanism with stainless steel poppet valve ensures zero-loss recovery of cohesive and moderately structured soils—even at depths up to 5 meters.
• Thin-walled (0.5 mm) 316 stainless steel sampling tube preserves sample geometry and prevents VOC partitioning into tube material.
• Integrated insulating plate and sealed bottom cap minimize thermal gradient-induced volatilization during surface handling and transit.
• Compatible with standard geological hammers fitted with polyurethane or nylon striking caps to reduce rebound and enhance energy transfer in compacted or gravelly strata.

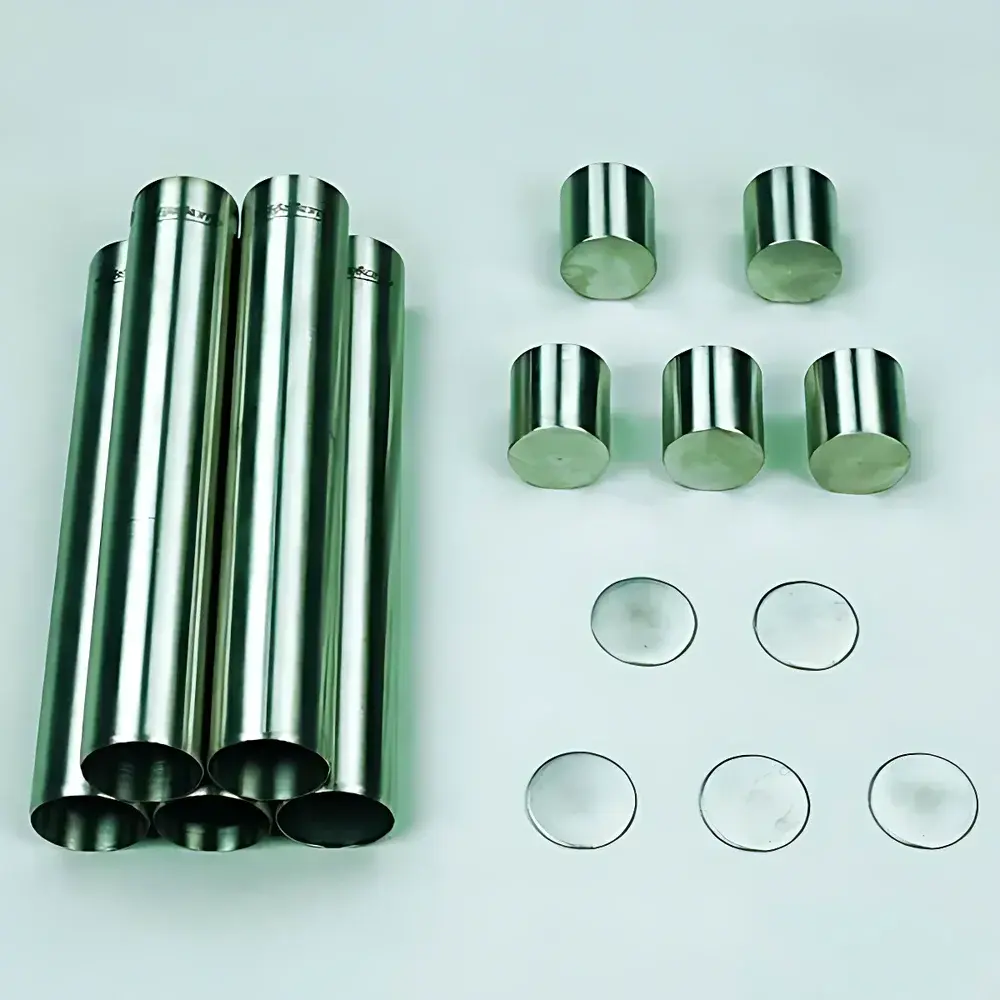

• Modular design supports interchangeable liners (optional fluoropolymer-coated sleeves) for ultra-trace VOC studies requiring additional inertness.

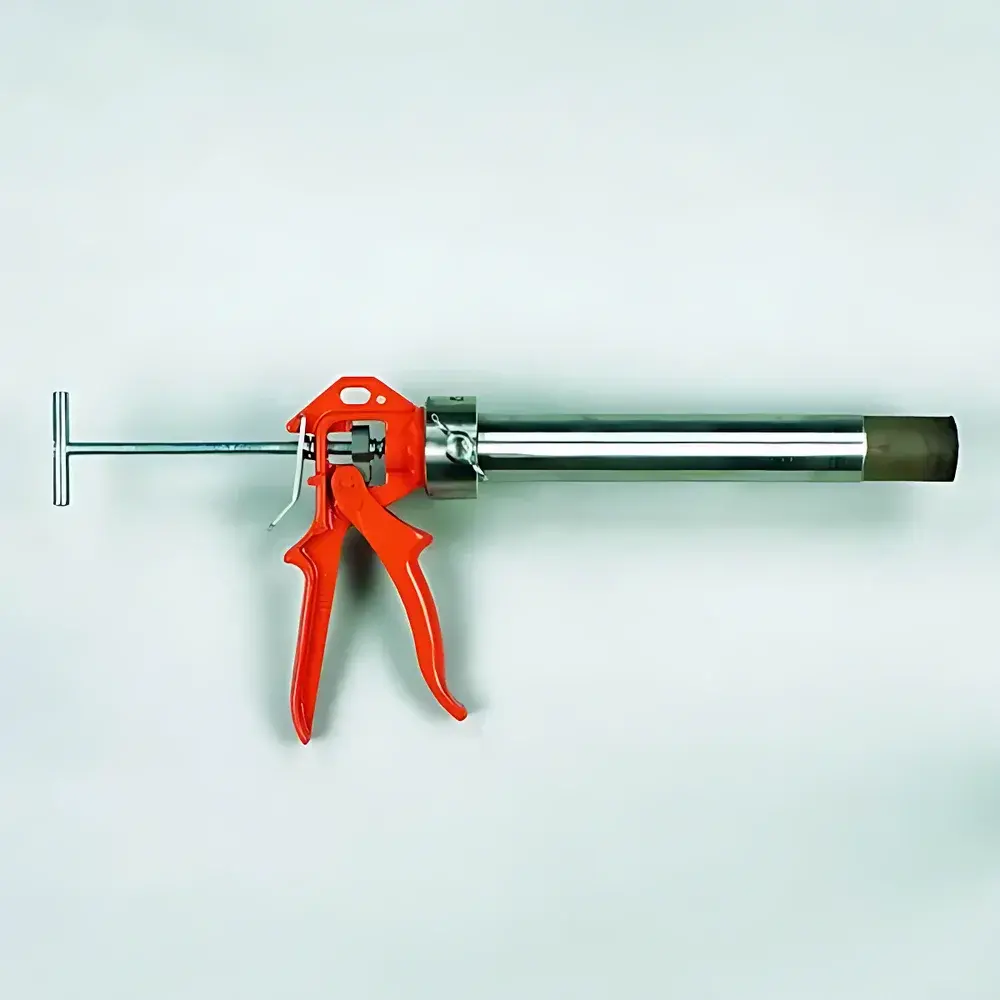

• Complete system includes calibrated depth markers, torque-limiting extension rods, and field-ready aluminum transport case with custom-cut foam inserts for shock isolation.

Sample Compatibility & Compliance

The 04.16 is validated for use across a broad textural spectrum—from sandy loams and silty clays to moderately cemented glacial tills—provided soil moisture content remains above the plastic limit (≥15 wt% water). It is not recommended for dry, friable aeolian sands or highly organic peats lacking structural cohesion. All components comply with NEN 5743:2019 for VOC sampling integrity, and the stainless steel composition meets ASTM A240/A240M Grade 316 requirements for corrosion resistance in chloride-rich environments. When used in conjunction with certified chain-of-custody protocols and EPA Method 5035A (closed-system purging), the sampler satisfies data quality objectives outlined in ISO/IEC 17025-accredited environmental laboratories. It is routinely accepted by EU Member State NMIs for regulatory soil screening under Directive 2004/35/EC (Environmental Liability Directive) and national soil quality ordinances.

Software & Data Management

While the 04.16 is a manual, non-electronic field instrument, its operation integrates seamlessly with digital sample management workflows. Each aluminum transport case is laser-engraved with a unique serial number traceable to Eijkelkamp’s calibration registry. Optional QR-coded sample tube labels (supplied separately) interface directly with LIMS platforms such as Thermo Fisher SampleManager LIMS or LabVantage, enabling automated logging of sampling depth, GPS coordinates (via paired GNSS tablet), soil horizon notation, and field preservation status (e.g., “N2-flushed”, “4°C stored”). Audit trails generated during sample receipt—time-stamped, user-ID-authenticated, and Part 11–compliant—support GLP and ISO 17025 documentation requirements without embedded firmware.

Applications

• Regulatory site characterization for brownfield redevelopment under ASTM D5088 and ISO 22030.
• Time-zero baseline sampling prior to in-situ chemical oxidation (ISCO) or soil vapor extraction (SVE) deployment.
• Vertical profiling of VOC concentration gradients in unsaturated and saturated zones.
• Moisture content determination via gravimetric analysis (ASTM D2216) using the same intact core—eliminating subsampling bias.
• Microbial community studies requiring anaerobic preservation of redox-sensitive horizons.
• Validation of passive diffusion sampler (PDS) and membrane interface probe (MIP) data through direct physical coring.

FAQ

Does the 04.16 require field calibration before each use?

No—calibration is performed at the factory against NIST-traceable dimensional standards; only visual inspection of valve seating and liner integrity is required pre-deployment.
Can the sampler be used in saturated soils?

Yes, provided the overburden pressure does not exceed 150 kPa; the valve seal remains effective under hydrostatic loading typical of shallow groundwater tables.
Is the 226 mL sample volume fixed, or can smaller increments be taken?

The nominal volume corresponds to the full 200 mm length; however, depth-specific sub-sampling is achievable using the extruder’s graduated scale and sterile stainless steel sectioning blades (sold separately).
What cleaning protocol is recommended between samples?

Rinse with HPLC-grade methanol followed by ultrapure water, then bake at 120°C for 2 hours in a Class 100 clean oven—validated per EPA 8260D QC requirements.
Are replacement valves and liners available as consumables?

Yes—Eijkelkamp Part Nos. 04.16.VLV (valve assembly) and 04.16.LINER.FEP (fluoropolymer liner) are stocked globally with ≤5-day lead time.
