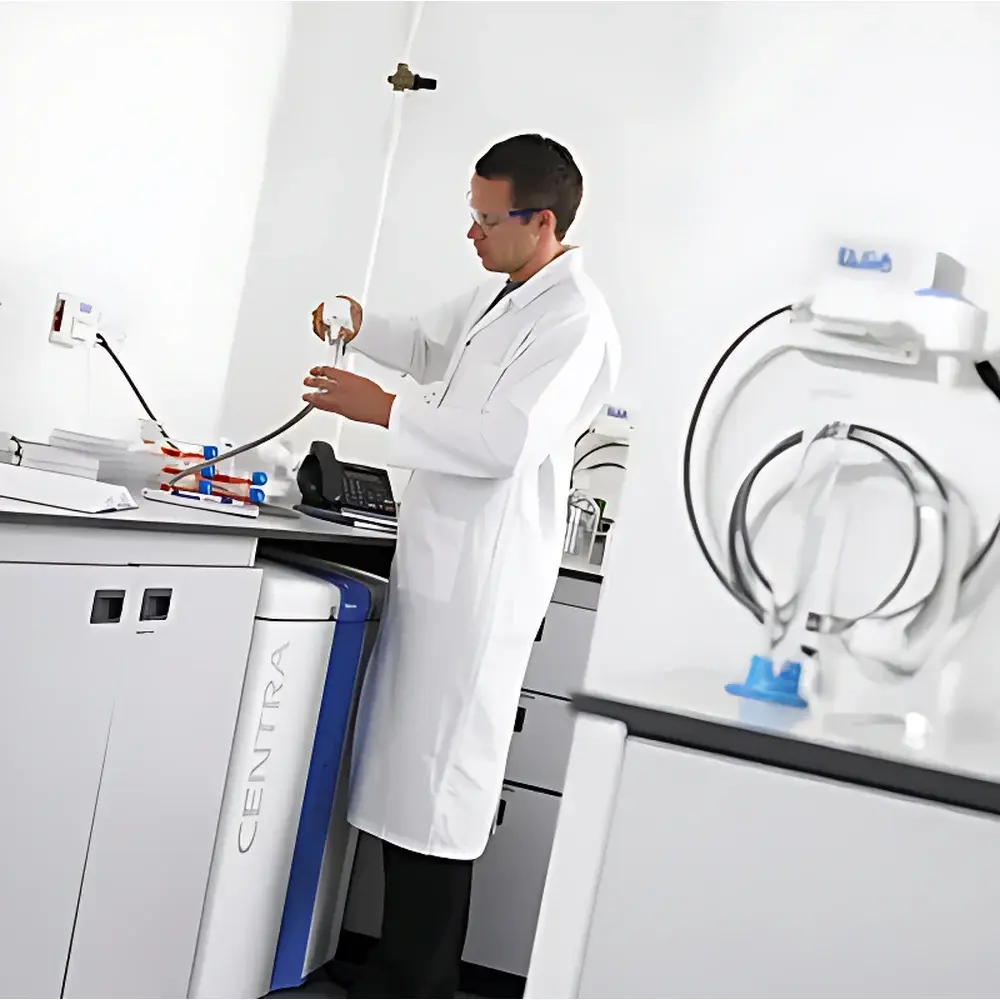

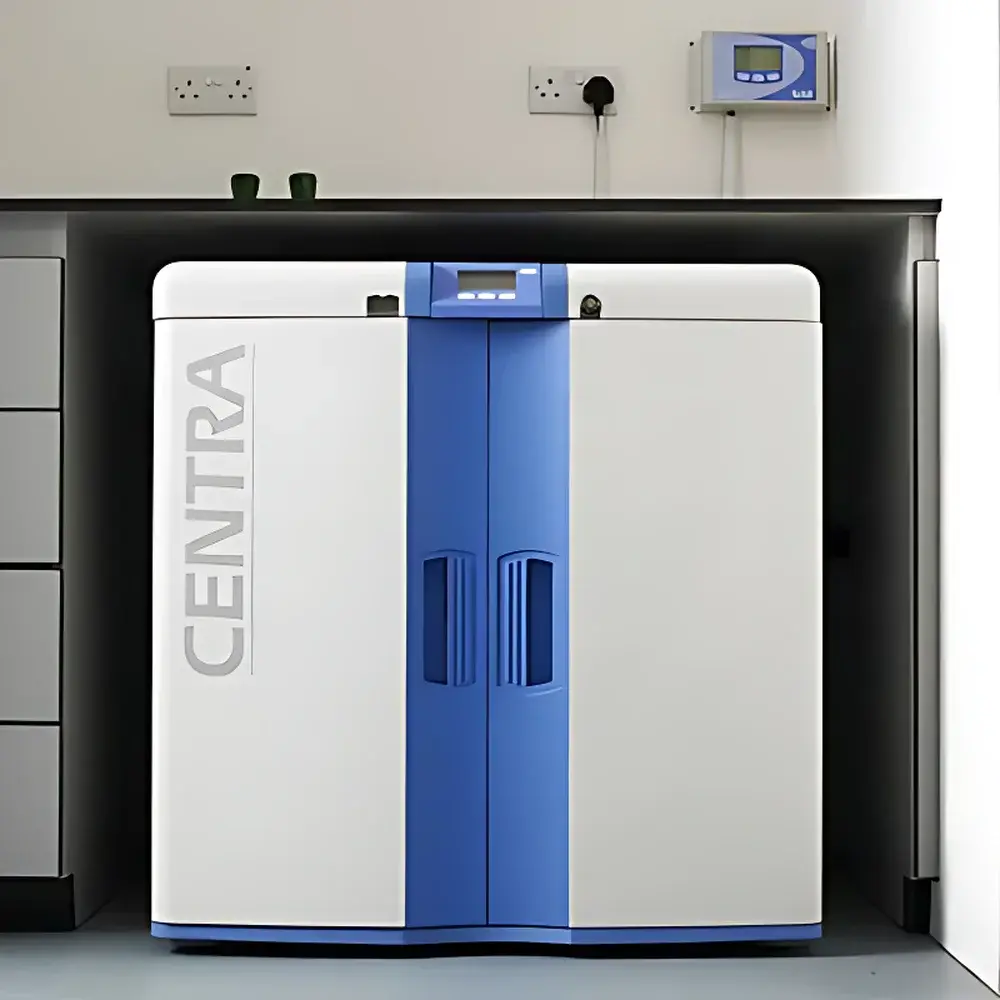

ELGA CENTRA Central Laboratory Pure Water System

Overview

The ELGA CENTRA Central Laboratory Pure Water System is an engineered, modular, and scalable ultra-pure water generation and distribution platform designed for research, clinical, and pharmaceutical laboratories requiring consistent, on-demand Type I water across single labs, entire floors, or multi-story facilities. Based on a closed-loop recirculating architecture, CENTRA integrates reverse osmosis (RO), dual-wavelength UV photo-oxidation (185 nm + 254 nm), electrodeionization (EDI) or mixed-bed ion exchange, 0.2 µm final filtration, and composite air-breathing tank venting to deliver water meeting ASTM D1193-20, ISO 3696:1987, and CLSI EP23-A standards. Its design eliminates point-of-use variability by centralizing purification, storage (350 L PE tank with certified 1 µm surface roughness), and controlled distribution—ensuring stable resistivity ≥18.2 MΩ·cm, TOC ≤20 ppb, endotoxin <0.002 EU/mL, and microbial load <1 CFU/100 mL throughout the loop. Unlike traditional centralized systems, CENTRA decouples capacity from infrastructure scale: flow rates range from 60 L/h (CENTRA-R 60) to 5,000 L/h (CENTRA-500), with high-flow variants (HFV) supporting peak demands up to 38 L/min via variable-speed circulation pumps.

Key Features

• Modular architecture enabling system expansion—from standalone lab units (e.g., CENTRA-R 60 with 50 L tank) to building-wide networks (CENTRA-RDS with 350 L tank and ring-loop distribution)
• Integrated 185 nm UV lamp for continuous TOC reduction and photolytic bacterial inactivation, complemented by 254 nm germicidal irradiation
• Composite hydrophobic/hydrophilic breathing filter on storage tank removes airborne CO₂, particulates, and microorganisms—preventing resistivity drift and organic ingress
• Automated, validated thermal or chemical loop sanitization protocols compliant with EU GMP Annex 1 and USP environmental control requirements
• Real-time monitoring of critical parameters: resistivity, temperature, TOC (optional), pressure, flow rate, tank level, and UV intensity—with configurable alarm thresholds
• PE-lined, zero-dead-leg 350 L storage tank with radial spray-ball inlet, certified smoothness (Ra ≤1 µm), and traceable material documentation per ISO 10993 biocompatibility guidelines
• BMS-ready interface (Modbus RTU over RS-485) and optional remote HMI terminal (up to 100 m cable length) for integration into facility-wide monitoring systems

Sample Compatibility & Compliance

CENTRA delivers water suitable for critical applications including HPLC mobile phase preparation, LC-MS solvent formulation, cell culture media reconstitution, molecular biology assays (PCR, sequencing), and analytical calibration standards. It complies with regulatory expectations for water used in GLP, GMP, and ISO/IEC 17025-accredited environments. The system supports audit-ready data integrity through time-stamped event logging (including cartridge replacement alerts, sanitization cycles, and out-of-specification events), aligned with FDA 21 CFR Part 11 requirements when paired with ELGA’s validated software package. All wetted materials—including tubing, filters, and tank linings—meet USP Class VI and FDA 21 CFR 177.1520 specifications. RO recovery ≥75% minimizes wastewater volume, supporting sustainability targets without compromising purity performance.

Software & Data Management

CENTRA’s embedded controller provides intuitive local operation via color touchscreen interface with animated system status visualization (e.g., real-time tank fill level, loop flow dynamics, pressure differentials). Data export is supported via RS-232 or USB port in CSV format for laboratory information management systems (LIMS) integration. Optional ELGA Connect™ software enables remote diagnostics, predictive maintenance scheduling, and secure user-role assignment (operator, technician, administrator) with full audit trail functionality—including who initiated sanitization, modified setpoints, or bypassed alarms. All logs are tamper-evident and timestamped to ISO/IEC 17025 clause 7.7 traceability requirements.

Applications

• Pharmaceutical R&D and QC labs requiring USP Purified Water and Water for Injection (WFI)-grade feedstock
• Hospital clinical pathology departments performing immunoassays and hematology analyzers
• Academic core facilities supporting proteomics, metabolomics, and nanomaterial synthesis
• Biotechnology manufacturing suites where water purity directly impacts product stability and regulatory filing success
• Microelectronics cleanrooms needing low-metal, low-particle rinse water for wafer processing

FAQ

Can CENTRA be configured to supply multiple water grades simultaneously?
Yes—modular purification modules (e.g., optional post-loop deionization cartridges or TOC-specific polishing units) allow simultaneous delivery of Type I, II, and III water from a single CENTRA-RDS platform, each with independent quality monitoring.
What validation support does ELGA provide for GMP installations?
ELGA supplies IQ/OQ documentation templates, factory acceptance test (FAT) reports, and on-site operational qualification (OQ) support—including protocol development, execution, and final report generation per ASTM E2500 and Annex 15 guidelines.
How does CENTRA manage biofilm risk in long distribution loops?
Through continuous recirculation at ≥1.5 m/s velocity, periodic automated thermal sanitization (80–85 °C for ≥30 min), and redundant 185 nm UV irradiation upstream of the final 0.2 µm filter—validated per PDA Technical Report No. 29.
Is the 350 L tank suitable for 24/7 operation in high-throughput labs?
Yes—the tank’s certified surface finish, integrated spray-ball inlet, and constant-loop flow prevent stagnation; combined with real-time TOC/resistivity trending, it ensures consistent output even during extended unattended operation.
Does CENTRA support third-party LIMS integration?
Yes—via Modbus TCP/IP or OPC UA interfaces, CENTRA transmits raw sensor data (conductivity, temperature, pressure, flow) and system status codes compatible with most enterprise LIMS and SCADA platforms.
