Elga Chorus 1 Life Science Ultra-Pure Water System for Molecular Biology & Trace Analysis

Overview

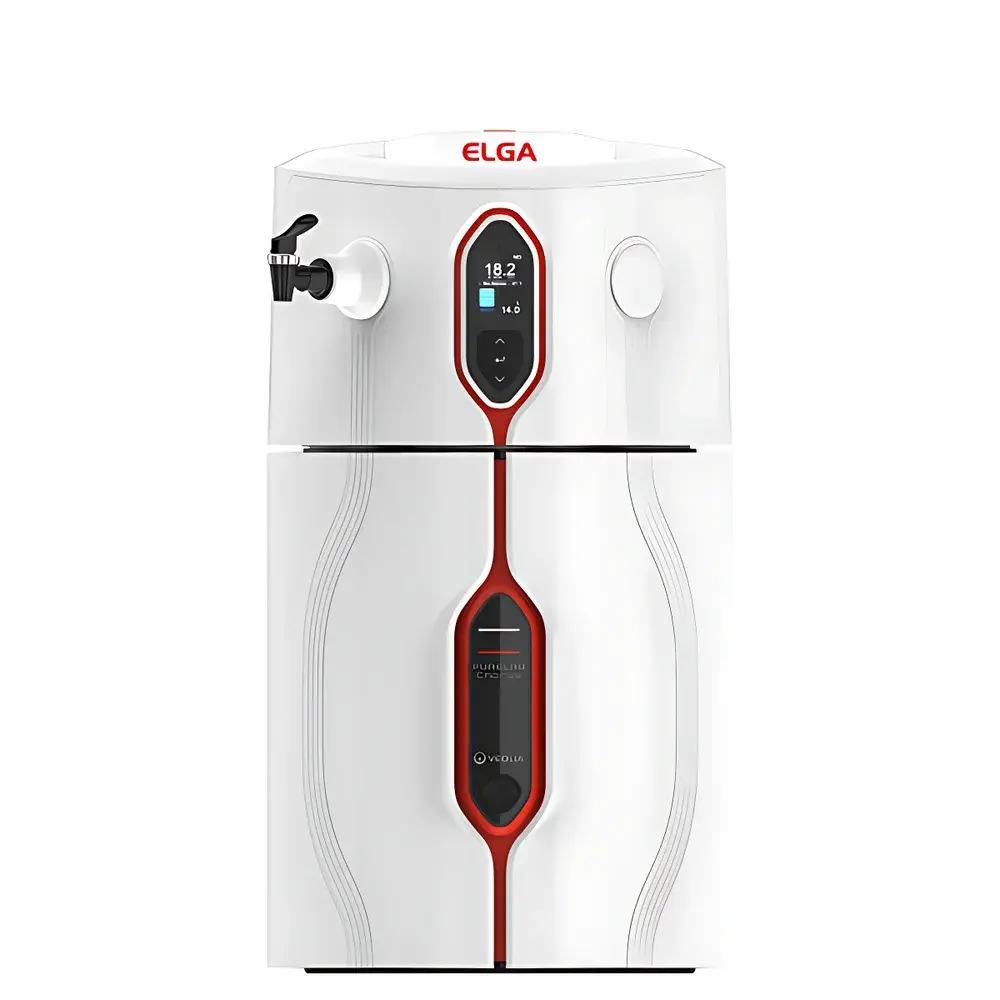

The Elga Chorus 1 Life Science Ultra-Pure Water System (Model PC1LSCXM2) is an integrated, single-platform purification solution engineered for laboratories requiring consistent, continuously monitored Type I ultrapure water compliant with ISO 3696:1987, ASTM D1193-06, and CLSI EP21-A guidelines. Designed specifically for molecular biology, cell culture, HPLC, LC-MS, ICP-MS, and trace elemental analysis, the system employs a multi-stage purification architecture combining reverse osmosis (RO), dual-stage electrodeionization (EDI), integrated 5000 Da molecular weight cutoff (MWCO) recirculating ultrafiltration (UF), and final polishing via high-capacity mixed-bed ion exchange and activated carbon cartridges. Unlike modular or add-on UF configurations, Chorus integrates the UF membrane within the closed-loop distribution loop—ensuring endotoxin and nucleic acid (DNA/RNA) removal without introducing external dead-legs or secondary filtration points. Real-time TOC monitoring (detection limit ≤1 ppb) and resistivity measurement (≥18.2 MΩ·cm at 25 °C) are performed inline, enabling continuous verification of water quality against USP , EP 2.2.44, and JP 17 standards.

Key Features

• Integrated pre-purification and polishing cartridge (Chorus Cartridge) with >94,100 L service life per unit—significantly reducing long-term consumable cost and minimizing downtime.
• Recirculating 5000 MWCO ultrafiltration module housed entirely within the system’s sealed loop—designed to retain endotoxins, pyrogens, DNase, RNase, and particles ≥5 nm; typical service interval exceeds 24 months under standard lab usage conditions.
• Full-pathway automated thermal and chemical disinfection protocol—activates across RO membrane housing, EDI stack, UF loop, storage tank, and distribution lines; validated to achieve ≥6-log reduction of Gram-negative biofilm-forming organisms (e.g., Pseudomonas fluorescens) per ISO 15189 Annex B requirements.
• In-line TOC analyzer with UV-persulfate oxidation and NDIR detection—provides continuous, non-invasive TOC quantification with data logging, alarm thresholds, and audit-trail capability compliant with FDA 21 CFR Part 11 and EU Annex 11.

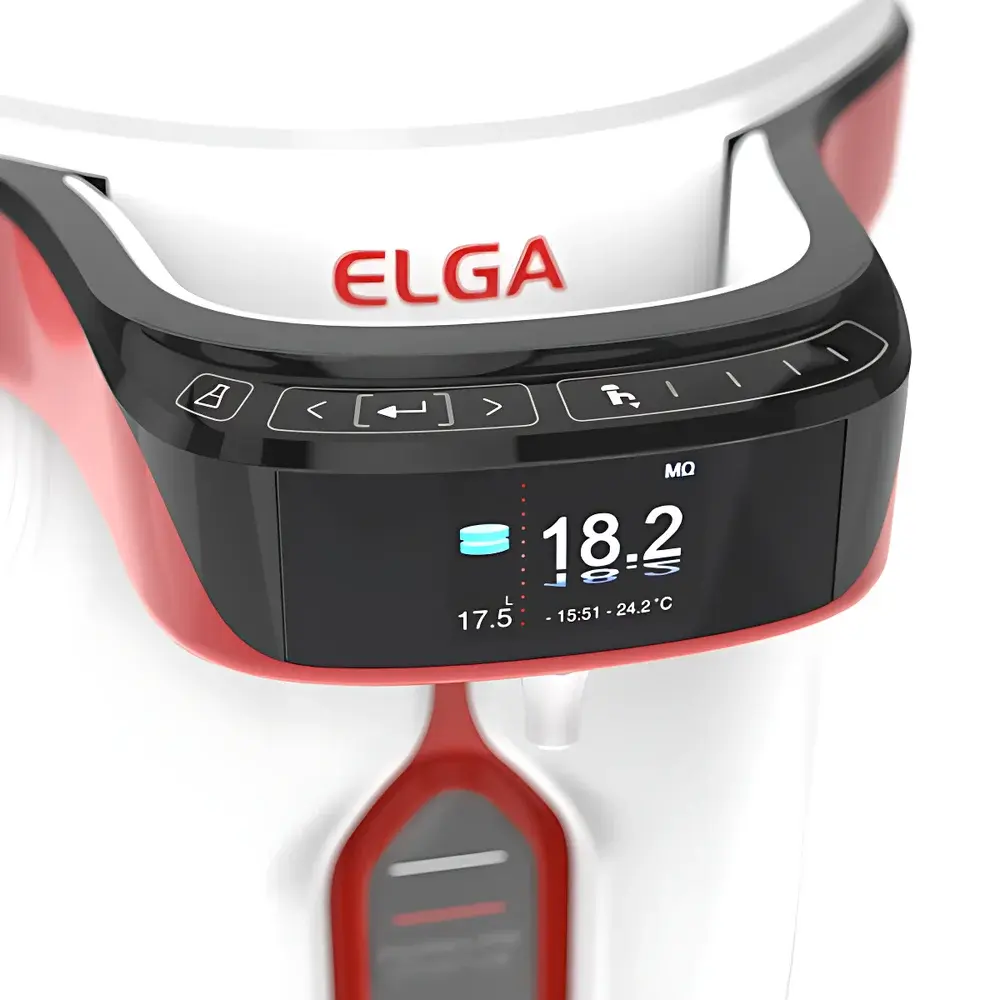

• Intuitive 7-inch capacitive touchscreen interface with multilingual support (including English), graphical system status mapping, real-time parameter trending, and password-protected user roles (Operator, Supervisor, Administrator).

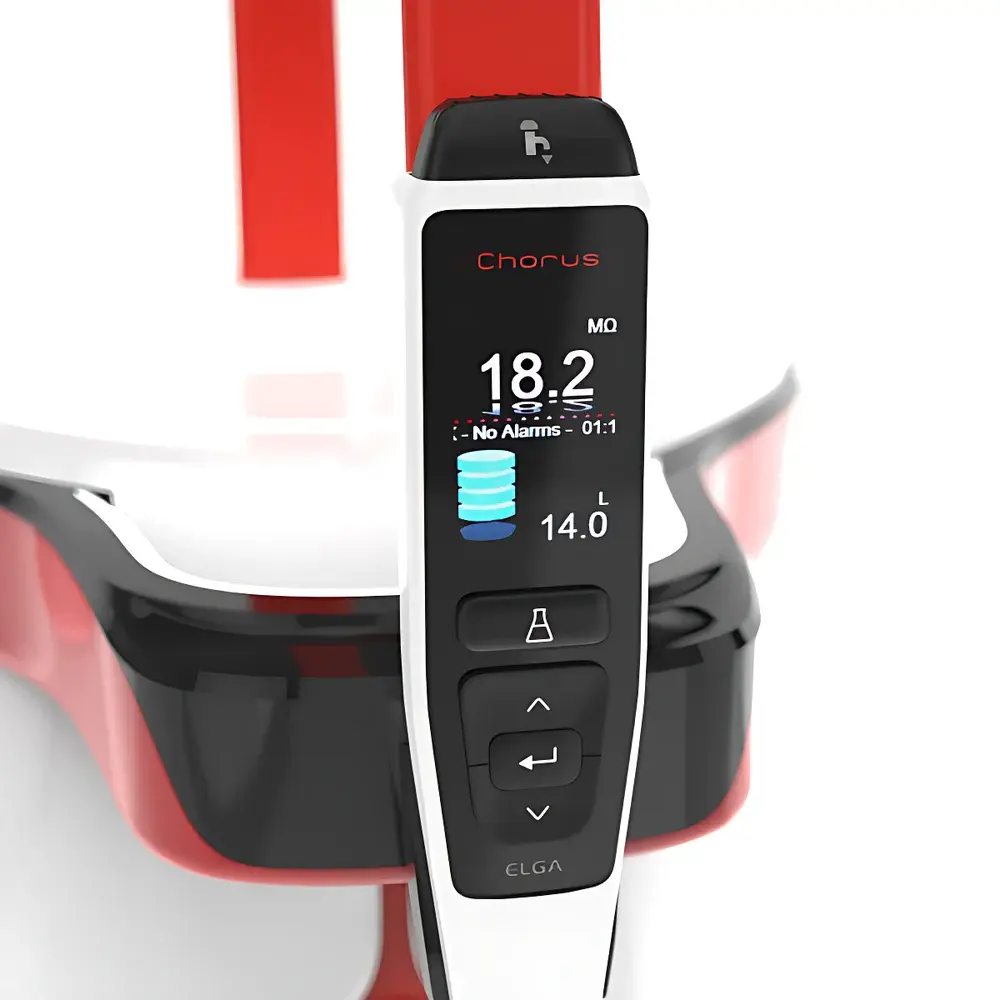

• Mobile dispensing arm with RFID-enabled flow control, programmable volume delivery (1 mL–99.99 L), and automatic air-gap priming—compatible with glassware, carboys, and analytical vessels without manual calibration.

Sample Compatibility & Compliance

The Chorus 1 LS delivers water meeting or exceeding the strictest specifications for critical life science applications: endotoxin ≤0.001 EU/mL, total viable count ≤0.1 CFU/mL, bacteria ≤0.01 CFU/mL, and silica ≤3 µg/L. Its integrated design eliminates post-generation contamination risks associated with external terminal filters or open-loop distribution. The system supports GLP/GMP environments through configurable electronic signatures, change-control logs, and IQ/OQ documentation packages aligned with ISO/IEC 17025 and ANSI/AAMI ST79. All wetted materials comply with USP Class VI biocompatibility testing and FDA 21 CFR 177.2600 for food-contact polymers.

Software & Data Management

The embedded Chorus Control Software v4.x provides secure, role-based access to historical water quality data (TOC, resistivity, temperature, flow rate), maintenance schedules, alarm history, and disinfection cycle reports. Raw data export is supported in CSV and PDF formats; optional integration with laboratory information management systems (LIMS) via OPC UA or Modbus TCP enables centralized compliance tracking. Audit trails record all user actions—including parameter modifications, manual disinfection initiation, and cartridge replacement—with immutable timestamps and operator ID linkage—fully satisfying ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

This system is routinely deployed in QC/QA labs performing ELISA assay preparation, CRISPR-Cas9 transfection buffer formulation, qPCR master mix dilution, MALDI-TOF matrix solution preparation, and ultratrace metal analysis by HR-ICP-MS. It also serves as the primary water source for cleanroom environments (ISO Class 5–7), pharmaceutical stability studies, and reference material certification workflows where organic carbon carryover or microbial regrowth could compromise method specificity or LOD/LOQ validation.

FAQ

What is the expected service life of the integrated ultrafiltration module?
Under typical usage (≤200 L/day, ambient lab temperature 18–25 °C, feed water conductivity <500 µS/cm), the recirculating 5000 MWCO UF module maintains performance for ≥24 months before scheduled replacement.
Does the system support remote monitoring and alarm notification?
Yes—via optional Ethernet/Wi-Fi connectivity, users can configure SMTP-based email alerts for TOC excursions, low resistivity events, or disinfection cycle completion.
Is the Chorus 1 LS compliant with FDA 21 CFR Part 11 for electronic records?
Yes—the system includes full electronic signature functionality, audit trail retention (≥12 months), and system-level security controls (password complexity, session timeout, role-based permissions) validated per Part 11 Annex A guidance.
Can the mobile dispensing arm be calibrated for volumetric accuracy verification?
Yes—integrated gravimetric calibration mode allows traceable verification against NIST-traceable weights; results are stored with metadata and exported as PDF reports.
What documentation is provided for installation qualification (IQ) and operational qualification (OQ)?
A complete IQ/OQ protocol package—including test scripts, acceptance criteria, blank execution forms, and vendor-signed certificates of conformance—is supplied with each unit and updated annually per ISO/IEC 17025 revision cycles.
