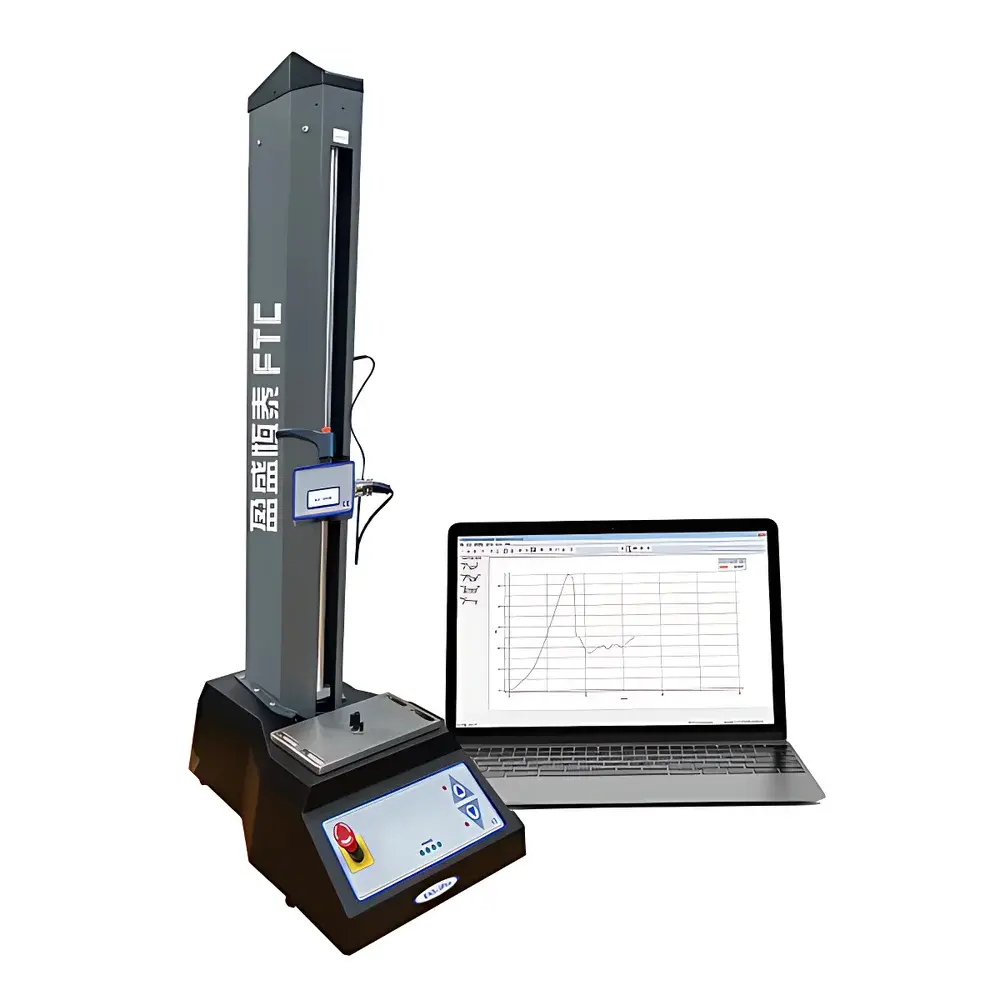

ENSoul ENS-iPro Advanced Texture Analyzer

Overview

The ENSoul ENS-iPro Advanced Texture Analyzer is a research-grade, motor-driven mechanical testing system engineered for precise quantification of textural and mechanical properties of soft-solid and semi-solid materials. Based on the fundamental principles of uniaxial compression, tension, penetration, and shear deformation—consistent with ASTM STP 1349 and ISO 11357-3 methodologies—the instrument applies controlled force and displacement to samples while recording high-resolution load–deformation profiles. Designed in collaboration with Food Technology Corporation (FTC), USA, the ENS-iPro integrates industrial-grade servo-motor actuation, low-drift load cell architecture, and real-time position feedback to deliver repeatable, traceable measurements across diverse sample geometries and rheological behaviors. It serves as a core analytical platform in food science laboratories, pharmaceutical development units, and quality control environments where objective texture profiling supports formulation optimization, shelf-life studies, process validation, and regulatory documentation.

Key Features

• High-precision servo-motor drive system with programmable speed range from 0.01 to 20 mm/s and positional resolution ≤ 0.1 µm
• Modular load cell options (5 N, 25 N, 50 N, and 100 N full-scale) calibrated to ISO/IEC 17025-accredited standards; auto-zeroing and automatic calibration verification at startup
• Interchangeable probe library compliant with ASTM F3165, USP , and ISO 11357-3—includes spherical, cylindrical, conical, Kramer shear, and Warner–Bratzler blade configurations
• Robust dual-column frame with rigid aluminum alloy construction, minimizing lateral deflection during high-force testing (up to 100 N)
• Real-time data acquisition at ≥ 1,000 Hz sampling rate, supporting dynamic event capture such as fracture onset, yield point, and viscoelastic recovery
• Integrated environmental enclosure compatibility (optional) for temperature-controlled testing between 4 °C and 40 °C

Sample Compatibility & Compliance

The ENS-iPro accommodates heterogeneous matrices including viscous gels, fibrous meats, brittle confections, hydrated grains, hydrocolloid films, and pharmaceutical tablets. Its probe geometry flexibility enables standardized execution of texture profile analysis (TPA), puncture, extrusion, folding, and tensile tests per AOAC 985.27, AACC 74-09, and FDA guidance for texture-based product characterization. All firmware and software modules comply with GLP/GMP data integrity requirements: audit trails record user actions, method changes, calibration events, and raw data modifications. The system supports 21 CFR Part 11-compliant electronic signatures when deployed with validated networked server environments.

Software & Data Management

The proprietary TexturePro CT v4.x software provides a validated, menu-driven interface for test protocol definition, real-time visualization, post-acquisition curve annotation, and statistical reporting. Users may define custom test sequences—including multi-cycle TPA, ramp-hold-relax protocols, or time-dependent creep/recovery routines—and export results in CSV, PDF, or XML formats compatible with LIMS integration. Built-in calculation engines compute standard parameters (hardness, fracturability, adhesiveness, cohesiveness, springiness, chewiness, gumminess, resilience) per IFT-defined conventions. Raw force–distance curves are stored with metadata (operator ID, timestamp, probe ID, ambient conditions), ensuring full traceability for internal audits or regulatory submissions.

Applications

• Foods: Quantitative evaluation of meat tenderness (Warner–Bratzler shear), bread crumb elasticity (compression), jam spreadability (extrusion), chocolate snap (three-point bend), and fruit firmness (penetration)
• Pharmaceuticals: Tablet hardness, capsule shell brittleness, gelatin capsule dissolution kinetics, and transdermal patch peel strength
• Cosmetics: Cream extrudability, lipstick break strength, and hydrogel film tensile modulus
• Agriculture: Grain kernel hardness (puncture), potato tuber bruise resistance, and leaf tissue toughness
• Tobacco: Cigarette rod firmness, cut filler compressibility, and reconstituted sheet tensile integrity
• Pet food: Kibble friability, wet food viscosity, and chew toy durability metrics

FAQ

What international standards does the ENS-iPro support for texture testing?
It enables method implementation aligned with ASTM F3165 (food texture), ISO 11357-3 (thermal-mechanical behavior), AOAC 985.27 (meat tenderness), and USP (pharmaceutical tablet hardness).
Can the system be integrated into an existing LIMS or ELN environment?
Yes—via secure ODBC or REST API interfaces, with configurable field mapping for sample ID, test parameters, and calculated results.
Is method validation support available for regulated industries?
ENSoul provides IQ/OQ documentation templates, calibration certificates traceable to NIST standards, and on-site operational qualification assistance upon request.
How is probe selection determined for a new application?
Probe geometry is selected based on sample geometry, failure mode (e.g., compression vs. shear), and regulatory reference method—technical application notes and probe selection guides are included with each system.
Does the software meet 21 CFR Part 11 requirements out-of-the-box?
When installed on a validated Windows Server environment with role-based access controls and electronic signature workflows enabled, the system satisfies Part 11 technical and procedural criteria.
