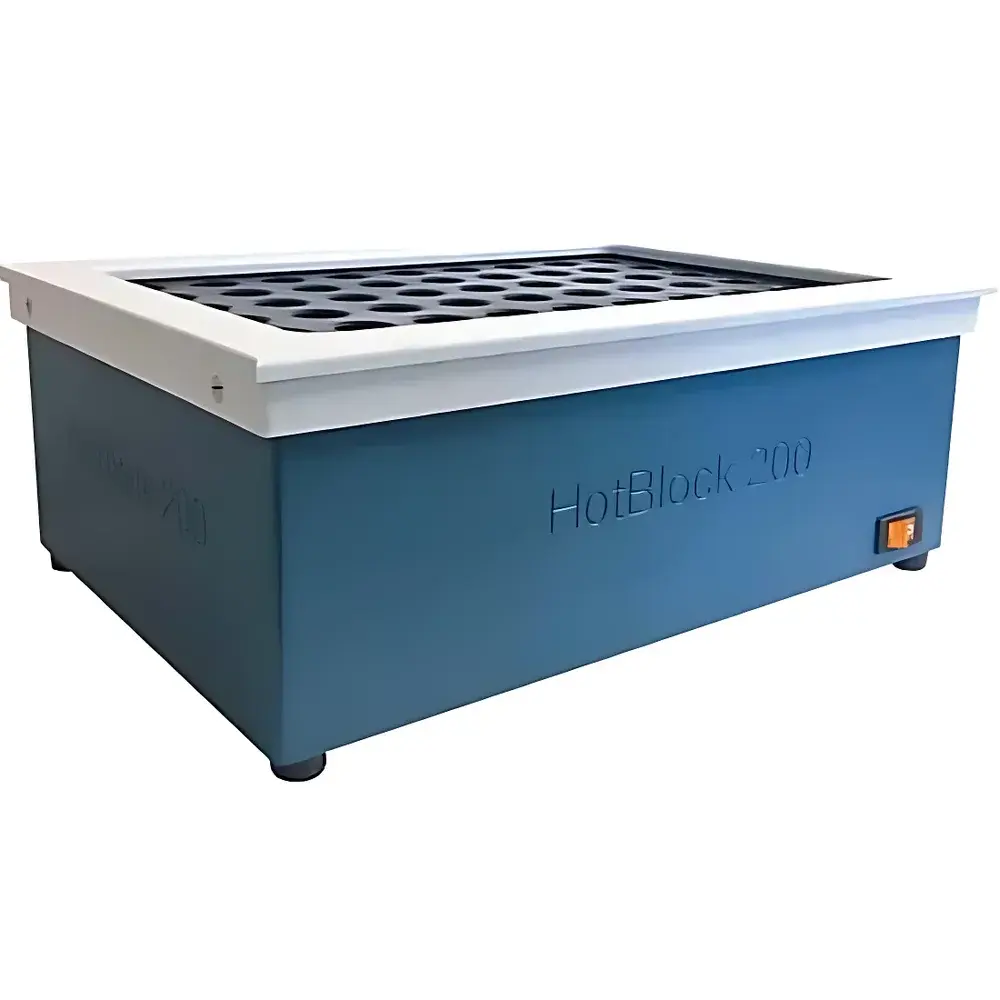

Environmental Express HotBlock200 Graphite Block Digestion System

Overview

The Environmental Express HotBlock200 Graphite Block Digestion System is a precision-engineered, non-metallic thermal digestion platform designed for high-throughput, contamination-sensitive sample preparation in environmental, regulatory, and clinical laboratories. Unlike conventional metal-heated block digesters, the HotBlock200 employs a solid PTFE-coated graphite heating block housed within a chemically inert Kydex® enclosure—eliminating leachable metal ions, minimizing acid corrosion, and ensuring trace-level integrity during open-vessel digestion of aqueous, soil, and biological matrices. Its operating principle relies on uniform conductive heat transfer from the high-thermal-mass graphite block, delivering stable, repeatable temperature profiles across all 96 positions without convective air currents or hot-spot formation. With a maximum setpoint of 200°C and resolution of 0.1°C, it supports standardized methods requiring elevated temperatures—including EPA Method 3050B (acid digestion of sediments and soils), ASTM D5176 (organic carbon in soils), and ISO 11466 (trace element extraction from contaminated soils). The system operates at ambient-to-200°C range and is validated for use with borosilicate glass and fluoropolymer (PTFE, PFA) digestion vessels; polypropylene vessels are explicitly excluded above 130°C per manufacturer specifications.

Key Features

• Non-metallic architecture: PTFE-coated graphite heating block + Kydex® housing prevents metal contamination and ensures compatibility with aggressive acid mixtures (e.g., HNO₃/HF/HClO₄)
• High spatial uniformity: ±0.2°C temperature consistency across all 96 positions—critical for inter-sample comparability in multi-batch analyses
• Modular external controller (SC1831/SC1832): Supports independent programming of ramp/hold profiles; dual-unit control enables synchronized operation of two HotBlock200 systems under one interface
• Optimized thermal mass design: Graphite block delivers rapid heat-up times and exceptional thermal stability—even during ambient fluctuations or extended hold periods
• Ergonomic accessories: Includes polycarbonate transfer rack for safe, simultaneous handling of 96 × 15 mL digestion tubes—reducing operator exposure and pipetting errors
• Regulatory-ready configuration: No embedded software or data storage; fully compatible with laboratory information management systems (LIMS) via manual log entry or external data capture

Sample Compatibility & Compliance

The HotBlock200 is engineered for open-vessel digestion protocols compliant with U.S. EPA, ASTM, and ISO standards. It accommodates standard 15 mL digestion tubes (e.g., SCP Science, Environmental Express SC100 series) and supports method-defined reagent volumes up to 10 mL per tube. Due to its non-reactive construction, it is suitable for hydrofluoric acid (HF)-containing digestions when used with PTFE/PFA liners or glassware rated for HF exposure. The system meets GLP documentation requirements through external logging of time-temperature profiles. While not a microwave instrument, it serves as a validated alternative to closed-vessel microwave digestion for applications where pressure containment is unnecessary—such as total recoverable metal extractions, nutrient digestion (e.g., Kjeldahl nitrogen), and organic matter oxidation. All materials contacting samples comply with USP Class VI and FDA 21 CFR 177.1550 (fluoropolymer safety) specifications.

Software & Data Management

The HotBlock200 operates without onboard firmware or proprietary software—ensuring long-term operational continuity and eliminating cybersecurity vulnerabilities associated with embedded OS platforms. Temperature setpoints, ramp rates, and hold durations are configured manually via the external controller’s intuitive rotary dial and LED display. Users record run parameters and timestamps externally using paper logs, Excel templates, or LIMS-integrated electronic notebooks. This architecture satisfies audit requirements under FDA 21 CFR Part 11 (when paired with appropriate procedural controls), ISO/IEC 17025 clause 7.7 (result reporting), and EPA Contract Lab Program (CLP) documentation guidelines. No data export functionality is included—intentionally—preserving method transparency and reducing validation burden in regulated environments.

Applications

• Total recoverable metals analysis (EPA 200.2, 200.7, 200.8) in wastewater, drinking water, and leachates
• Soil and sediment digestion per EPA 3050B, 3051A, and ASTM D3741
• Acid-soluble fraction determination for geochemical speciation studies
• Preparation of calibration standards and QC reference materials
• Digestion of plant tissues and biological samples prior to ICP-MS/OES analysis
• Organic carbon and total phosphorus determination via persulfate oxidation (ISO 14235, EPA 445.1)

FAQ

Can the HotBlock200 be used with hydrofluoric acid (HF)?

Yes—provided digestion vessels are made of HF-resistant materials (e.g., PTFE, PFA, or etched borosilicate glass) and appropriate PPE and fume hood protocols are followed. The PTFE-coated graphite block itself is chemically inert to HF under standard digestion conditions.
Is the system compatible with GLP or GMP-regulated laboratories?

Yes—the absence of embedded software, reliance on manual parameter entry, and compatibility with external audit trails make it suitable for GLP/GMP environments when documented per SOPs and supported by equipment qualification (IQ/OQ/PQ).
What is the recommended vessel material for runs above 130°C?

Glass or fluoropolymer (PTFE/PFA) digestion tubes only. Polypropylene vessels have a melting point of ~130°C and must not be used at higher temperatures.
Does the HotBlock200 require calibration certification?

Yes—per ISO/IEC 17025 and most regulatory frameworks, the unit must undergo initial and periodic temperature uniformity verification using NIST-traceable thermocouples or RTDs placed across all 96 positions.
Can multiple HotBlock200 units be operated simultaneously from one controller?

Yes—the SC1832 dual-channel external controller allows independent programming and monitoring of two HotBlock200 systems, improving lab throughput without compromising method fidelity.
