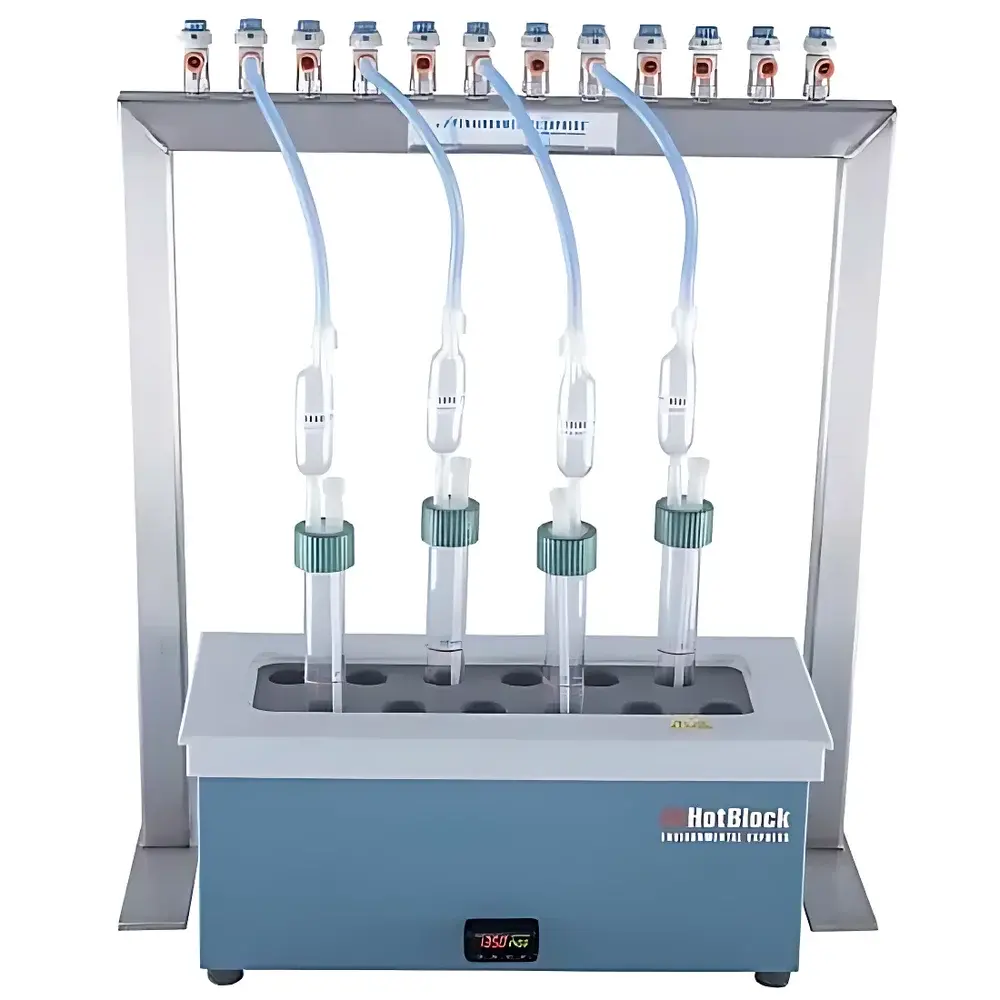

Environmental Express SimpleDist Distillation System
| Brand | Environmental Express |
|---|---|
| Origin | USA |
| Model | C6000-240 |
| Voltage | 240 VAC, 3 A |
| Instrument Type | Standard Quartz Glass Distillation Apparatus |
| Compliance | EPA Method 335.4, EPA Method 350.1, Standard Methods 4500-CN-C, 4500-NH₃ |
| Includes | 12-position HotBlock (C6002-240) and 12-valve Manifold Kit (C6210) |
Overview
The Environmental Express SimpleDist Distillation System is a purpose-built, vacuum-assisted distillation apparatus engineered for the selective, low-risk recovery of volatile nitrogen species—specifically ammonia (NH₃) and cyanide (CN⁻)—from aqueous environmental and wastewater samples. Unlike conventional steam distillation setups requiring condensers, recirculating chillers, or complex water-cooling infrastructure, the SimpleDist system operates on a simplified gas-transfer principle: analyte volatilization occurs in a heated quartz boiling tube, followed by immediate vacuum-driven transport of liberated NH₃ or HCN gas into a sealed, reagent-filled collector vial. This design eliminates condensation inefficiencies and minimizes cross-contamination risk, while ensuring quantitative transfer under controlled pH and temperature conditions defined in EPA and Standard Methods protocols.
Key Features
- Vacuum-driven gas-phase transfer eliminates need for condensers, cooling water lines, or external chillers—reducing installation footprint and operational complexity.
- Minimal glassware maintenance: only the quartz boiling tube requires cleaning between runs; all other components are single-use or easily rinsed.
- Integrated hydrophobic fritted disc at collector base permits unidirectional gas flow into absorbent solution while preventing back-siphoning into the boiling chamber—critical for method integrity and operator safety.
- Modular architecture: compatible with existing Environmental Express HotBlock digestion systems (e.g., C6002-240); retrofitting requires only the C6210 12-valve manifold kit.
- Quartz construction ensures thermal stability, chemical resistance to strong alkalis (e.g., NaOH for CN⁻ liberation) and oxidants (e.g., chloramine-T for NH₃ distillation), and optical clarity for visual process monitoring.
- 12-position parallel processing capability enables high-throughput compliance testing aligned with EPA batch validation requirements.
Sample Compatibility & Compliance
The SimpleDist system is validated for use with drinking water, surface water, wastewater, and soil leachates per U.S. EPA Methods 335.4 (cyanide) and 350.1 (ammonia), as well as Standard Methods for the Examination of Water and Wastewater 4500-CN-C and 4500-NH₃. It accommodates sample volumes from 50 mL to 500 mL and supports both manual and automated fraction collection. All reagent concentrations, pH adjustment steps, and distillation timing parameters align precisely with cited methods—no protocol deviation is required for regulatory submission. The system’s closed-loop vacuum path and inert quartz pathway minimize analyte loss, adsorption, or oxidation, supporting data reproducibility required under GLP and ISO/IEC 17025-accredited laboratories.
Software & Data Management
The SimpleDist system is hardware-controlled without embedded firmware or proprietary software. Temperature ramping and hold times are managed externally via the companion HotBlock controller (C6002-240), which supports programmable multi-step heating profiles and digital temperature logging compliant with FDA 21 CFR Part 11 when integrated with validated LIMS or ELN platforms. Vacuum pressure is monitored using an external analog gauge; no electronic feedback loop is implemented. All operational parameters—including run start time, boiling duration, vacuum status, and collector identification—are manually recorded in laboratory notebooks or imported into audit-trail-enabled electronic records systems to satisfy traceability requirements under EPA QA/QC guidance documents.
Applications
- Regulatory compliance testing for total cyanide and free cyanide in industrial effluents and POTW influents.
- Ammonia-nitrogen quantification in nutrient monitoring programs for watershed assessment and TMDL reporting.
- Method validation studies comparing distillation efficiency against alternative techniques (e.g., ion-selective electrode, colorimetric flow injection).
- Teaching laboratories requiring robust, safe, and conceptually transparent demonstrations of volatile analyte separation principles.
- Reference material analysis where matrix interference mitigation via physical separation is preferred over instrumental compensation.
FAQ
Does the SimpleDist system require a dedicated vacuum pump?
Yes—a chemically resistant diaphragm or oil-free vacuum pump capable of sustaining ≥25 inHg (≈85 kPa) is required. Pumps must be equipped with a trap to prevent moisture or alkaline aerosol ingress.
Can the system be used for other volatile analytes beyond ammonia and cyanide?
Not without method validation. While the physical architecture permits vapor transfer, selectivity depends on volatility, pKa, and capture chemistry—only NH₃ and CN⁻ have been verified per EPA and Standard Methods protocols.
Is the quartz boiling tube interchangeable with borosilicate glass alternatives?
No. Quartz is specified for its superior resistance to thermal shock during rapid heating cycles and compatibility with strongly alkaline distillation matrices (pH >12). Substitution compromises method fidelity and safety.
How is carryover assessed between runs?
Carryover is evaluated per EPA Method 335.4 Section 9.4: blank spikes and procedural duplicates are analyzed routinely; acceptable carryover is ≤5% of the method detection limit.
What electrical specifications must the facility supply?
The C6000-240 configuration requires a dedicated 240 VAC, 3 A, grounded circuit with GFCI protection. Voltage fluctuations exceeding ±5% require an inline stabilizer for HotBlock thermal stability.
