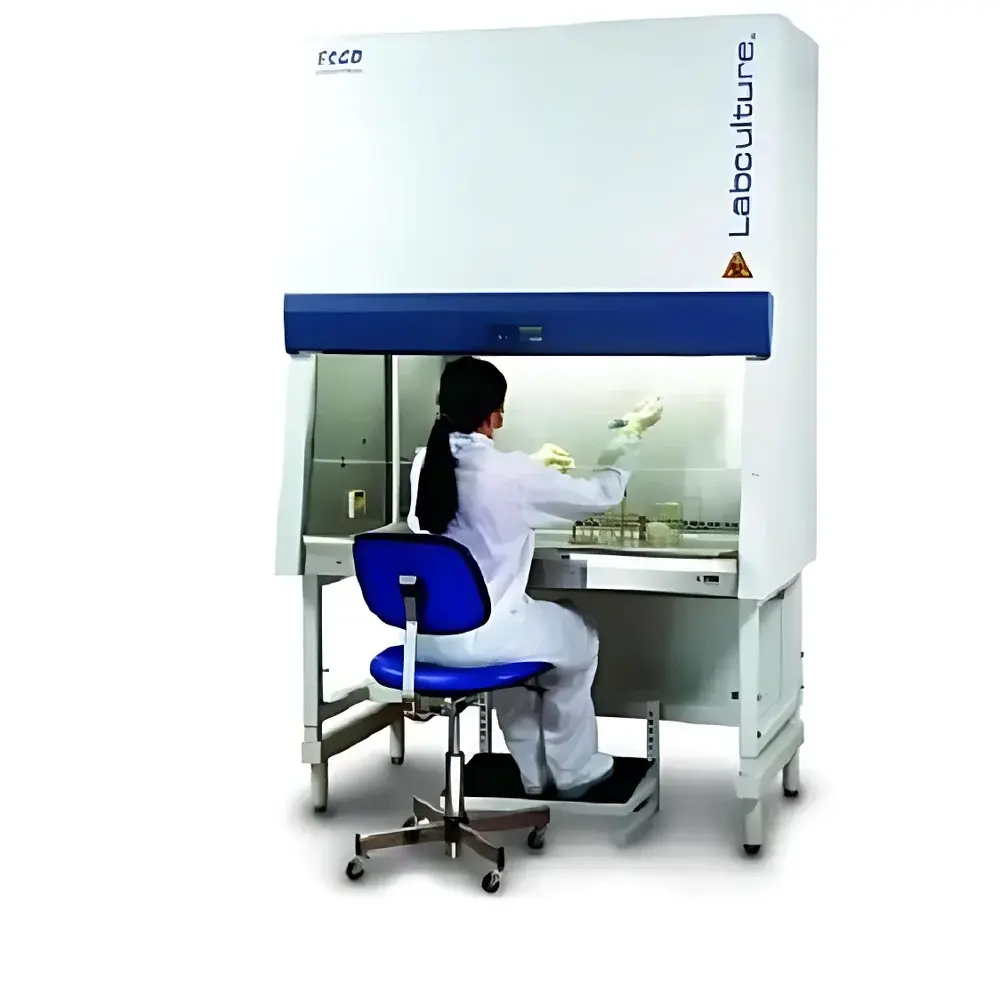

Esco LA2-4A1 Class II Type A1 Biological Safety Cabinet

Overview

The Esco LA2-4A1 is a certified Class II, Type A1 Biological Safety Cabinet engineered for reliable personnel, product, and environmental protection in microbiological and biomedical laboratories. It operates on the principle of inward airflow (front intake velocity), downward laminar flow (via ULPA-filtered supply air), and recirculation of approximately 70% of total airflow within the work chamber—while exhausting the remaining 30% via dedicated ducting or thimble connection. This configuration ensures containment of aerosols generated during open handling of low-to-moderate risk biological agents (BSL-1 to BSL-2), while maintaining ISO Class 5 (Class 100) cleanliness in the work area. Designed and validated per five internationally recognized standards—including NSF/ANSI 49 (USA), YY0569 (China), EN 12469 (EU), JIS K 3800 (Japan), and SANS 12469 (South Africa)—the LA2-4A1 meets stringent performance criteria for inflow velocity, downflow uniformity, filter integrity, and containment verification.

Key Features

• Dynamic™ Negative Pressure Containment Architecture: A fully enclosed negative-pressure cavity surrounds all potentially contaminated zones—including the blower housing, filter plenums, and ductwork—to prevent leakage even under filter degradation or seal failure.
• Dual ULPA Filters: Two long-life, micro-pleated, zero-gap ULPA filters (≥99.999% efficiency for particles >0.12 µm) ensure consistent, high-efficiency particulate removal from both supply and exhaust streams.
• Sentinel™ Digital Control System: Integrated microprocessor with large-format LCD display provides real-time monitoring of inflow velocity, filter life estimation, sash position, UV lamp status, and system alarms—with configurable setpoints and audit-trail-ready event logging.
• Ergonomic Engineering: 10° forward tilt of the work surface and sash improves operator posture; wide-depth ergonomic armrest reduces musculoskeletal fatigue during extended procedures.
• Seamless Stainless Steel Construction: One-piece 304 stainless steel work tray with radiused corners and no weld seams facilitates decontamination and prevents microbial entrapment.
• Isocide™ Antimicrobial Surface Coating: Applied to external cabinet surfaces, this silver-ion–based coating inhibits bacterial colonization and supports routine cleaning compliance under GLP/GMP environments.
• Optimized Aerodynamics: Enhanced side-wall inlet slots and curved rear baffle minimize turbulence and reverse flow, ensuring stable downflow velocity profiles across the full work area (±10% uniformity per EN 12469).

Sample Compatibility & Compliance

The LA2-4A1 is suitable for handling non-volatile, low-to-moderate risk biological materials—including cell cultures, diagnostic specimens, and recombinant DNA constructs—where chemical vapors are not present or are adequately managed via external exhaust. It is not intended for use with volatile toxic chemicals or radionuclides without supplemental engineering controls. All units undergo factory-certified testing per ISO 14644-1 (airborne particle counts), EN 1822-3 (filter leak testing), and NSF/ANSI 49 Annex D (iodomethane tracer gas containment). Documentation includes full traceability to calibration standards and third-party validation reports supporting FDA 21 CFR Part 11–compliant data integrity when paired with optional networked Sentinel™ software modules.

Software & Data Management

The Sentinel™ control platform supports time-stamped operational logs, including sash height changes, UV activation cycles, alarm events, and filter usage hours. Optional Ethernet or RS-485 connectivity enables integration into centralized laboratory monitoring systems. Audit trail functionality complies with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for regulated environments. Data export is supported in CSV format for archival or statistical process analysis. Firmware updates are delivered via secure USB interface with version-controlled release notes and rollback capability.

Applications

• Microbiological culture maintenance and subculturing under BSL-2 conditions
• Preparation of sterile media, reagents, and pharmaceutical intermediates
• Handling of primary human or animal cells in academic and contract research labs
• Quality control testing in biomanufacturing facilities compliant with ISO 13485 and EU Annex 1
• Teaching laboratories requiring robust, standards-validated containment infrastructure
• Diagnostic specimen processing where aerosol generation is anticipated but chemical volatility is negligible

FAQ

What biosafety level does the LA2-4A1 support?
It is certified for BSL-1 and BSL-2 applications involving low-to-moderate risk agents, provided no volatile hazardous chemicals are used concurrently.
Can the LA2-4A1 be installed without external ducting?
Yes—it may operate in recirculating mode using a thimble connection, though full ducted exhaust is recommended for optimal containment and regulatory alignment.
How often must ULPA filters be replaced?
Filter service intervals depend on usage intensity and ambient particulate load; Sentinel™ estimates remaining service life based on cumulative runtime and pressure differential trends—typically 5–7 years under normal lab conditions.
Is the cabinet compatible with GMP/GLP documentation requirements?
Yes—Sentinel™ logs meet ALCOA+ criteria, and optional software modules provide electronic signatures, user access control, and 21 CFR Part 11–compliant audit trails.
Does the unit include validation documentation for international standards?
Each LA2-4A1 ships with a Certificate of Conformance listing test results against NSF/ANSI 49, EN 12469, YY0569, JIS K 3800, and SANS 12469—including inflow velocity, downflow uniformity, and containment test data.
