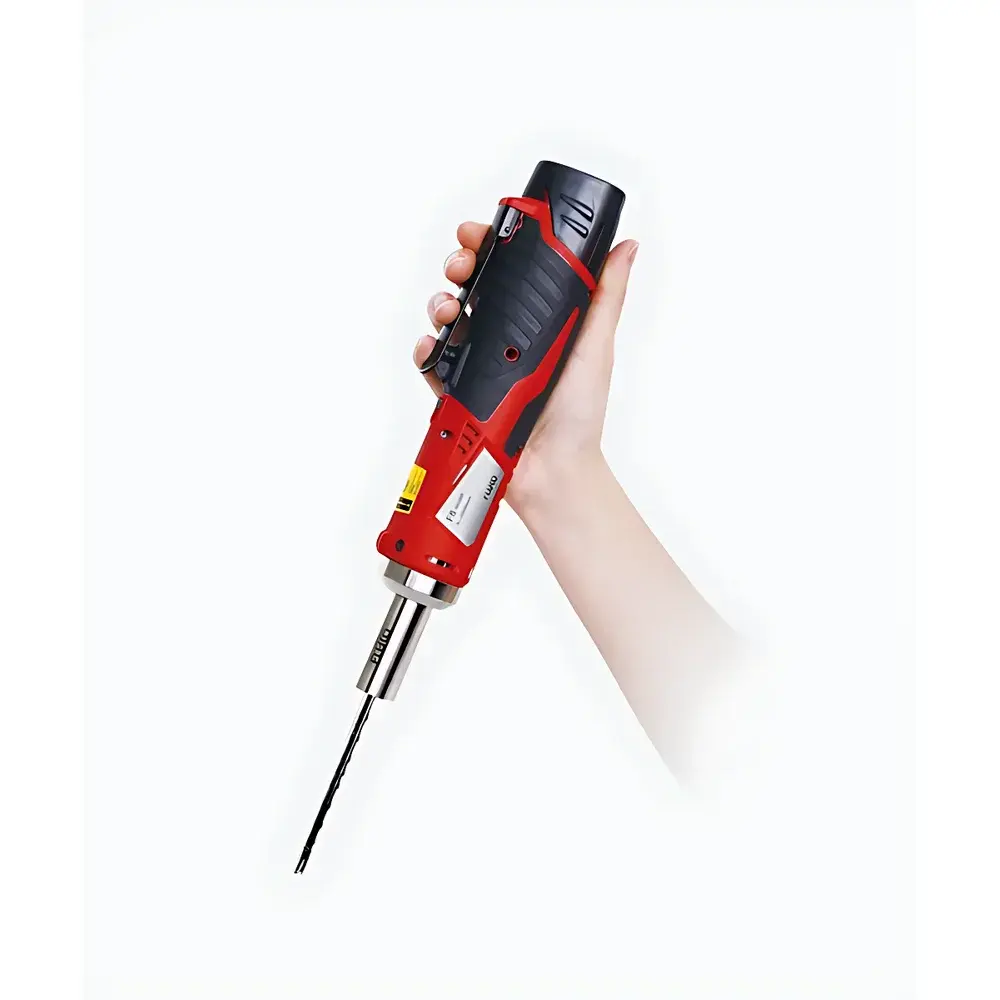

FLUKO F9 Handheld Homogenizer with Continuous Speed Control

Overview

The FLUKO F9 Handheld Homogenizer is an engineered solution for precise, portable, and repeatable micro-scale homogenization in demanding laboratory, clinical, and field environments. Based on high-shear rotor-stator principle, the F9 delivers controlled mechanical energy input to disrupt biological tissues, lyse cells, emulsify low-volume formulations, and achieve uniform dispersion of particulates or immiscible phases in volumes ranging from 1 to 20 mL. Its brushless DC motor—powered by a 2 Ah rechargeable lithium battery—enables cordless operation without compromising torque stability across the full 0–25,000 rpm speed range. Designed for use inside biosafety cabinets, gloveboxes, mobile diagnostic units, and outdoor sampling sites, the F9 eliminates dependency on fixed power infrastructure while maintaining metrological consistency required for method transfer and regulatory documentation.

Key Features

• Stepless electronic speed control with real-time RPM feedback ensures reproducible shear stress application across diverse sample matrices—from soft plant leaves to fibrous muscle tissue.
• 7GP polysulfone homogenizing probe features chemically resistant wetted surfaces, autoclavable construction (up to 121 °C, 20 min), and optimized geometry for minimal foaming and heat generation during short-duration processing.
• Integrated battery level indicator and low-voltage cutoff prevent deep discharge, extending cycle life of the 12 V DC lithium pack; full recharge time is under 3 hours using the included CE-certified 3 A charger.
• Ergonomic handheld design (375 × 65 × 50 mm; ~1 kg) with non-slip grip and balanced center-of-mass reduces operator fatigue during extended manual operation.
• Aluminum alloy protective case includes dedicated compartments for probe, accessories (medical-grade scissors, tissue forceps, sterile sampling tubes), and dual battery support—facilitating GLP-compliant storage and transport.

Sample Compatibility & Compliance

The F9 accommodates heterogeneous biological samples including mammalian organs, insect larvae, microbial pellets, plant roots, and clinical biopsy specimens. Its 100 cP viscosity limit supports aqueous buffers, glycerol-diluted lysates, and low-concentration polymer solutions. All wetted components comply with USP Class VI biocompatibility standards and meet ISO 10993-5 cytotoxicity requirements. The device is suitable for workflows aligned with CLIA, CAP, and ISO/IEC 17025-accredited laboratories. While not intrinsically rated for explosive atmospheres, its battery-powered architecture enables safe deployment in nitrogen-purged gloveboxes (ATEX Zone 2 compatibility achievable via external risk assessment).

Software & Data Management

The F9 operates as a standalone instrument without embedded firmware or digital connectivity. However, its analog speed control interface and consistent mechanical output allow seamless integration into validated SOPs requiring manual parameter logging. Users may record operational parameters—including start/stop timestamps, applied RPM, batch ID, and environmental conditions—in paper-based or LIMS-linked electronic notebooks. For audit readiness, the device supports full traceability when paired with calibrated tachometers and temperature loggers per FDA 21 CFR Part 11 Annex 11 expectations for non-computerized systems.

Applications

• Routine tissue homogenization for RNA/DNA extraction, ELISA sample prep, and metabolite profiling in academic and pharmaceutical research labs.
• Point-of-care diagnostics: rapid lysis of whole blood, buccal swabs, or nasopharyngeal specimens prior to PCR or lateral flow assay.
• Pre-formulation studies involving nanoemulsion development, liposome sizing, and nanoparticle dispersion where volume constraints prohibit rotor-stator benchtop systems.
• Field-based environmental microbiology: direct homogenization of soil slurry or water filter concentrates in mobile biocontainment units.
• Quality control of small-batch cosmetic actives, enzyme blends, and probiotic suspensions requiring lot-specific homogeneity verification.

FAQ

Is the F9 suitable for sterilization between uses?
Yes—the 7GP probe and all polysulfone contact parts are autoclavable at 121 °C for 20 minutes. Avoid prolonged exposure above 130 °C to preserve dimensional stability.
Can the F9 process viscous hydrogels or methylcellulose solutions?
It is validated up to 100 cP at 20 °C. Higher-viscosity matrices require pre-dilution or reduced processing volume to maintain probe immersion depth and thermal management.
What maintenance is required for long-term reliability?
Routine cleaning with 70 % ethanol and visual inspection of probe tip wear every 50 cycles. Battery performance should be verified quarterly using a multimeter; replace if capacity falls below 1.6 Ah.
Does FLUKO provide IQ/OQ documentation for the F9?
Yes—upon request, FLUKO supplies vendor-issued Installation Qualification templates and Operational Qualification test protocols compliant with ISO 9001:2015 and GMP Annex 15 frameworks.
Is the aluminum carrying case waterproof or IP-rated?
The case meets IP54 for dust and splash resistance but is not submersible. Desiccant packs are recommended for humid storage environments.
