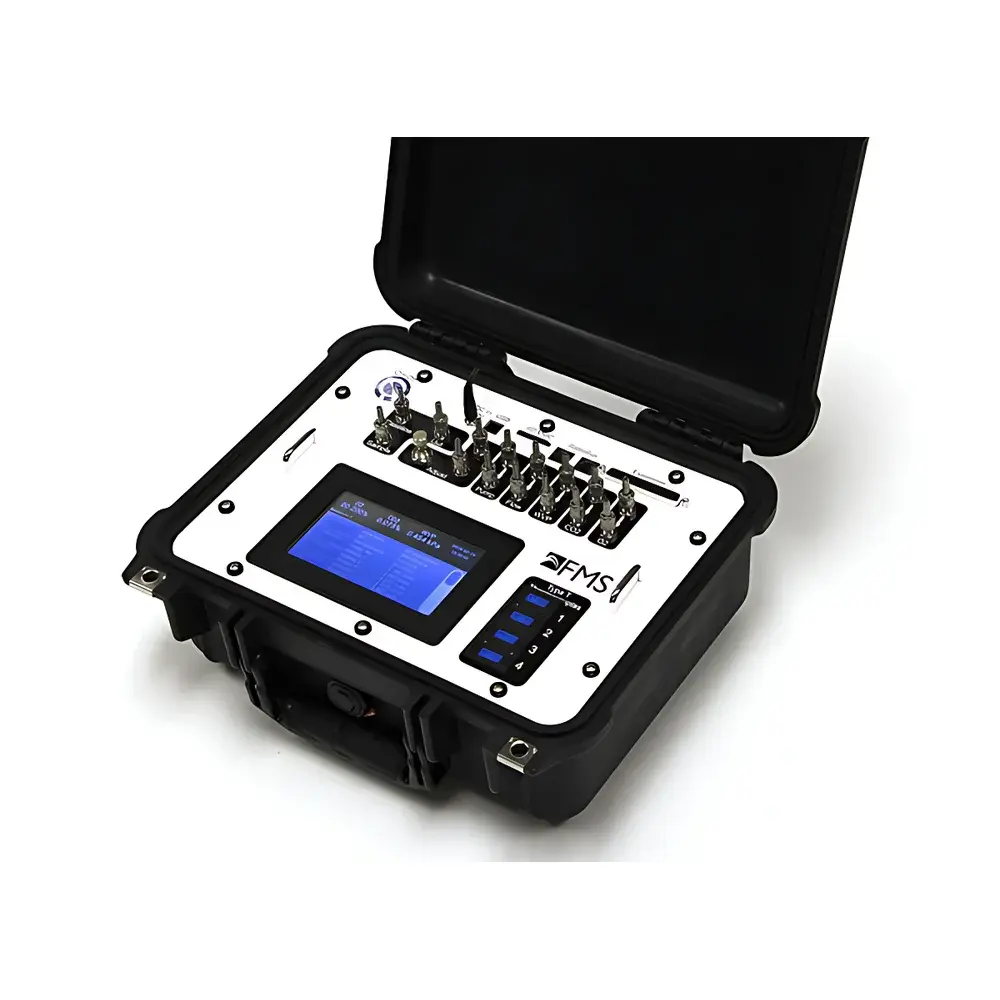

FMS Portable Human Energy Metabolism Measurement System

Overview

The FMS Portable Human Energy Metabolism Measurement System is a field-deployable, research-grade indirect calorimetry platform engineered for precise quantification of whole-body oxygen consumption (VO₂), carbon dioxide production (VCO₂), and respiratory exchange ratio (RER) under diverse physiological and environmental conditions. Grounded in the gold-standard principle of open-circuit indirect calorimetry, the system measures gas exchange kinetics via real-time analysis of inspired and expired air streams—enabling accurate estimation of energy expenditure (kcal/min), substrate oxidation rates (carbohydrate vs. fat), and metabolic flexibility. Its modular architecture supports both human and animal applications, with validated use across clinical metabolic phenotyping, exercise physiology, environmental stress response studies, and translational biomedical research. Unlike fixed-laboratory systems, the FMS integrates high-fidelity gas analyzers, microprocessor-controlled airflow regulation, and synchronized multi-sensor data acquisition into a single 7 kg chassis—designed for reproducible measurements in ambulatory, vehicular, field, or controlled laboratory settings.

Key Features

• Triple-gas analysis core: Fuel-cell O₂ analyzer (0–100% range, ±0.1% accuracy, <0.02%/hr drift at constant temperature), dual-wavelength NDIR CO₂ sensor (0–5% range, 0.1 ppm resolution, <0.001%/hr drift under stable O₂/temperature), and thin-film capacitive H₂O vapor sensor (0–100% RH, ±1% accuracy, 0.001% RH resolution).
• Dual-backlit LCD interface with dedicated Mode/Adjust/Enter controls for real-time monitoring and configuration of RH, dew point, O₂%, CO₂%, and volumetric flow rate; optional touchscreen upgrade available.
• 12-channel analog data acquisition module supporting up to six thermistors (±0.2°C absolute accuracy, –5°C to 60°C range) plus external sensors (e.g., ECG, EMG, pressure transducers); onboard storage for 8,000 data points at configurable intervals from 0.1 s to 1 h.
• Sub-second gas response time (<1 s for both O₂ and CO₂), enabling detection of breath-by-breath metabolic transients during dynamic exercise or acute thermal challenge.
• Integrated low-noise scroll pump (anodized aluminum housing, ball-bearing motor) delivering 10–2000 mL/min flow with ±2% full-scale accuracy and 0.1 mL/min resolution; microelectronic thermal feedback loop ensures stable flow despite backpressure fluctuations.
• Wearable activity monitor with triaxial accelerometer (±15 g range, ±0.15 g accuracy), skin temperature/humidity sensors (–40°C to 125°C, ±1.8% RH), OLED display, and Bluetooth 5.0 wireless telemetry.
• Optional infrared thermography module for spatial mapping of cutaneous temperature gradients—correlating regional heat dissipation with ambient thermal load and metabolic state.

Sample Compatibility & Compliance

The FMS accommodates human subjects across age, mobility, and health status—including ambulatory adults, seated or supine participants, and pediatric cohorts (with appropriately sized masks or canopy enclosures). For animal studies, it interfaces seamlessly with custom-built metabolic chambers (e.g., rodent, avian, or small-mammal enclosures) via standardized 1/4″ Swagelok fittings and pressure-compensated flow adapters. All gas measurement subsystems comply with ASTM D6866-22 (biogenic CO₂ quantification), ISO 8573-1:2010 (compressed air purity for medical devices), and USP guidelines for analytical instrument qualification. Data integrity meets FDA 21 CFR Part 11 requirements when used with audit-trail-enabled software configurations, supporting GLP/GMP-aligned metabolic phenotyping workflows.

Software & Data Management

The system ships with proprietary Windows-based acquisition and analysis software featuring real-time waveform visualization, automated RER and EE calculation per Weir equation, batch processing for longitudinal cohort studies, and export compatibility with MATLAB, Python (via .csv/.mat), and statistical platforms (SPSS, R). Raw analog inputs are timestamped with microsecond precision using internal GPS-synchronized clocking. Audit trails log all parameter modifications, calibration events, and user actions. Data files include embedded metadata (subject ID, protocol name, ambient T/P/RH, device serial number) to ensure traceability per ISO/IEC 17025:2017 clause 7.5.2. Remote firmware updates and sensor diagnostics are supported via USB-C or Ethernet connection.

Applications

• Clinical assessment of resting metabolic rate (RMR), diet-induced thermogenesis (DIT), and metabolic inflexibility in obesity, type 2 diabetes, and cardiovascular disease cohorts.
• Exercise physiology studies: VO₂max determination, ventilatory threshold identification, and substrate utilization shifts during graded cycling/running protocols.
• Environmental physiology: Quantifying thermoregulatory cost of work in extreme heat/cold, altitude acclimatization, and transportation-related metabolic stress (e.g., train, aircraft, or automotive cabin exposure).
• Translational research: Cross-species metabolic phenotyping in preclinical models (mice, rats, non-human primates) using chamber-integrated configurations.
• Occupational health: Field-based energy cost evaluation for military personnel, first responders, and industrial workers under operational load.
• Longitudinal wellness monitoring: Integration with wearable accelerometry and thermal imaging to model energy balance dynamics in free-living populations.

FAQ

What calibration procedures are required before each measurement session?
A two-point gas calibration (ambient air and certified 16% O₂ / 5% CO₂ / balance N₂ mixture) is recommended prior to each session. Zero calibration for CO₂ and H₂O is performed automatically using desiccant-dried air; span calibration for O₂ uses ambient air reference. Full calibration logs are stored with each dataset.
Can the system operate continuously for extended field deployments?
Yes—the integrated 40 Ah rechargeable battery supports >5 hours of continuous operation at typical flow rates (100–500 mL/min). Optional external power banks or vehicle DC adapters extend runtime indefinitely.
Is the FMS compatible with existing metabolic chamber infrastructure?
Yes—standardized analog voltage outputs (0–5 V) and digital RS-232/USB interfaces allow direct integration with third-party chamber controllers, environmental simulators, and telemetry hubs.
Does the software support automated detection of steady-state periods during indirect calorimetry?
Yes—the analysis engine applies sliding-window variance thresholds (VO₂ CV 70% in clinical trial datasets.
How is data security ensured during remote transmission or cloud backup?
All wireless transfers use TLS 1.3 encryption; locally stored data files are AES-256 encrypted upon user-defined password authentication. No telemetry is transmitted without explicit operator consent.
