FUC Portable Secchi Disk-Integrated Forel-Ule Colorimeter

Overview

The FUC Portable Secchi Disk-Integrated Forel-Ule Colorimeter is a field-deployable optical comparator designed for standardized visual assessment of natural water color in marine, lacustrine, and reservoir environments. It implements the internationally recognized Forel-Ule (F-U) scale—a 21-step chromatic reference system originally established in the 19th century and formally adopted by UNESCO/ICES for limnological and oceanographic monitoring. Unlike spectrophotometric or digital colorimetric systems, the FUC operates on human-perceptual color matching under controlled ambient lighting conditions, making it a low-power, calibration-free, and operator-independent method for qualitative water column characterization. Its primary function is to assign a discrete F-U number (1–21) based on visual comparison between in situ water appearance and standardized reference vials. This value correlates empirically with dissolved organic carbon (DOC), phytoplankton pigment composition (e.g., chlorophyll-a vs. phycocyanin dominance), and allochthonous humic loading—serving as an early indicator of trophic state shifts, terrestrial runoff influence, or cyanobacterial bloom onset.

Key Features

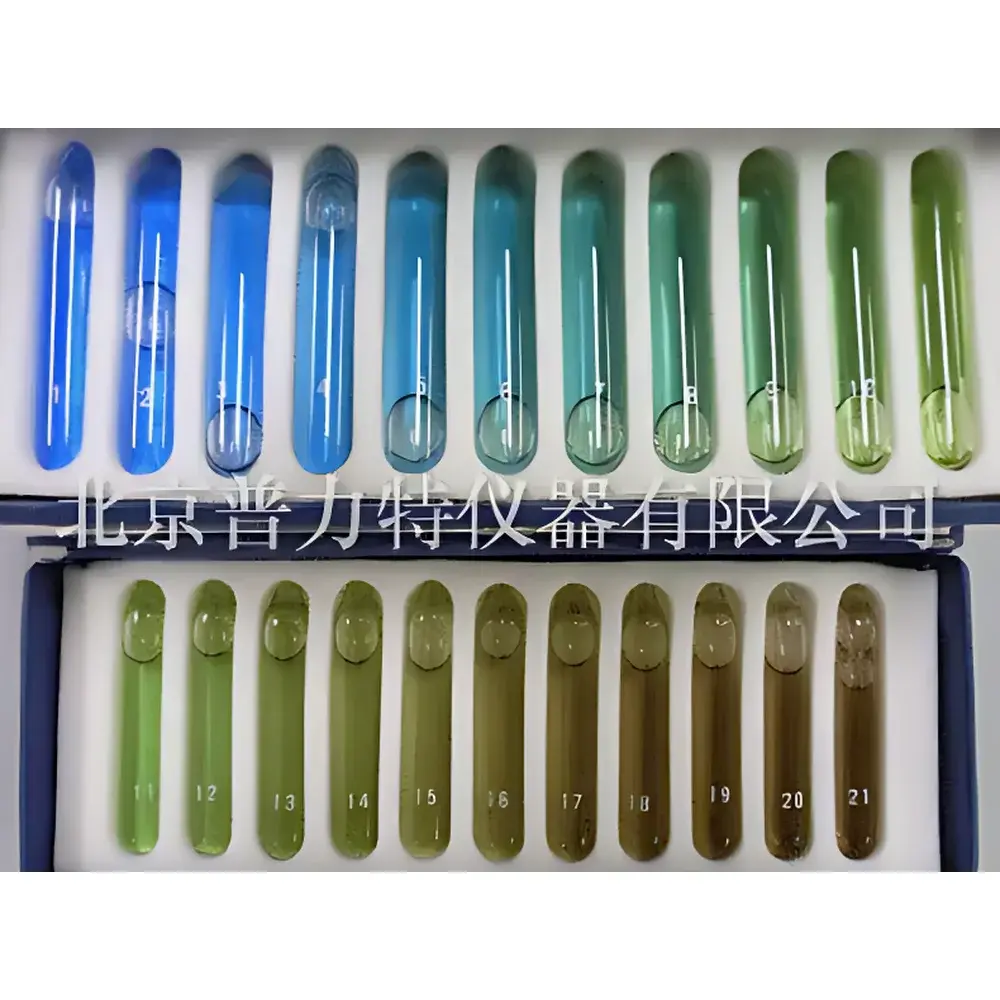

• Pre-calibrated 21-step Forel-Ule color standard set housed in optically matched borosilicate glass vials, each laser-engraved with its corresponding F-U grade (1 = deep indigo blue; 21 = brownish-tan)

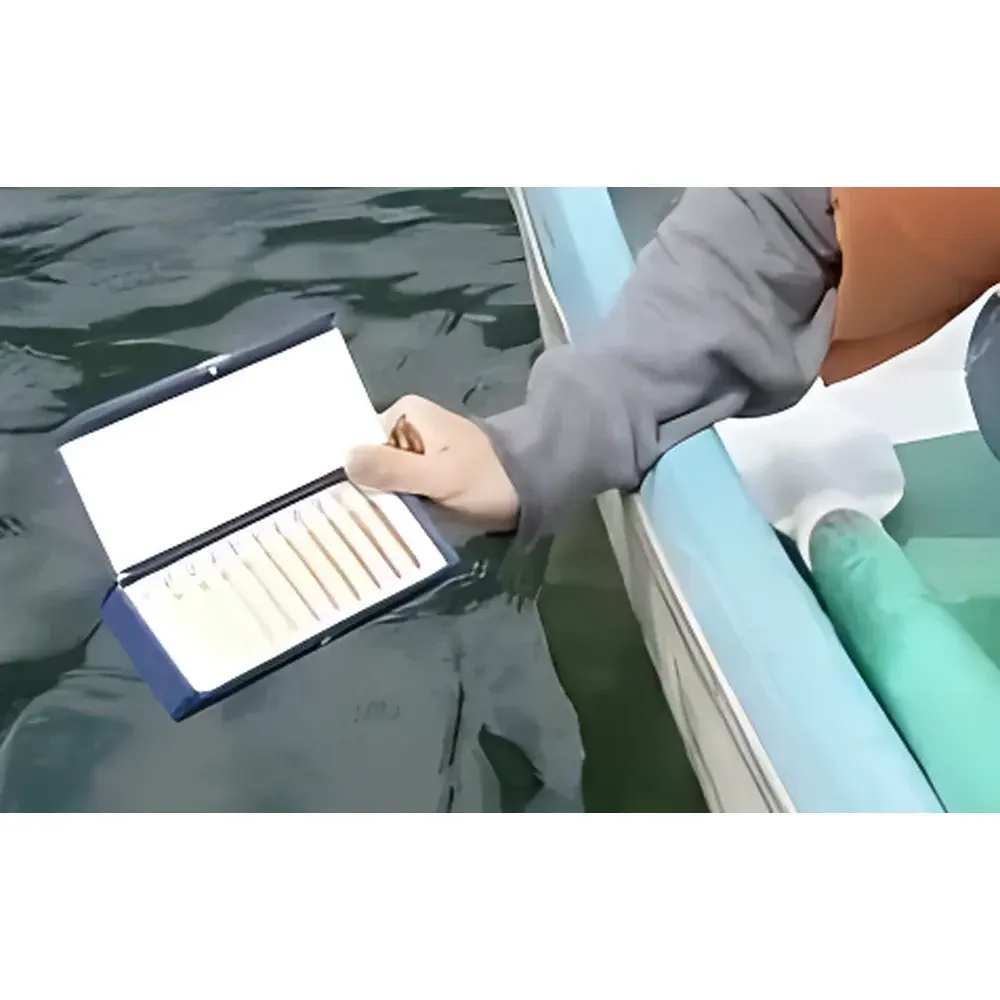

• Integrated operational protocol supporting dual-field methodologies: direct surface water comparison and Secchi-depth-referenced observation (vials compared at 50% Secchi depth per ISO 7027-1:2016 Annex B guidance)
• Rugged anodized aluminum carrying case with CNC-cut, anti-vibration closed-cell polyurethane foam inserts—designed for repeated transport across vessel decks, shorelines, and remote sampling stations
• No batteries, no firmware, no software dependencies—ensures uninterrupted operation in off-grid locations and eliminates electronic drift or firmware obsolescence concerns
• Compliant with long-standing international intercalibration protocols used by GOOS, GLOMIS, and national hydrographic offices for multi-decadal trend analysis

Sample Compatibility & Compliance

The FUC Colorimeter is intended exclusively for natural, unfiltered, non-turbid-to-moderately-turbid freshwater and seawater bodies where light penetration permits reliable visual discrimination (Secchi depth ≥ 0.5 m). It is not suitable for wastewater effluents, highly colored industrial discharges, or samples containing suspended solids > 50 NTU without prior settling. The device conforms to the metrological principles outlined in ISO 8692:2012 (Water quality — Guidance on the use of the Forel-Ule scale) and supports data traceability requirements under GLP-aligned environmental monitoring programs. Each vial batch undergoes spectral verification against NIST-traceable liquid standards (CIE D65 illuminant, 2° observer) at time of manufacture; certificate of conformance included.

Software & Data Management

The FUC Colorimeter is a standalone analog instrument and does not interface with software, databases, or telemetry systems. However, F-U grade assignments are fully compatible with standardized environmental reporting frameworks including WFD (EU Water Framework Directive) Annex V descriptors, USGS NWIS metadata fields (parameter code “WATERCOLOR-FU”), and UNESCO’s GEMStat database ingestion schema. Field logbooks generated using the FUC may be digitized via validated templates compliant with ISO/IEC 17025:2017 documentation requirements, including observer ID, GPS coordinates, Secchi depth, solar elevation angle, and cloud cover estimation—enabling audit-ready data lineage for regulatory submissions.

Applications

• Trophic status screening in lakes and reservoirs (F-U 1–5: oligotrophic; 12–18: eutrophic/humic; 19–21: dystrophic or sediment-resuspended)
• Long-term climate-driven water color trend analysis in coastal zones and fjords (e.g., Baltic Sea HELCOM monitoring network)
• Validation reference for satellite-derived ocean color products (e.g., Sentinel-3 OLCI, MODIS Aqua) requiring in situ ground truthing
• Educational field training for limnology and marine science students on perceptual color scaling and optical water classification
• Baseline surveys prior to hydroelectric dam construction or watershed restoration projects where DOC flux modeling is required

FAQ

How is the FUC Colorimeter calibrated?
Each vial set is manufactured against master reference solutions verified spectrophotometrically (380–780 nm, 1 nm resolution) under CIE Standard Illuminant D65. No field recalibration is required; however, annual visual inspection for precipitation, discoloration, or meniscus deviation is recommended.
Can the FUC be used under overcast conditions?
Yes—but observers must record cloud cover percentage and avoid direct shadow interference. Consistent illumination geometry is critical; comparisons should be made with the water surface oriented perpendicular to incident skylight.
What is the shelf life of the color standards?
When stored upright at 4 °C in darkness, the vials retain nominal chromatic fidelity for ≥5 years. Exposure to UV radiation or temperatures >30 °C accelerates degradation; replacement sets are available with full spectral certification.
Is the FUC compliant with EPA or EU regulatory reporting requirements?
While not a certified method under 40 CFR Part 136, the Forel-Ule scale is explicitly referenced in EU Commission Decision 2013/480/EU for transitional waters and accepted by multiple Member State environmental agencies as supplementary evidence in Article 5 reporting.
Does the kit include a Secchi disk?
No—the FUC is designed for interoperability with standard 20-cm black-and-white Secchi disks (ISO 7027-1 compliant). Users must supply their own disk; optimal pairing is achieved with stainless-steel framed, matte-finish acrylic disks to minimize glare artifacts.
