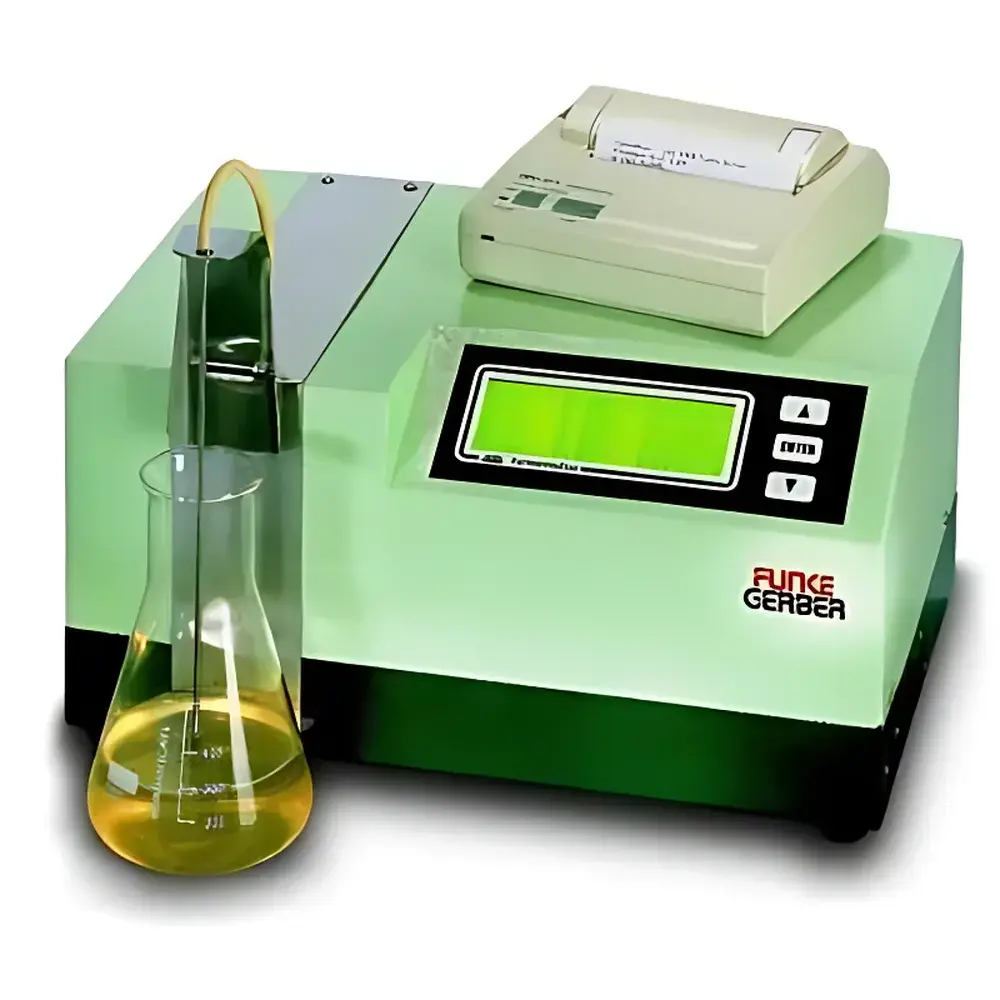

Funke FermentoFlash Fully Automated Beer Composition Analyzer
| Brand | Funke |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported Instrument |
| Model | Weet1 |
| Pricing | Available Upon Request |
| Alcohol Content Accuracy | ±0.01% v/v |
| Original Wort Extract Accuracy | ±0.01% w/w |
| Real Extract Accuracy | ±0.01% w/w |
| Apparent Extract Accuracy | ±0.01% w/w |
| Sample Volume | 18 mL |
| Throughput | 30 samples/hour |
| Interface | RS-232 serial port |
| Output | Integrated thermal printer support |
Overview
The Funke FermentoFlash Fully Automated Beer Composition Analyzer is a dedicated thermodynamic-based analytical system engineered for rapid, high-reproducibility quantification of key compositional parameters in beer and fermented malt beverages. Unlike optical or enzymatic methods, the FermentoFlash employs controlled thermal desorption coupled with precise density and refractive index correlation algorithms—calibrated against reference standards traceable to PTB (Physikalisch-Technische Bundesanstalt) and ISO 17025-accredited laboratories. The instrument operates on the principle that volatile and non-volatile fractions in beer exhibit distinct thermal response profiles during programmed heating; these responses are translated into concentration values using empirically validated thermodynamic models. Analysis is initiated after simple deaeration via standard filter paper—a step ensuring removal of CO₂ interference without chemical additives or centrifugation. With full automation from sample aspiration to result output, the system delivers standardized, operator-independent data compliant with brewing industry best practices and internal quality control protocols.
Key Features
- Fully automated workflow: integrated peristaltic sampling, thermal conditioning, signal acquisition, and result calculation without manual intervention
- Thermodynamic measurement core: eliminates reliance on reagents, enzymes, or calibration curves subject to drift
- High-precision thermoregulated cell: maintains ±0.02 °C stability during analysis for consistent vapor pressure and density correlation
- Robust architecture designed for brewery laboratory environments: IP54-rated enclosure, corrosion-resistant fluid path materials (PTFE, borosilicate glass, 316 stainless steel)
- Real-time diagnostics: continuous monitoring of pump performance, temperature uniformity, and sensor baseline integrity
- Compliance-ready operation: audit trail logging enabled by default; supports user-level access control and electronic signature configuration
Sample Compatibility & Compliance
The FermentoFlash accepts undiluted, filtered beer samples—including lagers, ales, stouts, wheat beers, and low-alcohol or non-alcoholic variants—without modification. It is validated for use with turbid, hopped, or dry-hopped products where particulate load remains below 5 NTU post-filtration. Method performance meets requirements specified in EBC Analytica Chapter 9.3 (Alcohol Determination), ASBC Methods of Analysis Section 9 (Extract and Alcohol), and ISO 15514 (Beer — Determination of alcohol content). Instrument design conforms to IEC 61010-1 for electrical safety and EN 61326-1 for electromagnetic compatibility. Data integrity features align with FDA 21 CFR Part 11 expectations when configured with password-protected user roles and timestamped electronic records.
Software & Data Management
The embedded firmware supports bidirectional RS-232 communication for seamless integration into LIMS or brewery ERP systems (e.g., SAP S/4HANA, BrauLog). Raw thermal response curves, intermediate density values, and final parameter outputs are stored in CSV and XML formats with embedded metadata (sample ID, operator, date/time, instrument serial number, calibration status). Optional PC software provides trend analysis across batches, statistical process control (SPC) charting (X-bar/R, Cpk), and export to PDF reports compliant with GLP documentation standards. All data modifications are logged with immutable timestamps and user identifiers, satisfying traceability requirements for internal audits and third-party certification (e.g., BRCGS, FSSC 22000).
Applications
- Final product release testing in commercial breweries and contract manufacturers
- In-process monitoring during fermentation, maturation, and filtration stages
- Raw material verification (e.g., wort gravity validation pre-fermentation)
- Research and development of novel beer formulations and low-ABV alternatives
- Quality assurance auditing across multi-site production networks
- Regulatory submission support for alcohol labeling compliance in EU, US, and APAC markets
FAQ
What sample preparation is required prior to analysis?
Deaeration using standard qualitative filter paper (e.g., Whatman Grade 1) is mandatory to remove dissolved CO₂; no centrifugation, dilution, or chemical treatment is needed.
Does the instrument require daily recalibration?
No routine recalibration is required; system verification is performed automatically at startup using internal reference standards, with optional user-initiated verification using certified alcohol/water standards.
Can the FermentoFlash analyze non-beer beverages such as cider or kombucha?
Yes—method validation data exist for apple cider and fermented tea matrices; application-specific calibration files are available upon request from Funke Technical Support.
Is the thermal printer output compliant with Good Manufacturing Practice (GMP) record-keeping?
Printed reports include instrument ID, sample ID, analyst ID, date/time stamp, and result uncertainty—meeting minimum ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate) criteria for regulated environments.
How is firmware updated and validated?
Updates are delivered via secure USB drive with SHA-256 checksum verification; each release includes a validation protocol document supporting IQ/OQ execution per GAMP 5 guidelines.
