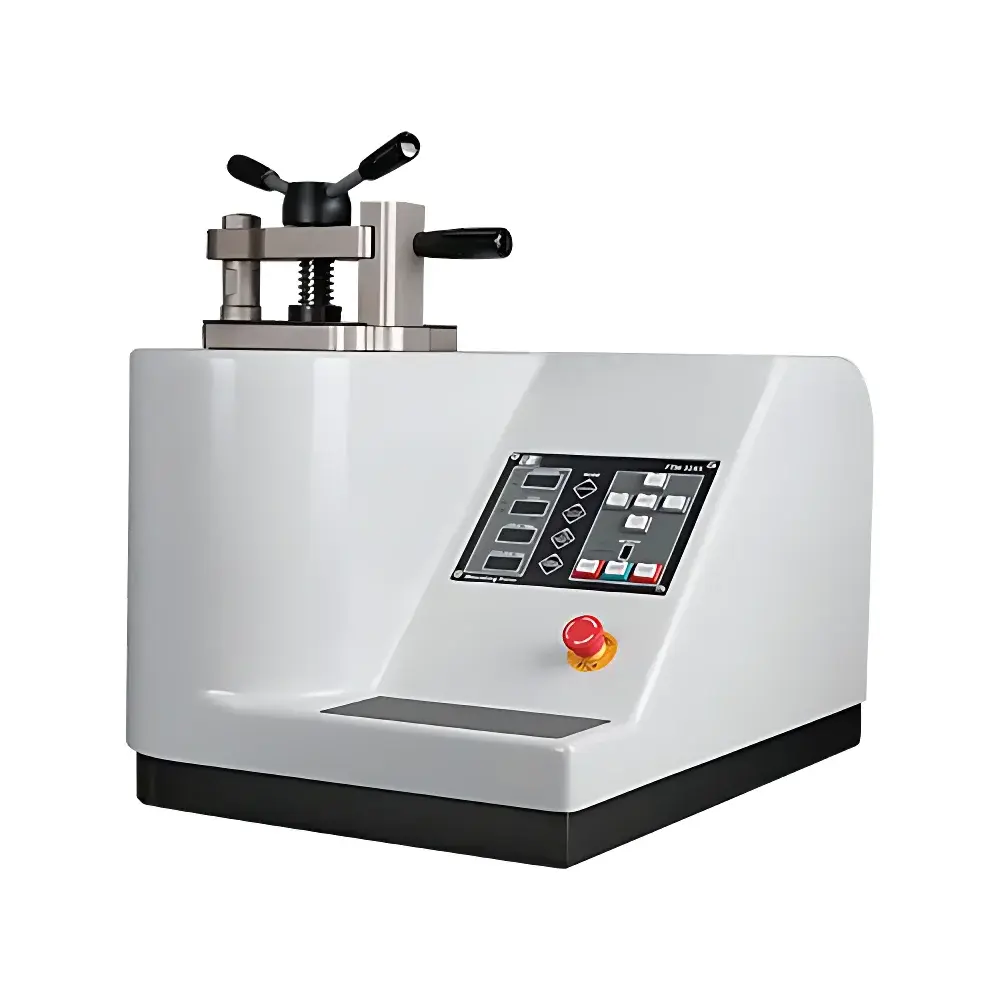

Future-Tech FTM-32AX Fully Hydraulic Hot Mounting Press
| Brand | Future-Tech |
|---|---|
| Origin | Japan |
| Model | FTM-32AX |
| Mounting Method | Hot Compression Molding |
| Cylinder Bore Diameter | 32 mm |
| Stroke Length | 82 mm |
| Maximum Hydraulic Pressure | 4000 psi (305 kgf/cm²) |
| Heating Temperature Range | 0–200 °C (°C/°F selectable) |
| Heating Time Range | 0 s – 99 min 30 s |
| Insulation Temperature Range | 30–55 °C |
| Safety Temperature Limit | 40–60 °C |
| Heater Power | 1800 W |
| Cooling | Circulating tap water (external faucet connection) |
| Control Panel | IP55-rated waterproof touchscreen with LED illumination |
| Sample Capacity | Dual-sample mounting via spacer |
| Power Supply | Single-phase AC 200–240 V, 50/60 Hz |
| Total Power Consumption | 2200 W |
| Dimensions (W×D×H) | 463 × 650 × 610 mm |
| Net Weight | 82 kg |
| Standard Accessories | Release spray, Phenol-formaldehyde resin (800 g), spoon, funnel, pinch set, 2 m inlet/outlet hoses with clamps, 2.5 m power cord, center spacer, accessory box |
Overview
The Future-Tech FTM-32AX is a fully hydraulic, benchtop hot mounting press engineered for precision, repeatability, and operational safety in metallurgical, materials science, and quality control laboratories. It employs controlled thermoplastic or thermosetting resin compression molding—where specimens are encapsulated under simultaneous heat and pressure—to produce dimensionally stable, edge-retentive mounts suitable for subsequent grinding, polishing, and microscopic analysis. Unlike pneumatic or manual systems, the FTM-32AX utilizes an electronically regulated hydraulic system capable of delivering up to 4000 psi (305 kgf/cm²) with fine-grained pressure modulation, ensuring uniform consolidation across heterogeneous sample geometries—including irregular, porous, or multi-material specimens. Its compact aluminum frame reinforced with surface-hardened FRP housing delivers structural rigidity while minimizing footprint—a critical advantage in space-constrained ISO-certified labs or GLP-compliant QA environments.
Key Features
- Fully automated hydraulic actuation with programmable pressure ramping and dwell profiles, eliminating operator-induced variability.
- Dual-sample capability using a precision-machined center spacer—enabling concurrent mounting of two specimens in identical thermal–mechanical conditions for statistical validation or comparative analysis.
- IP55-rated waterproof control panel with intuitive LED-backlit interface, supporting one-touch resin selection (e.g., phenolic, epoxy, acrylic) and real-time parameter monitoring.
- Programmable heating range (0–200 °C, °C/°F switchable) with ±1.5 °C thermal stability and integrated safety cutoff (40–60 °C user-definable termination threshold).
- Active water-cooling circuit with external faucet integration—cooling continues until target temperature is reached, preventing thermal shock to mounted specimens and resin integrity loss.
- High-fidelity thermal insulation (30–55 °C hold mode) for extended post-cure conditioning, critical for low-shrinkage epoxy formulations and stress-sensitive composites.
- Acoustic optimization achieving <65 dB(A) operational noise—compliant with ISO 7779 and enabling uninterrupted use in shared laboratory zones.
Sample Compatibility & Compliance
The FTM-32AX accommodates specimens up to 32 mm in diameter and 82 mm stroke depth, supporting standard metallographic mount sizes (e.g., 25 mm, 30 mm, and 32 mm molds). It is validated for use with ASTM E3, ISO 15510, and JIS Z 2201-compliant mounting resins—including phenol-formaldehyde, epoxy, and acrylic systems—and maintains compatibility with conductive resins for SEM sample preparation. The unit’s electronic pressure and temperature logging meets audit requirements for GLP and GMP workflows; optional data export (via USB or RS-232) supports traceability per FDA 21 CFR Part 11 when paired with compliant LIMS or ELN platforms. All electrical components conform to IEC 61000-6-3 (EMC) and IEC 61010-1 (safety), with CE marking and PSE certification for Japanese market deployment.
Software & Data Management
While the FTM-32AX operates via embedded firmware without external PC dependency, its control architecture supports full parameter logging—including cycle start time, peak pressure, actual temperature profile, cooling duration, and alarm events—with timestamped storage for ≥1000 cycles. Logged data is exportable as CSV files via USB flash drive for integration into laboratory informatics systems. Optional firmware updates (delivered annually) include enhanced alarm logic, expanded resin-specific presets aligned with ISO 14577 hardness test preparation guidelines, and improved thermal drift compensation algorithms. No proprietary software installation is required—data review occurs directly on the device or via standard spreadsheet applications.
Applications
- Preparation of cross-sectional mounts for optical microscopy (OM) and scanning electron microscopy (SEM) of sintered metals, weld joints, additive-manufactured alloys, and ceramic composites.
- Routine QC mounting in automotive and aerospace foundries where batch-to-batch reproducibility of porosity, inclusion, and grain boundary characterization is mandated by AS9100 or IATF 16949.
- Encapsulation of fragile or friable samples—including geological thin sections, PCB cross-sections, and biomedical implants—for artifact-free sectioning.
- Research-grade mounting in university materials labs requiring dual-sample correlation studies (e.g., heat-treated vs. as-deposited specimens) under identical thermo-mechanical histories.
- ISO/IEC 17025-accredited testing laboratories performing accredited metallographic examinations per ASTM E384 (microhardness) or ASTM E112 (grain size).
FAQ
What types of mounting resins are compatible with the FTM-32AX?
The press supports all standard thermosetting and thermoplastic resins—including phenol-formaldehyde, epoxy, acrylic, and conductive carbon-loaded variants—provided they meet manufacturer-specified viscosity and curing temperature ranges.
Can the FTM-32AX be used for vacuum-assisted mounting?
No—the FTM-32AX is designed exclusively for atmospheric-pressure hot compression molding. Vacuum impregnation requires dedicated vacuum mounting systems (e.g., Future-Tech FTM-VAC series).
Is tap water cooling sufficient for continuous operation?
Yes—when connected to a stable municipal supply (≥2 bar inlet pressure, 10–25 °C inlet temperature), the integrated water circuit maintains thermal equilibrium across ≥20 consecutive cycles without performance degradation.
Does the unit support regulatory audit trails for ISO 17025 or FDA compliance?
Yes—cycle logs include immutable timestamps, operator ID fields (via optional RFID badge reader), and digital signatures. When exported and archived, these records satisfy ALCOA+ principles for analytical instrument qualification.
What maintenance intervals are recommended?
Hydraulic oil replacement every 24 months; O-ring inspection every 6 months; calibration verification (temperature and pressure sensors) annually against NIST-traceable standards.
