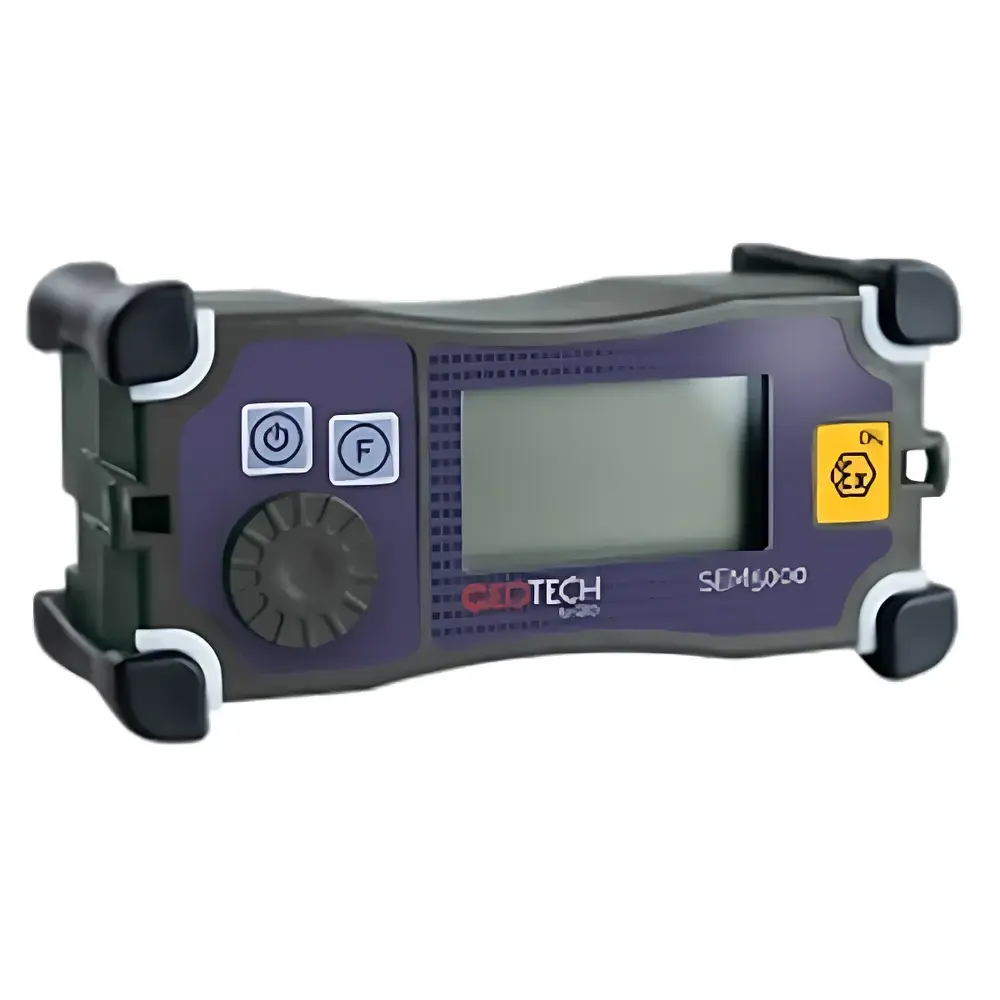

Geotech SEM5K Portable Laser Methane Detector

Overview

The Geotech SEM5K Portable Laser Methane Detector is an industrial-grade, field-deployable instrument engineered for high-selectivity, real-time detection of methane (CH₄) emissions in upstream oil & gas infrastructure, landfill perimeter monitoring, biogas facility leak surveys, and urban natural gas distribution networks. It employs Tunable Diode Laser Absorption Spectroscopy (TDLAS)—a physics-based optical technique that exploits the unique near-infrared absorption line of methane at 1653 nm. Unlike catalytic bead or semiconductor sensors, TDLAS eliminates cross-sensitivity to hydrogen, volatile organic compounds (VOCs), carbon monoxide, or humidity, ensuring measurement integrity in complex ambient environments. The SEM5K operates across a continuous dynamic range from 0 ppmv to 100% volume concentration—enabling both trace-level leak screening and high-concentration safety verification without sensor saturation or recalibration.

Key Features

• Gas-Selective TDLAS Optics: Patented laser source and dual-beam path design provide inherent specificity to methane; no interference from non-methane hydrocarbons (NMHC), H₂, CO, or water vapor.
• Wide Dynamic Range: Simultaneous low-end sensitivity (LOD: 0.3 ppmv) and high-end capability (up to 100% vol) support compliance with EPA OOOOa, OGMP 2.0, and ISO 16000-29 survey protocols.
• Rapid Field Response: T90 response time ≤2.5 seconds (standard configuration) enables efficient walking surveys and real-time plume mapping during mobile monitoring campaigns.
• Intrinsically Safe Design: Certified to ATEX II 2G Ex ib op is IIB T3 Gb for use in Zone 1 hazardous areas—fully compliant with IEC 60079-0, -11, and -28 standards.
• Integrated Positional Intelligence: Built-in GPS module (2–4 m CEP) and Bluetooth 4.0 enable geotagged data logging, route-based reporting, and wireless synchronization with cloud-based asset management platforms.
• Robust Field Architecture: Carbon-fiber-reinforced polyamide housing rated IP65; operational across −25°C to +50°C and 5–80% RH (non-condensing); shock-absorbing ergonomic form factor (229 × 97 × 109 mm, 1.3 kg).

Sample Compatibility & Compliance

The SEM5K is validated exclusively for methane detection in ambient air and process gas streams with particulate loadings below ISO 8573-1 Class 4 and dew point ≤−20°C. It is not intended for use in inerted, oxygen-deficient, or corrosive atmospheres (e.g., H₂S >10 ppm). Regulatory alignment includes conformity with EU Directive 2014/34/EU (ATEX), EN 61000-6-2/-6-3 (EMC), and EN 61010-1 (safety). For regulated QA/QC workflows, the device supports audit-ready data export (CSV/GeoJSON) with timestamp, GPS coordinates, operator ID, and alarm event flags—facilitating adherence to ISO/IEC 17025 documentation requirements and internal GLP procedures.

Software & Data Management

Data acquisition and post-processing are managed via Geotech’s proprietary SurveyLink Desktop Suite, compatible with Windows 10/11. The software enables synchronized download of measurement logs—including raw absorbance values, pump status, battery voltage, and environmental metadata—and generates automated PDF reports aligned with API RP 1175 or EGIA Leak Detection and Repair (LDAR) templates. All firmware updates are digitally signed and delivered through secure HTTPS channels. While the SEM5K does not implement FDA 21 CFR Part 11 electronic signature controls (as it is not a clinical or pharmaceutical QC instrument), its data export architecture supports integration into validated LIMS or EHS platforms where traceability and version-controlled records are required.

Applications

• Upstream: Wellhead fugitive emission surveys, compressor station perimeter scans, flare stack efficiency verification.
• Midstream: Pipeline right-of-way monitoring, valve farm leak quantification, pigging launch/receive site screening.
• Downstream: City gate metering stations, underground storage facility vent monitoring, LNG terminal loading arm checks.
• Environmental: Landfill surface emission mapping, wastewater treatment plant digester cover integrity testing, agricultural biogas upgrading facility leak audits.
• Regulatory Support: EPA Method 21 compliance verification, OGMP 2.0 Tier 2 reporting, UK Environmental Permitting Regulations (EPR) Schedule 22 submissions.

FAQ

Does the SEM5K require periodic calibration with certified gas standards?
Yes. Geotech recommends zero and span calibration every 30 days under routine field use, or prior to each critical survey campaign, using NIST-traceable CH₄ in air standards (e.g., 100 ppmv and 10,000 ppmv). The instrument supports user-initiated two-point calibration via onboard menu.

Can the SEM5K measure methane in high-humidity or rainy conditions?
The IP65-rated enclosure and condensation-resistant optical path allow operation at up to 80% RH (non-condensing). Prolonged exposure to rain or fog may affect signal stability; use of the optional hydrophobic inlet filter (part #SEM-FIL-HF) is recommended for sustained wet-environment deployment.

Is GPS data embedded directly into exported measurement files?
Yes. Each recorded data point includes WGS84 latitude/longitude, altitude, HDOP, and UTC timestamp. Geo-referenced CSV exports are compatible with QGIS, ArcGIS, and industry-standard emission quantification tools such as AERMOD and CALPUFF.

What maintenance is required beyond calibration?
Annual inspection of the sample pump diaphragm, inlet filter replacement (every 6 months or 200 operating hours), and verification of laser alignment via factory service are advised. No consumables other than rechargeable batteries and optional filters are required.
