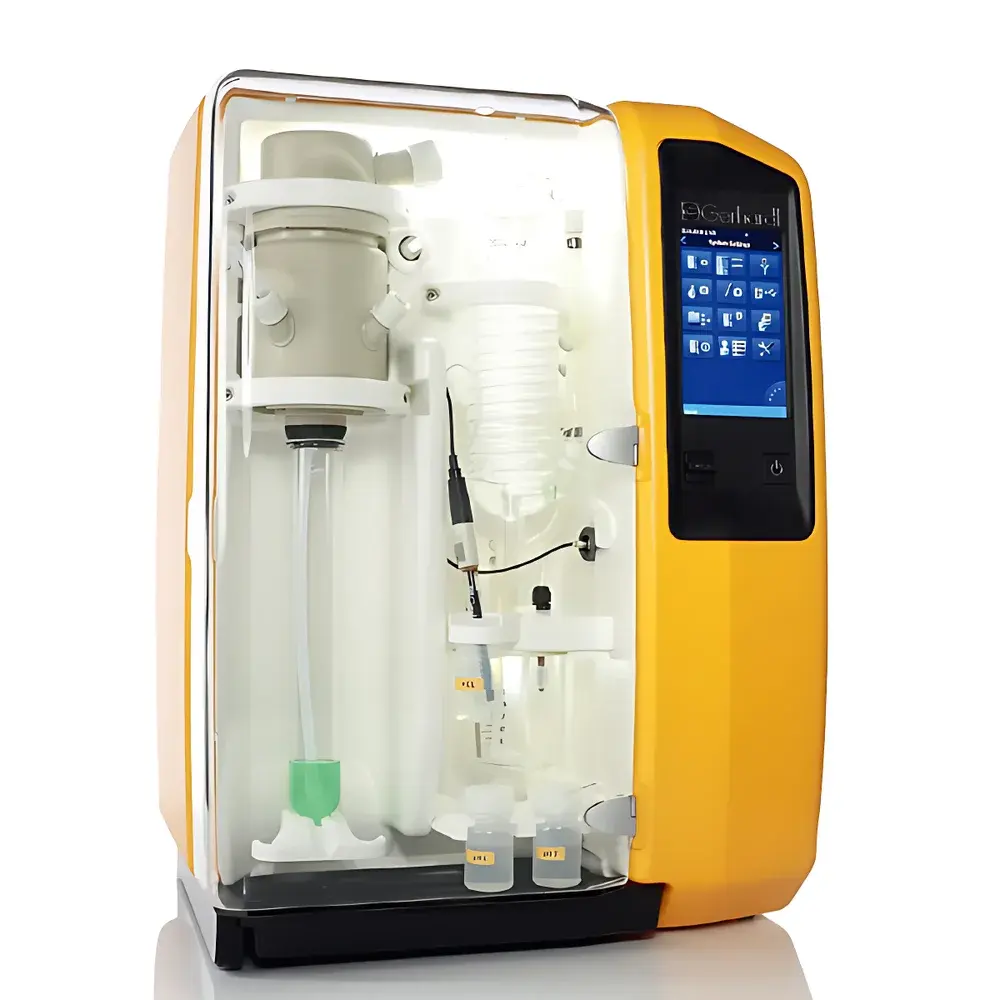

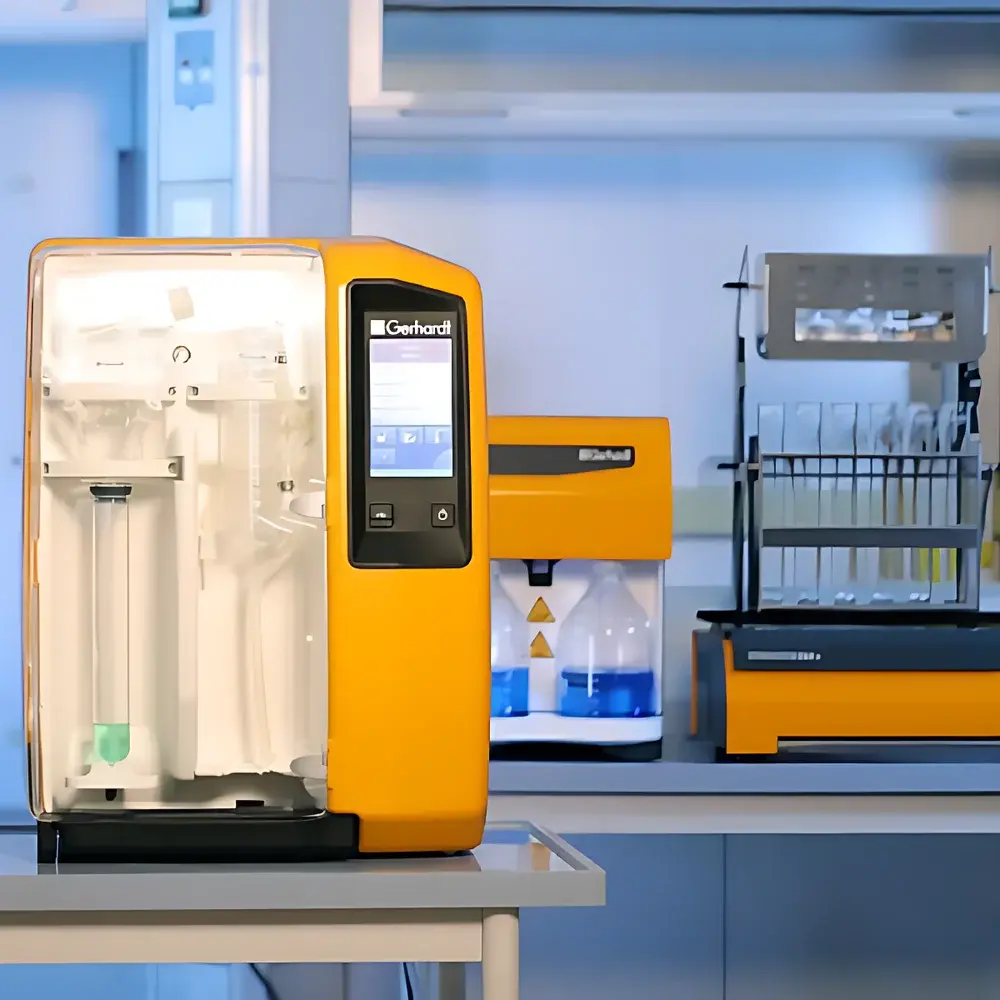

C. Gerhardt VAP 550 Fully Automated Sulfur Dioxide Analyzer

Overview

The C. Gerhardt VAP 550 is a fully automated, integrated distillation–titration system engineered for precise, trace-level sulfur dioxide (SO₂) quantification in pharmaceutical, food, beverage, and environmental matrices. It implements the standardized distillation-based SO₂ determination principle—where SO₂ is liberated as volatile sulfurous acid under controlled acidic heating, swept by steam into an absorption trap, and quantified via potentiometric titration with standardized iodine or sodium hydroxide solution. Unlike manual or semi-automated methods, the VAP 550 executes the entire analytical sequence—including sample conditioning, steam generation, distillate collection, real-time pH-based endpoint detection, and stoichiometric calculation—without operator intervention. Its architecture complies with regulatory expectations for method traceability, data integrity, and audit readiness, making it suitable for GMP-compliant QC laboratories and accredited testing facilities.

Key Features

• Fully automated distillation–titration workflow: Eliminates manual transfers, pipetting, and endpoint judgment—reducing analyst variability and human error.
• Integrated potentiometric titration module: Uses a high-stability pH composite electrode and micro-ceramic dosing pumps with <±0.2% volumetric accuracy; no indicator dyes, no pH adjustment of acceptor solution required.
• Intelligent process monitoring: Real-time supervision of cooling water flow, distillation tube positioning, steam generator status, reagent reservoir levels (5 L / 10 L / 20 L), and condensate temperature.
• Energy- and resource-efficient design: Standby mode reduces power consumption; adaptive cooling water management minimizes flow without compromising condensation efficiency.
• Modular distillation interface: Supports interchangeable distillation tubes (10–500 mL capacity) for solid, semi-solid, liquid, and crystalline samples—including viscous or reactive matrices requiring soft-start heating profiles.
• Robust construction: Chemically resistant PTFE, borosilicate glass, and stainless-steel components ensure long-term reliability in aggressive acid–base environments.
• Maintenance-free steam generator: Patented sealed boiler design with automatic descaling cycle and thermal cut-off protection.

Sample Compatibility & Compliance

The VAP 550 accommodates diverse sample types per pharmacopoeial and regulatory guidelines—including USP , EP 2.2.36, AOAC 990.12, and ISO 5776. Validated applications span dried fruits, wine, beer, syrups, injectables, herbal extracts, and effluent water. All hardware and software components meet IEC 61010-1 safety standards. Data acquisition, storage, and reporting comply with ISO/IEC 17025:2017 (clause 7.5, 7.7), GLP principles (OECD Series on Principles of Good Laboratory Practice), and FDA 21 CFR Part 11 requirements when operated with GERHARDT MasterControl Software—including electronic signatures, audit trails, role-based access control, and immutable raw data archiving.

Software & Data Management

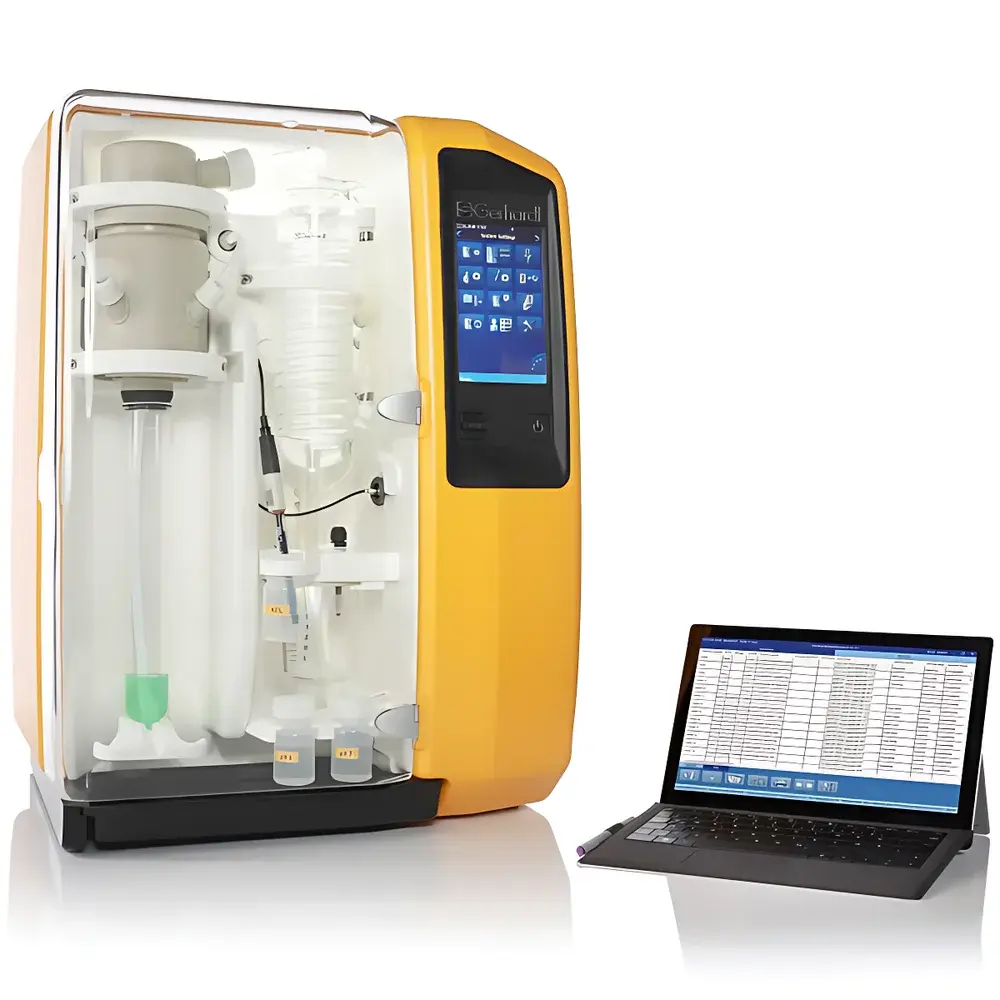

GERHARDT MasterControl Software serves as the central platform for method development, instrument orchestration, and LIMS integration. It supports network deployment via standard Ethernet (TCP/IP), enabling centralized control of multiple VAP 550 units. Predefined SOPs, customizable method templates, and favorites lists accelerate routine analysis startup. Sample metadata—including balance IDs, barcode-scanned identifiers, and preparation notes—can be imported directly from LIMS or entered manually. All analytical results, raw sensor signals (pH vs. time), titrant volume logs, and system event timestamps are stored in encrypted, timestamped files compliant with ALCOA+ principles. Export formats include CSV, PDF reports (with digital signature), and ASTM E1384-compliant XML for seamless LIMS ingestion.

Applications

• Pharmaceutical quality control: Quantification of residual SO₂ in excipients, APIs, and sterile preparations per USP monographs.
• Food safety testing: Routine screening of preservative levels in wines, juices, dried vegetables, and processed meats.
• Environmental monitoring: Determination of SO₂ emissions in wastewater and industrial effluents per ISO 5776.
• Research & development: Method validation studies, stability-indicating assays, and forced degradation profiling.
• Contract testing laboratories: High-throughput batch analysis with full 21 CFR Part 11 compliance for regulated submissions.

FAQ

What regulatory standards does the VAP 550 support for data integrity?
The system—when used with MasterControl Software—fully supports 21 CFR Part 11, ISO/IEC 17025:2017, and OECD GLP requirements, including electronic signatures, audit trails, and secure user authentication.
Can the VAP 550 handle crystalline or highly viscous samples?
Yes. Its soft-start heating algorithm and programmable steam ramp profiles prevent bumping or splashing during distillation of challenging matrices such as sugar syrups or powdered botanicals.
Is external calibration of the titration system required?
No. The ceramic dosing pump is factory-calibrated and traceable to national standards; daily recalibration is unnecessary due to inherent stability and built-in flow verification routines.
How is reagent handling managed to ensure safety and precision?
Reagent bottles are equipped with level sensors and leak-tight quick-connect fittings; automated priming and purge cycles eliminate air bubbles and ensure consistent delivery accuracy.
Does the system support remote diagnostics and service updates?
Yes. With optional remote maintenance license, GERHARDT service engineers can securely access diagnostic logs and firmware update modules via encrypted VPN connection—minimizing instrument downtime.
