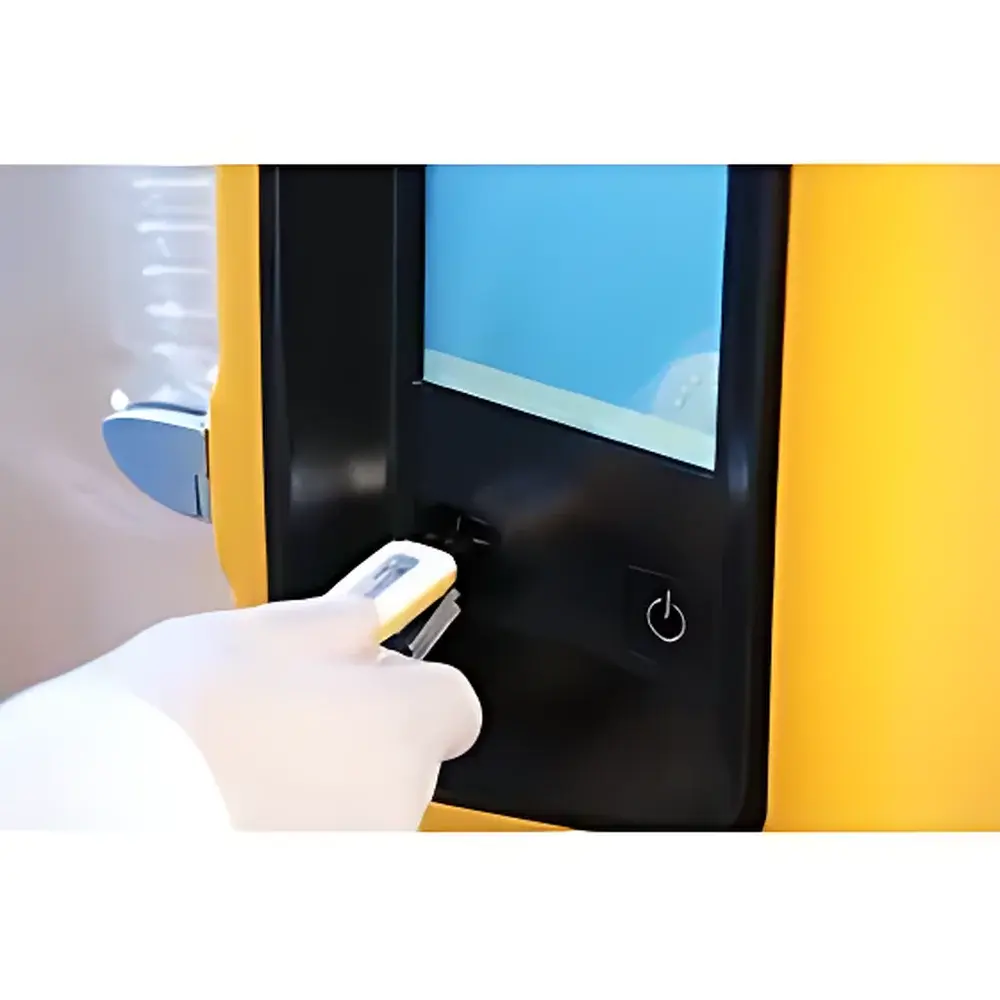

Gerhardt Vapodest 300 Kjeldahl Distillation Unit

Overview

The Gerhardt Vapodest 300 is a fully automated Kjeldahl distillation unit engineered for precise, reproducible nitrogen determination in accordance with AOAC, ISO 8968, ISO 5983, and ASTM D1122 methodologies. As the mid-range model in Gerhardt’s Vapodest series, it implements classical Kjeldahl principle—alkaline distillation of ammonium ions liberated from digested samples—into a robust, user-programmable platform. The system delivers quantitative ammonia vapor transfer under controlled steam generation (10–100% adjustable), followed by automatic boric acid trapping and titration-ready condensate collection. Designed for routine QC laboratories in food, feed, agricultural, and environmental sectors, the Vapodest 300 balances throughput efficiency (typical cycle time: 3 min 30 s), analytical fidelity (repeatability ±1%, recovery >99.5%), and long-term operational stability grounded in over 126 years of German engineering heritage in Kjeldahl instrumentation.

Key Features

• Full automation of critical distillation steps: programmable alkali addition, dilution water dosing, and waste discharge—eliminating manual intervention and operator-induced variability.
• Adjustable steam generation (10–100%) enables method optimization across diverse sample matrices—from low-protein cereals to high-fat dairy products—without hardware modification.
• Large backlit LCD display provides real-time status monitoring of each procedural phase (digestion interface, distillation progress, cooling, waste evacuation) alongside context-specific error codes for rapid troubleshooting.
• Integrated safety architecture includes temperature-controlled steam generator, pressure-relief valve, liquid-level sensors, and dry-run protection—ensuring compliance with IEC 61010-1 for laboratory electrical equipment.
• Manufactured under EN ISO 9001:2000 certified quality management systems; all units undergo functional validation prior to shipment, including nitrogen recovery verification using certified reference materials (e.g., NIST SRM 84g wheat gluten).

Sample Compatibility & Compliance

The Vapodest 300 accommodates standard 100–500 mL digestion tubes (e.g., Gerhardt borosilicate glass tubes, ISO 1871-compliant) and interfaces seamlessly with upstream digestion blocks (e.g., Gerhardt Digesdahl or third-party IR/HT models). It supports both macro- and semi-micro Kjeldahl protocols and is validated for use with AOAC 981.10 (crude protein in feed), ISO 9648 (soil nitrogen), and USP residual solvent screening where nitrogen-bearing impurities require quantification. All wetted components are chemically resistant (PTFE, borosilicate glass, stainless steel 316), minimizing carryover and enabling trace-level analysis down to 0.1 mg nitrogen per sample. The instrument meets CE marking requirements and aligns with GLP documentation standards when paired with Gerhardt’s optional audit-trail-enabled software.

Software & Data Management

While the Vapodest 300 operates as a standalone unit with embedded firmware, it is compatible with Gerhardt’s optional LabSoft 5.0 software suite via RS-232 or USB-to-serial interface. LabSoft enables method storage (up to 99 user-defined programs), electronic logbook generation, raw data export (CSV/TXT), and full 21 CFR Part 11 compliance—including electronic signatures, audit trails, and user-access level configuration (admin/operator/technician). Data integrity safeguards include timestamped event logging (start/stop, error triggers, maintenance alerts) and non-modifiable result archives stored on external media or network drives. Integration with LIMS platforms (e.g., Thermo Fisher SampleManager, LabVantage) is supported through standard HL7 or ASTM E1384 interfaces.

Applications

• Crude protein quantification in cereal grains, legumes, oilseeds, and animal feed formulations per AOAC 984.13 and ISO 5983-1.
• Casein and total nitrogen profiling in dairy products (cheese, milk powder, whey) following IDF 20B:2017 and ISO 8968-1.
• Nitrogen content verification in fertilizers and soil amendments per ISO 13878 and EPA Method 350.1.
• Quality control of pharmaceutical excipients (e.g., gelatin, albumin) where nitrogen correlates with purity and molecular integrity.
• Environmental monitoring of wastewater sludge and composted biosolids under EN 15936 and ISO 11261.

FAQ

Does the Vapodest 300 require connection to a titrator to complete Kjeldahl analysis?
No—it performs only the distillation step. Quantification requires integration with a compatible titrator (e.g., Metrohm 905 Titrando, Hanna HI902C) or manual titration using standardized HCl and mixed indicator.
Can the Vapodest 300 be used for direct steam distillation without prior digestion?
No. It is designed exclusively for post-digestion distillation of ammonium sulfate solutions. Sample digestion must be completed externally using a validated Kjeldahl digestion system.
What maintenance intervals are recommended for optimal performance?
Daily: rinse condenser and drain lines with deionized water. Quarterly: inspect steam generator gaskets and clean alkaline dosing pump valves. Annually: calibrate temperature sensors and verify steam pressure regulation against NIST-traceable manometer.
Is remote diagnostics supported?
Yes—via optional Ethernet module and Gerhardt Remote Service Portal, enabling secure technician access for firmware updates, parameter diagnostics, and error log review under customer-approved authorization protocols.
How does the Vapodest 300 ensure compliance with ISO/IEC 17025 accreditation requirements?
Through documented calibration records, traceable reference material testing (e.g., potassium hydrogen phthalate for alkali delivery accuracy), built-in performance verification routines, and full data traceability when used with LabSoft 5.0 and 21 CFR Part 11–compliant infrastructure.
