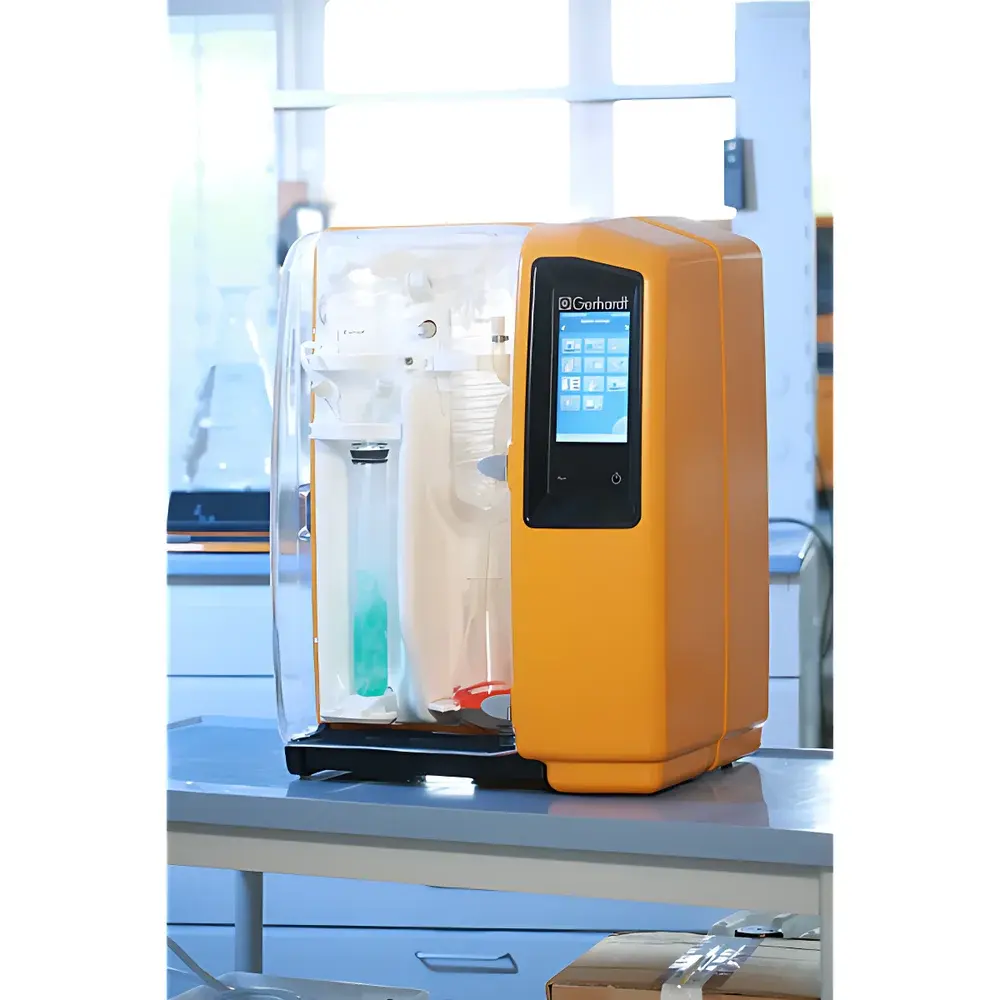

Gerhardt VAPODEST 400 Programmable Steam Distillation Unit for Kjeldahl Nitrogen Determination

Overview

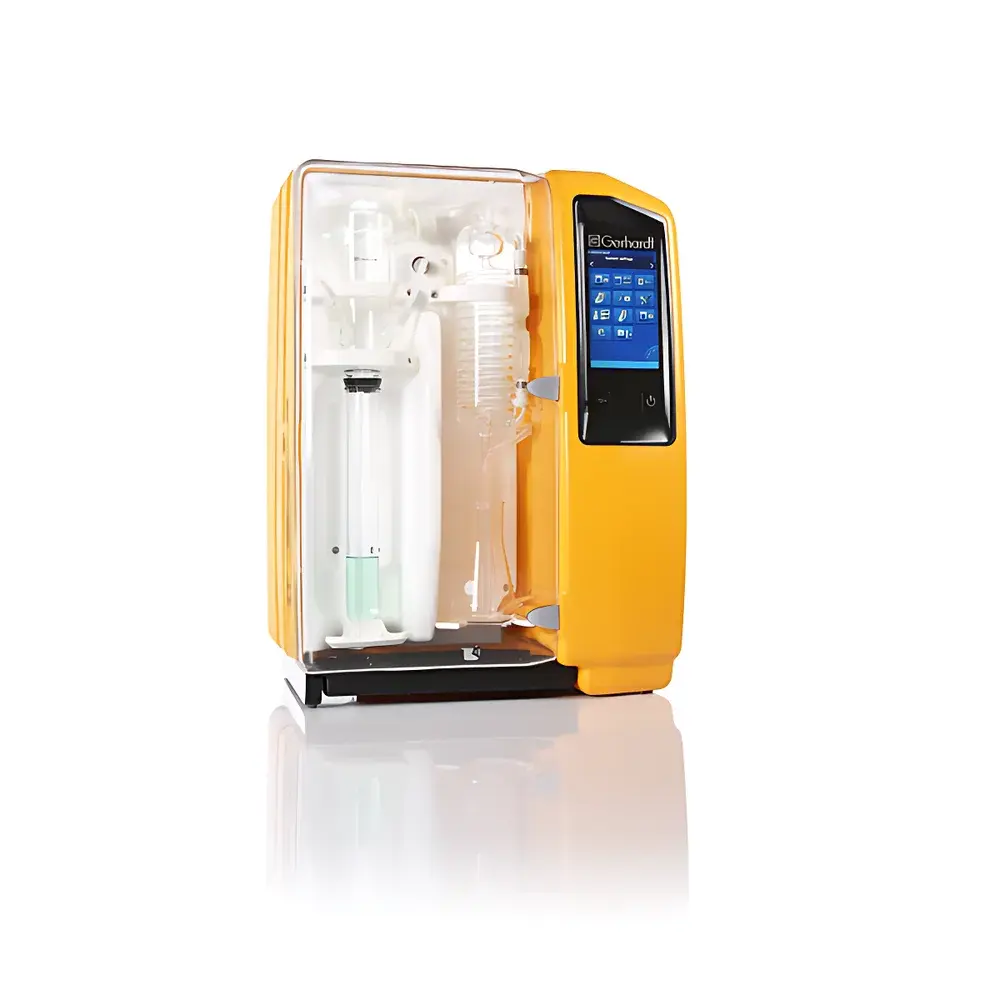

The Gerhardt VAPODEST 400 is a programmable, semi-automatic steam distillation unit engineered for high-precision Kjeldahl nitrogen determination in compliance with ISO 8968, AOAC 981.10, AOAC 984.13, DIN EN ISO 14891, and other internationally recognized standard methods. It operates on the principle of controlled steam distillation—generating saturated steam at precisely regulated pressure and flow to quantitatively volatilize ammonia from alkalized digests into a boric acid receiving solution. Unlike fully automated systems requiring integrated titration, the VAPODEST 400 delivers optimized distillation performance while maintaining compatibility with both colorimetric and potentiometric endpoint detection workflows. Its robust architecture supports routine analysis across diverse matrices—including food, feed, environmental samples, pharmaceuticals, and industrial chemicals—where regulatory traceability, method reproducibility, and GLP/GMP-aligned operation are essential.

Key Features

• Microprocessor-controlled steam generator with programmable pressure modulation (10–100% adjustable steam output) for method-specific optimization and consistent distillate yield
• Automated reagent delivery: programmable peristaltic pump for precise addition of NaOH solution and receiving acid (e.g., 4% boric acid)

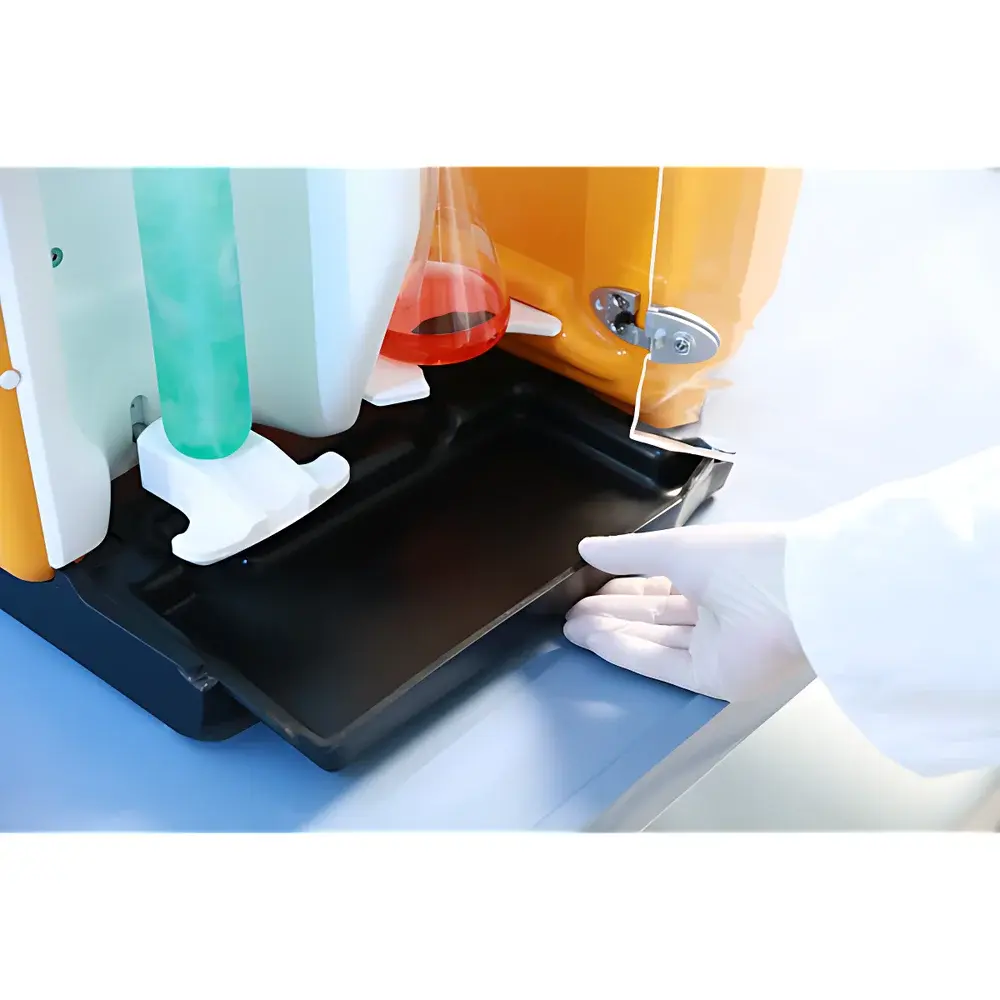

• Integrated dilution and waste evacuation: automatic post-distillation sample tube rinsing and drain cycle minimizes carryover risk
• Intelligent standby mode with thermal safety cutoff prevents overheating during idle periods; overtemperature protection meets IEC 61000-6-2 EMC and EN 61010-1 safety standards
• Large backlit LCD display with real-time step visualization (alkalization → distillation → cooling → waste removal) and audible/visual error alerts (e.g., low water level, blocked condenser, insufficient cooling flow)
• Corrosion-resistant housing constructed from reinforced polypropylene and stainless-steel internal components ensures long-term durability in aggressive laboratory environments

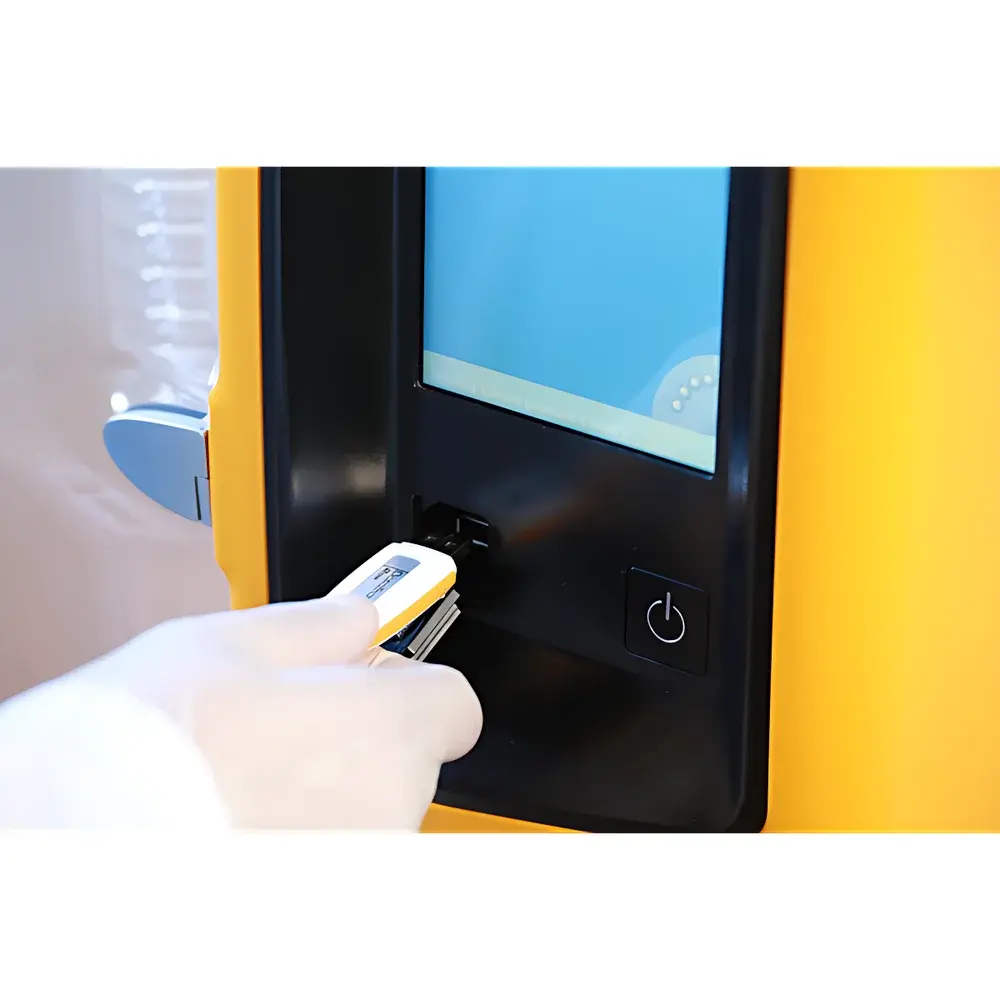

• USB interface enables firmware updates and basic parameter export; no proprietary software required for routine operation

Sample Compatibility & Compliance

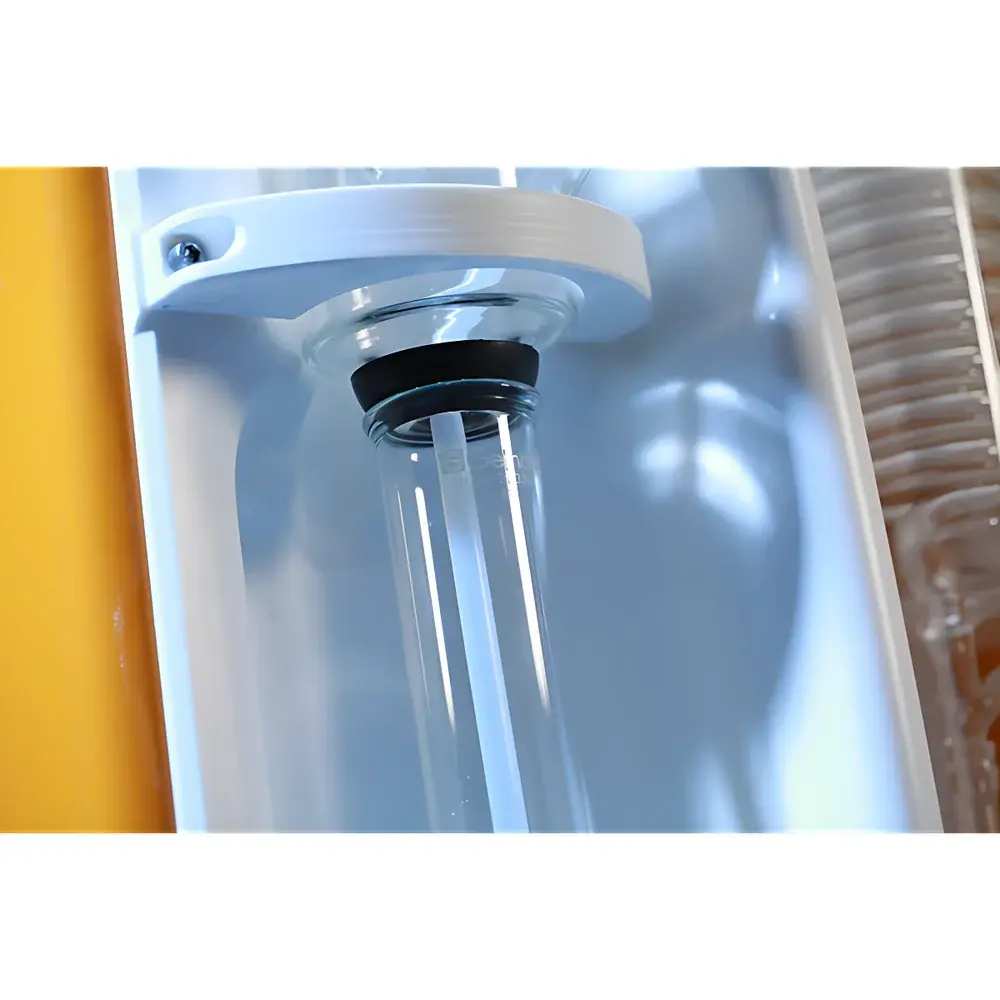

The VAPODEST 400 accepts standard Kjeldahl digestion vessels—including 250 mL and 400 mL Kjeldahl flasks, 800 mL macro-digestion tubes, and wide-neck 250/500/750 mL flasks—without adapter modification. Its modular condenser design accommodates variable tube geometries while maintaining efficient vapor–liquid contact and minimal ammonia loss. The system complies with key regulatory frameworks governing analytical instrumentation: it supports audit-ready documentation when paired with validated titration modules (e.g., TitroLine 77 or Metrohm 856), fulfills data integrity requirements under FDA 21 CFR Part 11 when used with compliant LIMS integration, and aligns with ISO/IEC 17025 clause 5.5.2 for equipment verification and calibration traceability. All critical parameters—including steam duration, base volume, and distillation temperature—are user-programmable and stored in non-volatile memory for method consistency across shifts and operators.

Software & Data Management

The VAPODEST 400 operates via an embedded microcontroller with 12 preloaded method templates and capacity for up to 20 user-defined protocols. Each program stores discrete settings for steam ramp time, hold duration, NaOH dosage volume, receiving liquid volume, and post-distillation rinse volume. While the unit itself does not generate electronic records, its USB port permits configuration file backup and firmware revision tracking. When interfaced with external titrators supporting RS232 or USB-serial communication, full sequence logging—including distillation start/stop timestamps, steam pressure profiles, and operator ID—is achievable within validated laboratory informatics systems. For GLP-compliant environments, manual logbook entries referencing method ID, batch number, and QC sample identifiers remain the primary record; the instrument’s deterministic behavior ensures repeatable execution independent of operator input.

Applications

Beyond total nitrogen and crude protein quantification (using the standard 6.25 conversion factor), the VAPODEST 400 performs validated steam distillation for multiple analytes governed by official methods: volatile basic nitrogen (VBN) in fish and meat (ISO 6162), ammoniacal nitrogen in wastewater (ISO 5664), total Kjeldahl nitrogen (TKN) in soil and sludge (EPA 351.2), formaldehyde in disinfectants (AOAC 967.09), sulfur dioxide in wine (AOAC 985.23), phenols in effluents (ISO 6439), and volatile fatty acids in biogas digestate (VDI 4630). Its rapid 2–4 minute cycle time enables throughput of up to 12 samples per hour under optimized conditions—making it suitable for high-volume QA/QC labs in food manufacturing, agricultural testing services, and environmental monitoring agencies. The system’s adaptability to non-nitrogen applications underscores its role as a general-purpose steam distillation platform rather than a single-purpose nitrogen analyzer.

FAQ

Is the VAPODEST 400 compatible with fully automated titration systems?
Yes—it features standardized analog/digital I/O signals and serial communication protocols that support synchronization with major titrators (e.g., Metrohm, Hanna, SI Analytics) for end-to-end automation when combined with optional interface modules.

What maintenance intervals are recommended for the steam generator and condenser?
Daily visual inspection of water level and condensate flow; monthly descaling of the steam boiler using certified citric acid solution; annual calibration of the peristaltic pump delivery accuracy against gravimetric measurement.

Can the VAPODEST 400 be validated per IQ/OQ/PQ protocols?
Yes—Gerhardt provides factory-issued IQ/OQ documentation packages, including test scripts for steam pressure linearity, temperature stability, reagent delivery precision, and timing repeatability, all traceable to national metrology institutes.

Does the system meet CE and UL safety certifications?
Yes—the VAPODEST 400 carries CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and is UL-listed under UL 61010-1 for laboratory electrical equipment.

What is the expected service life under continuous operation?
With scheduled preventive maintenance and adherence to operating guidelines, the unit demonstrates >10 years of functional service life, supported by Gerhardt’s global spare parts network and technical service infrastructure.
