Zhengye PCB Legend Inkjet Printer – High-Precision Industrial System

Overview

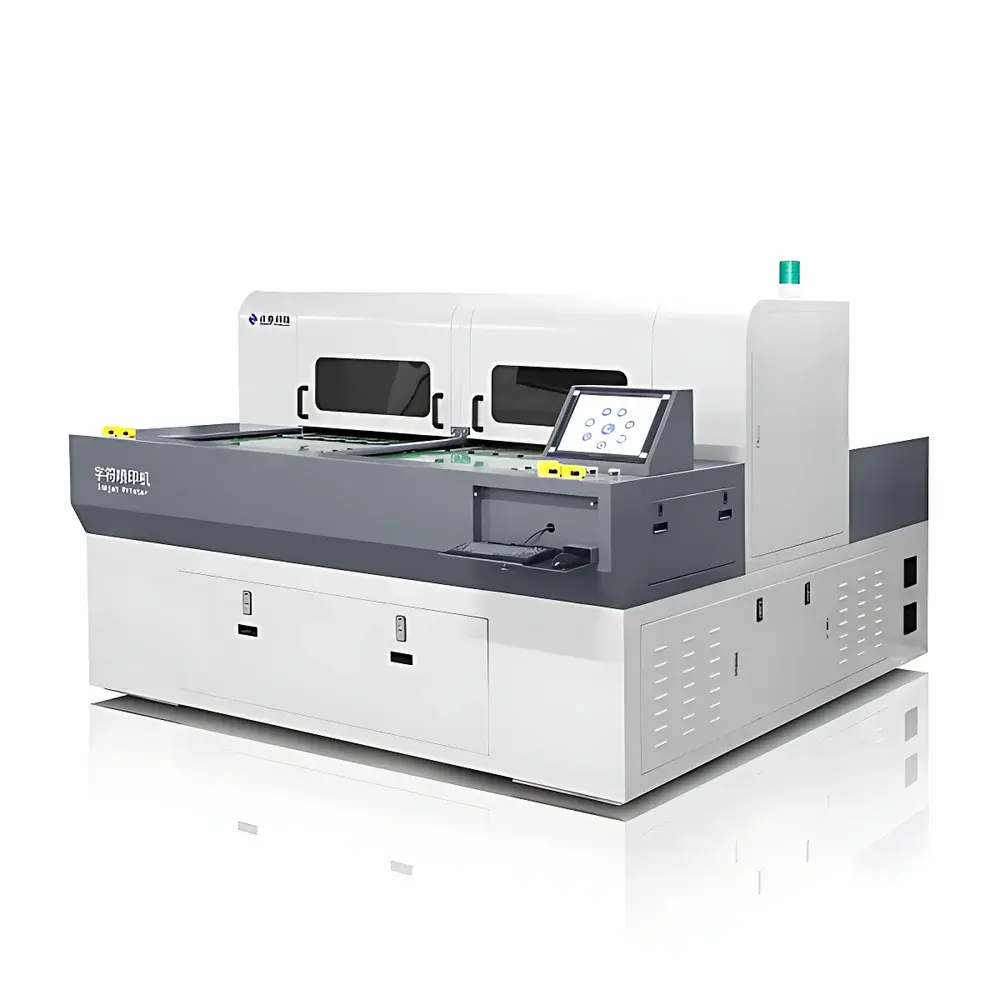

The Zhengye PCB Legend Inkjet Printer is an industrial-grade, non-contact digital inkjet marking system engineered for high-precision legend printing on rigid printed circuit boards (PCBs) and flexible printed circuits (FPCs). Unlike traditional screen printing—which requires stencils, solvent-based inks, and multiple manual alignment steps—this system employs piezoelectric drop-on-demand (DOD) inkjet technology with real-time vision-guided registration and dynamic board deformation compensation. It delivers consistent, repeatable character deposition (e.g., component outlines, polarity marks, UL logos, serial numbers) directly onto solder mask or coverlay surfaces using UV-curable white or black inks. Designed for integration into automated SMT lines or standalone AOI-adjacent workstations, the printer supports Class 2 and Class 3 IPC-A-600/IPC-6012-compliant legend quality requirements, including edge acuity ≥ 80 µm, contrast ratio ≥ 8:1 (per ASTM E308), and adhesion rated ≥ 4B per ISO 2409.

Key Features

• Precision Motion Architecture: Dual-axis linear motor-driven gantry with granite base and high-resolution optical encoders ensures positional repeatability of ±5 µm over full print area (up to 610 × 610 mm).
• Dynamic Board Compensation: Integrated CCD camera system performs real-time fiducial detection and calculates X/Y/θ scaling and skew correction for warped or thermally expanded substrates—critical for high-density HDI and flex-rigid boards.
• Dual-Head Printing Configuration: Two synchronized industrial-grade printheads (4–7 pl droplet volume, 1200 dpi native resolution) enable parallel printing across dual lanes or mirrored layout output, doubling throughput without compromising registration accuracy.
• UV Pre-Cure Integration: In-line LED-UV lamp array (365 nm peak wavelength, adjustable intensity 0–100%) initiates partial crosslinking immediately post-deposition, minimizing ink bleed and enabling rapid downstream handling.
• Proprietary Firmware & Calibration Suite: Embedded motion control firmware includes automatic nozzle health monitoring, ink viscosity drift compensation, and closed-loop feedback from piezoelectric drive voltage response—ensuring stable jetting performance across 8–12 hour continuous operation.

Sample Compatibility & Compliance

The system accommodates standard PCB panel sizes (up to 24″ × 24″), including FR-4, polyimide (PI), and metal-core substrates with thicknesses from 0.05 mm to 3.2 mm. Compatible with industry-standard UV-curable white, black, and yellow legends meeting IPC-SM-840 Class T qualifications. All hardware and software modules comply with CE machinery directive (2006/42/EC), RoHS 2015/863/EU, and meet EMC immunity thresholds per IEC 61000-6-2. The printer’s operational log and job traceability records support GLP/GMP documentation workflows; audit trail export (CSV/JSON) includes timestamped operator ID, substrate batch ID, ink lot number, and printhead calibration history.

Software & Data Management

ZY-PrintStudio™ v4.x is a Windows-based offline programming and production management platform supporting Gerber RS-274X, ODB++, and IPC-2581 import. Its visual editor enables layer-specific legend placement with vector-based font rendering (TrueType/OpenType), variable data injection via CSV database linkage, and automatic DFM checking for minimum line width (≥ 120 µm), spacing (≥ 150 µm), and clearance from solder mask dams. The software enforces role-based access control (RBAC), logs all parameter changes with user attribution, and generates PDF reports compliant with FDA 21 CFR Part 11 electronic signature requirements when deployed with validated Windows Server authentication infrastructure.

Applications

• High-mix, low-volume PCB prototyping with rapid legend revision turnaround
• Mass production of automotive ADAS modules requiring UL-certified silkscreen alternatives
• FPC manufacturing for wearables—where fine-pitch components demand sub-100 µm legend legibility
• Medical electronics assembly requiring full traceability and ink biocompatibility validation (ISO 10993-5)
• Defense/aerospace subcontractors fulfilling MIL-STD-2000A marking specifications for permanent identification

FAQ

Does the system support IPC-D-356 netlist-driven legend alignment?
Yes—ZY-PrintStudio™ can import netlist data to auto-generate fiducial-aligned reference markers for test point labeling and boundary scan identification.
What UV ink suppliers are qualified for use with this printer?
Approved vendors include Taiyo Ink (TPS-600 series), Sun Chemical (SunJet UV-LED), and Toyo Ink (UVP-1000); full compatibility matrix available under NDA.
Can the printer be integrated into a factory MES via OPC UA?
Standard Ethernet/IP and Modbus TCP interfaces are provided; optional OPC UA server add-on enables bidirectional status exchange and job dispatching with Siemens SIMATIC IT or Rockwell FactoryTalk.
Is remote diagnostics and firmware update supported?
Yes—via TLS-secured SSH tunnel and encrypted OTA package delivery; requires customer-configured firewall exception for port 2222.
What maintenance intervals are recommended for printhead cleaning and calibration?
Automated capping/wiping cycle every 4 hours; full nozzle verification and Z-height recalibration required weekly or after 200 operating hours—whichever occurs first.
