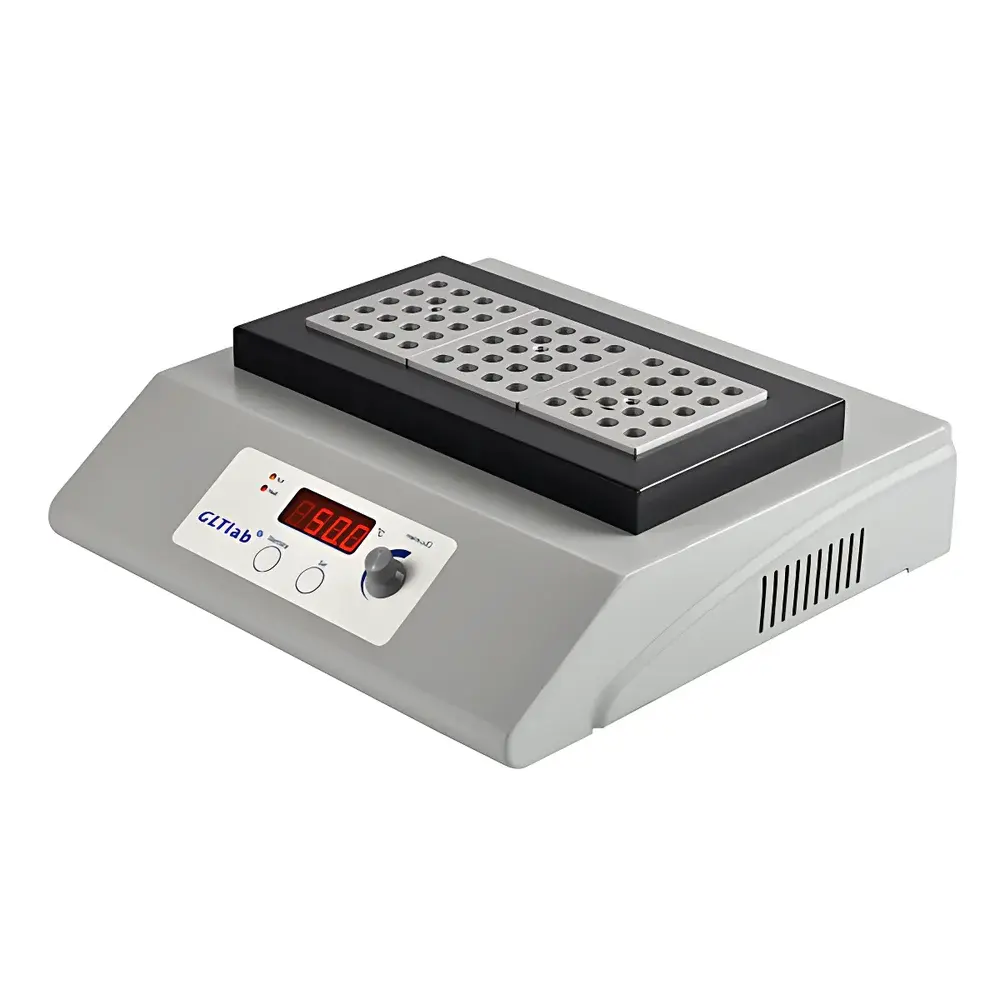

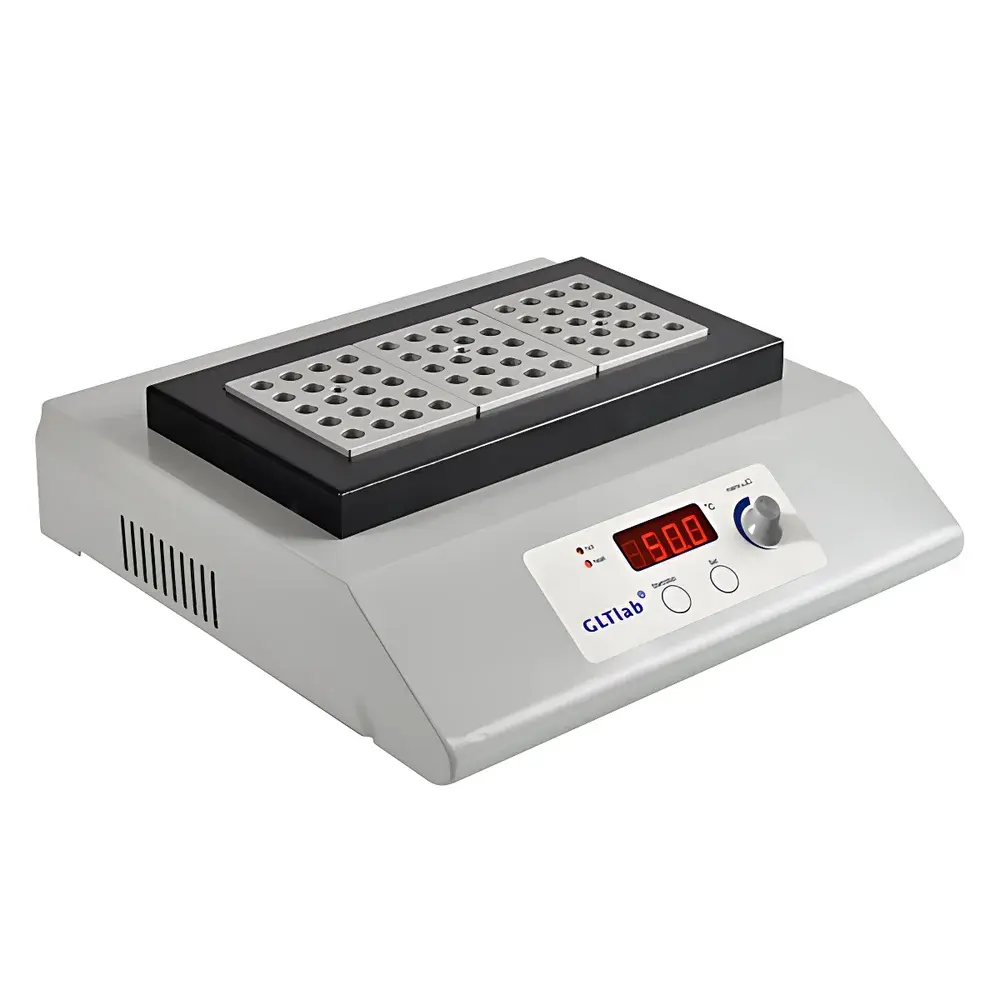

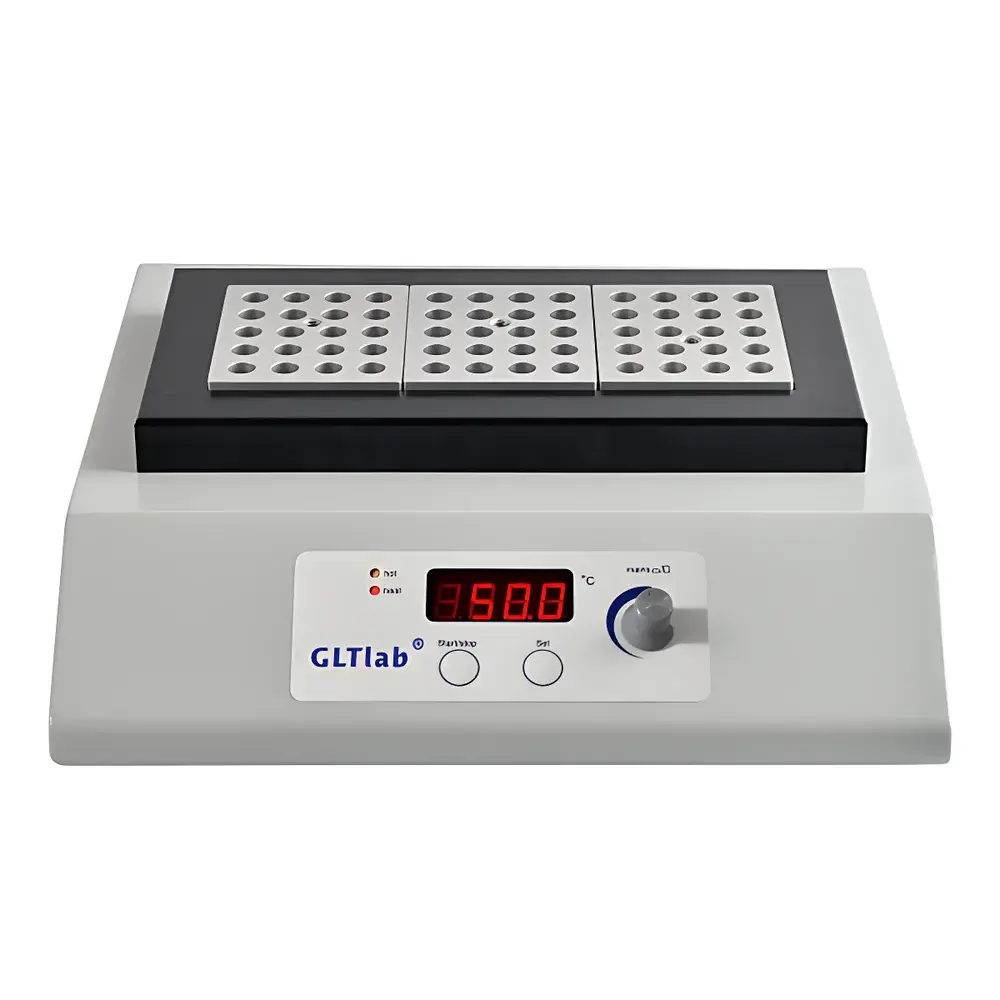

GLTLab BH603D Precision Metal Block Heater
| Brand | GLTLab |
|---|---|
| Model | BH603D |
| Temperature Range | 10–200 °C |
| Temperature Accuracy | ±0.2 °C |
| Heating Time to 100 °C | ≤10 min |
| Dimensions (W×D×H) | 305 × 290 × 110 mm |
| Net Weight | 5 kg |
| Power Supply | 230 V, 50 Hz / 110 V, 60 Hz |
| Control Type | Digital PID Controller |
| Block Capacity | Up to Three Interchangeable Aluminum Blocks |
| Block Compatibility | Standard ANSI/ISO-compliant well geometries (e.g., 0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL, 15 mL, 50 mL tubes |
Overview
The GLTLab BH603D Precision Metal Block Heater is a digitally controlled dry bath system engineered for stable, uniform, and repeatable thermal management of samples in research, clinical, and quality control laboratories. Unlike water baths, this metal block heater employs solid-state aluminum heating blocks to deliver rapid thermal response and eliminate contamination risks associated with liquid media. Its operation is based on resistive heating of precision-machined aluminum blocks, coupled with closed-loop PID temperature regulation and high-stability platinum resistance sensors (PT100-class), ensuring minimal thermal gradient across the block surface (<±0.3 °C at 100 °C). Designed for continuous-duty operation under ambient conditions (15–30 °C, <80% RH non-condensing), the BH603D supports critical time- and temperature-sensitive protocols including enzyme inactivation, DNA denaturation, sample thawing, reagent pre-warming, and solvent evaporation—without requiring consumables or maintenance-intensive components.
Key Features
- Digital PID temperature control with real-time display (0.1 °C resolution) and programmable ramp/soak profiles
- Triple-block configuration support: accommodates up to three independently sized aluminum blocks simultaneously (e.g., 96-well plate + 15 mL tube block + 0.2 mL PCR strip block)
- High-thermal-conductivity anodized aluminum blocks, CNC-machined to ISO-standard well diameters and depths for compatibility with globally recognized tube and plate formats
- Rapid thermal equilibration: reaches 100 °C from ambient in ≤10 minutes with <±0.2 °C accuracy maintained over 8-hour continuous operation
- Robust industrial-grade chassis with reinforced steel housing, integrated heat-dissipating vents, and non-slip silicone feet for benchtop stability
- Dual-voltage power input (110 V / 230 V) with automatic frequency recognition (50/60 Hz), enabling seamless deployment across North American, European, and APAC laboratory infrastructures
Sample Compatibility & Compliance
The BH603D accepts all standard laboratory consumables via interchangeable aluminum blocks—including conical centrifuge tubes (1.5 mL, 2.0 mL, 15 mL, 50 mL), PCR tubes (0.2 mL, 0.5 mL), microcentrifuge strips, and 96-well plates. Each block is manufactured to ASTM E2757-22 dimensional tolerances for thermal contact consistency. The device complies with IEC 61010-1:2010 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and meets EMC requirements per EN 61326-1:2013. While not certified for use in explosion-proof or regulated GMP manufacturing environments, it is routinely deployed in GLP-compliant analytical labs where traceable calibration and operational logs are maintained per internal SOPs.
Software & Data Management
The BH603D operates as a standalone instrument with no proprietary software dependency. All setpoints, dwell times, and temperature logs are managed via its front-panel interface. For integration into automated workflows, optional RS-232 or USB-to-serial adapters (sold separately) enable ASCII-based command communication (SCPI-like syntax) for remote triggering and status polling. Temperature stability data can be exported manually via timestamped screen capture or logged externally using third-party DAQ systems compliant with IEEE 1451.4 transducer electronic data sheet (TEDS) standards. Audit trail functionality is not embedded but may be implemented externally via network-connected environmental monitoring platforms adhering to FDA 21 CFR Part 11 requirements.
Applications
- Molecular biology: PCR setup, restriction digest incubation, ligase activation, plasmid miniprep elution
- Clinical diagnostics: Serum sample thawing prior to ELISA or immunoassay, calibrator reconstitution
- Pharmaceutical QC: Dissolution medium pre-heating, viscosity standard equilibration, residual solvent removal
- Environmental testing: Extraction solvent warming in EPA Method 3510C derivatization steps
- Food & beverage labs: Enzyme activity assays, microbial culture media tempering, fat extraction pre-conditioning
FAQ
Is the BH603D suitable for use with volatile organic solvents?
Yes—provided appropriate ventilation is maintained and blocks are cleaned post-use; aluminum construction resists corrosion from common solvents such as ethanol, acetone, and chloroform.
Can I calibrate the unit in-house?
Yes—the unit includes a dedicated calibration mode accessible via service menu; users may adjust offset values using a NIST-traceable reference thermometer (e.g., Fluke 1523 with dry-well comparator).
What is the maximum recommended operating duration?
Continuous operation is supported for ≥16 hours at temperatures ≤150 °C; extended use above 180 °C requires periodic cooldown intervals to preserve block longevity.
Are custom block designs available?
Yes—GLTLab offers OEM block fabrication services aligned with customer-specific well patterns, depths, and material specifications (e.g., stainless steel or ceramic-coated variants) under NDAs.
Does the BH603D support external temperature probes?
No—it relies exclusively on integrated PT100 sensors embedded within each block; external probe inputs are not provided.
