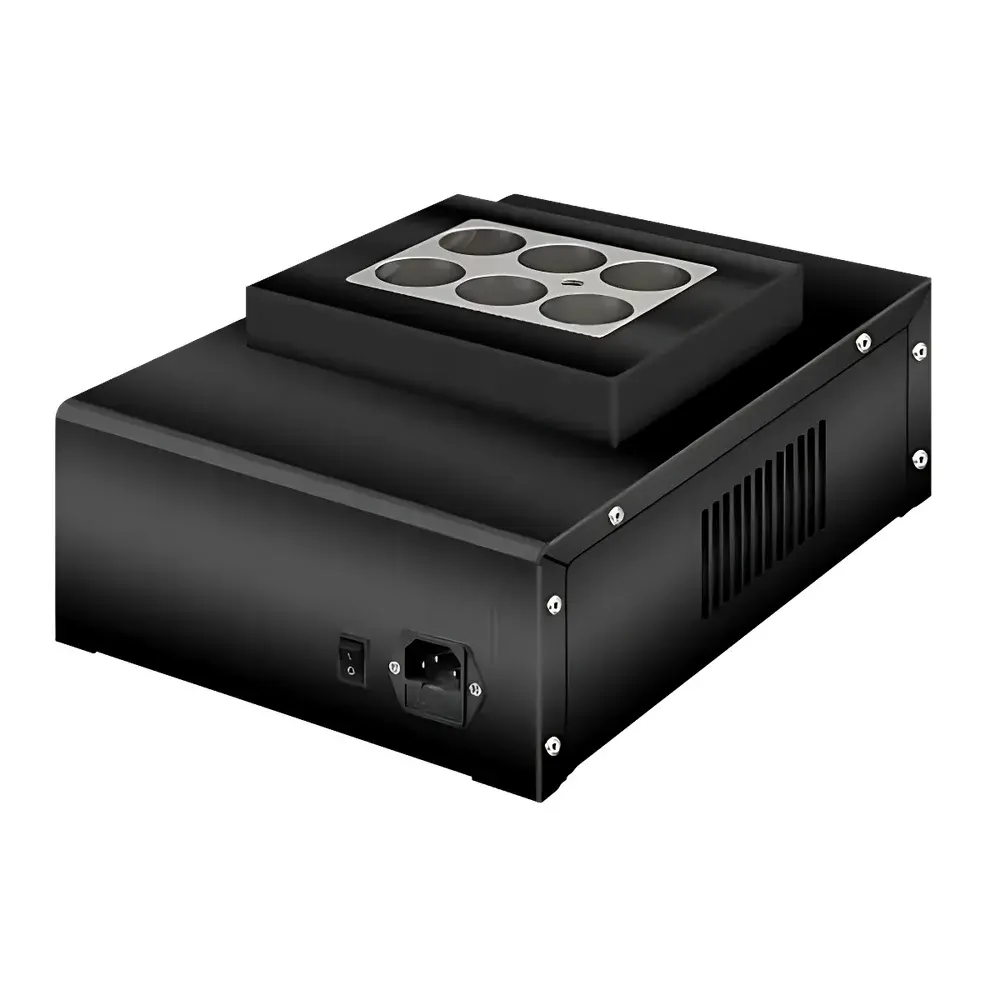

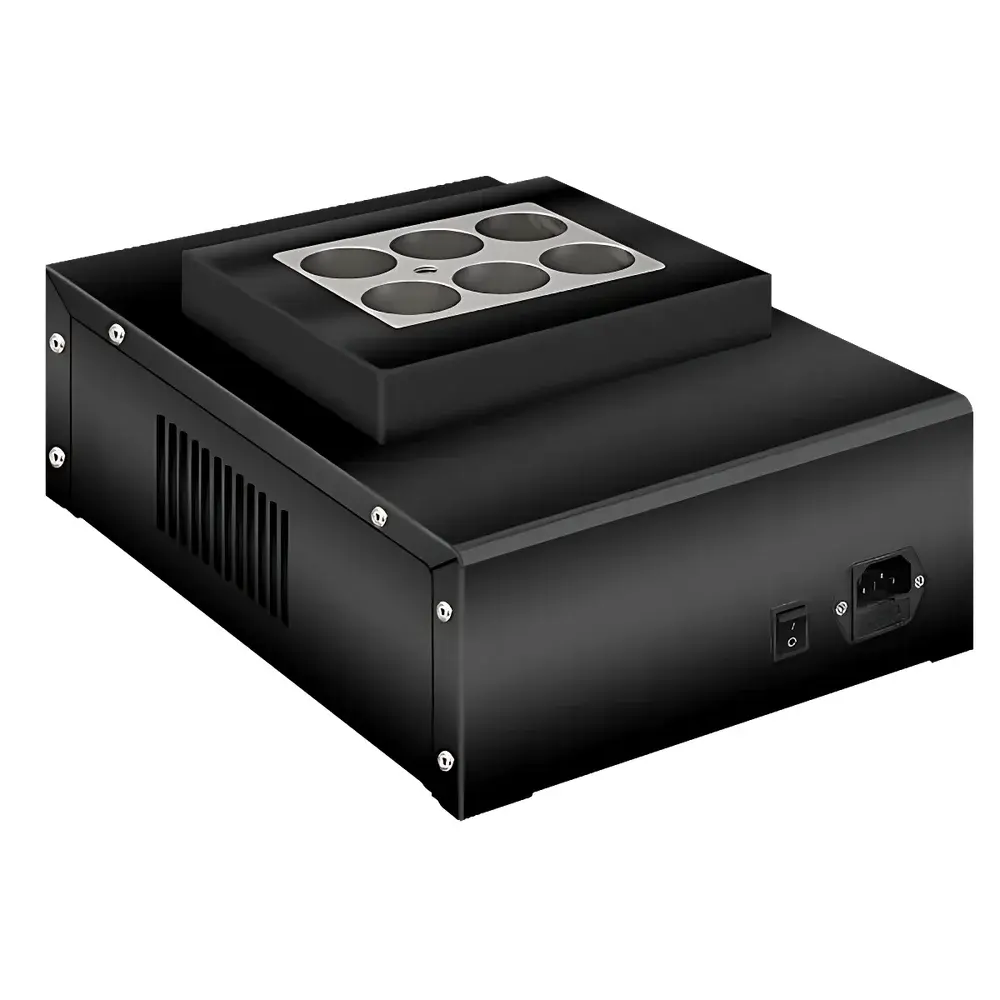

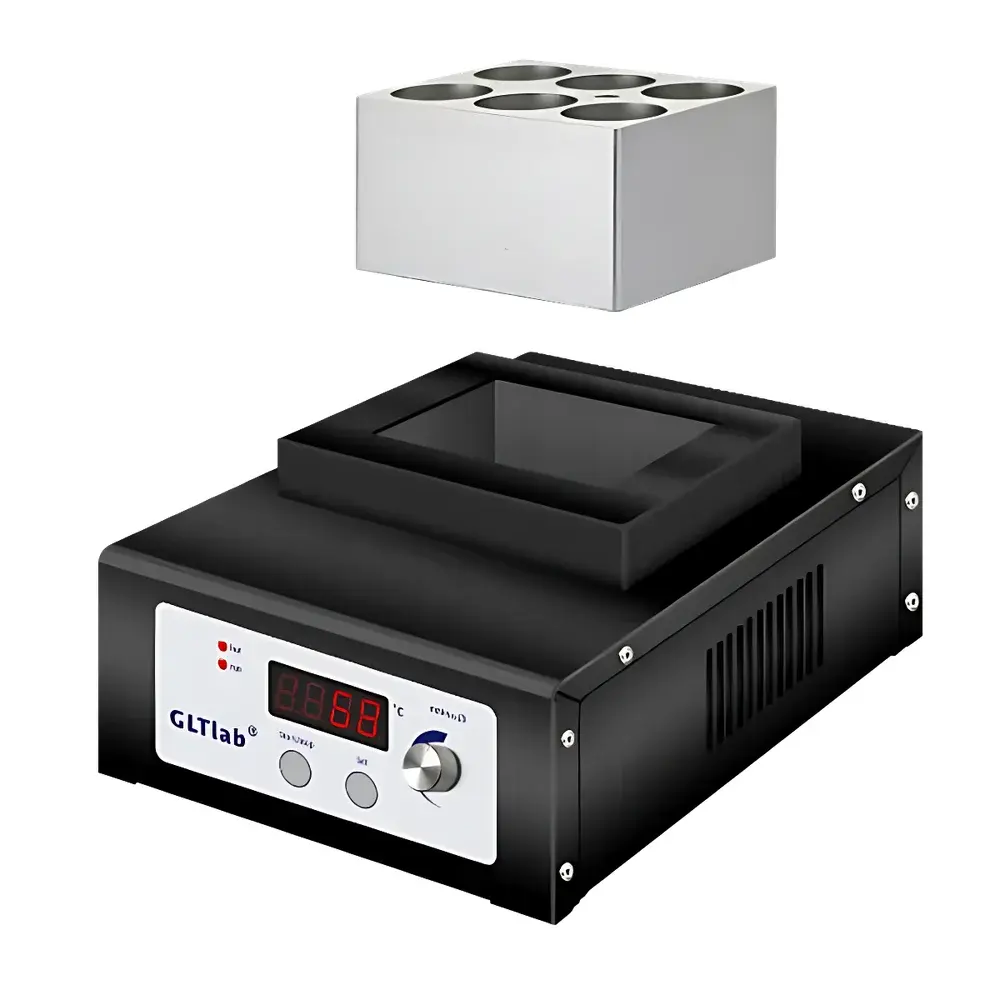

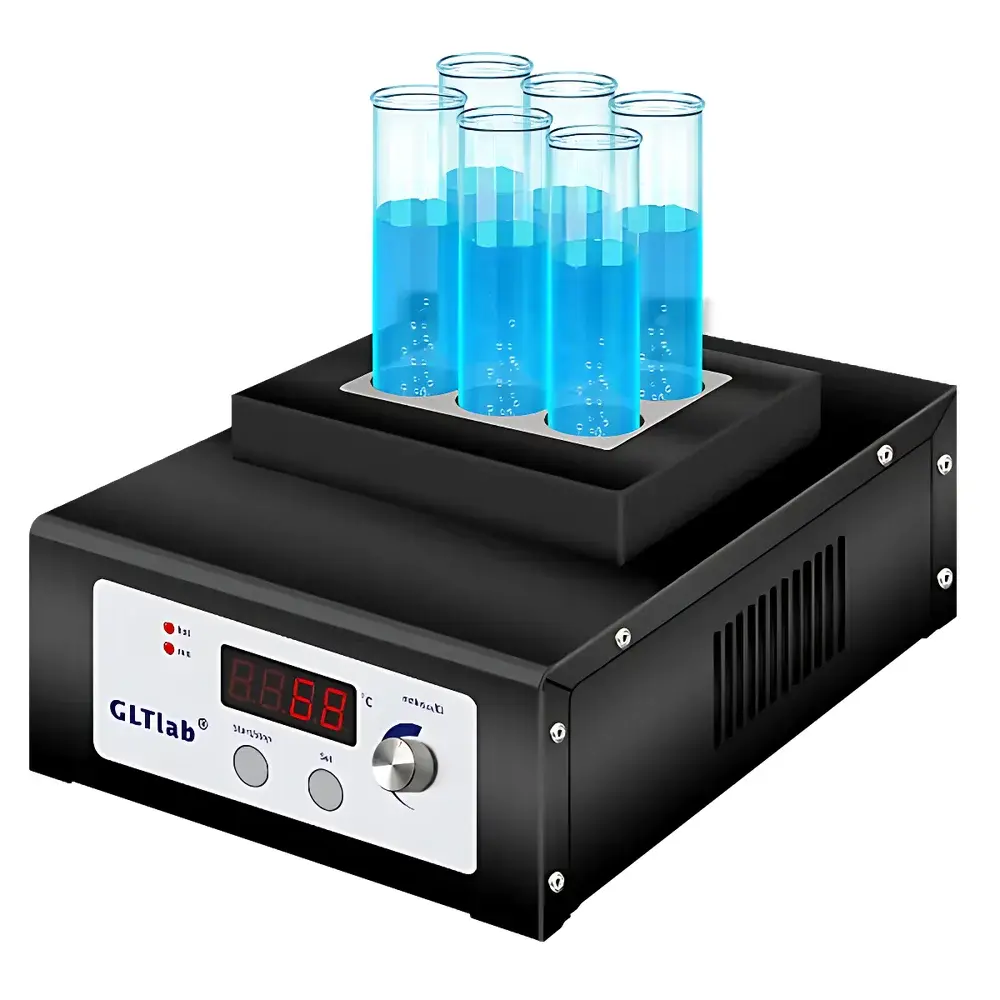

GLTlab DB-01 Digital Constant-Temperature Metal Bath

Overview

The GLTlab DB-01 Digital Constant-Temperature Metal Bath is an engineered thermal platform designed for precise, stable, and uniform sample heating in life science, clinical diagnostics, molecular biology, and analytical chemistry laboratories. Unlike water baths or dry block heaters with ceramic or aluminum blocks, the DB-01 employs a solid stainless steel (AISI 304) heating block—providing superior thermal conductivity, mechanical rigidity, chemical resistance, and long-term dimensional stability. Its operation is based on resistive heating elements embedded beneath a machined metal block, coupled with high-gain PID temperature control logic and real-time feedback from a calibrated platinum RTD (PT100-class) sensor. This architecture ensures rapid thermal equilibration, minimal spatial temperature gradients (24 h continuous operation). The unit operates within a validated range of 35–200 °C, with a firmware-enabled extended mode supporting up to 300 °C for specialized applications such as enzyme inactivation, paraffin embedding preparation, or solvent evaporation protocols.

Key Features

• Stainless steel (304) heating block for corrosion resistance, ease of decontamination, and thermal homogeneity
• Digital PID temperature control with ±0.1 °C accuracy and <0.5 °C overshoot during ramping
• LED display with dual-unit capability (°C/°F), user-selectable via front-panel interface
• Hybrid control system: rotary encoder for coarse adjustment + tactile push-buttons for fine setpoint entry and function selection
• Programmable timer (1 min to 99 h 59 min) with audible end-of-cycle alert and auto-shutdown
• Optional RS485 serial interface (Modbus RTU protocol) for integration into centralized lab equipment monitoring systems or LIMS
• Compact footprint (180 × 220 × 100 mm) and low mass (3 kg) enabling benchtop deployment in space-constrained environments including biosafety cabinets and cold rooms
• 260 W heating power optimized for energy-efficient stabilization—typical power draw drops >70% after reaching setpoint

Sample Compatibility & Compliance

The DB-01 accommodates standard microcentrifuge tubes (0.2 mL, 0.5 mL, 1.5 mL, 2.0 mL), PCR strips, and small vials (up to 12 mm OD) using interchangeable aluminum or stainless steel adapter plates (sold separately). All block configurations maintain ISO/IEC 17025-aligned thermal uniformity per ASTM E220–21 methodology when validated with traceable thermocouple mapping. The device complies with IEC 61010-1:2010 for electrical safety in laboratory equipment and meets EMC requirements per CISPR 11 Group 1, Class B. While not certified for medical device use under FDA 21 CFR Part 820, it supports GLP/GMP workflows through optional audit-trail-capable software (when used with RS485-connected data loggers) and is routinely deployed in QC labs performing USP <1058> analytical instrument qualification.

Software & Data Management

Standalone operation requires no PC connection; however, the optional RS485 interface enables bidirectional communication with third-party SCADA platforms or custom Python/LabVIEW applications. When paired with compliant data acquisition hardware, users may record timestamped temperature logs, generate calibration certificates (per ISO/IEC 17025 Annex A.3), and enforce electronic signatures per FDA 21 CFR Part 11 requirements. Firmware updates are delivered via UART bootloader—no proprietary software required. Local event logging includes temperature deviation alerts, timer completion, and power interruption recovery status.

Applications

• Enzyme reaction incubation (e.g., restriction digests, ligations, phosphorylations)
• Sample thawing and pre-warming of reagents prior to ELISA, Western blotting, or NGS library prep
• Controlled denaturation and renaturation studies in protein biochemistry
• Thermal inactivation of nucleases or proteases in RNA/DNA extraction workflows
• Accelerated stability testing of formulations at elevated temperatures
• Preheating solvents and standards in HPLC and GC sample preparation
• Supporting histopathology protocols including paraffin wax melting (300 °C mode)

FAQ

What is the maximum recommended load capacity for uniform heating?
The DB-01 achieves optimal thermal uniformity with ≤24 × 0.2 mL tubes or ≤12 × 1.5 mL tubes. Overloading reduces airflow around the block and increases gradient magnitude.
Is calibration documentation provided with the unit?
Each unit ships with a factory verification report (non-accredited) confirming setpoint accuracy at 37 °C, 70 °C, and 100 °C. Accredited calibration services are available upon request.
Can the DB-01 be operated inside a fume hood?
Yes—its fully enclosed chassis, absence of moving parts, and low off-gassing housing materials make it suitable for inert or ventilated enclosures.
Does the RS485 option support Modbus TCP?
No—only Modbus RTU over RS485 physical layer is implemented. Ethernet gateways must be deployed externally.
How often should routine performance verification be conducted?
Per CLSI EP23-A and ISO/IEC 17025, daily verification using a traceable reference thermometer is recommended for regulated environments; weekly verification suffices for general research use.
